XZDG10X160S

型号：

XZDG10X160S

品牌：

SUNLED[ SUNLED CORPORATION ]

页数：

9 页

PDF大小：

370 K

下载PDF手册

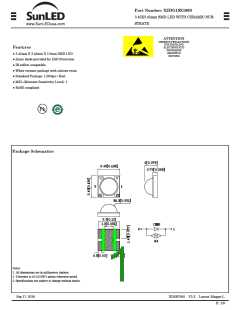

Part Number: XZDG10X160S
3.45X3.45mm SMD LED WITH CERAMIC SUB-
STRATE
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
Features
SENSITIVE
DEVICES
● 3.45mm X 3.45mm X 2.0mm SMD LED
● Zener diode provided for ESD Protection
● IR-reflow compatible
● White ceramic package with silicone resin
● Standard Package: 1,000pcs / Reel
● MSL (Moisture Sensitivity Level): 1
● RoHS compliant
Sep 17, 2016
XDSB7950 V3-Z Layout: Maggie L.
P. 1/9
Part Number: XZDG10X160S
3.45X3.45mm SMD LED WITH CERAMIC SUB-
STRATE
Φv (lm) [2]
CIE127-2007*
(IF=350mA)
Viewing
Angle
2 θ 1/2 [2]
Part
Number
Emitting Color (Material)
Lens-color
Code.
Min.
Max.
typ.
B13*
B14*
C1*
80*
90*
90*
100*
120*
140*
XZDG10X160S
Green (InGaN)
Water Clear
99.7*
120°
100*
120*
C2*
Notes:
1. θ 1/2 is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity / luminous flux: +/-15%.
* Luminous flux is in accordance with CIE127-2007 standards.
Absolute Maximum Ratings at TA=25°C
Parameter
DC Forward Current [1]
Symbol
IF
Value
Unit
500
mA
mA
W
Peak Forward Current [2]
Power dissipation
IFM
800
PD
1.9
Reverse Voltage
VR
5
-40 To +100
-40 To +120
120
V
Operating Temperature
Storage Temperature
Top
Tstg
TJ
°C
°C
Junction temperature [1]
Thermal resistance [1] (Junction/ambient)
°C
Rth j-a
Rth j-s
90
°C/W
°C/W
Thermal resistance [1] (Junction/solder point)
Notes:
20
1. Results from mounting on metal core PCB, mounted on pc board-metal core PCB is recommend for lowest thermal resistance.
2. 1/10 Duty Cycle, 0.1ms Pulse Width.
3. A Relative Humidity between 40% and 60% is recommended in ESD-protected work areas to reduce static build up during assembly process
(Reference JEDEC/JESD625-A and JEDEC/J-STD-033)
Electrical / Optical Characteristics at TA=25°C
Parameter
Symbol
λpeak
Value
520*
Unit
nm
Wavelength at peak emission CIE127-2007* IF = 350mA [Typ.]
Dominant Wavelength CIE127-2007* IF = 350mA [Typ.]
λdom [1]
530*
nm
35
nm
mA
△λ
Spectral bandwidth at 50% Φ REL MAX IF = 350mA [Typ.]
Allowable Reverse Current [Max.]
Forward Voltage IF = 350mA [Min.]
Forward Voltage IF = 350mA [Typ.]
Forward Voltage IF = 350mA [Max.]
IR
85
2.7
3.3
3.8
VF [2]
V
Temperature coefficient of λpeak
IF = 350mA, -10°C ≤ T ≤ 100°C [Typ.]
TCλpeak
TCλdom
TCV
0.04
0.03
-1.8
nm/°C
nm/°C
mV/°C
Temperature coefficient of λdom
IF = 350mA, -10°C ≤ T ≤100°C [Typ.]
Temperature coefficient of VF
IF = 350mA, -10°C ≤ T ≤ 100°C [Typ.]
Notes:
1. Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3. Wavelength value is traceable to CIE127-2007 standards.
Sep 17, 2016
XDSB7950 V3-Z Layout: Maggie L.
P. 2/9
Part Number: XZDG10X160S
3.45X3.45mm SMD LED WITH CERAMIC SUB-
STRATE
XZDG10X160S
Green
Sep 17, 2016
XDSB7950 V3-Z Layout: Maggie L.
P. 3/9
Part Number: XZDG10X160S
3.45X3.45mm SMD LED WITH CERAMIC SUB-
STRATE
Heat Generation:
1.Thermal design of the end product is of paramount importance. Please consider the heat generation of the LED when making the system design.
The coefficient of temperature increase per input electric power is affected by the thermal resistance of the circuit board and density of LED
placement on the board ,as well as other components. It is necessary to avoid intense heat generation and operate within the maximum ratings
given in this specification.
2.Please determine the operating current with consideration of the ambient temperature local to the LED and refer to the plot of Permissible
Forward current vs. Ambient temperature on CHARACTERISTICS in this specification. Please Also take meas ures to remove heat from the area
near the LED to improve the operational characteristics on the LED.
3.The equation ① indicates correlation between Tj and Ta ,and the equation ② indicates correlation between Tj and Ts
Tj = Ta + Rthj-a *W ………
Tj = Ts + Rthj-s *W ………
①
②
Tj = dice junction temperature: °C
Ta = ambient temperature:°C
Ts = solder point temperature:°C
Rthj-a = heat resistance from dice junction temperature to ambient temperature : °C/ W
Rthj-s = heat resistance from dice junction temperature to Ts measuring point : °C/ W
W = inputting power (IFx VF) : W
Sep 17, 2016
XDSB7950 V3-Z Layout: Maggie L.
P. 4/9
Part Number: XZDG10X160S
3.45X3.45mm SMD LED WITH CERAMIC SUB-
STRATE
™ Reflow soldering is recommended and the soldering profile is shown below.
Other soldering methods are not recommended as they might cause damage to the product.
™ The device has a single mounting surface.
The device must be mounted according to the
specific ations.
™ Recommended Soldering Pattern
Reel Dimension
(Units : mm; Tolerance: ±0.1)
™ Tape Specification (Units : mm)
Sep 17, 2016
XDSB7950 V3-Z Layout: Maggie L.
P. 5/9
Part Number: XZDG10X160S
3.45X3.45mm SMD LED WITH CERAMIC SUB-
STRATE
PACKING & LABEL SPECIFICATIONS
XZxxx160x
TERMS OF USE
1. Data presented in this document reflect statistical figures and should be treated as technical reference only.
2. Contents within this document are subject to improvement and enhancement changes without notice.
3. The product(s) in this document are designed to be operated within the electrical and environmental specifications indicated on the datasheet.
User accepts full risk and responsibility when operating the product(s) beyond their intended specifications.
4. The product(s) described in this document are intended for electronic applications in which a person’s life is not reliant upon the LED. Please
consult with a SunLED representative for special applications where the LED may have a direct impact on a person’s life.
5. The contents within this document may not be altered without prior consent by SunLED.
6. Additional technical notes are available at http://www.SunLEDusa.com/TechnicalNotes.asp
Sep 17, 2016
XDSB7950 V3-Z Layout: Maggie L.
P. 6/9
Part Number: XZDG10X160S
3.45X3.45mm SMD LED WITH CERAMIC SUB-
STRATE
Handling Precautions
Compare to epoxy encapsulant that is hard and brittle, silicone is softer and flexible. Although its characteristic
significantly reduces thermal stress, it is more susceptible to damage by external mechanical force.
As a result, special handling precautions need to be observed during assembly using silicone encapsulated
LED products. Failure to comply might lead to damage and premature failure of the LED.
1. Handle the component along the side surfaces by using forceps or appropriate tools.
2. Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry.
3. Do not stack together assembled PCBs containing exposed LEDs. Impact may scratch the silicone lens or
damage the internal circuitry.
4.1. There should be enough space inside the nozzle to avoid contact with the dome lens during pick up.
4.2. The inner diameter of the SMD pickup nozzle should not exceed the size of the LED to prevent air leaks.
4.3. A pliable material is suggested for the nozzle tip to avoid scratching or damaging the LED surface during pickup.
4.4. The dimensions of the component must be accurately programmed in the pick-and-place machine to insure precise
pickup and avoid damage during production.
5. As silicone encapsulation is permeable to gases, some corrosive substances such as H2S might corrode silver plating of lead-
frame. Special care should be taken if an LED with silicone encapsulation is to be used near such substances.
Sep 17, 2016
XDSB7950 V3-Z Layout: Maggie L.
P. 7/9
Part Number: XZDG10X160S
3.45X3.45mm SMD LED WITH CERAMIC SUB-
STRATE
Designing the Position of LED on a Board.
1.No twist/warp/bent/or other stress shall be applied to the board after mounting LED with
solder to avoid a crack of LED package.
Refer to the following recommended position and direction of LED.
Appropriate LED mounting is to place perpendicularly against the stress affected side.
2.Depending on the position and direction of LED,the mechanical stress on the LED package can be changed.
Refer to the following figure.
3.Do not split board by hand.Split with exclusive special tool.
4.If an aluminum circuit board is used,a large stress by thermal shock might cause a solder crack.
For this reason,it is recommended an appropriate verification should be taken before use.
JEDEC Moisture Sensitivity:
Soak Requirements
Accelerated Equivalent
Level
Floor Life
Standard
Time (hours)
Time
Time
Conditions
Conditions
Conditions
(hours)
168
+ 5 / - 0
1
Unlimited
85 °C / 85% RH
£ 30 °C / 85% RH
SunLED recommends keeping the LEDs in the sealed moisture-barrier packaging until immediately prior to use. Any unused LEDs should be re-
turned to the moisture-barrier bag and closed immediately after use.
ESD Protection During Production
Electric static discharge can result when static-sensitive products come in contact with the operator or other conductors.
The following procedures may decrease the possibility of ESD damage:
1.Minimize friction between the product and surroundings to avoid static buildup.
2.All production machinery and test instruments must be electrically grounded.
3.Operators must wear anti-static bracelets.
4.Wear anti-static suit when entering work areas with conductive machinery.
5.Set up ESD protection areas using grounded metal plating for component handling.
6.All workstations that handle IC and ESD-sensitive components must maintain an electrostatic potential of 150V or less.
7.Maintain a humidity level of 50% or higher in production areas.
8.Use anti-static packaging for transport and storage.
9.All anti-static equipment and procedures should be periodically inspected and evaluated for proper functionality.
Sep 17, 2016
XDSB7950 V3-Z Layout: Maggie L.
P. 8/9
Part Number: XZDG10X160S
3.45X3.45mm SMD LED WITH CERAMIC SUB-
STRATE
Reliability Test Items And Conditions
The reliability of products shall be satisfied with items listed below
Lot Tolerance Percent Defective (LTPD) : 10%
Number of
Damaged
No. Test Item
Standards
Test Condition
Test Times / Cycles
1,000 h
Ta =25°C +10/-5°C ,RH=55+/-20%RH
IF = maximum rated current*
1
2
3
Continuous operating test
-
-
-
0 / 22
Ta = 100°C(+/-10°C)
IF = maximum rated current*
High Temp. operating test
Low Temp. operating test
1,000 h
0 / 22
0 / 22
Ta = -40°C+3/-5°C
IF = maximum rated current*
1,000 h
Ta = 100°C(+/-10°C)
Ta = maximum rated storage tempera-
ture
JEITA ED-
4701/200 201
4
High temp. storage test
1,000 h
0 / 22
JEITA ED-
4701/200 202
5
6
7
Low temp. storage test
Ta = -40°C+3/-5°C
1,000 h
1,000 h
1,000h
0 / 22
0 / 22
0 / 22
JEITA ED-
4701/100 103
High temp. & humidity storage test
High temp. & humidity operating test
Ta = 60°C+5/-3°C, RH = 90+5/-10%RH
Ta = 60°C+5/-3°C, RH = 90%+5/-10%RH
IF = maximum rated current*
-
Resistance to Soldering Heat
(Reflow Soldering)
JEITA ED-
4701/300 301
8
9
Tsld=260°C,10sec
2 times
0 / 22
0 / 22
Solderability
(Reflow Soldering)
JEITA ED-
4701/303 303A
Tsld=245°C+/-5°C,5+/-1sec
1 time over 95%
-40°C(30min) ~25°C(5min)~100°C
(30min) ~25°C(5min)
IF = derated current at 100°C
10
11
12
Temperature Cycle operating test
Temperature Cycle
-
10cycles
100cycles
500 cycles
0 / 22
0 / 22
0 / 22
JEITA ED-
4701/100 105
-40°C(30min) ~25°C(5min)~100°C
(30min) ~25°C(5min)
Thermal shock test
MIL-STD-202G
Ta = -40°C(15min) ~100°C(15min)
JEITA ED-
4701/300 304
13
14
Electric Static Discharge (ESD)
Vibration test
C = 100pF , R= 1.5KΩ V = 8000 V
3 times Negative/Positive
48min.
0 / 22
0 / 22
100~2000~100HZ Sweep 4min.
200m/s²
JEITA ED-
4701/400 403
3directions,4cycles
Note : Refer to forward current vs. derating curve diagram.
Failure Criteria
Criteria for Judgement
Item
Symbol
Test Conditions
Min.
Max.
Forward Voltage
Luminous Flux
VF
IF = 350mA
IF = 350mA
-
Initial Level x 1.1
-
Φv
Initial Level x 0.7
Note: The test is performed after the board is cooled down to the room temperature.
Sep 17, 2016
XDSB7950 V3-Z Layout: Maggie L.
P. 9/9
厂商 型号 描述 页数 下载

SUNLED

 		XZDGK53W-8ST [ LED GREEN CLEAR CHIP SMD ] 4 页

SUNLED

 		XZDGK55W-2 [ LED GREEN CLEAR 2SMD REV ] 4 页

SUNLED

 		XZDMDK10A 表面贴装DISPLAY[ SURFACE MOUNT DISPLAY ] 3 页

SUNLED

 		XZDVG05C2 表面贴装DISPLAY[ SURFACE MOUNT DISPLAY ] 3 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.243702s
