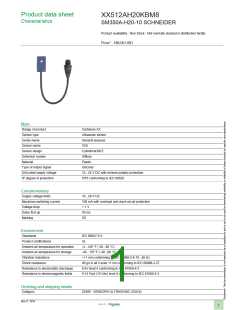

Product data sheet
XX512AH20KBM8
Characteristics
SM350A-H20-10 SCHNEIDER
Product availability : Non-Stock - Not normally stocked in distribution facility
Price* : 186.00 USD
Main
Range of product
OsiSense XX
Sensor type
Ultrasonic sensor
Series name
General purpose
Sensor name
XX5
Sensor design
Detection system
Material
Cylindrical M12
Diffuse
Plastic
Type of output signal
[Us] rated supply voltage
IP degree of protection
Discrete
12...24 V DC with reverse polarity protection
IP67 conforming to IEC 60529
Complementary
Supply voltage limits
Maximum switching current
Voltage drop
10...28 V DC
100 mA with overload and short-circuit protection
< 1 V
20 ms
CE
Delay first up
Marking
Environment
Standards
IEC 60947-5-2
Product certifications
UL
Ambient air temperature for operation
Ambient air temperature for storage
Vibration resistance
-4...149 °F (-20...65 °C)
-40...176 °F (-40...80 °C)
+/-1 mm conforming to IEC 60068-2-6 10...55 Hz
30 gn in all 3 axes 11 ms conforming to IEC 60068-2-27
8 kV level 4 conforming to IEC 61000-4-2
9.14 V/yd (10 V/m) level 3 conforming to IEC 61000-4-3
Shock resistance
Resistance to electrostatic discharge
Resistance to electromagnetic fields
Ordering and shipping details
Category
22490 - SENSORS-ULTRASONIC (XX5,6)
Mar 21, 2019
