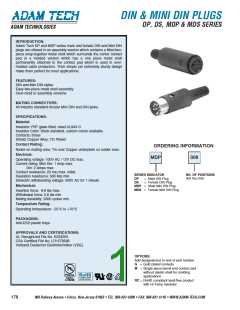

DIN & MINI DIN PLUGS
DP, DS, MDP & MDS SERIES
ADAM TECHNOLOGIES
INTRODUCTION:
Adam Tech DP and MDP series male and female DIN and Mini DIN
plugs are offered in an assembly version which contains a fitted two-
piece snap-together metal shell which surrounds the center contact
pad or a molded version which has a one piece metal shell
permanently attached to the contact pad which is used in over-
molded cable production. Their simple yet extremely sturdy design
make them perfect for most applications.
FEATURES:
DIN and Mini DIN styles
Easy two-piece metal shell assembly
Over-mold or assembly versions
MATING CONNECTORS:
All industry standard circular Mini DIN and DIN jacks.
SPECIFICATIONS:
Material:
Insulator: PBT glass filled, rated UL94V-0
Insulator Color: Black standard, custom colors available
Contacts: Brass
Shield: Copper Alloy, Tin Plated
Contact Plating:
Nickel on mating area, Tin over Copper underplate on solder area.
ORDERING INFORMATION
Electrical:
008
MDP
Operating voltage: 100V AC / 12V DC max.
Current rating: Mini Din: 1 Amp max.
Din: 2 Amps max
Contact resistance: 20 mΩ max. initial
Insulation resistance: 500 MΩ min.
Dielectric withstanding voltage: 500V AC for 1 minute
NO. OF POSITIONS
003 thru 009
SERIES INDICATOR
DP
DS
= Male DIN Plug
= Female DIN Plug
Mechanical:
MDP = Male Mini DIN Plug
MDS = Female Mini DIN Plug
Insertion force: 9.9 lbs max.
Withdrawal force: 0.8 lbs min
Mating durability: 5000 cycles min.
Temperature Rating:
Operating temperature: -25°C to +70°C
PACKAGING:
Anti-ESD plastic trays
APPROVALS AND CERTIFICATIONS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
Verband Deutscher Elektrotechniker (VDE)
OPTIONS:
Add designator(s) to end of part number
G
M
= Gold plated contacts
= Single piece barrel and contact pad
without plastic shell for molding
applications
V
®
®
RoHS
D
E
COMPLIANT
OPTION AVAILABLE
RC = RoHS compliant lead-free product
with Hi-Temp insulator
178
