2SK3174A

型号:

2SK3174A

品牌:

RENESAS[ RENESAS TECHNOLOGY CORP ]

页数:

10 页

PDF大小:

103 K

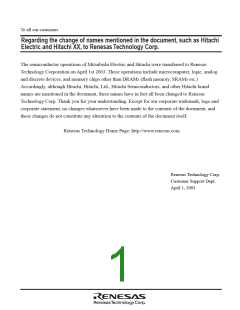

To all our customers
Regarding the change of names mentioned in the document, such as Hitachi
Electric and Hitachi XX, to Renesas Technology Corp.
The semiconductor operations of Mitsubishi Electric and Hitachi were transferred to Renesas
Technology Corporation on April 1st 2003. These operations include microcomputer, logic, analog
and discrete devices, and memory chips other than DRAMs (flash memory, SRAMs etc.)
Accordingly, although Hitachi, Hitachi, Ltd., Hitachi Semiconductors, and other Hitachi brand
names are mentioned in the document, these names have in fact all been changed to Renesas
Technology Corp. Thank you for your understanding. Except for our corporate trademark, logo and
corporate statement, no changes whatsoever have been made to the contents of the document, and
these changes do not constitute any alteration to the contents of the document itself.
Renesas Technology Home Page: http://www.renesas.com
Renesas Technology Corp.
Customer Support Dept.
April 1, 2003
Cautions
Keep safety first in your circuit designs!
1. Renesas Technology Corporation puts the maximum effort into making semiconductor products better
and more reliable, but there is always the possibility that trouble may occur with them. Trouble with
semiconductors may lead to personal injury, fire or property damage.
Remember to give due consideration to safety when making your circuit designs, with appropriate
measures such as (i) placement of substitutive, auxiliary circuits, (ii) use of nonflammable material or
(iii) prevention against any malfunction or mishap.
Notes regarding these materials
1. These materials are intended as a reference to assist our customers in the selection of the Renesas
Technology Corporation product best suited to the customer's application; they do not convey any
license under any intellectual property rights, or any other rights, belonging to Renesas Technology
Corporation or a third party.
2. Renesas Technology Corporation assumes no responsibility for any damage, or infringement of any
third-party's rights, originating in the use of any product data, diagrams, charts, programs, algorithms, or
circuit application examples contained in these materials.
3. All information contained in these materials, including product data, diagrams, charts, programs and
algorithms represents information on products at the time of publication of these materials, and are
subject to change by Renesas Technology Corporation without notice due to product improvements or
other reasons. It is therefore recommended that customers contact Renesas Technology Corporation
or an authorized Renesas Technology Corporation product distributor for the latest product information
before purchasing a product listed herein.
The information described here may contain technical inaccuracies or typographical errors.
Renesas Technology Corporation assumes no responsibility for any damage, liability, or other loss
rising from these inaccuracies or errors.
Please also pay attention to information published by Renesas Technology Corporation by various
means, including the Renesas Technology Corporation Semiconductor home page
(http://www.renesas.com).
4. When using any or all of the information contained in these materials, including product data, diagrams,
charts, programs, and algorithms, please be sure to evaluate all information as a total system before
making a final decision on the applicability of the information and products. Renesas Technology
Corporation assumes no responsibility for any damage, liability or other loss resulting from the
information contained herein.
5. Renesas Technology Corporation semiconductors are not designed or manufactured for use in a device
or system that is used under circumstances in which human life is potentially at stake. Please contact
Renesas Technology Corporation or an authorized Renesas Technology Corporation product distributor
when considering the use of a product contained herein for any specific purposes, such as apparatus or
systems for transportation, vehicular, medical, aerospace, nuclear, or undersea repeater use.
6. The prior written approval of Renesas Technology Corporation is necessary to reprint or reproduce in
whole or in part these materials.
7. If these products or technologies are subject to the Japanese export control restrictions, they must be
exported under a license from the Japanese government and cannot be imported into a country other
than the approved destination.
Any diversion or reexport contrary to the export control laws and regulations of Japan and/or the
country of destination is prohibited.
8. Please contact Renesas Technology Corporation for further details on these materials or the products
contained therein.
2SK3174A
Silicon N Channel MOS FET
UHF Power Amplifier
ADE-208-1451 (Z)
1st. Edition
September 2001
Features
High power output, High gain, High efficiency
P1dB = 220 W , PG = 15.3dB , ηD = 61 % (at P1dB) typ. (f = 860MHz)
Compact package
Suitable for push - pull circuit
Outline
RFPAK-F
4
3
D
D
5
G
G
2
1. Drain
2. Drain
3. Source
4. Gate
5. Gate
1
S
This Device is sensitive to Electro Static Discharge. An Adequate handling procedure is requested.
In AC testing, the part should be mounted on heat sink with thermal compound.
2SK3174A
Absolute Maximum Ratings
(Ta = 25°C)
Item
Symbol
Ratings
Unit
V
Note1
Drain to source voltage
Gate to source voltage
Drain current
VDSS
60
VGSS
ID
10
V
16
A
Note2
Drain peak current
Channel dissipation
Channel temperature
Storage temperature
Note: 1. Pin=0, PW 0.1sec
ID(pulse)
32
A
Note3
Pch
252
W
°C
°C
Tch
175
Tstg
–55 to +150
2. PW 10ms, duty cycle 50 %
3. Value at Tc = 25°C
Electrical Characteristics
(Tc = 25°C)
Item
Symbol Min
Typ
Max
1
Unit
mA
µA
V
Test Conditions
Note4
Zero gate voltage drain current
IDSS
VDS = 60 V, VGS = 0
Note4
Gate to source leak current
IGSS
3
VGS = 10 V, VDS = 0
Note4
Gate to source cutoff voltage
VGS(off)
|yfs|
Ciss
1.0
4.0
2.3
6.7
162
3.0
ID = 1 mA, VDS = 10 V
Note45
Note5
Forward transfer admittance
S
VDS=10 V, ID = 5 A
Note4
Input capacitance
pF
VGS = 5 V, VDS = 0
f = 1 MHz
Note4
Reverse transfer capacitance
Output Power
Crss
Pout
4
pF
W
VDG = 10 V, VGS = 0
f = 1 MHz
200
270
VDS = 28 V, IDQ = 1.2 A
f = 860 MHz
Pin = 14 W
Drain Rational
ηD
64
%
VDS = 28 V, IDQ = 1.2 A
f = 860 MHz
Pin = 14 W
Note: 4. Shows 1 unit FET
5. Pulse Test
Rev.0, Aug. 2001, page 2 of 2
2SK3174A
Main Characteristics
Maximum Safe Operation Area
Power vs. Temperature Derating
400
300
200
100
50
20
10
5
o
2
1
0.5
0
1
10
20
50
100
150
200
2
50
(V)
5
100
Drain to Source Voltage
V
Case Temperature Tc (°C)
DS
Typical Output Characteristics
Typical Transfer Characteristics
= 10 V
Pulse Test
Shows 1 unit FET
20
16
12
8
20
16
12
8
10 V
8 V
V
DS
6 V
5 V
Pulse Test
Shows 1 unit FET
4 V
4
4
V
GS
= 3 V
0
0
1
2
3
4
5
6
2
4
6
8
10
(V)
Gate to Source Voltage
V
(V)
Drain to Source Voltage
V
DS
GS
Rev.0, Aug. 2001, page 3 of 3
2SK3174A
Drain to Source Saturatioin Voltage vs.
Drain Current
Forward Transfer Admittance vs.
Drain Current
10
5
5
2
1
2
1
0.5
0.2
0.1
0.5
0.05
V
= 10 V
DS
V
= 10 V
GS
0.2
0.1
Pulse Test
Shows 1 unit FET
Pulse Test
Shows 1 unit FET
0.02
0.01
10 20
0.1
2
0.1 0.2
0.5
Drain Current I
5
0.2 0.5
1
5
10 20
(A)
1
2
50
Drain Current I
(A)
D
D
Input Capacitance vs.
Gate to Source Voltage
Gate to Source Cutoff Voltage vs.
Ambient Temperature
170
3.6
3.2
2.8
2.4
2.0
1.6
Shows 1 unit FET
165
160
155
150
V
= 0
145
140
DS
V
= 10 V
DS
Shows 1 unit FET
f = 1 MHz
- 25
-10
- 6
6 10
0
25
50
75
100 125
- 2
2
Ambient Temperature Ta (°C)
Gate to Source Voltage V
GS
(V)
Rev.0, Aug. 2001, page 4 of 4
2SK3174A
Reverse Transfer Capacitance vs.
Drain to Gate Voltage
Output Capacitance vs.
Drain to Source Voltage
1000
500
100
50
V
= 0
V
= 0
f = 1 MHz
Shows 1 unit FET
GS
GS
f = 1 MHz
Shows 1 unit FET
20
10
5
200
100
50
2
1
20
10
1
2
5
10 20
50 100
(V)
1
2
5
10 20
50 100
(V)
Drain to Gate Voltege V
Drain to Source Voltage V
DG
DS
Output Power, Drain Rational
vs. Input Power
Drain Rational vs. Output Power
80
60
40
20
400
300
200
80
60
40
20
η
D
Pout
100
0
V
= 28 V
DS
= 1.2 A
V
= 28 V
DS
= 1.2 A
I
DQ
I
DQ
f = 860 MHz
f = 860 MHz
0
0
2
4
6
8
10 12 14
0
0
50
300
100 150 200 250
Output Power Pout (W)
Input power Pin (W)
Rev.0, Aug. 2001, page 5 of 5
2SK3174A
Output Power, Drain Rational
vs. Frequency
Inter Modulation
vs. Total Output Power
100
90
80
70
300
250
V
= 28 V
=1.2A
DS
IM7L
Pout
I
DQ
IM7H
f
= 860 MHz
80
c
η
f=1MHz
D
60
50
40
30
20
200
150
100
50
70
60
50
40
30
20
IM3H
IM3L
IM5H
V
I
= 28 V
DS
= 1.2 A
DQ
Pin = 14 W
IM5L
0
830
30
50
46
34
38
42
840 850 860 870 880 890
Total Output Power Pout-total (dBm)
Frequency f (MHz)
Rev.0, Aug. 2001, page 6 of 6
2SK3174A
Package Dimensions
As of July, 2001
29.6 0.5
28.4 0.3
Unit: mm
2-C1.0
2-R1.6
9.6 0.3
13.0 0.3
35.6 0.5
38.8 0.5
Hitachi Code
JEDEC
RFPAK-F
JEITA
Mass (reference value)
17.2 g
Rev.0, Aug. 2001, page 7 of 7
2SK3174A
Disclaimer
1. Hitachi neither warrants nor grants licenses of any rights of Hitachi’s or any third party’s patent,
copyright, trademark, or other intellectual property rights for information contained in this document.
Hitachi bears no responsibility for problems that may arise with third party’s rights, including
intellectual property rights, in connection with use of the information contained in this document.
2. Products and product specifications may be subject to change without notice. Confirm that you have
received the latest product standards or specifications before final design, purchase or use.
3. Hitachi makes every attempt to ensure that its products are of high quality and reliability. However,
contact Hitachi’s sales office before using the product in an application that demands especially high
quality and reliability or where its failure or malfunction may directly threaten human life or cause risk
of bodily injury, such as aerospace, aeronautics, nuclear power, combustion control, transportation,
traffic, safety equipment or medical equipment for life support.
4. Design your application so that the product is used within the ranges guaranteed by Hitachi particularly
for maximum rating, operating supply voltage range, heat radiation characteristics, installation
conditions and other characteristics. Hitachi bears no responsibility for failure or damage when used
beyond the guaranteed ranges. Even within the guaranteed ranges, consider normally foreseeable
failure rates or failure modes in semiconductor devices and employ systemic measures such as fail-
safes, so that the equipment incorporating Hitachi product does not cause bodily injury, fire or other
consequential damage due to operation of the Hitachi product.
5. This product is not designed to be radiation resistant.
6. No one is permitted to reproduce or duplicate, in any form, the whole or part of this document without
written approval from Hitachi.
7. Contact Hitachi’s sales office for any questions regarding this document or Hitachi semiconductor
products.
Sales Offices
Hitachi, Ltd.
Semiconductor & Integrated Circuits
Nippon Bldg., 2-6-2, Ohte-machi, Chiyoda-ku, Tokyo 100-0004, Japan
Tel: (03) 3270-2111 Fax: (03) 3270-5109
URL
http://www.hitachisemiconductor.com/
For further information write to:
Hitachi Semiconductor
(America) Inc.
Hitachi Europe Ltd.
Hitachi Asia Ltd.
Hitachi Asia (Hong Kong) Ltd.
Group III (Electronic Components)
7/F., North Tower
Electronic Components Group
Hitachi Tower
179 East Tasman Drive Whitebrook Park
16 Collyer Quay #20-00
Singapore 049318
Tel : <65>-538-6533/538-8577
Fax : <65>-538-6933/538-3877
URL : http://semiconductor.hitachi.com.sg
San Jose,CA 95134
Lower Cookham Road
World Finance Centre,
Tel: <1> (408) 433-1990 Maidenhead
Fax: <1>(408) 433-0223 Berkshire SL6 8YA, United Kingdom
Tel: <44> (1628) 585000
Harbour City, Canton Road
Tsim Sha Tsui, Kowloon Hong Kong
Tel : <852>-(2)-735-9218
Fax : <852>-(2)-730-0281
URL : http://semiconductor.hitachi.com.hk
Fax: <44> (1628) 585200
Hitachi Asia Ltd.
(Taipei Branch Office)
4/F, No. 167, Tun Hwa North Road
Hung-Kuo Building
Taipei (105), Taiwan
Tel : <886>-(2)-2718-3666
Fax : <886>-(2)-2718-8180
Telex : 23222 HAS-TP
URL : http://www.hitachi.com.tw
Hitachi Europe GmbH
Electronic Components Group
Dornacher Straße 3
D-85622 Feldkirchen
Postfach 201, D-85619 Feldkirchen
Germany
Tel: <49> (89) 9 9180-0
Fax: <49> (89) 9 29 30 00
Copyright © Hitachi, Ltd., 2001. All rights reserved. Printed in Japan.
Colophon 5.0
Rev.0, Aug. 2001, page 8 of 8
厂商 型号 描述 页数 下载

PANASONIC

2SK0065 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

2SK0065(2SK65) 小信号デバイス - 小信号FET - 接合形场效应管\n[ 小信号デバイス - 小信号FET - 接合形FET ] 3 页

ETC

2SK0065P 晶体管| JFET | N沟道| 12V V( BR ) DSS | 40uA的我( DSS ) | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 40UA I(DSS) | SPAKVAR ] 3 页

ETC

2SK0065Q 晶体管| JFET | N沟道| 12V V( BR ) DSS | 150UA我( DSS ) | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 150UA I(DSS) | SPAKVAR ] 3 页

PANASONIC

2SK0123 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

2SK0123(2SK123) 小信号器件 - 小信号场效应管 - 场效应管结\n[ Small-signal device - Small-signal FETs - Junction FETs ] 3 页

PANASONIC

2SK0198 对于低频放大[ For Low-Frequency Amplification ] 3 页

ETC

2SK0198(2SK198) 2SK0198 ( 2SK198 ) - N沟道结型场效应管\n[ 2SK0198 (2SK198) - N-Channel Junction FET ] 3 页

PANASONIC

2SK0198P [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

PANASONIC

2SK0198Q [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.216730s
