2STF2280

型号：

2STF2280

品牌：

STMICROELECTRONICS[ ST ]

页数：

7 页

PDF大小：

84 K

下载PDF手册

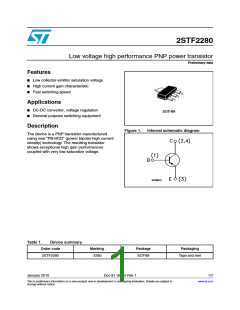

2STF2280
Low voltage high performance PNP power transistor
Preliminary data
Features
■ Low collector-emitter saturation voltage
■ High current gain characteristic
■ Fast switching speed
4
3
2
1
Applications
■ DC-DC converter, voltage regulation
■ General purpose switching equipment
SOT-89
Description
Figure 1.
Internal schematic diagram
The device is a PNP transistor manufactured
using new “PB-HCD” (power bipolar high current
density) technology. The resulting transistor
shows exceptional high gain performances
coupled with very low saturation voltage.
Table 1.
Order code
2STF2280
Device summary
Marking
Package
SOT-89
Packaging
2280
Tape and reel
January 2010
Doc ID 16984 Rev 1
1/7
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to
change without notice.
www.st.com
7
Electrical ratings
2STF2280
1
Electrical ratings
Table 2.
Absolute maximum ratings
Parameter
Symbol
Value
Unit
VCBO
VCEO
VEBO
IC
Collector-base voltage (IE = 0)
Collector-emitter voltage (IB = 0)
Emitter-base voltage (IC = 0)
Collector current
-80
-80
-5
V
V
V
A
A
A
A
W
2
ICM
Collector peak current (tP < 5 ms)
Base current
4
IB
0.5
1
IBM
Base peak current (tP < 5 ms)
Total dissipation at Tamb = 25°C
Operating junction temperature
Storage temperature
PTOT
TJ
1.4
-65 to 150
°C
TSTG
Table 3.
Thermal data
Symbol
Parameter
Value
Unit
(1)
RthJA
Thermal resistance junction-ambient
max
89
°C/W
1. Device mounted on a PCB area of 1 cm².
2/7
Doc ID 16984 Rev 1
2STF2280
Electrical characteristics
2
Electrical characteristics
T
= 25 °C unless otherwise specified.
CASE
Table 4.
Symbol
Electrical characteristics
Parameter
Test conditions
CE = -80 V
VCE = -80 V
Min.
Typ.
Max.
Unit
Collector cut-off current
(VBE = 0)
ICES
V
-500
µA
Collector cut-off current
(IB = 0)
ICEO
IEBO
-1
mA
µA
V
Emitter cut-off current (IC = 0) VEB = -5 V
-100
Collector-emitter sustaining
IC = -10 mA
(1)
VCEO(sus)
-80
-15
voltage (IB = 0)
IC = -100 mA, IB = -10 mA
-100
-250
mV
mV
Collector-emitter saturation
voltage
(1)
VCE(sat)
IC = -1 A, IB = -100 mA
IC = -100 mA, IB = -10 mA
IC = -1 A, IB = -100 mA
-1
V
V
Base-emitter saturation
voltage
(1)
VBE(sat)
-1.1
IC = -100 mA, VCE = -2 V
IC = -500 mA, VCE = -2 V
IC = -1 A, VCE = -2 V
140
100
80
190
50
300
(1)
hFE
DC current gain
fT
Transition frequency
IC = -0.1 A, VCE = -10 V
MHz
1. Pulse test: pulse duration ≤ 300 µs, duty cycle ≤ 2 %.
Doc ID 16984 Rev 1
3/7
Package mechanical data
2STF2280
3
Package mechanical data
In order to meet environmental requirements, ST offers these devices in different grades of
®
®
ECOPACK packages, depending on their level of environmental compliance. ECOPACK
specifications, grade definitions and product status are available at: www.st.com.
®
ECOPACK is an ST trademark.
4/7
Doc ID 16984 Rev 1
2STF2280
Package mechanical data
SOT-89 mechanical data
mm
Dim.
Min.
1.40
0.44
0.36
0.35
0.35
4.40
1.62
2.29
1.42
2.92
3.94
1°
Typ.
Max.
1.60
0.56
0.48
0.44
0.44
4.60
1.83
2.60
1.57
3.07
4.25
8°
A
B
B1
C
C1
D
D1
E
e
e1
H
K
L
0.89
1.20
R
0.25
7098166_C
Doc ID 16984 Rev 1
5/7
Revision history
2STF2280
4
Revision history
Table 5.
Date
14-Jan-2010
Document revision history
Revision
Changes
1
Initial release.
6/7
Doc ID 16984 Rev 1
2STF2280
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2010 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
Doc ID 16984 Rev 1
7/7
