IXTT12N150HV-TRL

型号:

IXTT12N150HV-TRL

品牌:

IXYS[ IXYS CORPORATION ]

页数:

4 页

PDF大小:

142 K

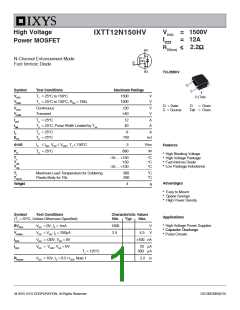

High Voltage
Power MOSFET
VDSS = 1500V
ID25 = 12A
RDS(on) 2.2
IXTT12N150HV
N-Channel Enhancement Mode
Fast Intrinsic Diode
TO-268HV
G
Symbol
VDSS
Test Conditions
Maximum Ratings
S
TJ = 25C to 150C
TJ = 25C to 150C, RGS = 1M
1500
1500
V
V
D (Tab)
VDGR
G = Gate
S = Source
D
= Drain
VGSS
VGSM
Continuous
Transient
30
40
V
V
Tab = Drain
ID25
IDM
TC = 25C
TC = 25C, Pulse Width Limited by TJM
12
A
A
40
IA
EAS
TC = 25°C
TC = 25°C
6
A
750
mJ
dv/dt
PD
IS IDM, VDD VDSS, TJ 150C
TC = 25C
5
V/ns
W
Features
890
High Blocking Voltage
High Voltage Package
Fast Intrinsic Diode
TJ
TJM
Tstg
- 55 ... +150
150
- 55 ... +150
C
C
C
Low Package Inductance
TL
TSOLD
Maximum Lead Temperature for Soldering
Plastic Body for 10s
300
260
°C
°C
Advantages
Weight
4
g
Easy to Mount
Space Savings
High Power Density
Symbol
Test Conditions
Characteristic Values
Applications
(TJ = 25C, Unless Otherwise Specified)
Min.
1500
2.5
Typ.
Max.
High Voltage Power Supplies
Capacitor Discharge
BVDSS
VGS(th)
IGSS
VGS = 0V, ID = 1mA
VDS = VGS, ID = 250A
VGS = 30V, VDS = 0V
VDS = VDSS, VGS = 0V
V
V
4.5
Pulse Circuits
100 nA
IDSS
25 A
TJ = 125C
500 A
RDS(on)
VGS = 10V, ID = 0.5 • ID25, Note 1
2.2
DS100530B(6/15)
© 2015 IXYS CORPORATION, All Rights Reserved
IXTT12N150HV
Symbol
Test Conditions
Characteristic Values
TO-268HV Outline
(TJ = 25C, Unless Otherwise Specified)
Min.
Typ.
Max.
gfs
VDS = 20V, ID = 0.5 • ID25, Note 1
VGS = 0V, VDS = 25V, f = 1MHz
8
13
S
Ciss
Coss
Crss
3720
240
80
pF
pF
pF
td(on)
tr
td(off)
tf
26
16
53
14
ns
ns
ns
ns
Resistive Switching Times
VGS = 10V, VDS = 0.5 • VDSS, ID = 0.5 • ID25
RG = 2(External)
PINS:
1 - Gate
2 - Source
3 - Drain
Qg(on)
Qgs
106
17
nC
nC
nC
VGS = 10V, VDS = 0.5 • VDSS, ID = 0.5 • ID25
Qgd
50
RthJC
0.14 C/W
Source-Drain Diode
Symbol
Test Conditions
Characteristic Values
(TJ = 25C, Unless Otherwise Specified)
Min.
Typ.
Max.
IS
VGS = 0V
12
A
A
V
ISM
VSD
Repetitive, Pulse Width Limited by TJM
IF = IS, VGS = 0V, Note 1
48
1.4
trr
1.2
24.5
14.8
μs
A
IF = 6A, -di/dt = 100A/s
IRM
QRM
VR = 100V, VGS = 0V
μC
Note
1. Pulse test, t 300μs, duty cycle, d 2%.
IXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.
IXYS MOSFETs and IGBTs are covered
by one or moreof the following U.S. patents: 4,860,072 5,017,508
4,881,106 5,034,796
4,835,592 4,931,844
5,049,961
5,063,307
5,187,117
5,237,481
5,381,025
5,486,715
6,162,665
6,259,123 B1
6,306,728 B1
6,404,065 B1 6,683,344
6,534,343
6,583,505
6,727,585
6,710,405 B2 6,759,692
6,710,463
7,005,734 B2 7,157,338B2
7,063,975 B2
6,771,478 B2 7,071,537
IXTT12N150HV
Fig. 1. Output Characteristics @ TJ = 25ºC
Fig. 2. Output Characteristics @ TJ = 125ºC
14
12
10
8
8
7
6
5
4
3
2
1
0
V
= 10V
7V
GS
V
= 10V
6V
GS
6V
5.5V
5V
5V
6
4
2
4V
0
0
5
10
15
20
25
30
0
5
10
15
20
25
30
VDS - Volts
VDS - Volts
Fig. 3. RDS(on) Normalized to ID = 6A Value vs.
Junction Temperature
Fig. 4. RDS(on) Normalized to ID = 6A Value vs.
Drain Current
3.4
3.0
2.6
2.2
1.8
1.4
1.0
0.6
0.2
2.8
2.6
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.8
V
= 10V
GS
V
= 10V
GS
T
J
= 125ºC
I
= 12A
D
I
= 6A
D
T
J
= 25ºC
-50
-25
0
25
50
75
100
125
150
0
2
4
6
8
10
12
14
TJ - Degrees Centigrade
ID - Amperes
Fig. 5. Maximum Drain Current vs.
Case Temperature
Fig. 6. Input Admittance
14
12
10
8
14
12
10
8
T
J
= 125ºC
25ºC
- 40ºC
6
6
4
4
2
2
0
0
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
-50
-25
0
25
50
75
100
125
150
TC - Degrees Centigrade
VGS - Volts
© 2015 IXYS CORPORATION, All Rights Reserved
IXTT12N150HV
Fig. 8. Forward Voltage Drop of Intrinsic Diode
Fig. 7. Transconductance
22
20
18
16
14
12
10
8
40
35
30
25
20
15
10
5
T
J
= - 40ºC
25ºC
125ºC
T
J
= 125ºC
6
T
J
= 25ºC
0.9
4
2
0
0
0.3
0.4
0.5
0.6
0.7
0.8
1.0
0
2
4
6
8
10
12
14
VSD - Volts
ID - Amperes
Fig. 10. Capacitance
Fig. 9. Gate Charge
10
9
8
7
6
5
4
3
2
1
0
10,000
1,000
100
V
= 700V
DS
I
I
= 6A
D
G
C
iss
= 10mA
C
C
oss
rss
= 1 MHz
5
f
10
0
10
15
20
25
30
35
40
0
10
20
30
40
50
60
70
80
90
100
110
VDS - Volts
QG - NanoCoulombs
Fig. 11. Forward-Bias Safe Operating Area
Fig. 12. Maximum Transient Thermal Impedance
100
10
1
1
25µs
R
Limit
DS(on)
0.1
100µs
1ms
0.01
T
= 150ºC
= 25ºC
J
T
C
10ms
DC
Single Pulse
0.1
0.001
10
100
1,000
10,000
0.00001
0.0001
0.001
0.01
0.1
1
10
Pulse Width - Seconds
VDS - Volts
IXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.
IXYS REF: T_12N150 (8M) 5-23-11
