5V9910A-7SOG

型号：

5V9910A-7SOG

品牌：

IDT[ INTEGRATED DEVICE TECHNOLOGY ]

页数：

6 页

PDF大小：

91 K

下载PDF手册

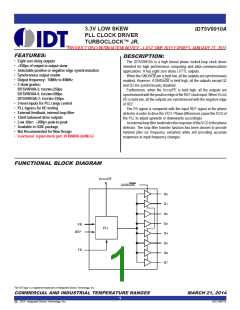

IDT5VR9A9N1G0EAS
3.3V LOW SKEW
PLL CLOCK DRIVER
TURBOCLOCK™ JR.
PRODUCT DISCONTINUATION NOTICE - LAST TIME BUY EXPIRES JANUARY 27, 2015
FEATURES:
DESCRIPTION:
• Eight zero delay outputs
• <250ps of output to output skew
The IDT5V9910A is a high fanout phase locked-loop clock driver
intended for high performance computing and data-communications
• Selectable positive or negative edge synchronization
• Synchronous output enable
• Output frequency: 15MHz to 85MHz
• 3 skew grades:
IDT5V9910A-2: tSKEW0<250ps
IDT5V9910A-5: tSKEW0<500ps
IDT5V9910A-7: tSKEW0<750ps
• 3-level inputs for PLL range control
• PLL bypass for DC testing
• External feedback, internal loop filter
• 12mA balanced drive outputs
• Low Jitter: <200ps peak-to-peak
• Available in SOIC package
• Not Recommended for New Design
• Functional replacement part: 8T49N008-dddNLGI
applications. It has eight zero delay LVTTL outputs.
When the GND/sOE pin is held low, all the outputs are synchronously
enabled. However, if GND/sOE is held high, all the outputs except Q2
and Q3 are synchronously disabled.
Furthermore, when the VCCQ/PE is held high, all the outputs are
synchronized with the positive edge of the REF clock input. When VCCQ/
PE is held low, all the outputs are synchronized with the negative edge
of REF.
The FB signal is compared with the input REF signal at the phase
detector in order to drive the VCO. Phase differences cause the VCO of
the PLL to adjust upwards or downwards accordingly.
An internal loop filter moderates the response of the VCO to the phase
detector. The loop filter transfer function has been chosen to provide
minimal jitter (or frequency variation) while still providing accurate
responses to input frequency changes.
FUNCTIONAL BLOCK DIAGRAM
VCCQ/PE
GND/sOE
Q0
Q1
Q2
Q3
Q4
Q5
Q6
Q7
FB
PLL
REF
FS
The IDT logo is a registered trademark of Integrated Device Technology, Inc.
COMMERCIAL AND INDUSTRIAL TEMPERATURE RANGES
MARCH 21, 2014
1
c
2014 Integrated Device Technology, Inc.
DSC 5847/3
IDT5V9910A
3.3V LOW SKEW PLL CLOCK DRIVER TURBOCLOCK JR.
COMMERCIAL AND INDUSTRIAL TEMPERATURE
RANGES
PIN CONFIGURATION
ABSOLUTE MAXIMUM RATINGS(1)
Symbol
Description
Supply Voltage to Ground
DC Input Voltage
Max
–0.5 to +7
–0.5 to VCC+0.5
–0.5 to +5.5
530
Unit
V
VI
V
1
GND
TEST
NC
REF
VCCQ
FS
24
23
22
21
20
19
18
17
16
15
14
13
REF Input Voltage
V
2
Maximum Power Dissipation (TA = 85°C)
Storage Temperature
mW
°C
3
TSTG
–65 to +150
NC
4
GND/sOE
VCCN
Q7
NOTE:
5
VCCQ/PE
VCCN
Q0
1. Stresses beyond those listed under ABSOLUTE MAXIMUM RATINGS may cause per-
manent damage to the device. These are stress ratings only, and functional operation of
the device at these or any other conditions above those indicated in the operational
sections of this specification is not implied. Exposure to absolute-maximum-rated condi-
tions for extended periods may affect device reliability.
6
7
Q6
Q1
8
GND
Q5
GND
Q2
9
10
11
12
Q4
Q3
VCCN
FB
CAPACITANCE(TA = +25°C, f = 1MHz, VIN = 0V)
VCCN
Parameter Description
Typ.
Max.
Unit
CIN
Input Capacitance
5
7
pF
NOTE:
SOIC
1. Capacitance applies to all inputs except TEST and FS. It is characterized but not produc-
tion tested.
TOP VIEW
PIN DESCRIPTION
Pin Name
REF
Type
IN
Description
Reference Clock Input
Feedback Input
FB
IN
TEST (1)
GND/ sOE(1)
IN
When MID or HIGH, disables PLL (except for conditions of Note 1). REF goes to all outputs. Set LOW for normal operation.
IN
Synchronous Output Enable. When HIGH, it stops clock outputs (except Q2 and Q3) in a LOW state - Q2 and Q3 may be used as
the feedback signal to maintain phase lock. Set GND/sOE LOW for normal operation.
VCCQ/PE
FS(2)
IN
IN
Selectable positive or negative edge control. When LOW/HIGH the outputs are synchronized with the negative/positive edge of
the reference clock.
Frequency range select:
FS = GND: 15 to 35MHz
FS = MID (or open): 25 to 60MHz
FS = VCC: 40 to 85MHz
Q0 - Q7
VCCN
VCCQ
GND
OUT
PWR
PWR
PWR
Eight clock output
Power supply for output buffers
Power supply for phase locked loop and other internal circuitry
Ground
NOTES:
1. When TEST = MID and GND/sOE = HIGH, PLL remains active.
2. This input is wired to Vcc, GND, or unconnected. Default is MID level. If it is switched in the real time mode, the outputs may glitch, and the PLL may require an additional lock time
before all data sheet limits are achieved.
2
IDT5V9910A
COMMERCIAL AND INDUSTRIAL TEMPERATURE
RANGES
3.3V LOW SKEW PLL CLOCK DRIVER TURBOCLOCK JR.
RECOMMENDED OPERATING RANGE
IDT5V9910A-5, -7
(Industrial)
IDT5V9910A-2
(Commercial)
Symbol
VCC
Description
Min.
3
Max.
3.6
Min.
Max.
3.6
Unit
V
Power Supply Voltage
Ambient Operating Temperature
3
0
TA
-40
+85
+70
°C
DC ELECTRICAL CHARACTERISTICS OVER OPERATING RANGE
Symbol
Parameter
Conditions
Guaranteed Logic HIGH (REF, FB Inputs Only)
Guaranteed Logic LOW (REF, FB Inputs Only)
3-Level Inputs Only
Min.
Max.
—
Unit
V
VIH
Input HIGH Voltage
2
—
VIL
Input LOW Voltage
Input HIGH Voltage(1)
Input MID Voltage(1)
Input LOW Voltage(1)
Input Leakage Current
(REF, FB Inputs Only)
0.8
V
VIHH
VIMM
VILL
IIN
VCC−0.6
VCC/2−0.3
—
—
V
3-Level Inputs Only
VCC/2+0.3
0.6
V
3-Level Inputs Only
V
VIN = VCC or GND
—
±5
μA
VCC = Max.
VIN = VCC
HIGH Level
MID Level
LOW Level
—
—
—
—
—
2.4
—
±200
±50
I3
3-Level Input DC Current (TEST, FS)
VIN = VCC/2
μA
VIN = GND
±200
±100
±100
—
IPU
IPD
Input Pull-Up Current (VCCQ/PE)
Input Pull-Down Current (GND/sOE)
Output HIGH Voltage
VCC = Max., VIN = GND
VCC = Max., VIN = VCC
VCC = Min., IOH = −12mA
VCC = Min., IOL = 12mA
μA
μA
V
VOH
VOL
Output LOW Voltage
0.55
V
NOTE:
1. These inputs are normally wired to VCC, GND, or unconnected. Internal termination resistors bias unconnected inputs to VCC/2. If these inputs are switched, the function and timing of the
outputs may be glitched, and the PLL may require an additional tLOCK time before all datasheet limits are achieved.
POWER SUPPLY CHARACTERISTICS
Symbol
Parameter
Test Conditions(1)
VCC = Max., TEST = MID, REF = LOW,
GND/sOE = LOW, All outputs unloaded
VCC = Max., VIN = 3V
Typ.(2)
Max.
Unit
ICCQ
Quiescent Power Supply Current
8
25
mA
ΔICC
ICCD
ITOT
Power Supply Current per Input HIGH
Dynamic Power Supply Current per Output
Total Power Supply Current
1
30
90
—
—
—
μA
VCC = Max., CL = 0pF
55
34
42
76
μA/MHz
VCC = 3.3V, FREF = 25MHz, CL = 160pF(1)
VCC = 3.3V, FREF = 33MHz, CL = 160pF(1)
VCC = 3.3V, FREF = 66MHz, CL = 160pF(1)
mA
NOTE:
1. For eight outputs, each loaded with 20pF.
3
IDT5V9910A
3.3V LOW SKEW PLL CLOCK DRIVER TURBOCLOCK JR.
COMMERCIAL AND INDUSTRIAL TEMPERATURE
RANGES
INPUT TIMING REQUIREMENTS
Symbol
tR, tF
tPWC
DH
Description (1)
Maximum input rise and fall times, 0.8V to 2V
Input clock pulse, HIGH or LOW
Input duty cycle
Min.
—
Max.
10
Unit
ns/V
ns
3
—
10
15
90
%
REF
Reference clock input
85
MHz
NOTE:
1. Where pulse width implied by DH is less than tPWC limit, tPWC limit applies.
SWITCHING CHARACTERISTICS OVER OPERATING RANGE
IDT5V9910A-2
IDT5V9910A-5
IDT5V9910A-7
Symbol Parameter
Min.
15
Typ.
—
—
—
—
—
0.1
—
0
Max.
35
Min.
15
25
40
3
Typ.
—
Max.
35
Min.
Typ.
—
—
—
—
—
0.3
—
0
Max.
Unit
FS = LOW
FS = MED
FS = HIGH
15
25
35
60
FREF
REF Frequency Range
25
60
—
60
MHz
40
85
—
85
40
85
tRPWH
tRPWL
REF Pulse Width HIGH(8)
REF Pulse Width LOW(8)
3
—
—
—
3
—
ns
ns
ns
ns
ns
ns
ns
ns
ms
ps
3
—
3
—
—
3
—
tSKEW0 Zero Output Skew (All Outputs)(1,3,4)
—
0.25
0.75
0.25
1.2
1.2
1.2
0.5
25
—
—
0.25
—
0.5
1.25
0.5
1.2
1.5
1.5
0.5
25
—
0.75
1.65
0.7
1.2
2.5
2.5
0.5
25
tDEV
tPD
Device-to-Device Skew(1,2,5)
REF Input to FB Propagation Delay(1,7)
Output Duty Cycle Variation from 50%(1)
Output Rise Time(1)
Output Fall Time(1)
PLL Lock Time(1,6)
—
—
−0.25
−1.2
0.15
0.15
—
−0.5
−1.2
0.15
0.15
—
0
0
−0.7
−1.2
0.15
0.15
—
tODCV
tORISE
tOFALL
tLOCK
tJR
0
0
1
1
1.5
1.5
—
—
—
1
1
—
—
—
—
—
—
Cycle-to-Cycle Output Jitter(1)
RMS
—
—
—
Peak-to-Peak
—
200
—
200
—
200
NOTES:
1. All timing and jitter tolerances apply for FNOM > 25MHz.
2. Skew is the time between the earliest and the latest output transition among all outputs with the specified load.
3. tSKEW is the skew between all outlets. See AC TEST LOADS.
4. For IDT5V9910A-2 tSKEW0 is measured with CL = 0pF; for CL = 20pF, tSKEW0 = 0.35ns Max.
5. tDEV is the output-to-output skew between any two devices operating under the same conditions (VCC, ambient temperature, air flow, etc.)
6. tLOCK is the time that is required before synchronization is achieved. This specification is valid only after VCC is stable and within normal operating limits. This parameter is measured
from the application of a new signal or frequency at REF or FB until tPD is within specified limits.
7. tPD is measured with REF input rise and fall times (from 0.8V to 2V ) of 1ns.
8. Refer to INPUT TIMING REQUIREMENTS for more detail.
4
IDT5V9910A
COMMERCIAL AND INDUSTRIAL TEMPERATURE
RANGES
3.3V LOW SKEW PLL CLOCK DRIVER TURBOCLOCK JR.
AC TEST LOADS AND WAVEFORMS
1ns
1ns
VCC
3.0V
2.0V
Vth =1.5V
0.8V
150
0V
Output
LVTTL Input Test Waveform
150
20pF
tORISE
tOFALL
Test Load
2.0V
0.8V
LVTTL Output Waveform
AC TIMING DIAGRAM
tREF
tRPWH
tRPWL
REF
tPD
tODCV
tODCV
FB
tJR
Q
tSKEW
tSKEW
OTHER Q
NOTES:
Skew: The time between the earliest and the latest output transition among all outputs when all are loaded with 20pF and terminated with 75Ω to VCC/2.
tSKEW:
The skew between all outputs.
tDEV:
The output-to-output skew between any two devices operating under the same conditions (VCC, ambient temperature, air flow, etc.)
The deviation of the output from a 50% duty cycle.
tODCV:
tORISE and tOFALL are measured between 0.8V and 2V.
tLOCK:
The time that is required before synchronization is achieved. This specification is valid only after VCC is stable and within normal operating limits. This parameter is measured
from the application of a new signal or frequency at REF or FB until tPD is within specified limits.
5
IDT5V9910A
3.3V LOW SKEW PLL CLOCK DRIVER TURBOCLOCK JR.
COMMERCIAL AND INDUSTRIAL TEMPERATURE
RANGES
ORDERING INFORMATION
IDT
XXXXX
XX
X
Device Type Package Process
Blank
I
0ºC to +70ºC (Commercial)
-40ºC to +85ºC (Industrial)
SOG
SOIC - Green
5V9910A-2 3.3V Low Skew PLL Clock Driver TurboClock Jr.
5V9910A-5
5V9910A-7
REVISION HISTORY
3/21/14
Product Discontinuation Notice - Last Time Buy expires January 27, 2015, PDN# CQ-14-01
CORPORATE HEADQUARTERS
6024 Silver Creek Valley Road
San Jose, CA 95138
for SALES:
for Tech Support:
clockhelp@idt.com
800-345-7015 or 408-284-8200
fax: 408-284-2775
www.idt.com
6
厂商 型号 描述 页数 下载

IDT

 		5V925BQGI 可编程LVCMOS / LVTTL时钟发生器[ Programmable LVCMOS/LVTTL Clock Generator ] 18 页

IDT

 		5V925BQGI8 可编程LVCMOS / LVTTL时钟发生器[ Programmable LVCMOS/LVTTL Clock Generator ] 18 页

IDT

 		5V925BQI 可编程LVCMOS / LVTTL时钟发生器[ Programmable LVCMOS/LVTTL Clock Generator ] 18 页

IDT

 		5V925BQI8 可编程LVCMOS / LVTTL时钟发生器[ Programmable LVCMOS/LVTTL Clock Generator ] 18 页

IDT

 		5V925QGI [ Clock Generator, PDSO16 ] 7 页

IDT

 		5V925QGI8 [ Clock Generator, PDSO16 ] 7 页

IDT

 		5V926APGGI [ TSSOP-16, Tube ] 6 页

IDT

 		5V926APGGI8 [ TSSOP-16, Reel ] 6 页

IDT

 		5V926APGI [ Clock Generator, 160MHz, PDSO16, TSSOP-16 ] 6 页

IDT

 		5V927PGGI8 [ TSSOP-16, Reel ] 6 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.172029s
