WV3EG32M64ETSU335D3GG

型号:

WV3EG32M64ETSU335D3GG

品牌:

WEDC[ WHITE ELECTRONIC DESIGNS CORPORATION ]

页数:

12 页

PDF大小:

247 K

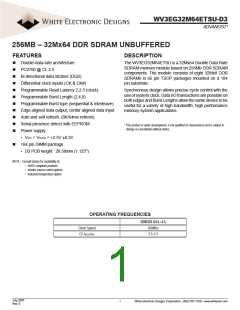

WV3EG32M64ETSU-D3
White Electronic Designs
ADVANCED*
256MB – 32Mx64 DDR SDRAM UNBUFFERED
FEATURES
DESCRIPTION
Double-data-rate architecture
The WV3EG32M64ETSU is a 32Mx64 Double Data Rate
SDRAM memory module based on 256Mb DDR SDRAM
components. The module consists of eight 32Mx8 DDR
SDRAMs in 66 pin TSOP packages mounted on a 184
pin substrate.
PC2700 @ CL 2.5
Bi-directional data strobes (DQS)
Differential clock inputs (CK & CK#)
Programmable Read Latency 2,2.5 (clock)
Programmable Burst Length (2,4,8)
Programmable Burst type (sequential & interleave)
Edge aligned data output, center aligned data input.
Auto and self refresh, (8K/64ms refresh)
Serial presence detect with EEPROM
Power supply:
Synchronous design allows precise cycle control with the
use of system clock. Data I/O transactions are possible on
both edges and Burst Lengths allow the same device to be
useful for a variety of high bandwidth, high performance
memory system applications.
* This product is under development, is not qualied or characterized and is subject to
change or cancellation without notice.
• VCC = VCCQ = +2.5V ±0.2V
184 pin DIMM package
• D3 PCB height: 28.58mm (1.125")
NOTE: Consult factory for availability of:
• RoHS compliant products
• Vendor source control options
• Industrial temperature option
OPERATING FREQUENCIES
DDR333 @CL=2.5
166MHz
Clock Speed
CL-tRCD-tRP
2.5-3-3
July 2005
Rev. 0
1
White Electronic Designs Corporation • (602) 437-1520 • www.whiteedc.com
WV3EG32M64ETSU-D3
White Electronic Designs
ADVANCED
PIN CONFIGURATION
PIN NAMES
A0-A12
BA0-BA1
DQ0-DQ63
DQS0-DQS7
CK0, CK1, CK2
Address input (Multiplexed)
Bank Select Address
Data Input/Output
Data Strobe Input/Output
Clock Input
PIN SYMBOL PIN SYMBOL PIN SYMBOL PIN SYMBOL
1
VREF
DQ0
VSS
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
NC
A0
93
VSS
DQ4
DQ5
VCCQ
DM0
DQ6
DQ7
VSS
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
VSS
NC
2
94
3
NC
95
A10
4
5
6
7
8
9
DQ1
DQS0
DQ2
VCC
DQ3
NC
VSS
NC
BA1
DQ32
VCCQ
DQ33
DQS4
DQ34
VSS
96
97
98
99
NC
VCCQ
NC
CK0#, CK1#, CK2# Clock Input
CKE0
CS0#
RAS#
CAS#
WE#
DM0-DM7
VCC
VCCQ
VSS
VREF
VCCSPD
SDA
SCL
Clock Enable input
Chip Select Input
Row Address Strobe
Column Address Strobe
Write Enable
Data-in-mask
Power Supply
Power Supply for DQS
Ground
Power Supply for Reference
Serial EEPROM Power Supply
Serial data I/O
VSS
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
DQ36
DQ37
VCC
DM4
DQ38
DQ39
VSS
DQ44
RAS#
DQ45
VCCQ
CS0#
NC
DM5
VSS
DQ46
DQ47
NC
VCCQ
DQ52
DQ53
NC
NC
NC
NC
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
NC
VSS
DQ8
DQ9
DQS1
VCCQ
CK1
CK1#
VSS
DQ10
DQ11
CKE0
VCCQ
DQ16
DQ17
DQS2
VSS
A9
DQ18
A7
VCCQ
DQ19
A5
DQ24
VSS
VCCQ
DQ12
DQ13
DM1
VCC
DQ14
DQ15
NC
VCCQ
NC
DQ20
A12
VSS
DQ21
A11
DM2
VCC
DQ22
A8
DQ23
VSS
A6
DQ28
DQ29
VCCQ
DM3
A3
DQ30
VSS
DQ31
NC
BA0
DQ35
DQ40
VCCQ
WE#
DQ41
CAS#
VSS
DQS5
DQ42
DQ43
VCC
Serial clock
SA0-SA2
VCCID
NC
Address in EEPROM
VCC Indentication Flag
No Connect
NC
DQ48
DQ49
VSS
CK2#
CK2
VCCQ
DQS6
DQ50
DQ51
VSS
VCCID
DQ56
DQ57
VCC
DQS7
DQ58
DQ59
VSS
NC
SDA
SCL
VCC
DM6
DQ54
DQ55
VCCQ
NC
DQ60
DQ61
VSS
DM7
DQ62
DQ63
VCCQ
SA0
DQ25
DQS3
A4
VCC
DQ26
DQ27
A2
VSS
A1
NC
NC
VCC
NC
VCCQ
CK0
CK0#
SA1
SA2
VCCSPD
July 2005
Rev. 0
2
White Electronic Designs Corporation • (602) 437-1520 • www.whiteedc.com
WV3EG32M64ETSU-D3
White Electronic Designs
ADVANCED
FUNCTIONAL BLOCK DIAGRAM
CS0#
DQS0
DM0
DQS4
DM4
DM
CS#
DQS
DM
CS#
DQS
DQ0
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ32
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQS1
DM1
DQS5
DM5
DM
CS#
DQS
DM
CS#
DQS
DQ8
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQS2
DM2
DQS6
DM6
DM
CS#
DQS
DM
CS#
DQS
DQ16
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ48
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQS3
DM3
DQS7
DM7
DM
CS#
DQS
DM
CS#
DQS
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
RAS#
CAS#
RAS#: DDR SDRAMs
CAS#: DDR SDRAMs
BA0-BA1: DDR SDRAMs
WE#: DDR SDRAMs
A0-A12: DDR SDRAMs
CKE0: DDR SDRAMs
SERIAL PD
A1
*Clock Net Wiring
SCL
WP
SDA
BA0-BA1
WE#
DRAM 1
1.5PF
A0
A2
SA0 SA1 SA2
A0-A12
CKE0
R = 120 Ohm
DRAM 3
1.5PF
Card
Edge
VCCSPD
SPD
1.5PF
CLOCK INPUT
VCC/VCCQ
VREF
DDR SDRAMs
DDR SDRAMs
DDR SDRAMs
DRAM 5
CK0, CK0#
2 SDRAMS
3 SDRAMS
3 SDRAMS
CK1, CK1#
CK2, CK2#
1.5PF
VSS
NOTE: All datalines are terminated through a 22 ohm series resistor.
July 2005
Rev. 0
3
White Electronic Designs Corporation • (602) 437-1520 • www.whiteedc.com
WV3EG32M64ETSU-D3
White Electronic Designs
ADVANCED
ABSOLUTE MAXIMUM RATINGS
Parameter
Symbol
Value
Units
Voltage on any pin relative to VSS
VIN, VOUT
-0.5 to 3.6
V
Voltage on VCC supply relative to VSS
Voltage on VCCQ supply relative to VSS
Storage Temperature
VCC
VCCQ
TSTG
PD
-1.0 to 3.6
-0.5 to 3.6
-55 to +150
8
V
V
°C
W
Power Dissipation
Short Circuit Current
IOS
50
mA
Note: Permanent device damage may occur if ‘ABSOLUTE MAXIMUM RATINGS’ are exceeded.
Functional operation should be restricted to recommended operating condition.
Exposure to higher than recommended voltage for extended periods of time could affect device reliability
DC CHARACTERISTICS
0°C TA 70°C, VCC = VCCQ = 2.5V ± 0.2V
Parameter
Symbol
VCC
VCCQ
VREF
VTT
VIH(DC)
VIL(DC)
VIN(DC)
VID(DC)
VIX(DC)
Min
2.3
2.3
0.49*VCCQ
VREF-0.04
VREF+0.15
-0.3
-0.3
0.36
0.3
-16
Max
2.7
2.7
Unit
V
V
V
V
V
V
V
V
Note
Supply voltage DDR266/DDR333 (nominal VCC of 2.5V)
I/O Supply voltage DDR266/DDR333 (nominal VCC of 2.5V)
I/O Reference voltage
I/O Termination voltage
Input logic high voltage
0.51*VCCQ
VREF+0.04
VCCQ+0.30
VREF-0.15
VCCQ+0.30
VCCQ+0.60
VCCQ+0.60
16
1
2
Input logic low voltage
Input voltage level, CK and CK#
Input differential voltage, CK and CK#
Input crossing point voltage, CK and CK#
3
V
uA
Addr, CAS#,
RAS#, WE#
CS#, CKE
CK, CK#
DM
-16
-6
-2
16
6
2
uA
uA
uA
Input leakage current
II
Output leakage current
IOZ
IOH
IOL
IOH
IOL
-5
5
uA
Output high current (normal strengh); VOUT = V +0.84V
Output high current (normal strengh); VOUT = VTT -0.84V
Output high current (half strengh); VOUT = VTT +0.45V
Output high current (half strengh); VOUT = VTT -0.45V
-16.8
16.8
-9
mA
mA
mA
mA
9
NOTES:
1.
V
REF is expected to be equal to 0.5*VCCQ of the transmitting device, and to track variations in the DC level of the same. Peak to peak noise on VREF may not exceed ±2% of the DC
value
TT is not applied directly to the device. VTT is a system supply for signal termination resistors,is expected to be set equal to VREF, and must track variations in the DC level of VREF
2.
V
3. VID is the magnitude of the difference between the input level on CK and the input level on CK#.
July 2005
Rev. 0
4
White Electronic Designs Corporation • (602) 437-1520 • www.whiteedc.com
WV3EG32M64ETSU-D3
White Electronic Designs
ADVANCED
CAPACITANCE (Samsung)
TA = 25°C, f = 1MHz, VCC = VCCQ = 2.5V
Parameter
Symbol
CIN1
Min
20
20
20
10
8
Max
28
28
28
13
9
Unit
pF
pF
pF
pF
pF
pF
Input Capacitance (A0-A12, BA0-BA1, RAS#, CAS#, WE#)
Input Capacitance (CKE0)
CIN2
Input Capacitance (CS0#)
CIN3
Input Capacitance (CLK0, CLK1, CLK2, CLK0#, CLK1#, CLK2#)
Input Capacitance (DM0-DM7)
CIN4
CIN5
Data and DQS input/output capacitance (DQ0-DQ63)
NOTE: Capacitance based on Samsung components.
COUT1
8
9
CAPACITANCE (Inneon)
TA = 25°C, f = 1MHz, VCC = VCCQ = 2.5V
Parameter
Symbol
CIN1
Min
20
20
20
10
8
Max
28
28
28
13
9
Unit
pF
pF
pF
pF
pF
pF
Input Capacitance (A0-A12, BA0-BA1, RAS#, CAS#, WE#)
Input Capacitance (CKE0)
CIN2
Input Capacitance (CS0#)
CIN3
Input Capacitance (CLK0, CLK1, CLK2, CLK0#, CLK1#, CLK2#)
Input Capacitance (DM0-DM7)
CIN4
CIN5
Data and DQS input/output capacitance (DQ0-DQ63)
NOTE: Capacitance based on Inneon components.
COUT1
8
9
July 2005
Rev. 0
5
White Electronic Designs Corporation • (602) 437-1520 • www.whiteedc.com
WV3EG32M64ETSU-D3
White Electronic Designs
ADVANCED
IDD SPECIFICATIONS AND TEST CONDITIONS
0°C TA 70°C, VCC = VCCQ = 2.5V ± 0.2V
Includes DDR SDRAM component only
Parameter
Symbol Conditions
IDD0*
DDR333@
CL = 2.5
Units
Operating one bank active-
precharge current;
tCK = tCK(IDD), tRC = tRC(IDD), tRAS = tRASmin(IDD); CKE is HIGH, CS is HIGH
between valid commands; Address bus inputs are SWITCHING; Data bus inputs
are SWITCHING
720
mA
Operating one bank active-
read-precharge current;
IDD1*
IOUT = 0mA; BL = 4, CL = CL(IDD), AL = 0; tCK = tCK(IDD), tRC = tRC (IDD), tRAS
tRASmin(IDD), tRCD = tRCD(IDD); CKE is HIGH, CS is HIGH between valid commands;
Address businputs are SWITCHING; Data pattern is same as IDD4W
=
920
mA
Precharge power-down
current;
IDD2P**
IDD2F**
IDD3P**
IDD3N**
All banks idle; tCK = tCK(IDD); CKE is LOW; Other control and address bus inputs
are STABLE; Data bus inputs are FLOATING
24
mA
mA
mA
mA
Precharge standby current;
Active power-down current;
Active standby current;
All banks idle; tCK = tCK(IDD); CKE is HIGH, CS is HIGH; Other control and address
bus inputs are SWITCHING; Data bus inputs are SWITCHING
240
280
440
All banks open; tCK = tCK(IDD); CKE is LOW; Other control and address bus inputs
are STABLE; Data bus inputs are FLOATING
All banks open; tCK = tCK(IDD), tRAS = tRASmax(IDD), tRP = tRP(IDD); CKE is HIGH,
CS - is HIGH between valid commands; Other control and address bus inputs are
SWITCHING; Data bus inputs are SWITCHING
Operating burst read current;
Operating burst write current;
IDD4R*
IDD4W*
IDD5**
All banks open, Continuous burst reads, IOUT = 0mA; BL = 4, CL = CL(IDD), AL
= 0; tCK = tCK(IDD), tRAS = tRASmax(IDD), tRP = tRP(IDD); CKE is HIGH, CS is HIGH
between valid commands; Address bus inputs are SWITCHING; Data pattern is
same as IDD4W
1280
1280
1360
mA
mA
mA
All banks open, Continuous burst writes; BL = 4, CL = CL(IDD), AL = 0; tCK
=
tCK(IDD), tRAS = tRAS-max(IDD), tRP = tRP(IDD); CKE is HIGH, CS is HIGH between
valid commands; Address bus inputs are SWITCHING; Data bus inputs are
SWITCHING
Burst auto refresh current;
Self refresh current;
tCK = tCK(IDD); Refresh command at every tRFC(IDD) interval; CKE is HIGH, CS
is HIGH between valid commands; Other control and address bus inputs are
SWITCHING; Data bus inputs are SWITCHING
IDD6**
IDD7*
CK and CK at 0V; CKE 0.2V; Other control and address bus inputs are
FLOATING; Data bus inputs are FLOATING
24
mA
mA
Operating bank interleave
read current;
All bank interleaving reads, IOUT = 0mA; BL = 4, CL = CL(IDD), AL = tRCD(IDD)-
1*tCK(IDD); tCK = tCK(IDD), tRC = tRC(IDD), tRRD = tRRD(IDD), tRCD = 1*tCK(IDD); CKE is
HIGH, CS is HIGH between valid commands; Address bus inputs are STABLE
during DESELECTs; Data pattern is same as IDD4R; Refer to the following page for
detailed timing conditions
2240
Note: These specications apply to modules built with Samsung components only.
* Value calculated as one module rank in this operation condition and other module rank in IDD2P (CKE low) mode.
** Value calculated as all module ranks in this operation condition.
July 2005
Rev. 0
6
White Electronic Designs Corporation • (602) 437-1520 • www.whiteedc.com
WV3EG32M64ETSU-D3
White Electronic Designs
ADVANCED
IDD SPECIFICATIONS AND TEST CONDITIONS
0°C TA 70°C, VCC = VCCQ = 2.5V ± 0.2V
Includes DDR SDRAM component only
Parameter
Symbol Conditions
IDD0*
DDR333@
CL = 2.5
Units
Operating one bank active-
precharge current;
tCK = tCK(IDD), tRC = tRC(IDD), tRAS = tRASmin(IDD); CKE is HIGH, CS is HIGH
between valid commands; Address bus inputs are SWITCHING; Data bus inputs
are SWITCHING
720
mA
Operating one bank active-
read-precharge current;
IDD1*
IOUT = 0mA; BL = 4, CL = CL(IDD), AL = 0; tCK = tCK(IDD), tRC = tRC (IDD), tRAS
tRASmin(IDD), tRCD = tRCD(IDD); CKE is HIGH, CS is HIGH between valid commands;
Address businputs are SWITCHING; Data pattern is same as IDD4W
=
920
mA
Precharge power-down
current;
IDD2P**
IDD2F**
IDD3P**
IDD3N**
All banks idle; tCK = tCK(IDD); CKE is LOW; Other control and address bus inputs
are STABLE; Data bus inputs are FLOATING
24
mA
mA
mA
mA
Precharge quiet standby
current;
All banks idle; tCK = tCK(IDD); CKE is HIGH, CS is HIGH; Other control and address
bus inputs are STABLE; Data bus inputs are FLOATING
240
280
440
Active power-down current;
All banks open; tCK = tCK(IDD); CKE is LOW; Other control and address bus inputs
are STABLE; Data bus inputs are FLOATING
Active standby current;
All banks open; tCK = tCK(IDD), tRAS = tRASmax(IDD), tRP = tRP(IDD); CKE is HIGH,
CS - is HIGH between valid commands; Other control and address bus inputs are
SWITCHING; Data bus inputs are SWITCHING
Operating burst read current;
Operating burst write current;
IDD4R*
IDD4W*
IDD5**
All banks open, Continuous burst reads, IOUT = 0mA; BL = 4, CL = CL(IDD), AL
= 0; tCK = tCK(IDD), tRAS = tRASmax(IDD), tRP = tRP(IDD); CKE is HIGH, CS is HIGH
between valid commands; Address bus inputs are SWITCHING; Data pattern is
same as IDD4W
1280
1280
1360
mA
mA
mA
All banks open, Continuous burst writes; BL = 4, CL = CL(IDD), AL = 0; tCK
=
tCK(IDD), tRAS = tRAS-max(IDD), tRP = tRP(IDD); CKE is HIGH, CS is HIGH between
valid commands; Address bus inputs are SWITCHING; Data bus inputs are
SWITCHING
Burst auto refresh current;
Self refresh current;
tCK = tCK(IDD); Refresh command at every tRFC(IDD) interval; CKE is HIGH, CS
is HIGH between valid commands; Other control and address bus inputs are
SWITCHING; Data bus inputs are SWITCHING
IDD6**
IDD7*
CK and CK at 0V; CKE 0.2V; Other control and address bus inputs are
FLOATING; Data bus inputs are FLOATING
24
mA
mA
Operating bank interleave
read current;
All bank interleaving reads, IOUT = 0mA; BL = 4, CL = CL(IDD), AL = tRCD(IDD)-
1*tCK(IDD); tCK = tCK(IDD), tRC = tRC(IDD), tRRD = tRRD(IDD), tRCD = 1*tCK(IDD); CKE is
HIGH, CS is HIGH between valid commands; Address bus inputs are STABLE
during DESELECTs; Data pattern is same as IDD4R; Refer to the following page for
detailed timing conditions
2240
Note: These specications apply to modules built with Inneon components only.
* Value calculated as one module rank in this operation condition and other module rank in IDD2P (CKE low) mode.
** Value calculated as all module ranks in this operation condition.
July 2005
Rev. 0
7
White Electronic Designs Corporation • (602) 437-1520 • www.whiteedc.com
WV3EG32M64ETSU-D3
White Electronic Designs
ADVANCED
DDR SDRAM COMPONENT ELECTRICAL CHARACTERISTICS AND
RECOMMENDED AC OPERATING CONDITIONS
335
Parameter
Symbol
Unit
Min
60
72
42
18
18
12
15
1
Max
Row Cycle Time
Refresh row cycle time
Row active
RAS# to CAS# delay
Row precharge time
Row active to row active delay
Write recovery time
Last data into Read command
Clock cycle time
Clock high level width
tRC
tRFC
tRAS
tRCD
tRP
tRRD
tWR
tWTR
tCK
tCH
tCL
tDQSCK
tAC
tDQSQ
tRPRE
tRPST
tDQSS
tWPRES
tWPRE
tDSS
tDSH
tDQSH
tDQSL
tIS
tCK
ns
ns
tCK
ns
ns
ns
ns
ns
tCK
tCK
ns
ns
ns
tCK
tCK
tCK
ns
tCK
tCK
tCK
tCK
tCK
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
tCK
us
ns
ns
ns
ns
ns
tCK
120K
CL=2.5
6
12
0.45
0.55
-0.6
-0.7
0.9
0.4
0.75
0
0.25
0.2
0.2
0.35
0.35
0.75
0.75
0.8
0.8
-0.7
-0.7
10
0.45
0.45
2.2
1.75
75
0.55
0.55
+0.6
+0.7
0.45
1.1
Clock low level width
DQS-out access time from CK/CK#
Output data access time from CK/CK#
Data strobe edge to output data edge
Read Preamble
Read Postamble
CK to valid DQS-in
DQS-in setup time
DQS-in hold time
DQS falling edge to CK rising-setup time
DQS falling edge to CK rising-hold time
DQS-in high level width
0.6
1.25
DQS-in low level width
Address and control input setup time (fast)
Address and control input hold time (fast)
Address and control input setup (slow)
Address and control input hold time (slow)
Data-out high impedence time from CK/CK#
Data-out low impedence time from CK/CK#
Mode register set cycle time
DQ & DM setup time to DQS
DQ & DM hold time to DQS
Control & address input pulse width
DQ & DM input pulse width
Exit self refresh o non-Read command
Exit self refresh to Read command
Refresh interval time
Output DQS valid window
Clock half period
Data hold skew factor
DQS write postamble
Active Read with auto precharge command
Auto precharge Write recovery + Precharge time
tIH
tIS
tIH
tHZ
tLZ
tMRD
tDS
+0.7
+0.7
tDH
tIPW
tDIPW
tXSNR
tXSRD
tREFI
tQH
200
7.8
0.55
0.6
tHP - tQHS
tCLmin or tCHmin
tHP
tQHS
tWPST
tRAP
tRAL
0.4
18
(tWR/tCK) + (tRP/tCK
)
July 2005
Rev. 0
8
White Electronic Designs Corporation • (602) 437-1520 • www.whiteedc.com
WV3EG32M64ETSU-D3
White Electronic Designs
ADVANCED
AC OPERATING TEST CONDITIONS
VCC = 2.5V, VCCQ = 2.5V, 0°C TA 70°C
Parameter/Condition
Symbol
VIH(AC)
VIL(AC)
VID(AC)
VIX(AC)
Min
Max
Unit
V
Note
Input High (Logic 1) Voltage, DQ, DQS and DM signals
Input Low (Logic 0) Voltage, DQ, DQS and DM signals.
Input Differential Voltage, CK and CK# inputs
Input Crossing Point Voltage, CK and CK# inputs
NOTES:
VREF + 0.31
1
1
VREF - 0.31
VCCQ+0.6
V
0.7
V
0.5*VCCQ-0.2
0.5*VCCQ+0.2
V
1.
V
V
IH overshoot: VIH = VCCQ +1.5V for a pulse width < 3ns and the pulse can not be greater than 1/3 of the cycle rate.
IL undershoot: VIL = -1.5V for a pulse width < 3ns and the pulse can not be greater than 1/3 of the cycle rate.
July 2005
Rev. 0
9
White Electronic Designs Corporation • (602) 437-1520 • www.whiteedc.com
WV3EG32M64ETSU-D3
White Electronic Designs
ADVANCED
ORDERING INFORMATION FOR D3
Part Number
Speed
CAS Latency tRCD
2.5
tRP
Height
Temperature
WV3EG32M64ETSU335D3xG
166MHz/333Mb/s
3
3
28.58 (1.125")
0°C to 70°C
NOTES:
• Consult Factory for availability of RoHS compliant products. (G = RoHS Compliant)
• Vendor specic part numbers are used to provide memory components source control. The place holder for this is shown as lower case “x” in the part numbers above and is to be
replaced with the respective vendors code. Consult factory for qualied sourcing options. (M = Micron, S = Samsung, G = Inneon & consult factory for others)
• Consult factory for availability of industrial temperature (-40°C to 85°C) option
PACKAGE DIMENSIONS FOR D3
133.35 0.15
(5.25 0.006)
3.30
128.95
(0.130)
(5.077)
MAX
4.00
(0.158 (2x))
28.58 0.15
(1.125 0.006)
17.80
(0.70)
2.30
(0.10)
(2x)
1.27 (0.050)
10.00
2.175
(0.393)
(0.086)
49.53
(1.95)
1.27 0.10
64.77
3.00
(0.118)
(4x)
(0.050 0.0039)
(2.550)
1.80
(0.071)
Tolerances: ±0.13 (0.0005) unless otherwise stated
ALL DIMENSIONS ARE IN MILLIMETERS AND (INCHES)
July 2005
Rev. 0
10
White Electronic Designs Corporation • (602) 437-1520 • www.whiteedc.com
WV3EG32M64ETSU-D3
White Electronic Designs
ADVANCED
PART NUMBERING GUIDE
WV 3 E G 32M 64 E T S U xxx D3 x G
WEDC
MEMORY
DDR
GOLD
DEPTH
BUS WIDTH
x8
TSOP
2.5V
UNBUFFERED
SPEED (MHz)
PACKAGE 184 PIN
COMPONENT VENDOR
NAME
(M = Micron)
(S = Samsung)
(G = Inneon)
G = ROHS COMPLIANT
July 2005
Rev. 0
11
White Electronic Designs Corporation • (602) 437-1520 • www.whiteedc.com
WV3EG32M64ETSU-D3
White Electronic Designs
ADVANCED
Document Title
256MB – 32Mx64 DDR SDRAM UNBUFFERED
Revision History
Rev #
History
Release Date Status
Rev 0
Created
7-05
Advanced
July 2005
Rev. 0
12
White Electronic Designs Corporation • (602) 437-1520 • www.whiteedc.com
厂商 型号 描述 页数 下载

WEDC

WV3DG64127V-D2 1GB - 2x64Mx64 , SDRAM UNBUFFERED[ 1GB - 2x64Mx64, SDRAM UNBUFFERED ] 8 页

WEDC

WV3DG64127V10D2 1GB - 2x64Mx64 , SDRAM UNBUFFERED[ 1GB - 2x64Mx64, SDRAM UNBUFFERED ] 8 页

WEDC

WV3DG64127V75D2 1GB - 2x64Mx64 , SDRAM UNBUFFERED[ 1GB - 2x64Mx64, SDRAM UNBUFFERED ] 8 页

WEDC

WV3DG64127V75D2F [ DRAM, ] 8 页

WEDC

WV3DG64127V75D2G [ 暂无描述 ] 8 页

WEDC

WV3DG64127V7D2 1GB - 2x64Mx64 , SDRAM UNBUFFERED[ 1GB - 2x64Mx64, SDRAM UNBUFFERED ] 8 页

WEDC

WV3DG64127V7D2F [ DRAM, ] 8 页

WEDC

WV3DG64127V7D2G [ 暂无描述 ] 8 页

WEDC

WV3DG72256V-AD2 2GB - 2x128Mx72 SDRAM ,注册[ 2GB - 2x128Mx72 SDRAM, REGISTERED ] 9 页

MICROSEMI

WV3DG72256V10AD2MG [ Synchronous DRAM Module, 256MX72, 5.4ns, CMOS, ROHS COMPLIANT, DIMM-168 ] 9 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.216321s
