QT100A-ISMG

型号：

QT100A-ISMG

品牌：

ATMEL[ ATMEL ]

页数：

18 页

PDF大小：

344 K

下载PDF手册

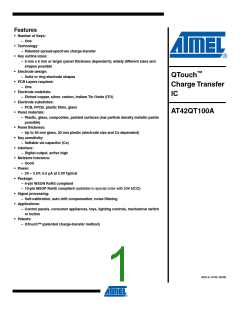

Features
• Number of Keys:
– One
• Technology:
– Patented spread-spectrum charge-transfer
• Key outline sizes:
– 6 mm x 6 mm or larger (panel thickness dependent); widely different sizes and
shapes possible
• Electrode design:
– Solid or ring electrode shapes
• PCB Layers required:
QTouch™
Charge Transfer
IC
– One
• Electrode materials:
– Etched copper, silver, carbon, Indium Tin Oxide (ITO)
• Electrode substrates:
– PCB, FPCB, plastic films, glass
AT42QT100A
• Panel materials:
– Plastic, glass, composites, painted surfaces (low particle density metallic paints
possible)
• Panel thickness:
– Up to 50 mm glass, 20 mm plastic (electrode size and Cs dependent)
• Key sensitivity:
– Settable via capacitor (Cs)
• Interface:
– Digital output, active high
• Moisture tolerance:
– Good
• Power:
– 2V – 5.5V; 6.5 µA at 2.0V typical
• Package:
– 6-pin WSON RoHS compliant
– 10-pin MSOP RoHS compliant (available to special order with 50K MOQ)
• Signal processing:
– Self-calibration, auto drift compensation, noise filtering
• Applications:
– Control panels, consumer appliances, toys, lighting controls, mechanical switch
or button
• Patents:
– QTouch™ (patented charge-transfer method)
9531A–AT42–02/09
1. Pinout and Schematic
1.1
Pinout Configuration
SNSK
SNS
1
2
3
4
5
10
9
OUT
1
6
5
OUT
N/C
QT100A
Vss
2
N/C
QT100A
8
SYNC
7
N/C
Vss
N/C
Vdd
3
4
SNSK
6
6-WSON Package
10-MSOP Package
1.2
Pin Descriptions
Table 1-1.
Pin Listing
6-Pin
10-Pin
Name
SNSK
SNS
N/C
WSON
MSOP
Type
I/O
I/O
O
Comments
Sense pin
Sense pin
Unused
Notes
3
4
–
–
2
5
1
2
3
4
5
6
Cs + Key
Cs
Leave open – do not connect
Leave open – do not connect
Ground
N/C
O
Unused
Vss
P
Supply ground
Power
Vdd
P
+2.0 ~ +5.0V
6-pin package – internally connected to SYNC pin
10-pin package – always connect pin to Sync
N/C
–
6
7
8
I
I
Unused
6-pin package – pin is either Sync/Slow/Fast Mode,
depending on logic level applied (see Section 3.1 on
page 5)
SYNC
Sync and Mode Input
N/C
–
1
9
O
O
Unused
Leave open – do not connect
–
OUT
10
Output state
I
Input only
I/O Input and output
O
P
Output only, push-pull
Ground or power
2
AT42QT100A
9531A–AT42–02/09
AT42QT100A
1.3
Schematic
Figure 1-1. Basic Circuit Configuration for 6-pin WSON Package
2 ~ 5V
SENSE
ELECTRODE
QT100A, 6-WSON Pkg.
*Cb
VDD
Rs
3
SNSK
Cs
4
OUT
SNS
Cx
SYNC
VSS
*Note: Bypass capacitor Cb should be tightly wired
between Vdd and Vss
2. Overview of the QT100A
2.1
Introduction
The QT100A charge-transfer (QT™) touch sensor is a self-contained digital IC capable of
detecting near-proximity or touch. It will project a touch or proximity field through any dielectric
like glass, plastic, stone, ceramic, and even most kinds of wood. It can also turn small metal-
bearing objects into intrinsic sensors, making them responsive to proximity or touch. This
capability, coupled with its ability to self-calibrate, can lead to entirely new product concepts.
The QT100A is designed specifically for human interfaces, like control panels, appliances, toys,
lighting controls, or anywhere a mechanical switch or button may be found. It includes all
hardware and signal processing functions necessary to provide stable sensing under a wide
variety of changing conditions. Only a single low cost, noncritical capacitor is required for
operation.
The QT100A can also project a proximity field to several centimeters with the proper electrode
and circuit design.
Two package types are offered, one of which can directly replace the QT100’s SOT-23-6
package but with a reduced thickness.
These devices are intended to replace the QT100.
Refer to the following application note for more information on migrating from QT100:
• QTAN0028 – Sensitivity Differences When Migrating from QT100 to QT100A
3
9531A–AT42–02/09
2.1.1
WSON Package Differences with QT100
A 6-pin WSON package version is available which uses the same basic PCB footprint as the
QT100’s SOT-23-6 package. The 6-WSON package has a reduced package thickness.
In converting an existing design from the QT100 to the QT100A, it should be noted that the 6-
WSON package has a bottom “center pad” which must be either grounded (connected to Vss) or
isolated. This center pad is wide enough that it can possibly touch the copper pads of the
QT100’s SOT-23-6 footprint, potentially creating a short circuit between two or more pads. In
order to prevent this, the solder mask layer of the PCB should be widened slightly, or, the copper
PCB pads narrowed slightly in size.
Refer to the following application note for assistance with this conversion process:
• QTAN0027 – PCB Design Considerations when Changing from 6-pin SOT23 to 6-pin WSON
Atmel® Products
A 10-pin MSOP package version is also available to special order with 50K MOQ.
2.1.2
Electrical Differences With QT100
In order to compensate for the fact that the QT100A silicon is 30 percent more sensitive to
capacitive changes than the QT100, the detection threshold has been increased by 30 percent
in the QT100A to compensate. The net effect is that the QT100A is behaviorally identical to the
QT100 (apart from no recalibration timeout), and no change in the value of Cs is required to
achieve the same sensitivity as the QT100.
2.2
Basic Operation
Figure 1-1 on page 3 shows a basic circuit using the 6-pin WSON package.
The QT100A employs bursts of charge-transfer cycles to acquire its signal. Burst mode permits
power consumption in the microamp range, dramatically reduces RF emissions, lowers
susceptibility to EMI, and yet permits excellent response time. Internally the signals are digitally
processed to reject impulse noise, using a “consensus” filter which requires four consecutive
confirmations of a detection before the output is activated.
The QT switches and charge measurement hardware functions are all internal to the QT100A.
2.3
Electrode Drive
For optimum noise immunity, the electrode should only be connected to SNSK.
In all cases the rule Cs>>Cx must be observed for proper operation; a typical load capacitance
(Cx) ranges from 5-20 pF while Cs is usually about 2-50 nF.
Increasing amounts of Cx destroy gain, therefore it is important to limit the amount of stray
capacitance on both SNS terminals. This can be done, for example, by minimizing trace lengths
and widths and keeping these traces away from power or ground traces or copper pours.
The traces and any components associated with SNS and SNSK will become touch sensitive
and should be treated with caution to limit the touch area to the desired location.
A series resistor, Rs, should be placed in line with SNSK to the electrode to suppress ESD and
EMC effects.
4
AT42QT100A
9531A–AT42–02/09
AT42QT100A
2.4
Sensitivity
2.4.1
Introduction
The sensitivity on the QT100A is a function of things like the value of Cs, electrode size and
capacitance, electrode shape and orientation, the composition and aspect of the object to be
sensed, the thickness and composition of any overlaying panel material, and the degree of
ground coupling of both sensor and object.
2.4.2
Increasing Sensitivity
In some cases it may be desirable to increase sensitivity; for example, when using the sensor
with very thick panels having a low dielectric constant. Sensitivity can often be increased by
using a larger electrode or reducing panel thickness. Increasing electrode size can have
diminishing returns, as high values of Cx will reduce sensor gain.
The value of Cs also has a dramatic effect on sensitivity, and this can be increased in value with
the trade-off of slower response time and more power. Increasing the electrode’s surface area
will not substantially increase touch sensitivity if its diameter is already much larger in surface
area than the object being detected. Panel material can also be changed to one having a higher
dielectric constant, which will better help to propagate the field.
Ground planes around and under the electrode and its SNSK trace will cause high Cx loading
and destroy gain. The possible signal-to-noise ratio benefits of ground area are more than
negated by the decreased gain from the circuit, and so ground areas around electrodes are
discouraged. Metal areas near the electrode will reduce the field strength and increase Cx
loading and should be avoided, if possible. Keep ground away from the electrodes and traces.
2.4.3
Decreasing Sensitivity
In some cases the QT100A may be too sensitive. In this case gain can be easily lowered by
decreasing Cs.
3. Operation Specifics
3.1
Run Modes
3.1.1
Introduction
The QT100A has three running modes which depend on the logic level applied to the SYNC pin.
3.1.2
Fast Mode (SYNC = 1)
The QT100A runs in Fast mode if the SYNC pin is permanently high. In this mode the QT100A
runs at maximum speed at the expense of increased current consumption. Fast mode is useful
when speed of response is the prime design requirement. The delay between bursts in Fast
mode is approximately 1 ms, as shown in Figure 3-1.
5
9531A–AT42–02/09
Figure 3-1. Fast Mode Bursts (SYNC Held High)
SNSK
QT100A1
~1ms
SYNC
3.1.3
Low Power Mode (SYNC = 0)
The QT100A runs in Low Power (LP) mode if the SYNC pin is held low. In this mode it sleeps for
approximately 85 ms at the end of each burst, saving power but slowing response. On detecting
a possible key touch, it temporarily switches to Fast mode until either the key touch is confirmed
or found to be spurious (via the detect integration process). It then returns to LP mode after the
key touch is resolved, as shown in Figure 3-2.
Figure 3-2. Low Power Mode (SYNC Held Low)
fast detect
integrator
~85ms
SNSK
QT100A1
sleep
sleep
sleep
SYNC
OUT
3.1.4
Sync Mode
It is possible to synchronize the device to an external clock source by placing an appropriate
waveform on the SYNC pin. Sync mode can synchronize multiple QT100A devices to each other
to prevent cross-interference, or it can be used to enhance noise immunity from low frequency
sources such as 50Hz or 60Hz mains signals.
The Sync pin is sampled at the end of each burst. If the device is in Fast mode and the Sync pin
is sampled high, then the device continues to operate in Fast mode (Figure 3-1 on page 6). If
SYNC is sampled low, then the device goes to sleep. From then on, it will operate in Sync mode
(Figure 3-2 on page 6). Therefore, to guarantee entry into Sync mode the low period of the
SYNC signal should be longer than the burst length (Figure 3-3).
6
AT42QT100A
9531A–AT42–02/09
AT42QT100A
Figure 3-3. Sync Mode (Triggered by Negative Edges on SYNC)
SNSK
sleep
sleep
sleep
Revert to Fast Mode
QT100A1
SYNC
slow mode sleep period
SNSK
QT100A1
sleep
sleep
sleep
Revert to Slow Mode
slow mode sleep period
SYNC
However, once Sync mode has been entered, if the SYNC signal consists of a series of short
pulses (>10 µs) then a burst will only occur on the falling edge of each pulse (Figure 3-4).
Figure 3-4. Sync Mode (Short Pulses)
SNSK
QT100A1
>10us
>10us
>10us
SYNC
In Sync mode, the device will sleep after each measurement burst (just as in LP mode) but will
be awakened by the falling edge of the SYNC signal, resulting in a new measurement burst. If
Sync remains unchanged for a period longer than the LP mode sleep period (about 85 ms), the
device will resume operation in either Fast or LP mode depending on the level of the SYNC pin
(Figure 3-3).
There is no detect integrator (DI) in Sync mode (each touch is a detection) but the Max
On-duration will depend on the time between SYNC pulses; see Section 3.3 on page 7 and
Section 3.4 on page 8. Recalibration timeout is a fixed number of measurements so will vary
with the SYNC period.
3.2
3.3
Threshold
The internal signal threshold level is fixed at 13 counts of change with respect to the internal
reference level, which in turn adjusts itself slowly in accordance with the drift compensation
mechanism.
The QT100A employs a hysteresis dropout of two counts of the delta between the reference and
threshold levels.
Max On-duration
If an object or material obstructs the sense pad the signal may rise enough to create a detection,
preventing further operation. To prevent this, the sensor includes a timer which monitors
detections. If a detection exceeds the timer setting the sensor performs a full recalibration. This
is known as the Max On-duration feature and is set to ~80s (at 3V). This will vary slightly with Cs
and if Sync mode is used. As the internal timebase for Max On-duration is determined by the
burst rate, the use of Sync can cause dramatic changes in this parameter depending on the
Sync pulse spacing.
7
9531A–AT42–02/09
3.4
Detect Integrator
It is desirable to suppress detections generated by electrical noise or from quick brushes with an
object. To accomplish this, the QT100A incorporates a detect integration (DI) counter that
increments with each detection until a limit is reached, after which the output is activated. If no
detection is sensed prior to the final count, the counter is reset immediately to zero. In the
QT100A, the required count is four. In LP mode the device will switch to Fast mode temporarily
in order to resolve the detection more quickly; after a touch is either confirmed or denied the
device will revert back to normal LP mode operation automatically.
The DI can also be viewed as a “consensus filter” that requires four successive detections to
create an output.
3.5
3.6
Forced Sensor Recalibration
The QT100A has no recalibration pin; a forced recalibration is accomplished when the device is
powered up or after the recalibration timeout. However, supply drain is low so it is a simple
matter to treat the entire IC as a controllable load; driving the QT100A's Vdd pin directly from
another logic gate or a microcontroller port will serve as both power and “forced recalibration”.
The source resistance of most CMOS gates and microcontrollers is low enough to provide direct
power without problem.
Drift Compensation
Signal drift can occur because of changes in Cx and Cs over time. It is crucial that drift be
compensated for, otherwise false detections, nondetections, and sensitivity shifts will follow.
Drift compensation (Figure 3-5) is performed by making the reference level track the raw signal
at a slow rate, but only while there is no detection in effect. The rate of adjustment must be
performed slowly, otherwise legitimate detections could be ignored. The QT100A drift
compensates using a slew-rate limited change to the reference level; the threshold and
hysteresis values are slaved to this reference.
Figure 3-5. Drift Compensation
Signal
Hysteresis
Threshold
Reference
Output
Once an object is sensed, the drift compensation mechanism ceases since the signal is
legitimately high, and therefore should not cause the reference level to change.
8
AT42QT100A
9531A–AT42–02/09
AT42QT100A
The QT100A’s drift compensation is asymmetric; the reference level drift-compensates in one
direction faster than it does in the other. Specifically, it compensates faster for decreasing
signals than for increasing signals. Increasing signals should not be compensated for quickly,
since an approaching finger could be compensated for partially or entirely before even
approaching the sense electrode. However, an obstruction over the sense pad, for which the
sensor has already made full allowance, could suddenly be removed leaving the sensor with an
artificially elevated reference level and thus become insensitive to touch. In this latter case, the
sensor will compensate for the object's removal very quickly, usually in only a few seconds.
With large values of Cs and small values of Cx, drift compensation will appear to operate more
slowly than with the converse. Note that the positive and negative drift compensation rates are
different.
3.7
3.8
Response Time
The QT100A's response time is highly dependent on run mode and burst length, which in turn is
dependent on Cs and Cx. With increasing Cs, response time slows, while increasing levels of Cx
reduce response time. The response time will also be a lot slower in LP or Sync mode due to a
longer time between burst measurements.
Spread Spectrum
The QT100A modulates its internal oscillator by 7.5 percent during the measurement burst.
This spreads the generated noise over a wider band reducing emission levels. This also reduces
susceptibility since there is no longer a single fundamental burst frequency.
3.9
Output Features
3.9.1
Output
The output of the QT100A is active-high upon detection. The output will remain active-high for
the duration of the detection, or until the Max On-duration expires, whichever occurs first. If a
Max On-duration timeout occurs first, the sensor performs a full recalibration and the output
becomes inactive (low) until the next detection.
3.9.2
HeartBeat™ Output
The QT100A output has a HeartBeat “health” indicator superimposed on it in both LP and Sync
modes. This operates by taking the output pin into a three-state mode for 15 µs, once before
every QT burst. This output state can be used to determine that the sensor is operating properly,
or it can be ignored, using one of several simple methods.
The HeartBeat indicator can be sampled by using a pull-up resistor on the OUT pin (Figure 3-6
on page 10), and feeding the resulting positive-going pulse into a counter, flip flop, one-shot, or
other circuit. The pulses will only be visible when the chip is not detecting a touch.
9
9531A–AT42–02/09
Figure 3-6. Obtaining HeartBeat Pulses with a Pull-up Resistor (6-pin WSON Package)
VDD
5
VDD
Ro
1
3
4
6
SNSK
OUT
HeartBeat™ Pulses
SNS
SYNC
VSS
2
If the sensor is wired to a microcontroller as shown in Figure 3-7, the microcontroller can
reconfigure the load resistor to either Vss or Vdd depending on the output state of the QT100A,
so that the pulses are evident in either state.
Figure 3-7. Using a Microcontroller to Obtain HeartBeat Pulses in Either Output State (6-pin
WSON Package)
1
3
Port_M.x
Port_M.y
OUT
SNSK
SNS
R0
4
6
Microcontroller
SYNC
Electromechanical devices like relays will usually ignore the short HeartBeat pulse. The pulse
also has too low a duty cycle to visibly affect LEDs. It can be filtered completely if desired, by
adding an RC filter to the output, or if interfacing directly and only to a high-impedance CMOS
input, by doing nothing or at most adding a small noncritical capacitor from OUT to Vss.
3.9.3
Output Drive
The OUT pin is active high and can sink or source up to 2 mA. When a large value of Cs
(>20 nF) is used the OUT current should be limited to <1 mA to prevent gain-shifting side
effects, which happen when the load current creates voltage drops on the die and bonding
wires; these small shifts can materially influence the signal level to cause detection instability.
10
AT42QT100A
9531A–AT42–02/09
AT42QT100A
4. Circuit Guidelines
4.1
More Information
Refer to Application Note QTAN0002, Secrets of a Successful QTouch™ Design, and the Touch
Sensors Design Guide (both downloadable from the Touch Technology area of Atmel’s website)
for more information on construction and design methods.
4.2
Sample Capacitor
Cs is the charge sensing sample capacitor. The required Cs value depends on the thickness of
the panel and its dielectric constant. Thicker panels require larger values of Cs. Typical values
are 2 nF to 50 nF depending on the sensitivity required; larger values of Cs demand higher
stability and better dielectric to ensure reliable sensing.
The Cs capacitor should be a stable type, such as X7R ceramic or PPS film. For more consistent
sensing from unit to unit, 5 percent tolerance capacitors are recommended. X7R ceramic types
can be obtained in 5 percent tolerance at little or no extra cost. In applications where high
sensitivity (long burst length) is required the use of PPS capacitors is recommended.
4.3
Power Supply and PCB Layout
See Section 5.2 on page 12 for the power supply range. At 3V current drain averages less than
500 µA in Fast mode.
If the power supply is shared with another electronic system, care should be taken to ensure that
the supply is free of digital spikes, sags, and surges which can adversely affect the QT100A.
The QT100A will track slow changes in Vdd, but it can be badly affected by rapid voltage
fluctuations. It is highly recommended that a separate voltage regulator be used just for the
QT100A to isolate it from power supply shifts caused by other components.
If desired, the supply can be regulated using a Low Dropout (LDO) regulator, although such
regulators often have poor transient line and load stability. Refer to Application Note QTAN0002,
Secrets of a Successful QTouch™ Design, and the Touch Sensors Design Guide for further
information on power supply considerations.
Parts placement: The chip should be placed to minimize the SNSK trace length to reduce low
frequency pickup, and to reduce stray Cx which degrades gain. The Cs and Rs resistors (see
Figure 1-1 on page 3) should be placed as close to the body of the chip as possible so that the
trace between Rs and the SNSK pin is very short, thereby reducing the antenna-like ability of
this trace to pick up high frequency signals and feed them directly into the chip. A ground plane
can be used under the chip and the associated discrete components, but the trace from the Rs
resistor and the electrode should not run near ground, to reduce loading. For best EMC
performance the circuit should be made entirely with SMT components.
Electrode trace routing: Keep the electrode trace (and the electrode itself) away from other
signal, power, and ground traces including over or next to ground planes. Adjacent switching
signals can induce noise onto the sensing signal; any adjacent trace or ground plane next to, or
under, the electrode trace will cause an increase in Cx load and desensitize the device. Refer to
the Touch Sensors Design Guide for further information.
Important Note: for proper operation a 100 nF (0.1 µF) ceramic bypass capacitor must be
used directly between Vdd and Vss, to prevent latch-up if there are substantial Vdd
transients; for example, during an ESD event. The bypass capacitor should be placed
very close to the Vss and Vdd pins.
11
9531A–AT42–02/09
5. Specifications
5.1
Absolute Maximum Specifications
Operating temperature
-40°C to +85°C
-55°C to +125°C
0 to +6.0V
Storage temperature
VDD
Max continuous pin current, any control or drive pin
Short circuit duration to VSS, any pin
Short circuit duration to VDD, any pin
Voltage forced onto any pin
20 mA
Infinite
Infinite
-0.6V to (VDD + 0.6) Volts
CAUTION: Stresses beyond those listed under Absolute Maximum Specifications may cause permanent damage to the
device. This is a stress rating only and functional operation of the device at these or other conditions beyond those
indicated in the operational sections of this specification is not implied. Exposure to absolute maximum specification
conditions for extended periods may affect device reliability
5.2
Recommended Operating Conditions
VDD
Short-term supply ripple + noise
+2.0 to 5.5V
20 mV
Long-term supply stability
Cs value
100 mV
2 to 50 nF
5 to 50 pF
Cx value
5.3
AC Specifications
VDD = 3.0V, Cs = 10 nF, Cx = 5 pF, Ta = recommended range, unless otherwise noted
Parameter
TRC
Description
Recalibration time
Min
Typ
250
2
Max
Units
ms
Notes
Cs, Cx dependent
TPC
Charge duration
Transfer duration
µs
7.5% spread spectrum variation
7.5% spread spectrum variation
TPT
2
µs
Time between end of burst and
start of the next (Fast mode)
TG1
TG2
1
ms
ms
Time between end of burst and
start of the next (LP mode)
85
20
Increases with decreasing VDD
VDD, Cs and Cx dependent
TBL
TR
Burst length
ms
ms
µs
Response time
HeartBeat pulse width
100
THB
15
12
AT42QT100A
9531A–AT42–02/09
AT42QT100A
5.4
Signal Processing
Vdd = 3.0V, Cs = 10 nF, Cx = 5 pF, Ta = recommended range, unless otherwise noted
Description
Min
Typ
13
3
Max
Units
counts
Notes
Threshold differential
Hysteresis
See Note 1
See Note 1
counts
Consensus filter length
Max on-duration
4
samples
seconds
80
Note 1: Threshold and hysteresis differ from the QT100 in order to maintain the same sensitivity levels; see Section 2.1.2
on page 4.
5.5
DC Specifications
Vdd = 3.0V, Cs = 10 nF, Cx = 5 pF, Ta = recommended range, unless otherwise noted
Parameter
Description
Min
Typ
Max
Units
Notes
IDD
Supply current, Fast mode
600
µA
3V
6.5
17
45
2V
3V
5V
Iddl
Supply current, LP Mode
12
µA
VDDS
VIL
Supply turn-on slope
Low input logic level
High input logic level
Low output voltage
100
2.2
V/s
V
Required for proper start-up
SYNC pin
0.8
0.6
VHL
VOL
VOH
IIL
V
SYNC pin
V
OUT, 4 mA sink
OUT, 1 mA source
High output voltage
Input leakage current
Load capacitance range
Acquisition resolution
VDD-0.7
0
V
1
100
14
µA
pF
bits
CX
AR
9
13
9531A–AT42–02/09
5.6
Mechanical Dimensions
5.6.1
6-pin WSON
14
AT42QT100A
9531A–AT42–02/09
AT42QT100A
5.6.2
10-pin MSOP
(available to special order with 50K MOQ)
15
9531A–AT42–02/09
5.7
Marking
5.7.1
6-pin WSON
Pin 1 ID
Abbreviation of
Part number:
QT100A
QRG 1R7
run nr.
QT100A-ISG
Code revision 1.7,
released
Variable text
5.7.2
10-pin MSOP
Abbreviation of
Part number:
QT100A
DATECODE
QT100A-ISMG
Datecode
(variable)
Pin 1 ID
5.8
Part Number
Part Number
QT100A-ISG
QT100A-ISMG
Description
6-pin WSON RoHS compliant IC
10-pin MSOP RoHS compliant IC (available to special order with 50K MOQ)
5.9
Moisture Sensitivity Level (MSL)
MSL Rating
Peak Body Temperature
Specifications
MSL3
260oC
IPC/JEDEC J-STD-020
16
AT42QT100A
9531A–AT42–02/09
AT42QT100A
Revision History
Revision No.
History
Initial release for chip revision 1.7.
Revision A – February 2009
17
9531A–AT42–02/09
Headquarters
International
Atmel Corporation
2325 Orchard Parkway
San Jose, CA 95131
USA
Tel: 1(408) 441-0311
Fax: 1(408) 487-2600
Atmel Asia
Atmel Europe
Le Krebs
Atmel Japan
9F, Tonetsu Shinkawa Bldg.
1-24-8 Shinkawa
Chuo-ku, Tokyo 104-0033
Japan
Tel: (81) 3-3523-3551
Fax: (81) 3-3523-7581
Unit 01-05 & 16, 19/F
BEA Tower, Millennium City 5
418 Kwun Tong Road
Kwun Tong
Kowloon
Hong Kong
8, Rue Jean-Pierre Timbaud
BP 309
78054 Saint-Quentin-en-
Yvelines Cedex
France
Tel: (852) 2245-6100
Fax: (852) 2722-1369
Tel: (33) 1-30-60-70-00
Fax: (33) 1-30-60-71-11
Touch Technology Division
1 Mitchell Point
Ensign Way
Hamble
Southampton
Hampshire SO31 4RF
United Kingdom
Tel: (44) 23-8056-5600
Fax: (44) 23-8045-3939
Product Contact
Web Site
Technical Support
Sales Contact
www.atmel.com
touch@atmel.com
www.atmel.com/contacts
Literature Requests
www.atmel.com/literature
Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any
intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN ATMEL’S TERMS AND
CONDITIONS OF SALE LOCATED ON ATMEL’S WEB SITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR
STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL,
PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, OR
LOSS OF INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES. Atmel makes no representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the
right to make changes to specifications and product descriptions at any time without notice. Atmel does not make any commitment to update the information
contained herein. Unless specifically provided otherwise, Atmel products are not suitable for, and shall not be used in, automotive applications. Atmel’s products are
not intended, authorized, or warranted for use as components in applications intended to support or sustain life.
© 2008–2009 Atmel Corporation. All rights reserved. Atmel®, Atmel logo and combinations thereof, and others are registered trademarks, QT™,
QTouch™, HeartBeat™ and others are trademarks of Atmel Corporation or its subsidiaries. Other terms and product names may be registered
trademarks or trademarks of others.
9531A–AT42–02/09
厂商 型号 描述 页数 下载

QUANTUM

 		QT1+10G QTOUCH⑩传感器IC[ QTOUCH⑩ SENSOR IC ] 12 页

QUANTUM

 		QT1+IG QTOUCH⑩传感器IC[ QTOUCH⑩ SENSOR IC ] 12 页

QUANTUM

 		QT1+T+G 电荷转移触摸传感器[ CHARGE-TRANSFER TOUCH SENSOR ] 14 页

QUANTUM

 		QT100 电荷转移IC[ CHARGE-TRANSFER IC ] 10 页

QUANTUM

 		QT100-ISG 电荷转移IC[ CHARGE-TRANSFER IC ] 10 页

QUANTUM

 		QT100_07 电荷转移QTOUCH⑩ IC[ CHARGE-TRANSFER QTOUCH⑩ IC ] 12 页

QUANTUM

 		QT100_0707 电荷转移QTOUCHâ ?? ¢ IC[ CHARGE-TRANSFER QTOUCH™ IC ] 12 页

QUANTUM

 		QT100_3R0.08_0307 电荷转移QTOUCH⑩ IC[ CHARGE-TRANSFER QTOUCH⑩ IC ] 12 页

QT

 		QT1010T1-W [ LONG CREEPAGE MINI-FLAT PACKAGE ] 13 页

QT

 		QT1013T1-W [ LONG CREEPAGE MINI-FLAT PACKAGE ] 13 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.202594s
