2STC4793

型号：

2STC4793

品牌：

STMICROELECTRONICS[ ST ]

页数：

7 页

PDF大小：

129 K

下载PDF手册

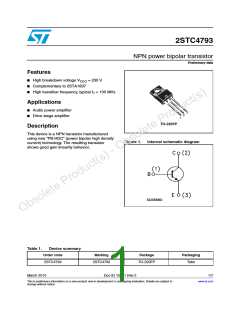

2STC4793
NPN power bipolar transistor
Preliminary data
Features
■ High breakdown voltage V
= 230 V
CEO
■ Complementary to 2STA1837
■ High transition frequency, typical f = 100 MHz
T
Applications
■ Audio power amplifier
■ Drive stage amplifier
3
2
1
TO-220FP
Description
This device is a NPN transistor manufactured
using new “PB-HDC” (power bipolar high density
current) technology. The resulting transistor
shows good gain linearity behavior.
Fure 1.
Internal schematic diagram
Table 1.
Device summary
Order code
2STC4793
Marking
Package
TO-220FP
Packaging
2STC4793
Tube
March 2010
Doc ID 15401 Rev 2
1/7
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to
change without notice.
www.st.com
7
Electrical ratings
2STC4793
1
Electrical ratings
Table 2.
Symbol
Absolute maximum ratings
Parameter
Value
Unit
VCBO
VCEO
VEBO
IC
Collector-base voltage (IE = 0)
Collector-emitter voltage (IB = 0)
Emitter-base voltage (IC = 0)
Collector current
230
V
V
230
5
V
1
A
ICM
Collector peak current
2
20
A
PTOT
TSTG
TJ
Total dissipation at TC = 25 °C
Storage temperature
W
°C
°C
- 65 to 150
150
Operating junction temperature
Table 3.
Symbol
Thermal data
Parameter
Value
Unit
RthJC
Thermal resistance junction-casMax
6.25
°C/W
2/7
Doc ID 15401 Rev 2
2STC4793
Electrical characteristics
2
Electrical characteristics
T
= 25 °C unless otherwise specified.
case
Table 4.
Symbol
Electrical characteristics
Parameter
Test conditions
CB = 230 V
Min. Typ. Max. Unit
Collector cut-off current
(IE = 0)
ICBO
V
V
1
1
µA
Emitter cut-off current
(IC = 0)
IEBO
EB = 5 V
µA
V
Collector-emitter breakdown
voltage (IB = 0)
(1)
V(BR)CEO
IC = 10 mA
IC = 100 µA
IE = 1 mA
IC = 0.5 A
230
230
5
Collector-base breakdown
voltage (IE = 0)
V(BR)CBO
V
Emitter-base breakdown
voltage (IC = 0)
(1)
V(BR)EBO
V
Collector-emitter saturation
voltage
(1)
VCE(sat)
IB = 50 mA
1
V
V
VBE
hFE
fT
Base-emitter voltage
DC current gain
IC = 0.5 A
I= .1 A
IC = 0.1 A
VCE = 5 V
VCE = 5 V
VCE = 10 V
1
100
320
Transition frequency
100
20
MHz
pF
Collector-base capacitance
(IE = 0)
CCBO
VCB = 10 V f = 1 MHz
1. Pulse test: pulse duration ≤ 300 µs, duty cycle ≤ 2 %
Doc ID 15401 Rev 2
3/7
Package mechanical data
2STC4793
3
Package mechanical data
In order to meet environmental requirements, ST offers these devices in different grades of
®
®
ECOPACK packages, depending on their level of environmental compliance. ECOPACK
specifications, grade definitions and product status are available at: www.st.com.
®
ECOPACK is an ST trademark.
4/7
Doc ID 15401 Rev 2
2STC4793
Package mechanical data
Table 5.
Dim.
TO-220FP mechanical data
Min.
mm.
Typ.
Max.
A
B
4.4
2.5
4.6
2.7
D
2.5
2.75
0.7
E
0.45
0.75
1.15
1.15
4.95
2.4
F
1
F1
F2
G
1.70
1.70
5.2
G1
H
2.7
10
10.4
L2
L3
L4
L5
L6
L7
Dia
16
28.6
9.8
2.9
15.9
9
30.6
10.6
3.6
16.4
9.3
3
3.2
Figure 2.
TO-220FP drawing
L7
E
A
B
D
Dia
L5
L6
F2
F1
F
G
H
G1
L4
L2
L3
7012510_Rev_K
Doc ID 15401 Rev 2
5/7
Revision history
2STC4793
4
Revision history
Table 6.
Date
Document revision history
Revision
Changes
12-Feb-2009
01-Mar-2010
1
2
Initial release.
Document status promoted from target specification to
preliminary data, updated package mechanical data.
6/7
Doc ID 15401 Rev 2
2STC4793
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services decribed herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rigs is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a licnse grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warrty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained there.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR ARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE SED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST pducts with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of T.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2010 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
Doc ID 15401 Rev 2
7/7
