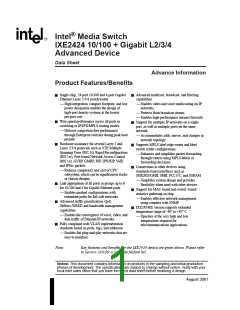

Intel® Media Switch
IXE2424 10/100 + Gigabit L2/3/4
Advanced Device
Data Sheet
Advance Information
Product Features/Benefits
Single-chip, 24-port 10/100 and 4-port Gigabit
Ethernet Layer 2/3/4 switch/router
— High integration, compact footprint, and low
power dissipation enables the design of
high-port density systems at the lowest
per-port cost
Wire speed performance across all ports in
switching or IP/IPX/MPLS routing modes
— Delivers congestion-free performance
through Enterprise switches during peak load
periods
Advanced multicast, broadcast, and filtering
capabilities
— Enables video and voice multicasting on IP
networks,
— Protects from broadcast storms
— Enables high-performance intranet firewalls
Support for multiple IP networks on a single
port, as well as multiple ports on the same
network
— Accommodates adds, moves, and changes in
network topology
Hardware assistance for several Layer 2 and
Layer 2/3/4 protocols such as STP, Multiple
Spanning Trees (802.1s), Rapid Reconfiguration
(802.1w), Port-based Network Access Control
(802.1x), GVRP, GMRP, RIP, IPX/RIP, VoIP,
and IPSec packets
— Reduces complexity and cost of CPU
subsystem, which can be significant in stacks
or chassis designs
Link aggregation of all ports in groups up to 8
for 10/100 and 4 for Gigabit Ethernet ports
— Enables meshed configurations with
redundant paths for fail-safe networks
Advanced traffic prioritization, QoS,
Diffserv,WRED and bandwidth management
capabilities
— Enables the convergence of voice, video, and
data traffic of Ethernet/IP networks
Fully compliant with VLAN implementation
standards based on ports, tags, and addresses
— Enables flat plug-and-play networks that are
easy to maintain
Supports MPLS label edge router and label
switch router configurations
— Enhances and simplifies packet forwarding
through routers using MPLS labels or
forwarding decisions
Connections to other devices using
standards-based interfaces such as
SERDES/GMII, SMII, PCI, I2C, and SSRAM
— Simplifies system design and provides
flexibility when used with other devices
Support for MAC-based and switch -based
statistics gathering on chip
— Enables effective network management
using counters with SNMP
IXE2424EE version supports extended
temperature range of -40° to +85° C
— Operates at the very high and low
temperatures required for
telecommunications applications
Note:
Key features and benefits for the IXE2424 device are given above. Please refer
to Section 10.0 for a complete feature list.
Notice: This document contains information on products in the sampling and initial production
phases of development. The specifications are subject to change without notice. Verify with your
local Intel sales office that you have the latest data sheet before finalizing a design.
August 2001
Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
Information in this document is provided in connection with Intel® products. No license, express or implied, by estoppel or otherwise, to any intellectual
property rights is granted by this document. Except as provided in Intel’s Terms and Conditions of Sale for such products, Intel assumes no liability
whatsoever, and Intel disclaims any express or implied warranty, relating to sale and/or use of Intel® products including liability or warranties relating to
fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right. Intel® products are not
intended for use in medical, life saving, or life sustaining applications.
Intel may make changes to specifications and product descriptions at any time, without notice.
Designers must not rely on the absence or characteristics of any features or instructions marked “reserved” or “undefined.” Intel reserves these for
future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them.
The Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device may contain design defects or errors known as errata which may cause the
product to deviate from published specifications. Current characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.
Copyright © Intel Corporation, 2001
*Other brands and names are the property of their respective owners.
Data Sheet
Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
Contents
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10.0
IXE2424 General Description.............................................................................................1
Applications........................................................................................................................1
Functional Description........................................................................................................2
Interface Descriptions.........................................................................................................4
Data Structures ..................................................................................................................5
Hardware Assisted Features............................................................................................10
Electrical and Environmental Specifications.....................................................................13
Hardware Support ............................................................................................................16
Software Support..............................................................................................................17
Feature List ......................................................................................................................20
Figures
1
2
3
4
5
6
IXE2424 Block Diagram ........................................................................................1
IXE2424 System Block Diagram ...........................................................................3
Switching Flow in IXE2424....................................................................................5
Clock Interface Timing Diagram..........................................................................15
IXE2424 Reference Design System....................................................................16
Software Architecture Illustrating APIs Supported by the IXE2424.....................17
Tables
1
2
3
4
5
6
7
8
9
IXE2424 Interfaces................................................................................................4
Switching Block Entries.........................................................................................6
Absolute Maximum Ratings.................................................................................13
Thermal Resistance ............................................................................................13
Thermal Resistance with Airflow .........................................................................13
Operating Conditions...........................................................................................14
Clock Interface Timing.........................................................................................14
APIs Supported by the IXE2424..........................................................................18
Protocols Enabled by the IXE2424......................................................................19
Data Sheet
Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
Data Sheet
Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
1.0
IXE2424 General Description
The IXE2424 device supports 24 10/100 Mbps ports and 4 Gigabit ports, integrating the MACs,
switching, routing, and queuing logic on-chip. The IXE2424 device is capable of wire speed Layer
2 switching and wire speed Layer 3 and 4 routing on all ports. It provides advanced filtering,
mirroring, and prioritizing capabilities and Layer 4 bandwidth management features.The device
also supports MPLS switching on all ports.
A system designed using a IXE2424 device requires transceivers on the 10/100 Mbps and Gigabit
ports, memory for storing switching data structures, memory for storing packets, and a CPU
subsystem. The IXE2424 device interfaces to the CPU subsystem via a 32-bit PCI bus.
The IXE2424 is available as two parts:
• IXE2424EA: Temperature range 0oC to +55 oC
• IXE2424EE: Temperature range -40 oC to +85 oC
2.0
Applications
Key applications for the IXE2424 include:
• 24 + 4 Layer 2/3/4 workgroup and enterprise switches
• Layer 2/3/4 switch/router with Gigabit uplinks and advanced bandwidth management
• Cascadable high port count Layer 2/3/4 switch/router when using one or all Gigabit ports for
cascading
• 24 + 4 MPLS label edge/switch router
Figure 1.
IXE2424 Block Diagram
Intel® Media Switch IXE2424 10/100/1000
L2/3/4 Advanced Device
24 x 10/100
MACs
10/ 100
Phys
Packet
Packet
Data
Storage
Path
Gigabit
Phys
4 x 10/100/1000
MACs
Packet Classifier
Engine
Queuing
Engine
CPU
Interface
(Optional)
PCI
Interface
External
SSRAM for
Address
Tables
Data Sheet
1
Intel Confidential
Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
3.0
Functional Description
3.1
Introduction
The IXE2424 device is a highly integrated Layer 2 switch, MPLS Label/Edge Switch /Router and
Layer 2/3/4 switch/router. It supports twenty-four 10/100 Mbps ports and four Gigabit ports with
on-chip MACs. It also supports integrated switching and routing logic and on-chip packet queuing
memory. The IXE2424 is capable of switching and routing packets at wire speed on all ports
regardless of packet size.
In Layer 2 mode, the IXE2424 supports:
• IEEE 802.1D, 1998 Edition standard, including 802.1p, 802.1Q
It also supports the IEEE 802.3, 1998 Edition standard, which includes:
• 802.3x flow control
• 802.3u Fast Ethernet
• 802.3z Gigabit Ethernet standards
• 802.3ad Link Aggregation standards
The IXE2424 provides on-chip 32-bit statistics counters to support the Etherstats group of RMON
standards. In addition, it provides counters for monitoring flow-based statistics.
In addition to the IEEE standards support, the IXE2424 provides many advanced features such as
Filtering, Mirroring, Bandwidth Management, Broadcast, and Multicast Storm Control, all in a
single device.
The IXE2424 connects to other devices using standards based interfaces such as SERDES/GMII,
SMII, PCI, and SSRAM. This simplifies the system design and provides flexibility when used with
other devices.
Figure 2 illustrates a system block diagram of the IXE2424 device.
2
Data Sheet
Intel Confidential
Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
Figure 2.
IXE2424 System Block Diagram
4 x Gigabit
Phys
3 x Octal
10/100
Phys
PCI
BUS
Address Table
RAM
PCI
Controller
Intel® Media Switch
IXE2424 10/100+Gigabit L2/3/4
Advanced Device
CPU
Subsystem
Packet Storage
RAM
Data Sheet
3
Intel Confidential
Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
4.0
Interface Descriptions
Table 1 provides a description of the IXE2424 interfaces.
Table 1.
IXE2424 Interfaces
Interface
Description
PCI Rev 2.2 compliant interface with bus mastering
capability for packet and unresolved entry transfers to
CPU.
PCI
Two pin interface that allows the IXE2424 to
communicate to the external 10/100 Mbps
transceivers and provides three separate SYNC
signals for point -to-point connections to three 8-port
transceivers.
SMII
Configurable interface used to link the IXE2424 to the
four Gigabit ports.
GMII/SERDES
Address Table SRAM
Packet Storage
MDIO
64-bit wide Pipelined Burst Synchronous SRAM
interface for address storage.
128-bit wide Pipelined Burst Synchronous Storage
SRAM interface for packet storage.
Serial MDIO interface for management of up to 32
Phy devices.
Transfers the Gigabit ports’ LED status. Can be
attached to an external 74HC595-type shift register.
LED
4
Data Sheet
Intel Confidential

Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
5.0
Data Structures
The Switching Engine block of the IXE2424 device uses a group of data structures when making
its forwarding decisions. These data structures called “entries” are linked to each other via pointers
and are usually stored in an external SSRAM (some of them can also be stored on-chip).
Each type of “entry” contains different information that allows the IXE2424 to support its diverse
set of features. Multiple addresses can point to the same entry type, unless they use different
features. This results in compact and efficient memory usage, with memory requirements
increasing only as more of these features are enabled.
Figure 3.
Switching Flow in IXE2424
Each Address has a unique
Record and Rule Entry combination
Record Entry & Rule Entry
Protocol Entry W0
Dest Swap Entry
Protocol Entry W1
Protocol Entry W2
Multiple Words of the Protocol
Entry can point to the same
NetID Entry or to separate
NetID Entry
Net ID Entry
Net ID Entry
Data Sheet
5
Intel Confidential
Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
Table 2 entries are maintained by the Switching Engine block for Layer 2, IP, IPX and MPLS
addresses.
Table 2.
Switching Block Entries
Entry Type
Description
The basic entry associated with every address. Is associated with another entry called
the Rules Entry.
Record Entry
Rules Entry
Contains further information about the address including the port on which this address
resides. Contains further pointers to a destination swap Entry and a Protocol Entry.
Destination Swap
Entry
This entry contains the Destination Swap Address. For IP and MPLS Multicast
addresses, this entry contains pointers to Multicast Information entries.
Contains filter, mirror, QoS, CoS, and priority configuration information and can be
configured as a list of one or more words with different protocols selecting to different
words in the same entry. Contains one or more pointers to a Net ID Entry.
Protocol Entry
Net ID Entry
This entry contains address based VLAN information. For IP addresses this entry
contains information about any MPLS labels to be pushed into the packet.
Multicast
Information Entry
Contains Multicast packet replication information for IP and MPLS multicast addresses
5.1
5.2
Enabled Layer 2 Protocols
The Layer 2 protocols enabled are: ARP, RARP, AppleTalk, DECNet, SNA, NetBios, DLC/LLC.
IP Switching/Routing Features
The IXE2424 will forward the first packet of the flow to the CPU if it does not find a forwarding
entry in its tables.
The CPU programs the outgoing port number and the Ethernet address of the next hop or
destination address into the IXE2424 tables. The first packet must then be routed on the port that
has the destination node connected through it.
Once the entries are created in the IXE2424 tables for the source and destination, all the packets
belonging to the flow are routed in hardware at wire speed. Packets belonging to protocols other
than IP and IPX will be switched in hardware at wire speeds using the Layer 2 switching algorithm.
5.2.1
Routing Domains
A routing domain is an IP network. An IP address and a subnet mask identify an IP routing domain.
Multiple routing domains can exist on the same port (in which case, they are identified by 802.1Q
VLAN tags) or multiple ports can belong to a routing domain. All the ports that belong to a routing
domain have the same IP address.
The IXE2424 device supports up to 256 routing domains.
6
Data Sheet
Intel Confidential

Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
5.2.2
Enabled IP Protocols
The IP protocols enabled are: TCP, UDP, ICMP, IGMP, EGP, OSPF, RSVP, and IGRP.
5.3
IPX Switching/Routing Features
5.3.1
Network and Node Addresses
For IPX packet processing, the IXE2424 uses network or node addresses to perform the switching
feature.
The IXE2424 maintains a shared address table for IPX network addresses and IPX node addresses,
supporting one routing domain per port for IPX networks.
5.3.2
Enabled IPX Protocols
There are registers provided for each protocol that indicate the increment from the Protocol Offset
where the protocol specific information for that protocol may be obtained.
The IPX protocols enabled are: SPX, RIP, NCP, NLSP, and SAP.
5.4
Port-based VLAN Features
The IXE2424 provides Port-based VLAN features by allowing each port to specify the group of
ports that belong in that VLAN. The Port based VLANs are the default means of creating VLANs
when no other type of VLANs (for example, 802.1Q Tag) have been programmed.
A separate VLAN per port is provided for:
• Layer 2 packets
• IP packets
• IPX packets
5.5
Protocol-based VLAN Features
Protocol-based VLANs can be configured on the IXE2424 by having different protocols point to
different words in the Protocol Entry. This allows the protocols to use different Net ID Entries, and
thus create different VLANs.
The Protocol Entry used by each protocol is programmed in the Protocol Registers.
Data Sheet
7
Intel Confidential
Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
5.6
802.1Q VLAN and 802.1D, 1998 Edition Priority and Class of
Service Features
The IXE2424 provides extensive support for VLANs and priorities based on the 802.1Q and
802.1D, 1998 Edition specifications.
It provides four levels of queues for all ports. The 3-bit Tag Priority field from the tagged packet
can be mapped into the four priority levels, by using the Map Priority Level register. The outgoing
packet can be modified to regenerate Tag Priority by using the per port Port Regenerate Priority
Entry. Map Priority Level register is a global mapping applying to all ports, while there is a per port
Regenerate Priority Entry. The Regenerate Priority Entry is indexed using the receive port number.
Also supported is regenerating the priority the packet should go out on. If there is not a need for
regenerating the priority, then the user can program the outgoing priority to be the same as the
incoming priority. The outgoing priority is also used to determine which internal queue the packet
will be queued to.
5.7
Port Aggregation Features
The IXE2424 supports port aggregation on all ports in groups of up to eight ports for the 10/100
Mbps ports, and in a group of four ports for the Gigabit ports.
The two modes of port aggregation supported are:
• Ingress aggregation only (the default mode),
• Ingress and Egress aggregation.
5.8
5.9
Interrupt Generation and Handling
The IXE2424 provides flexible interrupt generation mechanisms. It provides two interrupt pins and
two on-chip mask registers that enable the CPU to map any interrupt to either of the interrupt pins.
This allows the CPU to treat certain interrupts as high priority and others as low priority.
The CPU can also mask off any interrupt from both registers and effectively convert the bit into a
poll bit.
Packet Transfers to CPU
The IXE2424 provides extensive packet processing support in its hardware in order to reduce the
burden of the CPU.
It provides four queues for packets that are to be sent to the CPU. Each queue can be individually
turned on or off to start and stop the CPU from receiving packets from that queue, and can be
assigned a guaranteed bandwidth. This allows the CPU to prioritize the types of packets that it
wants to process.
The DMA engines that are provided per queue allow the IXE2424 to directly transfer data into the
CPU memory without CPU intervention.
8
Data Sheet
Intel Confidential
Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
5.10
Unresolved Packet Transfers to CPU
The IXE2424 also maintains four queues for unresolved packets. Each queue can be individually
turned on or off and assigned a guaranteed bandwidth. This allows the CPU to prioritize the types
of packets that it wants to process. The Scatter-Gather DMA engines provided per queue allow the
IXE2424 to directly transfer data into the CPU memory without CPU intervention.
The only difference between “unresolved packet transfers to CPU” versus “resolved packet
transfers to CPU”, is that unresolved packets have an option to not send the whole packet, but only
part of the packet to the CPU.
5.11
Packet Transfers From CPU
The IXE2424 provides two queues, which are supported by DMA, for packet transfers from the
CPU. Queue 1 is treated as the high priority queue, and is always processed before queue 0, unless
a packet transfer had already started for queue 0. In this case, the complete packet from queue 0 is
fetched from the CPU memory first, and then the packet from queue 1 is processed. The two
queues allow a high priority process (for example, Spanning Tree BPDUs) to not have its packets
stuck behind other lower-priority packets.
Data Sheet
9
Intel Confidential
Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
6.0
Hardware Assisted Features
This section describes the hardware assisted features provided in the IXE2424.
6.1
Address Learning
The IXE2424 facilitates address learning by using a hardware engine that provides a content
addressable memory-like interface to the CPU. The IXE2424 needs CPU support to learn
addresses.
6.2
6.3
Address Aging
The IXE2424 contains hardware assistance for the entry aging process. It has three modes of
operation to support various levels of CPU intervention. In all modes, the aging controller steps
through a programmable number of zones, broadcasting the current zone (also known as the “age
zone”) throughout the device.
Learning of Socket Address
The IXE2424 provides a separate address learning interface for Layer 4 Socket Addresses in order
to speed up the process of application based rules generation. The IXE2424 also provides an add,
delete, and lookup state machine called the Layer 4 processor. This simplifies the adding and
deleting of socket addresses.
6.4
6.5
Aging of Socket Address
The IXE2424 has a separate aging state machine for aging Layer 4 Record Entries.
MDIO/MDC Scanning
The IXE2424 provides a controller to manage up to 32 devices via the MDIO and MDC pins. Up to
thirty-two 16-bit registers per device can be addressed. The controller allows the CPU to use the
PCI bus to communicate with these devices, performing all serialization and deserialization. In
addition, it allows the CPU to perform “gang” operations that work on several devices at a time.
Finally, it can be set to continuously scan the devices looking for a change in their status,
interrupting the CPU only when it detects such a change. The controller uses an internal RAM for
all gang operations.
6.6
Statistic Counters
The IXE2424 provides MAC-based and switch-based statistics gathering support on chip.
10
Data Sheet
Intel Confidential
Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
6.7
6.8
Bandwidth Management
When performing bandwidth management, it is necessary to account for the size of the packets
being arbitrated, not just the number of packets. Also, latency can become a problem. The
IXE2424 supports two types of algorithms per port: the Credit Algorithm and the Strict Priority
Algorithm.
QoS
The QoS logic in the IXE2424 allows certain flows to be mapped as QoS. These flows can be
queued to a certain priority that has been assigned a guaranteed bandwidth. The rate at which the
flow is sending is also constantly monitored, and this is compared to the configured rate for this
flow. If the rate is exceeded, then the packets that caused this exception are either dropped or
remarked with new Diffserv code point and WRED precedences.
Multiple flows can be mapped to the same transmit queue, and still be guaranteed the required
bandwidth for that flow—the bandwidth management feature takes care of guaranteeing the
bandwidth for the queue, and the QoS feature takes care of guaranteeing the bandwidth for all the
flows mapped to the same queue.
6.9
Diffserv
The IXE2424 allows marking of packets belonging to certain flows. Packets belonging to such
flows are assigned a particular value of the Diffserv Code point. The Diffserv code point can also
be changed based on QOS settings. Traffic prioritization and policing is done by mapping the
Diffserv Code Point to internal priority levels,802.1 p tag priority levels, and WRED parameter set.
6.10
6.11
WRED
The IXE2424 supports two precedence classes on every priority queue. The WRED parameters are
selectable in a per port per priority queue basis. WRED can be used along with QoS and Diffserv
Broadcast and Multicast Storm Control
The IXE2424 provides a per port configuration on the incoming and/or outgoing port basis that
allows broadcast and/or multicast storm control. The CPU can program a threshold value per port
that indicates the number of broadcast and/or multicast packets/bytes that are allowed in a given
time interval.
6.12
IP Multicast Routing
The IXE2424 supports up to 256 routing domains without placing any per port limitations. A port
can have one or more routing domains (or IP networks) associated with it. An IP multicast packet
that must be forwarded on such a port may need to be sent out multiple times, each time with a
Data Sheet
11
Intel Confidential
Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
different 802.1Q tag associated with that routing domain. The number of times the packet must sent
depends on the number of routing domains on that port that have members that belong to that
multicast group. The IXE2424 allows up to 256 multicast group members on a port.
12
Data Sheet
Intel Confidential
Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
7.0
Electrical and Environmental Specifications
This chapter contains the electrical and environmental specifications for the IXE2424. The
IXE2424 supports both 5V and 3.3V signaling environments.
7.1
Absolute Maximum Rating
Applying stresses beyond the absolute maximum may cause unrecoverable damage to the device.
Operation of this product is not implied for any condition beyond the ranges specified in the
functional operation range described in Section 9.3, “Functional Operating Range” on page 9-2.
Operating this product at the absolute maximum rating for a prolonged period can negatively
impact device reliability. The following table, Table 9-1, “Absolute Maximum Ratings” on
page 9-1 lists the absolute maximum ratings for the IXE2424.
Table 3.
Absolute Maximum Ratings
Parameter
Sym
Min
Max
Units
Supply Voltage Core
Supply Voltage IO
V
TBD
TBD
-40
1.98
3.6
V
V
DDCORE
V
DDIO
Operating Temperature
Storage Temperature
T
85
oC
oC
op
T
-65
+150
st
Caution: Exceeding these values may cause permanent damage. Functional operation under these
conditions is not implied. Exposure to maximum rating conditions for extended periods may
affect device reliability.
7.2
Thermal Resistance
Table 4.
Table 5.
Thermal Resistance
Thermal Resistance
Parameter
Value
θJC
θCA
Junction to case
Case to ambient
TBD
TBD
Thermal Resistance with Airflow
Thermal
Package
0 LFPM
TBD
100 LFPM
TBD
200 LFPM
300 LFPM
500 LFPM
Resistance
θJA (o C/W)
TBGA Type IA
TBD
TBD
TBD
Note:
Heat Sink may be required depending on the air flow in the system.
Data Sheet
13
Intel Confidential
Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
7.3
Functional Operating Range
The following table, Table 6 lists the functional operating range.
Table 6.
Operating Conditions
1
Parameter
Sym
Min
Typ
Max
Units
2
Recommended Supply Voltage Core
Recommended Supply Voltage IO
V
1.71
1.8
3.3
1.89
V
DDCORE
2
V
3.135
3.456
V
DD
Recommended Operating Temperature
(IXE2424EA)
T
0
55
85
oC
oC
op
Recommended Operating Temperature
(IXE2424EE)
T
-40
op
IDDAnalog
TBD
TBD
TBD
TBD
300
1.5
mA
mA
A
IDDIO
IDDCORE
Total Power (3.3V/1.8V)
P
3.7
W
tot
Maximum Junction Temperature
T
-40
125
oC
jmax
1. Typical values are at 25 oC and are for design aid only; not guaranteed and not subject to production
testing.
2. Voltages with respect to ground unless otherwise specified.
7.4
Clock Interface
7.4.1
Signal Timing
Table 7 describes the clock interface timing specifications.
Clock Interface Timing
Table 7.
Symbol
Parameter
Min
Max
f
Frequency
Duty Cycle
100MHz
80%
FREQ
40%
Cycle-to-Cycle Jitter
Time High
200ps
t
4ns
4ns
KH
t
Time Low
KL
t
Rise Time
1.5ns
1.5ns
R
t
Fall Time
F
Figure 4 illustrates the Clock interface timing diagram.
14
Data Sheet
Intel Confidential




Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
Figure 4.
Clock Interface Timing Diagram
tKC
tKL
CLK
(100MHz)
tKH
Data Sheet
15
Intel Confidential
Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
8.0
Hardware Support
Figure 5 illustrates the hardware supported in the IXC2424 reference design.
Figure 5.
IXE2424 Reference Design System
1. LED Arrays
3. Fiber Transceivers
5. RJ45 Connectors
2. Processor
4. Magnetics
6. Fast Ethernet Phys
10. DRAM Modules
8. Serdes Phys
9. System Controller
7. Intel® Media Switch
IXE2424 10/100+Gigabit
L2/3/4 Advanced Device
16
Data Sheet
Intel Confidential

Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
9.0
Software Support
9.1
APIs Supported
The IXE2424 supports the APIs illustrated in the software architecture block diagram shown in
Figure 6.
Figure 6.
Software Architecture Illustrating APIs Supported by the IXE2424
Higher Layer
Protocols
Configuration &
Management
Functions
Higher Layer Protocols
(Sending and Receiving
Packets)
Packet MUX/
DEMUX
Address
Resolution
Task
Address Aging
ASIC Database
Manager
Port
Aggregation
DMA and CPU
Packet
Interface
Module
Event Manager
Task
Configuration
Mgmt. Task
IXE2424
Phy Driver
MAC Driver
Stats
API’s
Misc.
API’s
Interrupt
Handler
Priority
Diffserv WRED
QoS
Mirror
Filter
VLAN MPLS
Data Sheet
17
Intel Confidential

Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
Summary descriptions and use of APIs supported by the IXE2424 are provided in Table 8.
Table 8.
APIs Supported by the IXE2424 (Sheet 1 of 2)
API Module
Description/Use
Handles the interrupt from the IXE2424.
Interrupt Handling
OS Wrapper
Provides services needed from the underlying real time operating system. You can
port these wrappers to your target operating system.
Provides a generic method for distributing information within a system. Allows
different software modules to register for events of interest and makes the
information distribution transparent, modular, and flexible.
Notification Manager
Enables you to program the performance of different functions. Provides functions
for the ASIC, MAC, and Phy initialization, configuration, and management, which
include functions for ASIC initialization and routines for bit level manipulations of
the IXE2424 registers for various configurations.
ASIC, MAC, and PHY
Address Resolution
MAC and Phy provide functions to initialize the Ethernet controllers built into the
IXE2424 and theLXT9782 Phy (such as functions to change the speed, functions
to change the duplex mode, etc.).
Contains functions used for learning IP, IPX, and Layer 2 addresses.
Include the ability to perform a routing table lookup (for IP and IPX Address
Resolution—call into IP and IPX routing modules), determine the Ethernet address
of the destination station or the next-hop (for routed packets whose destination is
unresolved to determine the address programmed into swap entry—call into ARP
module for IP or SAP module for IPX), etc.
IP Configuration and
Management
Provides functions to send and receive packets between the IXE2424 and the
CPU. The ASIC Driver provides a full set of functions supporting packet send and
packet receive, and a separate set of functions that allow higher level software to
manage the receive and send DMA buffer pools directly.
DMA Interface
Provides functions for configuring an ageing interval. The IXE2424 tracks the
address record entries that have been accessed over the ageing interval. Different
aging time intervals can be specified for Layer 2, Layer 3, and Layer 4 entries.
Address Aging
Provides functions for address learning in the software. The hardware provides a
CAM interface to facilitate fast learning of addresses.
Address Learning
Supports configuring filters, mirrors, priorities, differentiated services, and quality of
service for networks, nodes and ports. These APIs can be called from higher-layer
software modules (such as SNMP agent) to configure these special rules for
addresses.
Filter, Mirror, Priority,
DiffServ and Quality of
Service
Provides APIs (based on ports, 802.1Q tags, and multicast addresses) to make
VLAN configuration and management easier for higher-layer software modules
such as GVRP, GMRP, or SNMP agent (for user-configured VLANs).
VLAN
Provides counters that count different events required for both standard and draft
MIB implementations and functions for gathering MAC, PHY, and ASIC statistics,
including RMON stats. The APIs provided for higher-layer software modules are for
reading these counters.
Statistics Gathering
18
Data Sheet
Intel Confidential

Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
Table 8.
APIs Supported by the IXE2424 (Sheet 2 of 2)
API Module
Description/Use
Support for port aggregation on all ports in groups of up to eight ports for the
10/100 Mbps ports, and in a group of two ports for the Gigabit ports. Supports
Ingress Aggregation Only and Ingress and Egress Aggregation modes of which
Ingress Aggregation Only mode is the default.
Link Aggregation
Configuration and
Management
Used by Label Distribution Protocols to set up the MPLS forwarding plane in the
IXE2424.
MPLS
Provides functions for all other miscellaneous configurations, such as adding static
entries to address tables, creating static routes, creating default routes, broadcast
and multicast storm control, etc. The Miscellaneous API module interfaces to
various modules including ASIC Database Manager, Configuration Management
task, Address Resolution task, etc., to provide these functionalities to higher-layer
protocol stacks.
Miscellaneous
9.2
Protocols
The IXE2424 can perform extensive packet parsing and can obtain packet type (Type II, SNAP,
etc.) and protocol (IP, GARP, GVRP, STP, etc.) information directly from the packet header.
Enabled protocols are summarized in Table 9.
Table 9.
Protocols Enabled by the IXE2424
Protocol
Description/Use
GxRP family protocols enabled include GARP, GARP Multicast Registration
Protocol (GMRP), and GARP VLAN Registration Protocol (GVRP), which comprise
a task within a MAC bridge system that interacts with other tasks and the driver
through messages and events.
GxRP
GxRP services are the basis for implementing GMRP and GVRP. GMRP provides
the ability to register (and de-register) Group Address membership in a MAC
bridge. GVRP provides the functionality to register (and de-register) VLANs
dynamically.
Enabled IP protocol modules are the:
•
•
•
•
•
•
•
Internet Protocol (IP)
Address Resolution Protocol (ARP)
Internet Control Message Protocol (ICMP)
Internet Group Management Protocol (IGMP)
Routing Information Protocol (RIPv1 and RIPv2)
Internet Control Message Protocol (ICMP)
User Datagram Protocol (UDP)
IP
IP modules can be organized as independent tasks or be grouped together into a
single task depending upon the target environment and user requirement.
Spanning Tree Algorithm and Protocol (STAP) functionality, which computes single
spanning tree of all nodes in the arbitrary bridged network.
Spanning Tree
Stacking Control
LACP
Enables multiple Ethernet switches to be interconnected and managed as if they
were a single larger switching device. All features supported as it would for a
stand-alone system.
Allows one or more links to be aggregated to form a link aggregation group so that
a MAC client can treat the link aggregation group as a single link.
Data Sheet
19
Intel Confidential

Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
10.0
Feature List
• 24 10/100 Mbps ports and 4 Gigabit port switching/routing in a single 792-pin TBGA chip
• Integrated Gigabit and 10/100 Ethernet MACs
• On-chip storage for port transmit queues
• 10/100 Mbps ports configurable to half or full duplex
• Wire speed switching and routing on every port
• Hardware assisted address learning and aging
• Link aggregation of all ports in groups up to 8 for 10/100 Mbps ports and 4 for Gigabit ports
• Scatter-Gather based DMA support
• Broadcast and multicast storm control with configurable per port settings
• 66 MHz PCI Interface
10.1
Interfaces
• SERDES & GMII interface for Gigabit ports and SMII interface for 10/100 Mbps ports
• 10/100/1000 Mbps MACs for Gigabit Ports
• PCI Rev 2.2 compliant 66MHz CPU interface with bus mastering capability for packet and
unresolved entry transfers to CPU
• SSRAM interface for address table sizes up to 40K entries (16K each for Layer 2, IP, and 8K
IPX/MPLS entries) with no per port limits. In Layer 2 Only mode, address table sizes can be as
large as 40K entries.
10.2
Layer 3/ Layer 4
• Packet by packet IP and IPX routing in hardware
• Layer 4 application level intelligence for IP switching and routing
• Layer 2 switching for protocols other than IP and IPX
• Automatic recognition of Ethernet Type II, 802.3, and SNAP packets
• 256 IP networks with no per port limit. The same IP network can span multiple ports.
• IP nodes can belong to up to 256 multicast groups on any port.
10.3
MPLS Switching
• Supports MPLS switching on all ports
• Device can work as an Ingress/Egress MPLS/IP router in addition to being used as a pure
MPLS forwarding node
20
Data Sheet
Intel Confidential
Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
• QoS, WRED, Diffserv are also supported for MPLS packets
10.4
10.5
IEEE Standards
• 802.1D, 1998 edition which includes 802.1p Priority and Class of Service standard
• 802.1Q VLAN standard
• 802.3, 1998 edition which includes 802.3u Fast Ethernet standard, 802.3z Gigabit standard,
and 802.3x Flow control standard
• Proposed 802.1ad standard
VLAN Configuration
based on:
• 802.1Q tags
• Ports
• Addresses
• Protocols
10.6
Filtering
based on:
• Ports
• Source Ethernet, IP, or IPX address
• Destination Ethernet, IP, or IPX address
• Source-destination Ethernet, IP, or IPX address pairs
• MPLS label
• End to end IP applications
• Protocols
10.7
Class of Service
based on:
• 802.1p tags
• Ports
• Source Ethernet, IP, or IPX address
• Destination Ethernet, IP, or IPX address
• Source-destination Ethernet, IP, or IPX address pairs
Data Sheet
21
Intel Confidential
Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
• MPLS label
• End to end IP applications
• Protocols
• Support for Differential Services based on IETF RFC 2474
10.8
Port Mirroring
based on:
• Ports
• Source Ethernet, IP, or IPX address
• Destination Ethernet, IP, or IPX address
• Source-destination Ethernet, IP, or IPX address pairs
• MPLS label
• End to end IP applications
• Protocols
10.9
Bandwidth Management
based on:
• Source Ethernet, IP, or IPX address
• Destination Ethernet, IP, or IPX address
• Source-destination Ethernet, IP, or IPX address pairs
• MPLS label
• End to end IP applications
10.10
Queues
• Two queues for packets from CPU; to allow prioritizing of packet types
• Four queues for CPU packets; to allow prioritizing of packet types
• Four queues for unresolved packets to CPU; to allow prioritizing of unresolved types
• Four queues per port with user configurable priorities and weighted fair queuing
• WRED implemented for all queues
10.11
Counters
based on:
22
Data Sheet
Intel Confidential
Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
• EtherStats group of RMON
• Proposed SMON standard
• RFC 1573 and Ethernet interfaces MIB (RFC 1643)
10.12
10.13
Protocols
• Hardware enabling for BPDU, GVRP, GMRP, IGMP, ICMP packets
• Hardware enabling for routing protocols such as RIP, IPX/RIP, IPX/SAP, OSPF, DVMRP
• Hardware enabling for VoIP packets
• Hardware enabling for IPSec Packets
Low Cost Mode Of Operation
• Supports building a low cost 24 + 4 Layer 2 only switch with no external address table
SSRAM
• Up to 6K Layer 2 addresses and 64 802.1Q VLANs can be supported without external address
table SSRAM
Data Sheet
23
Intel Confidential
Intel® Media Switch IXE2424 10/100+Gigabit L2/3/4 Advanced Device
24
Data Sheet
Intel Confidential
厂商 型号 描述 页数 下载

INTEL

 		IXE2412 [ Interface Circuit, PBGA600, 40 X 40 MM, 1.27 MM PITCH, TBGA-600 ] 26 页

INTEL

 		IXE2412EA [ Interface Circuit, PBGA600, TBGA-600 ] 26 页

INTEL

 		IXE2412EE [ Interface Circuit, PBGA600, TBGA-600 ] 26 页

INTEL

 		IXE2424EA [ Interface Circuit, PBGA792, TBGA-792 ] 28 页

INTEL

 		IXE2426EA [ Interface Circuit, PBGA792, TBGA-792 ] 24 页

INTEL

 		IXE2426EE [ Interface Circuit, PBGA792, TBGA-792 ] 24 页

INTEL

 		IXE5416 [ Support Circuit, PBGA836, EBGA-836 ] 16 页

ETC

 		IXE5418 电信/数据通信\n[ Telecomm/Datacomm ] 30 页

IXYS

 		IXEH25N120 NPT3 IGBT[ NPT3 IGBT ] 4 页

IXYS

 		IXEH25N120D1 [ Insulated Gate Bipolar Transistor, 36A I(C), 1200V V(BR)CES, N-Channel, TO-247AD, PLASTIC PACKAGE-3 ] 4 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.223728s
