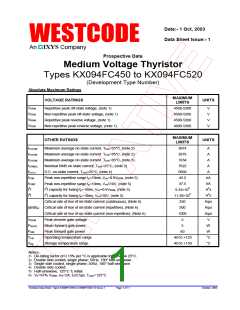

Date:- 1 Oct, 2003
Data Sheet Issue:- 1
WESTCODE
IXYS
An
Company
Prospective Data
Medium Voltage Thyristor
Types KX094FC450 to KX094FC520
(Development Type Number)
Absolute Maximum Ratings
MAXIMUM
LIMITS
VOLTAGE RATINGS
UNITS
VDRM
VDSM
VRRM
VRSM
Repetitive peak off-state voltage, (note 1)
Non-repetitive peak off-state voltage, (note 1)
Repetitive peak reverse voltage, (note 1)
Non-repetitive peak reverse voltage, (note 1)
4500-5200
4500-5200
4500-5200
4600-5300
V
V
V
V
MAXIMUM
LIMITS
OTHER RATINGS
UNITS
IT(AV)M
IT(AV)M
IT(AV)M
IT(RMS)
IT(d.c.)
ITSM
Maximum average on-state current, Tsink=55°C, (note 2)
Maximum average on-state current. Tsink=85°C, (note 2)
Maximum average on-state current. Tsink=85°C, (note 3)
Nominal RMS on-state current, Tsink=25°C, (note 2)
D.C. on-state current, Tsink=25°C, (note 4)
3874
2676
1634
7622
6668
43.2
A
A
A
A
A
Peak non-repetitive surge tp=10ms, Vrm=0.6VRRM, (note 5)
kA
kA
A2s
A2s
A/µs
A/µs
A/µs
V
ITSM2
≤
47.5
Peak non-repetitive surge tp=10ms, Vrm 10V, (note 5)
I2t
I2t capacity for fusing tp=10ms, Vrm=0.6VRRM, (note 5)
×
6
9.33 10
I2t
≤
×
I2t capacity for fusing tp=10ms, Vrm 10V, (note 5)
11.28 10
6
Critical rate of rise of on-state current (continuous), (Note 6)
Critical rate of rise of on-state current (repetitive), (Note 6)
Critical rate of rise of on-state current (non-repetitive), (Note 6)
Peak reverse gate voltage
250
500
(di/dt)cr
1000
VRGM
PG(AV)
PGM
5
Mean forward gate power
5
W
Peak forward gate power
60
W
Tj op
Operating temperature range
-40 to +125
-40 to +150
°C
°C
Tstg
Storage temperature range
Notes:-
1) De-rating factor of 0.13% per °C is applicable for Tj below 25°C.
2) Double side cooled, single phase; 50Hz, 180° half-sinewave.
3) Single side cooled, single phase; 50Hz, 180° half-sinewave.
4) Double side cooled.
5) Half-sinewave, 125°C Tj initial.
≤
6) VD=67% VDRM, IFG=2A, tr 0.5µs, Tcase=125°C.
Tentative Data Sheet. Types KX094FC450 to KX094FC520 TD Issue 1
Page 1 of 11
October, 2003
WESTCODE An IXYS Company
Medium Voltage Thyristor Types KX094FC450 to KX094FC520
Characteristics
PARAMETER
MIN.
TYP. MAX. TEST CONDITIONS
UNITS
(Note 1)
VTM
VTM
VT0
rT
Maximum peak on-state voltage
Maximum peak on-state voltage
Threshold voltage
-
-
2.05 ITM=5000A
3.09 ITM=11600A
1.223
V
V
V
-
-
-
-
Slope resistance
-
-
0.162
Ω
m
(dv/dt)cr Critical rate of rise of off-state voltage
1000
-
-
VD=80% VDRM, linear ramp, gate o/c
µ
V/ s
IDRM
IRRM
Vtr
Peak off-state current
Peak reverse current
On-state recovery voltage
Gate trigger voltage
-
-
-
-
-
-
-
-
200 Rated VDRM
200 Rated VRRM
mA
mA
V
-
20
-
IT=2×IT(AV)M, tp=10ms, Tcase=25°C
VGT
IGT
VGD
IH
-
3.0
600
V
Tj=25°C
VD=10V, IT=3A
Gate trigger current
-
-
mA
V
Gate non-trigger voltage
Holding current
0.25 Rated VDRM
1000 Tj=25°C
-
mA
µs
µs
µC
µC
A
tgd
Gate-controlled turn-on delay time
Turn-on time
1.0
3.0
18000
2.0
5.0
-
VD=67% VDRM, IT=4000A, di/dt=10A/µs,
I
FG=2A, tr=0.5µs, Tj=25°C
tgt
-
-
-
-
-
Qrr
Qra
Irm
Recovered charge
Recovered charge, 50% Chord
Reverse recovery current
Reverse recovery time
11000 12200
I
TM=4000A, tp=2000µs, di/dt=10A/µs,
Vr=100V
260
85
-
-
trr
µs
ITM=4000A, tp=2000µs, di/dt=10A/µs,
Vr=100V, Vdr=80%VDRM, dVdr/dt=20V/µs
-
-
900
-
-
tq
Turn-off time
µs
I
TM=4000A, tp=2000µs, di/dt=10A/µs,
1800
Vr=100V, Vdr=80%VDRM, dVdr/dt=200V/µs
-
-
-
-
0.0065 Double side cooled
K/W
K/W
kN
RthJK
Thermal resistance, junction to heatsink
0.0130 Single side cooled
F
Mounting force
Weight
81
-
-
99
-
Wt
2.8
kg
Notes:-
1) Unless otherwise indicated Tj=125°C.
Tentative Data Sheet. Types KX094FC450 to KX094FC520 TD Issue 1
Page 2 of 11
October, 2003
WESTCODE An IXYS Company
Medium Voltage Thyristor Types KX094FC450 to KX094FC520
Notes on Ratings and Characteristics
1.0 Voltage Grade Table
V
DRM VDSM VRRM
VRSM
V
VD VR
DC V
2100
2120
2160
2200
2240
Voltage Grade
V
45
46
48
50
52
4500
4600
4800
5000
5200
4600
4700
4900
5100
5300
2.0 Extension of Voltage Grades
This report is applicable to other voltage grades when supply has been agreed by Sales/Production.
3.0 De-rating Factor
A blocking voltage de-rating factor of 0.13%/°C is applicable to this device for Tj below 25°C.
4.0 Repetitive dv/dt
Standard dv/dt is 1000V/µs.
5.0 Gate Drive
The nominal requirement for a typical gate drive is illustrated below. An open circuit voltage of at least 30V
is assumed. This gate drive must be applied when using the full di/dt capability of the device.
IGM
4A/µs
IG
tp1
The magnitude of IGM should be between five and ten times IGT, which is shown on page 2. Its duration
(tp1) should be 20µs or sufficient to allow the anode current to reach ten times IL, whichever is greater.
Otherwise, an increase in pulse current could be needed to supply the necessary charge to trigger. The
‘back-porch’ current IG should remain flowing for the same duration as the anode current and have a
magnitude in the order of 1.5 times IGT.
6.0 Frequency Ratings
The curves illustrated in figures 17 & 18 are for guidance only and are superseded by the maximum
ratings shown on page 1. For operation above line frequency, please consult the factory for assistance.
7.0 Rate of rise of on-state current
The maximum un-primed rate of rise of on-state current must not exceed 1000A/µs at any time during
turn-on on a non-repetitive basis. For continuous, repetitive performance, the on-state rate of rise of
current must not exceed 250A/µs at any time during turn-on. Note that these values of rate of rise of
current apply to the total device current including that from any local snubber network.
8.0 Square wave frequency ratings
These ratings are given for load component rate of rise of on-state current of 50A/µs.
Tentative Data Sheet. Types KX094FC450 to KX094FC520 TD Issue 1
Page 3 of 11
October, 2003
WESTCODE An IXYS Company
Medium Voltage Thyristor Types KX094FC450 to KX094FC520
9.0 Computer Modelling Parameters
9.1 Device Dissipation Calculations
∆T
Rth
2
−VT 0 + VT 0 + 4⋅ ff 2 ⋅r ⋅WAV
WAV =
T
IAV =
and:
2⋅ ff 2 ⋅r
T
∆T = Tj max −THs
Ω
Where VT0=1.223V, rT=0.162m ,
R
= Supplementary thermal impedance, see table below and
th
ff
= Form factor, see table below.
Supplementary Thermal Impedance
30° 60° 90° 120°
0.00717 0.00707 0.00698 0.00689 0.00673 0.00652 0.0065
Conduction Angle
180°
270°
d.c.
Square wave Double Side Cooled
Square wave Single Side Cooled
Sine wave Double Side Cooled
Sine wave Single Side Cooled
0.0137 0.01359 0.01349 0.0134 0.01323 0.01301
0.00709 0.00697 0.00687 0.00678 0.00654
0.0136 0.01348 0.01337 0.01328 0.01303
0.013
Form Factors
Conduction Angle
Square wave
Sine wave
30°
3.464
3.98
60°
2.449
2.778
90°
2
2.22
120°
1.732
1.879
180°
1.414
1.57
270°
1.149
d.c.
1
9.2 D.C. Thermal Impedance Calculation
p=n
−t
τ p
r = r ⋅ 1− e
∑
t
p
p=1
p = 1 n, n
to
Where
is the number of terms in the series and:
t = Duration of heating pulse in seconds.
rt
= Thermal resistance at time t.
rp = Amplitude of pth term.
τp
= Time Constant of rth term.
The coefficients for this device are shown in the tables below:
D.C. Double Side Cooled
2
Term
rp
τp
1
3
4
3.424745×10-3
1.125391
1.745273×10-3
0.1878348
8.532017×10-4
0.02788979
3.457329×10-4
8.430889×10-3
D.C. Single Side Cooled
2
Term
rp
τp
1
3
4
8.375269×10-3
8.929845
2.518437×10-3
0.4711304
1.193758×10-3
0.08221244
7.45432×10-4
0.01221961
Tentative Data Sheet. Types KX094FC450 to KX094FC520 TD Issue 1
Page 4 of 11
October, 2003
WESTCODE An IXYS Company
Medium Voltage Thyristor Types KX094FC450 to KX094FC520
9.3 Calculating VT using ABCD Coefficients
The on-state characteristic IT vs. VT, on page 6 is represented in two ways;
(i)
the well established VT0 and rT tangent used for rating purposes and
a set of constants A, B, C, D, forming the coefficients of the representative equation for VT in
terms of IT given below:
(ii)
VT A B ln IT C IT D IT
= + ⋅ ( )+ ⋅ + ⋅
The constants, derived by curve fitting software, are given below for the hot characteristic. The resulting
values for VT agree with the true device characteristic over a current range, which is limited to that plotted.
125°C Coefficients
A
B
C
D
1.6547515
-0.1447324
7.892491×10-5
0.01744203
10.0 Snubber Components
When selecting snubber components, care must be taken not to use excessively large values of snubber
capacitor or excessively small values of snubber resistor. Such excessive component values may lead to
device damage due to the large resultant values of snubber discharge current. If required, please consult
the factory for assistance.
11.0 Reverse recovery ratings
(i)
Qra is based on 50% Irm chord as shown in Fig. 1
µ
(ii)
Qrr is based on a 150 s integration time i.e.
150µs
Qrr = irr .dt
∫
0
t1
t2
K Factor =
(iii)
Fig. 1
12.0 Duty cycle lines
The 100% duty cycle is represented on the frequency ratings by a straight line. Other duties can be
included as parallel to the first.
Tentative Data Sheet. Types KX094FC450 to KX094FC520 TD Issue 1
Page 5 of 11
October, 2003
WESTCODE An IXYS Company
Medium Voltage Thyristor Types KX094FC450 to KX094FC520
Curves
Figure 1 - On-state characteristics of Limit device
Figure 2 - Transient thermal impedance
0.1
10000
KX094FC450-520
KX094FC450-520
TD Issue 1
TD Issue 1
SSC
Tj = 125°C
0.0130K/W
0.01
DSC
0.0065K/W
0.001
0.0001
1000
0.00001
0.000001
100
0
0.5
1
1.5
2
2.5
3
1E-05 0.0001 0.001
0.01
Time (s)
0.1
1
10
100
Instantaneous On-state voltage - VTM (V)
Figure 3 - Gate characteristics - Trigger limits
Figure 4 - Gate characteristics - Power curves
20
8
KX094FC450-520
TD Issue 1
KX094FC450-520
TD Issue 1
Tj=25°C
7
Tj=25°C
18
16
14
12
10
8
Max VG dc
6
Max VG dc
5
PG Max 60W dc
4
IGT, VGT
3
6
2
4
PG 5W dc
Min VG dc
Min VG dc
1
IGD, VGD
2
0
0
0
0.25
0.5
0.75
1
1.25
1.5
0
2
4
6
8
10
Gate Current - IG (A)
Gate Current - IG (A)
Tentative Data Sheet. Types KX094FC450 to KX094FC520 TD Issue 1
Page 6 of 11
October, 2003
WESTCODE An IXYS Company
Medium Voltage Thyristor Types KX094FC450 to KX094FC520
Figure 5 - Total recovered charge, Qrr
Figure 6 - Recovered charge, Qra (50% chord)
100000
100000
KX094FC450-520
TD Issue 1
Tj=125°C
KX094FC450-520
TD Issue 1
Tj=125°C
4000A
2000A
4000A
2000A
1000A
1000A
500A
500A
10000
10000
1000
1
10
100
1000
1
10
100
1000
di/dt (A/µs)
di/dt (A/µs)
Figure 7 - Peak reverse recovery current, Irm
Figure 8 - Maximum recovery time, trr (50% chord)
1000
10000
KX094FC450-520
KX094FC450-520
TD Issue 1
TD Issue 1
Tj=125°C
Tj=125°C
4000A
2000A
1000A
500A
100
1000
4000A
2000A
1000A
500A
10
100
1
10
100
1000
1
10
100
1000
di/dt (A/µs)
di/dt (A/µs)
Tentative Data Sheet. Types KX094FC450 to KX094FC520 TD Issue 1
Page 7 of 11
October, 2003
WESTCODE An IXYS Company
Medium Voltage Thyristor Types KX094FC450 to KX094FC520
Figure 9 – On-state current vs. Power dissipation –
Double Side Cooled (Sine wave)
Figure 10 – On-state current vs. Heatsink
temperature - Double Side Cooled (Sine wave)
18000
150
KX094FC450-520
KX094FC450-520
TD Issue 1
TD Issue 1
16000
180°
120°
125
90°
60°
30°
14000
12000
10000
8000
6000
4000
2000
0
100
75
50
25
30°
90° 120° 180°
60°
0
0
1000
2000
3000
4000
5000
6000
0
1000
2000
3000
4000
5000
6000
Mean forward current (A) (Whole cycle averaged)
Mean forward current (A) (Whole cycle averaged)
Figure 11 – On-state current vs. Power dissipation
– Double Side Cooled (Square wave)
Figure 12 – On-state current vs. Heatsink
temperature – Double Side Cooled (Square wave)
18000
150
KX094FC450-520
KX094FC450-520
TD Issue 1
TD Issue 1
16000
125
14000
12000
100
10000
d.c.
30°
75
50
25
0
270°
180°
60°
90°
8000
6000
4000
2000
0
120°
90°
60°
30°
120°
180°
270°
d.c.
0
2000
4000
6000
8000
0
2000
4000
6000
8000
Mean Forward Current (Amps) (Whole Cycle Averaged)
Mean Forward Current (Amps) (Whole Cycle Averaged)
Tentative Data Sheet. Types KX094FC450 to KX094FC520 TD Issue 1
Page 8 of 11
October, 2003
WESTCODE An IXYS Company
Medium Voltage Thyristor Types KX094FC450 to KX094FC520
Figure 13 – On-state current vs. Power dissipation
– Single Side Cooled (Sine wave)
Figure 14 – On-state current vs. Heatsink
temperature – Single Side Cooled (Sine wave)
9000
150
KX094FC450-520
KX094FC450-520
TD Issue 1
TD Issue 1
8000
180°
120°
90°
60°
30°
125
7000
6000
5000
4000
3000
2000
1000
0
100
75
50
25
30°
60°
90° 120° 180°
0
0
500
1000
1500
2000
2500
3000
3500
0
500
1000
1500
2000
2500
3000
3500
Mean forward current (A) (Whole cycle averaged)
Mean forward current (A) (Whole cycle averaged)
Figure 15 – On-state current vs. Power dissipation
– Single Side Cooled (Square wave)
Figure 16 – On-state current vs. Heatsink
temperature – Single Side Cooled (Square wave)
150
9000
KX094FC450-520
KX094FC450-520
TD Issue 1
TD Issue 1
8000
125
7000
6000
100
30°
60°
90°
d.c.
270°
180°
120°
90°
5000
4000
3000
2000
1000
0
120°
75
180°
270°
d.c.
60°
30°
50
25
0
0
1000
2000
3000
4000
5000
0
1000
2000
3000
4000
5000
Mean Forward Current (Amps) (Whole Cycle Averaged)
Mean Forward Current (Amps) (Whole Cycle Averaged)
Tentative Data Sheet. Types KX094FC450 to KX094FC520 TD Issue 1
Page 9 of 11
October, 2003
WESTCODE An IXYS Company
Medium Voltage Thyristor Types KX094FC450 to KX094FC520
Figure 17 – Square Wave Frequency Ratings
Figure 18 – Sine Wave Frequency Ratings
1.00E+05
1.00E+05
KX094FC450-520
KX094FC450-520
TD Issue 1
TD Issue 1
TK=55°C
di/dt=50A/µs
TK=55°C
1500A
2000A
1500A
100% Duty Cycle
2000A
1.00E+04
1.00E+04
1.00E+03
1.00E+02
1.00E+01
3000A
100% Duty Cycle
3000A
5000A
5000A
1.00E+03
1.00E+02
1.00E+01
8000A
8000A
1.00E-05
1.00E-04
1.00E-03
1.00E-02
1.00E-05
1.00E-04
1.00E-03
1.00E-02
di/dt (A/µs)
di/dt (A/µs)
Figure 19 - Maximum surge and I2t Ratings
Gate may temporarily lose control of conduction angle
1000000
100000
10000
1.00E+08
I2t: VRRM ≤10V
KX094FC450-520
TD Issue 1
Tj (initial) = 125°C
I2t: 60% VRRM
1.00E+07
ITSM: VRRM ≤10V
ITSM: 60% VRRM
1.00E+06
1
3
5
10
1
5
10
50 100
Duration of surge (ms)
Duration of surge (cycles @ 50Hz)
Tentative Data Sheet. Types KX094FC450 to KX094FC520 TD Issue 1
Page 10 of 11
October, 2003
WESTCODE An IXYS Company
Medium Voltage Thyristor Types KX094FC450 to KX094FC520
Outline Drawing & Ordering Information
ORDERING INFORMATION
(Please quote 10 digit code as below)

KX094
FC
0
Voltage code
Fixed turn-off
VDRM/100
time code
45-52
Fixed
Fixed
Type Code
outline code
Order code: KX094FC480 – 4800V VDRM VRRM, 36.5mm clamp height capsule.
IXYS Semiconductor GmbH
Edisonstraße 15
Westcode Semiconductors Ltd
Langley Park Way, Langley Park,
Chippenham, Wiltshire, SN15 1GE.
Tel: +44 (0)1249 444524
D-68623 Lampertheim
Tel: +49 6206 503-0
WESTCODE
Fax: +49 6206 503-627
Fax: +44 (0)1249 659448
An IXYS Company
E-mail: marcom@ixys.de
E-mail: WSL.sales@westcode,com
IXYS Corporation
Westcode Semiconductors Inc
3270 Cherry Avenue
3540 Bassett Street
www.westcode.com
Santa Clara CA 95054 USA
Tel: +1 (408) 982 0700
Fax: +1 (408) 496 0670
E-mail: sales@ixys.net
Long Beach CA 90807 USA
Tel: +1 (562) 595 6971
Fax: +1 (562) 595 8182
www.ixys.com
E-mail: WSI.sales@westcode.com
The information contained herein is confidential and is protected by Copyright. The information may not be used or disclosed
except with the written permission of and in the manner permitted by the proprietors Westcode Semiconductors Ltd.
© Westcode Semiconductors Ltd.
In the interest of product improvement, Westcode reserves the right to change specifications at any time without prior notice.
Devices with a suffix code (2-letter, 3-letter or letter/digit/letter combination) added to their generic code are not necessarily
subject to the conditions and limits contained in this report.
Tentative Data Sheet. Types KX094FC450 to KX094FC520 TD Issue 1
Page 11 of 11
October, 2003
厂商 型号 描述 页数 下载

TYSEMI

 		KX020N06 VDS （V ） = 60V， ID = 2 A（ VGS = 10V ） RDS （ ON ） 200米（ VGS = 10V ）[ VDS (V) = 60V ID = 2 A (VGS = 10V) RDS(ON) 200m (VGS = 10V) ] 2 页

ROHM

 		KX023-1025 [ Analog Circuit, 1 Func, PBGA16, LGA-16 ] 74 页

AMPHENOL

 		KX02C14100J0G [ Barrier Strip Terminal Block ] 1 页

AMPHENOL

 		KX03C12000J0G [ Barrier Strip Terminal Block ] 1 页

AMPHENOL

 		KX03C14000J0G [ Barrier Strip Terminal Block ] 1 页

AMPHENOL

 		KX03C14100J0G [ Barrier Strip Terminal Block ] 1 页

AMPHENOL

 		KX03C15100J0G [ Barrier Strip Terminal Block, ] 1 页

AMPHENOL

 		KX03C18000J0G [ Barrier Strip Terminal Block ] 1 页

AMPHENOL

 		KX03C19000J0G [ Barrier Strip Terminal Block ] 1 页

AMPHENOL

 		KX03C19100J0G [ Barrier Strip Terminal Block ] 1 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.239876s
