ZY1207HG-T3

型号：

ZY1207HG-T3

品牌：

BEL[ BEL FUSE INC. ]

页数：

18 页

PDF大小：

840 K

下载PDF手册

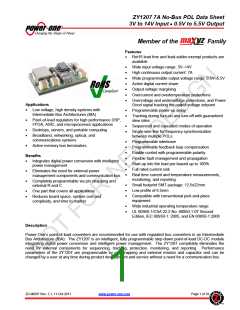

ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input • 0.5V to 5.5V Output
Member of the
Family
Features
•
RoHS lead free and lead-solder-exempt products are
available
•
•
•
•
•
•
•
Wide input voltage range: 3V–14V
High continuous output current: 7A
Wide programmable output voltage range: 0.5V–5.5V
Active digital current share
Output voltage margining
Overcurrent and overtemperature protections
Overvoltage and undervoltage protections, and Power
Good signal tracking the output voltage setpoint
Applications
•
Low voltage, high density systems with
Intermediate Bus Architectures (IBA)
•
•
Programmable power-up delay
Tracking during turn-on and turn-off with guaranteed
slew rates
•
Point-of-load regulators for high performance DSP,
FPGA, ASIC, and microprocessor applications
•
•
Sequenced and cascaded modes of operation
•
•
Desktops, servers, and portable computing
Single-wire line for frequency synchronization
between multiple POLs
Broadband, networking, optical, and
communications systems
•
•
•
•
•
•
•
Programmable interleave
•
Active memory bus terminators
Programmable feedback loop compensation
Enable control with programmable polarity
Flexible fault management and propagation
Start-up into the load pre-biased up to 100%
Full rated current sink
Benefits
•
•
•
Integrates digital power conversion with intelligent
power management
Eliminates the need for external power
management components and communication bus
Real time current and temperature measurements,
monitoring, and reporting
Completely programmable via pin strapping and
external R and C
•
•
•
Small footprint SMT package: 12.5x22mm
Low profile of 6.5mm
•
•
One part that covers all applications
Compatible with conventional pick-and-place
equipment
Reduces board space, system cost and
complexity, and time to market
•
•
Wide industrial operating temperature range
UL 60950-1/CSA 22.2 No. 60950-1-07 Second
Edition, IEC 60950-1: 2005, and EN 60950-1:2006
Description
Power-One’s point-of-load converters are recommended for use with regulated bus converters in an Intermediate
Bus Architecture (IBA). The ZY1207 is an intelligent, fully programmable step-down point-of-load DC-DC module
integrating digital power conversion and intelligent power management. The ZY1207 completely eliminates the
need for external components for sequencing, tracking, protection, monitoring, and reporting. Performance
parameters of the ZY1207 are programmable by pin strapping and external resistor and capacitor and can be
changed by a user at any time during product development and service without a need for a communication bus.
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 1 of 18
ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input • 0.5V to 5.5V Output
Reference Documents
No-BusTM POL Converters. Z-1000 Series Application Note
Z-One® POL Converters. Eutectic Solder Process Application Note
Z-One® POL Converters. Lead-Free Process Application Note
1. Ordering Information
ZY
12
07
x
y
–
zz
Product
family:
Z-One
Series:
No-Bus
POL
Output
Output voltage setpoint
RoHS compliance:
No suffix - RoHS
compliant with Pb
solder exemption2
G - RoHS compliant
for all six substances
Dash
Packaging Option3:
T1 – 500pcs T&R
T2 – 100pcs T&R
T3 – 50pcs T&R
Current: accuracy:
No suffix – 1.5% or 35mV,
7A
Module
Converter
whichever is greater.
H1 – 1.5% or 20mV,
whichever is greater
Q1 – 1pc sample for
evaluation only
K1 – 1pc mounted on
the evaluation board4
______________________________________
1
Contact factory for availability.
2
The solder exemption refers to all the restricted materials except lead in solder. These materials are Cadmium (Cd), Hexavalent chromium
(Cr6+), Mercury (Hg), Polybrominated biphenyls (PBB), Polybrominated diphenylethers (PBDE), and Lead (Pb) used anywhere except in
solder.
3
Packaging option is used only for ordering and not included in the part number printed on the POL converter label.
4
The evaluation board is available in only one configuration: ZY1207-K1.
Example: ZY1207HG-T2: A 100-peices reel of RoHS compliant POL converters with the output voltage setpoint
of 1.5% or 20mV, whichever is greater. Each POL converter is labeled ZY1207HG.
2. Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings may cause performance degradation, adversely affect long-
term reliability, and cause permanent damage to the POL converter.
Parameter
Operating Temperature
Input Voltage
Conditions/Description
Controller Case Temperature
250ms Transient
Min
Max
105
15
Units
°C
-40
VDC
ADC
Output Current
(See Output Current Derating Curves)
-7
7
3. Environmental and Mechanical Specifications
Parameter
Ambient Temperature Range
Storage Temperature (Ts)
Weight
Conditions/Description
Min
Nom
Max
85
Units
-40
-55
°C
°C
125
8
grams
MHrs
MTBF
Calculated Per Telcordia Technologies SR-332
6.24
ZY1207
ZY1207G
220
260
°C
°C
Peak Reflow Temperature
Lead Plating
245
100% Matte Tin or
1.5µm Ag over 1.5µm Ni
ZY1207 and ZY1207G
ZY1207
ZY1207G
2
3
Moisture Sensitivity Level
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 2 of 18
ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input • 0.5V to 5.5V Output
4. Electrical Specifications
Specifications apply at the input voltage from 3V to 14V, output load from 0 to 7A, ambient temperature from -40°C
to 85°C, output capacitance consisting of 110µF ceramic and 220µF tantalum, and default performance
parameters settings unless otherwise noted.
4.1
Input Specifications
Parameter
Conditions/Description
Min
Nom
Max
Units
VDC
At VIN<4.75V, VLDO pin needs to be
connected to an external voltage source
higher than 4.75V
Input voltage (VIN)
3
14
Input Current (at no load)
50
mADC
VIN≥4.75V, VLDO pin connected to VIN
Undervoltage Lockout (VLDO
connected to VIN)
Ramping Up
Ramping Down
4.00
3.9
VDC
VDC
Undervoltage Lockout (VLDO
connected to VAUX=5V)
Ramping Up
Ramping Down
2.8
2.7
VDC
VDC
External Low Voltage Supply
VLDO Input Current
Connect to VLDO pin when VIN<4.75V
4.75
14
VDC
Current drawn from the external low
voltage supply at VLDO=5V
50
mADC
4.2
Output Specifications
Parameter
Conditions/Description
Min
Nom
Max
Units
Output Current (IOUT
)
VIN MIN to VIN MAX
Programmable2 with a resistor between
TRIM and REF pins
-71
7
ADC
VDC
0.5
5.5
Output Voltage Range (VOUT
)
Default (no resistor)
0.5
VDC
Output Voltage Setpoint
Accuracy3
VIN=12V, IOUT=0.5*IOUT MAX, room
temperature
See Ordering Information
Line Regulation3
Load Regulation3
VIN MIN to VIN MAX
0 to IOUT MAX
±0.2
±0.2
%VOUT
%VOUT
Dynamic Regulation
Peak Deviation
Peak Deviation
Settling Time
Slew rate 1A/µs, 50-75% load step,
VIN≥5V
mV
mV
µs
75
100
30
VIN=3.3V
to 10% of peak deviation
Output Voltage Peak-to-Peak
Ripple and Noise
BW=20MHz
VIN=5.0V, VOUT≤2.5V
VIN=5.0V, VOUT>2.5V
VIN=12V, VOUT≤2.5V
VIN=12V, VOUT>2.5V
15
25
25
40
mV
mV
mV
mV
Full Load
Temperature Coefficient
Switching Frequency
VIN=12V, IOUT=0.5*IOUT MAX
50
ppm/°C
kHz
450
500
550
1
At the negative output current (bus terminator mode) efficiency of the ZY1207 degrades resulting in increased internal power dissipation.
Therefore maximum allowable negative current under specific conditions is 20% lower than the current determined from the derating curves
shown in paragraph 5.5.
2
ZY1207 is a step-down converter, thus the output voltage is always lower than the input voltage as show in Figure 1.
3
Digital PWM has an inherent quantization uncertainty of ±6.25mV that is not included in the specified static regulation parameters.
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 3 of 18



ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input • 0.5V to 5.5V Output
VOUT [V]
5.5
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
Min Load 0.2A
3.0
3.3
6.25
5.5
VIN [V]
2.0
4.0
8.0
6.0
10.0
12.0
14.0
Figure 1. Output Voltage as a Function of Input Voltage and Output Current
4.3
Protection Specifications
Parameter
Conditions/Description
Output Overcurrent Protection
Min
-25
-2
Nom
Max
Units
Type
Non-Latching, 130ms period
140
Threshold
%IOUT
Threshold Accuracy
25
%IOCP.SET
Output Overvoltage Protection
Type
Latching
Threshold
Follows the output voltage setpoint
Measured at VO.SET=2.5V
1301
6
%VO.SET
Threshold Accuracy
2
%VOVP.SET
From instant when threshold is exceeded until
the turn-off command is generated
Delay
μs
Output Undervoltage Protection
Type
Non-Latching, 130ms period
Threshold
Follows the output voltage setpoint
Measured at VO.SET=2.5V
75
%VO.SET
Threshold Accuracy
-2
2
%VUVP.SET
From instant when threshold is exceeded until
the turn-off command is generated
Delay
6
μs
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 4 of 18

ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input • 0.5V to 5.5V Output
Overtemperature Protection
Type
Non-Latching, 130ms period
120
Turn Off Threshold
Temperature is increasing
°C
°C
°C
μs
Temperature is decreasing after module was
shut down by OTP
Turn On Threshold
Threshold Accuracy
Delay
110
-5
5
From instant when threshold is exceeded until
the turn-off command is generated
6
Power Good Signal (PGOOD pin)
VOUT is inside the PG window and stable
VOUT is outside of the PG window or ramping
up/down
High
Logic
N/A
Low
90
Lower Threshold
Upper Threshold
Follows the output voltage setpoint
Follows the output voltage setpoint
%VO.SET
%VO.SET
110
6
From instant when threshold is exceeded until
status of PG signal changes
Delay
μs
Threshold Accuracy
Measured at VO.SET=2.5V
-2
2
%VO.SET
___________________
1
Minimum OVP threshold is 1.0V
4.4
Feature Specifications
Parameter
Conditions/Description
Current Share (CS pin)
Min
Nom
Max
Units
Type
Active, Single Line
Maximum Number of Modules
Connected in Parallel
IOUT MIN=0
4
Current Share Accuracy
IOUT MIN≥20%*IOUT NOM
±20
%IOUT
Interleave (IM and INTL2…INTL4 pins)
Programmable via INTL2…INTL4 pins in
Interleave (Phase Lag)
0
315
degree
45° steps
Sequencing (DELAY pin)
Programmable by capacitor connected to
DELAY pin
210
ms
ms
Power-Up Delay
Default: CDELAY=0
0
Tracking
Rising Slew Rate
Falling Slew Rate
Proportional to SYNC frequency
Proportional to SYNC frequency
0.1
V/ms
V/ms
-0.5
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 5 of 18
ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input • 0.5V to 5.5V Output
Enable (EN and ENP pins)
ENP pin is pulled low
Negative (enables the output when EN pin is
pulled low)
EN Pin Polarity
ENP pin is open
Positive (enables the output when EN pin is
open or pulled high)
EN High Threshold
EN Low Threshold
Open Circuit Voltage
2.3
VDC
VDC
VDC
1.0
EN and ENP
3.3
0
From EN pin changing state to VOUT
starting to ramp up
From EN pin changing state to VOUT
reaching 0V
Turn-On Delay
Turn-Off Delay
ms
ms
11
Feedback Loop Compensation (CCA0…CCA2 pins)
Recommended VIN range
Recommended COUT/ESR range,
combination of ceramic+ tantalum
Recommended VIN range
Recommended COUT range, tantalum
Recommended ESR range, tantalum
Recommended VIN range
8
50/5 +
220/40
8
440
40
12
100/5 +
470/40
12
880
25
12
220/5
5
14
400/5 +
2000/20
14
10,000
10
14
400/5
5.5
VDC
µF/mΩ
µF/mΩ
VDC
µF
mΩ
VDC
CCA=7 (default)
CCA=6
CCA=5
8
Recommended COUT/ESR range, ceramic
Recommended VIN range
100/5
3
µF/mΩ
VDC
CCA=3 or CCA=4
Recommended COUT/ESR range,
combination of ceramic + tantalum
Recommended VIN range
50/5 +
220/40
3
100/25
3
100/5 +
470/40
5
440/20
5
200/5 +
880/40
5.5
1,000/10
5.5
µF/mΩ
µF/mΩ
VDC
µF/mΩ
VDC
CCA=2
CCA=1
Recommended COUT/ESR range, tantalum
Recommended VIN range
Recommended COUT/ESR range, ceramic
100/5
220/5
400/5
µF/mΩ
Recommended VIN range
Recommended COUT/ESR range,
combination of ceramic+ tantalum
6
11
200/5 +
880/40
VDC
µF/mΩ
µF/mΩ
CCA=0
50/5 +
220/40
100/5 +
470/40
Output Current Monitoring (CS pin)
Output Current Monitoring
Accuracy
20%*IOUT NOM < IOUT < IOUT NOM
VIN=12V
-20
+20
%IOUT
%
Duty Cycle of the negative pulse
corresponding to 100% of nominal current
Conversion Ratio
70
Temperature Monitoring (TEMP pin)
Temperature Monitoring
Accuracy
Junction temperature of POL controller
-5
+5
2
°C
mV/°C
VDC
kΩ
Conversion Ratio
Monitoring Voltage Range
Output Impedance
Junction temperature from -40°C to 140°C
10
Corresponds to -40°C to 140°C junction
temperature range
0.2
TEMP pin
6.4
Remote Voltage Sense (+VS pin)
Between +VS and VOUT
Voltage Drop Compensation
300
mV
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 6 of 18
ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input • 0.5V to 5.5V Output
4.5
Signal Specifications
Parameter
Conditions/Description
Min
Nom
Max
Units
VDD
Internal supply voltage
3.15
3.3
3.45
V
SYNC Line
ViL_s
ViH_s
LOW level input voltage
HIGH level input voltage
-0.5
0.3 x VDD
VDD + 0.5
V
V
0.75 x
VDD
0.25 x
VDD
0.45 x
VDD
Vhyst_s
Hysteresis of input Schmitt trigger
V
IoL_s
Ipu_s
LOW level sink current V(SYNC)=0.5V
Pull-up current source V(SYNC)=0V
Maximum allowed rise time 10/90%VDD
Added node capacitance
14
60
1000
300
10
mA
μA
ns
300
Tr_s
Cnode_s
Freq_s
5
pF
Clock frequency of external SYNC line
475
22
525
kHz
% of clock
cycle
% of clock
cycle
Tsynq
T0
Sync pulse duration
28
78
Data=0 pulse duration
72
Inputs: INTL2…INTL4, CCA0…CCA2, EN, ENP, IM
Iup_x
ViL_x
Pull-up current source V(X)=0
LOW level input voltage
25
110
μA
V
-0.5
0.3 x VDD
VDD+0.5
0.3 x VDD
ViH_x
HIGH level input voltage
0.7 x VDD
0.1 x VDD
V
Vhyst_x
Hysteresis of input Schmitt trigger
V
External pull down resistance
pin forced low
RdnL_x
10
kOhm
Power Good and OK Inputs/Outputs
Iup_PG
Iup_OK
ViL_x
Pull-up current source V(PG)=0
Pull-up current source V(OK)=0
LOW level input voltage
25
175
110
725
μA
μA
V
-0.5
0.3 x VDD
VDD+0.5
0.3 x VDD
20
ViH_x
HIGH level input voltage
0.7 x VDD
0.1 x VDD
4
V
Vhyst_x
IoL_x
Hysteresis of input Schmitt trigger
LOW level sink current at 0.5V
V
mA
Current Share/Sense Bus
Iup_CS
ViL_CS
Pull-up current source at V(CS)=0V
LOW level input voltage
0.84
-0.5
3.10
mA
V
0.3 x VDD
0.75 x
VDD
0.25 x
VDD
ViH_CS
HIGH level input voltage
VDD+0.5
V
V
0.45 x
VDD
Vhyst_CS
Hysteresis of input Schmitt trigger
IoL_CS
Tr_CS
LOW level sink current V(CS)=0.5V
14
60
mA
ns
Maximum allowed rise time 10/90% VDD
100
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 7 of 18
ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input • 0.5V to 5.5V Output
5. Typical Performance Characteristics
94
92
90
88
86
84
82
80
78
5.1
Efficiency Curves
95
90
85
80
75
70
65
60
55
Vo=1.2V
Vo=3.3V
Vo=2.5V
Vo=5.0V
76
74
0
1
2
3
4
5
6
7
Vo=0.5V
Vo=1.2V
4
Vo=2.5V
6
Output Current, A
0
1
2
3
5
7
Output Current, A
Figure 4. Efficiency vs. Load. Vin=9.6V
Figure 2. Efficiency vs. Load. Vin=3.3V
92
90
88
86
84
82
80
78
76
74
72
70
95
90
85
80
75
70
65
60
Vo=1.2V
Vo=3.3V
Vo=2.5V
Vo=5.0V
Vo=0.5V
Vo=2.5V
Vo=1.2V
Vo=3.3V
0
1
2
3
4
5
6
7
Output Current, A
0
1
2
3
4
5
6
7
Output Current, A
Figure 5. Efficiency vs. Load. Vin=12V
Figure 3. Efficiency vs. Load. Vin=5V
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 8 of 18
ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input • 0.5V to 5.5V Output
95
90
85
80
75
70
65
60
55
5.2
Turn-On Characteristics
Vin=5V
Vin=3.3V
Vin=12V
Vin=9.6V
0.5
1.5
2.5
3.5
4.5
5.5
Output Voltage, V
Figure 8. Tracking Turn-On.
Vin=12V, Ch1 – V1, Ch2 – V2, Ch3 – V3
Figure 6. Efficiency vs. Output Voltage, Iout=7A
5.3
Turn-Off Characteristics
90
85
80
75
70
65
60
55
50
Vo=0.5V
Vo=1.2V
Vo=2.5V
3
4
5
6
7
8
9
10 11 12 13 14
Input Voltage, V
Figure 9. Tracking Turn-Off
Vin=12V, Ch1 – V1, Ch2 – V2, Ch3 – V3
Figure 7. Efficiency vs. Input Voltage. Iout=7A
5.4
Transient Response
The pictures in Figure 10 - Figure 15 show the
deviation of the output voltage in response to the 50-
75-50% step load at 1.0A/μs. In all tests the POL
converters had 5x22μF ceramic capacitors and a
220μF tantalum capacitor connected across the
output pins. The speed of the transient response
was optimized by selecting appropriate CCA
settings.
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 9 of 18


ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input • 0.5V to 5.5V Output
Figure 10. Vin=12V, Vout=1V. CCA=00
Figure 11. Vin=12V, Vout=2.5V. CCA=00
Figure 12. Vin=12V, Vout=5V, CCA=00
Figure 13. Vin=5V, Vout=1V. CCA=03
Figure 14. Vin=5V, Vout=2.5V. CCA=03
Figure 15. Vin=3.3V, Vout=1V. CCA=03
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 10 of 18


ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input • 0.5V to 5.5V Output
5.5
Thermal Derating Curves
7
6.5
6
5.5
5
4.5
4
3.5
0LFM
3
100LFM
55
200LFM
65
400LFM
75
600LFM
45
85
Ambient Temperature, Degree C
Figure 16. Thermal Derating Curves. Vin=12V, Vout=5.0V
7
6.5
6
5.5
5
4.5
4
3.5
0LFM
100LFM
55
200LFM
65
400LFM
600LFM
3
45
75
85
Ambient Temperature, Degree C
Figure 17. Thermal Derating Curves. Vin=14V, Vout=5.0V
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 11 of 18

ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input • 0.5V to 5.5V Output
6. Typical Application
IBV
ENABLE
CS
SYNC
OK
PGOOD
TEMP
CS
SYNC
OK
PGOOD
TEMP
TRIM
VREF
TRIM
VREF
VLDO
VIN
VLDO
VIN
EN
EN
VIN
VIN
VIN
VIN
ENP
ENP
VIN
VIN
VIN
VIN
CCA2
CCA1
CCA0
CCA2
CCA1
CCA0
22uF 4.7uF 4.7uF
22uF 4.7uF 4.7uF
POL2
POL4
+VS
VOUT
VOUT
VOUT
VOUT
VOUT
+VS
VOUT
VOUT
VOUT
VOUT
VOUT
INTL4
INTL3
INTL2
INTL4
INTL3
INTL2
Vo2
47uF
220uF
47uF
47uF
220uF
47uF
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
IM
IM
DELAY
DELAY
CS
SYNC
OK
PGOOD
TEMP
CS
SYNC
OK
PGOOD
TEMP
TRIM
VREF
TRIM
VREF
VLDO
VIN
VLDO
VIN
EN
EN
VIN
VIN
VIN
VIN
ENP
ENP
VIN
VIN
VIN
VIN
CCA2
CCA1
CCA0
CCA2
CCA1
CCA0
22uF 4.7uF 4.7uF
22uF 4.7uF 4.7uF
POL3
POL1
+VS
VOUT
VOUT
VOUT
VOUT
VOUT
+VS
VOUT
VOUT
VOUT
VOUT
VOUT
INTL4
INTL3
INTL2
INTL4
INTL3
INTL2
Vo3
Vo1
47uF
47uF
220uF
47uF
47uF
220uF
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
PGND
IM
IM
DELAY
DELAY
Figure 18. Complete Schematic of Application with Three Independent Outputs. Intermediate Bus Voltage is from 8V to 14V.
In this application four POL converters are configured to deliver three independent output voltages. POL1 and
POL2 are connected in parallel for increased output current. Output voltages are programmed with the resistors
connected between TRIM and VREF pins of individual converters.
POL1 is configured as a master (IM and INTL0…INTL4 pins are grounded) and all other POL converters are
synchronized to the switching frequency of POL1. Interleave is programmed with pins INTL0…INTL4 to ensure
the lowest input and output noise. POL2 has 180° phase shift, POL 3 and POL4 have phase shifts of 270° and
90° respectively.
All converters are controlled by the common ENABLE signal. Turn-on and turn-off processes of the system are
illustrated by pictures in Figure 8 and Figure 9.
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 12 of 18
ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input • 0.5V to 5.5V Output
7. Pin Assignments and Description
Pin
Name
Pin
No.
Pin
Type
Buffer
Type
Pin Description
Notes
Connect to an external voltage source higher
VLDO
1
P
Low Voltage Dropout
than 4.75V, if VIN<4.75V. Connect to VIN, if
VIN≥4.75V
Compensation Coefficient Address
CCA0
CCA1
CCA2
TEMP
ENP
2
3
4
5
6
I
I
PU
PU
PU
Tie to PGND for 0 or leave open for 1
Tie to PGND for 0 or leave open for 1
Tie to PGND for 0 or leave open for 1
Bit 0
Compensation Coefficient Address
Bit 1
Compensation Coefficient Address
Bit 2
I
Analog voltage proportional to junction
temperature of the controller
Tie to PGND for Negative logic or leave open
for Positive logic
A
I
Temperature Measurement
Enable Logic Selection
PU
INTL2
INTL3
INTL4
7
8
9
I
I
I
PU
PU
PU
Interleave Bit 2
Interleave Bit 3
Interleave Bit 4
Tie to PGND for 0 or leave open for 1
Tie to PGND for 0 or leave open for 1
Tie to PGND for 0 or leave open for 1
Connect to CS pin of other Z-POLs connected
in parallel
CS
10
I/O
PU
Current Share/Sense
To program the output voltage, connect a
resistor between VREF and TRIM
TRIM
PGOOD
SYNC
11
12
13
A
Output Voltage Trim
Power Good
I/O
I/O
PU
PU
Connect to SYNC pin of other Z-POLs and/or
to an external clock generator
Frequency Synchronization Line
Connect to OK pin of other Z-1000 POLs.
Leave open, if not used
OK
EN
14
15
16
I/O
I
PU
PU
Fault Status
Enable
Polarity is determined by ENP pin
To program the output voltage, connect a
resistor between VREF and TRIM
VREF
A
Voltage Reference
Tie to PGND for master or leave open to set
interleave by INTL0…INTL4 pins
Connect a capacitor between the pin and
PGND to program the Power-Up delay. Leave
open for zero delay
IM
17
18
I
PU
Interleave Mode
Power-Up Delay
DELAY
A
19-
23
VOUT
+VS
P
I
Output Voltage
Positive Voltage Sense
Power Ground
24
PU
Connect to the positive point close to the load
25-
31
PGND
P
32-
36
VIN
P
Input Voltage
Legend: I=input, O=output, I/O=input/output, P=power, A=analog, PU=internal pull-up
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 13 of 18
ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input • 0.5V to 5.5V Output
fault occurs. Pulling low the OK input by an external
circuitry turns off the POL converter.
8. Pin and Feature Description
8.1 VLDO, Low Voltage Dropout
8.10 SYNC, Frequency Synchronization Line
The input of the internal linear regulator. VVLDO
always needs to be greater than 4.75V for normal
operation of the POL converter.
The bidirectional input/output with the internal pull-up
resistor. If the POL converter is configured as a
master, the SYNC line propagates clock to other
POL converters. If the POL converter is configured
as a slave, the internal clock recovery circuit
synchronizes the POL converter to the clock of the
SYNC line.
8.2
IM, Interleave Mode
The input with the internal pull-up resistor. When the
pin is left floating, the phase lag of the POL converter
is set by INTL2…INTL4 pins. If the pin is pulled low,
the phase lag is set to 0°. Pulling all INTL pins and
the IM pin low configures a POL converter as a
master. The master determines the clock on the
SYNC line.
8.11 PG, Power Good
The open drain input/output with the internal pull-up
resistor. The pin is pulled low by the POL converter,
if the output voltage is outside of the window defined
by the Power Good High and Low thresholds.
8.3
TEMP, Temperature Measurement
Note: See the No-Bus Application Note for recommendations on
The voltage output of the internal temperature
sensor measuring junction temperature of the
PG deglitching.
controller IC.
corresponds to the temperature range from -50°C to
150°C.
Voltage range from 0 to 2V
8.12 TRIM, Output Voltage Trim
The input of the TRIM comparator for the output
voltage programming.
8.4
ENP, Enable Polarity
The output voltage can be programmed by a single
resistor connected between VREF and TRIM pins.
Resistance of the trim resistor can be determined
from the equation below:
The input with the internal pull-up resistor. When the
ENP pin is pulled low, the control logic of the EN
input is inverted.
8.5
DELAY, Power-Up Delay
20×(5.5 −VOUT
)
The input of the POR circuit with the internal pull-up
resistor. By connecting a capacitor between the pin
and PGND the power-up delay can be programmed.
RTRIM
=
, kOhms
VOUT
where VOUT is the desired output voltage in Volts.
8.6
CCA[0:2], Compensation Coefficient
Address
If the RTRIM is open or the TRIM pin is shorted to
PGND, the VOUT=0.5V.
Inputs with internal pull-ups to select one of 7 sets of
digital filter coefficients optimized for various
application conditions.
8.13 CS, Current Share/Sense Bus
The open drain digital input/output with the internal
pull-up resistor. The duty cycle of the digital signal is
proportional to the output current of the POL
converter. External capacitive loading of the pin
shall be avoided.
8.7
VREF, Voltage Reference
The output of the 2V internal voltage reference that
is used to program the output voltage of the POL
converter.
8.8
EN, Enable
8.14 INTL[2:4], Interleave Bits
The input with the internal pull-up resistor. The POL
converter is turned off, when the pin is pulled low
(see ENP to inverse logic of the Enable function).
Inputs with internal pull-up resistors. The encoded
number determines the phase lag of the POL
converter when the IM pin is left floating. The phase
lag is equal to the number multiplied by 45°.
8.9
OK, Fault Status
The open drain input/output with the internal pull-up
resistor. The POL converter pulls its OK pin low, if a
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 14 of 18

ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input • 0.5V to 5.5V Output
8.15 +VS
During normal operation the resistors are removed
from the circuit by the switches. The “Margining
Down” switch is normally closed shorting the resistor
RDOWN while the “Margining Up” switch is normally
open disconnecting the resistor RUP.
The positive voltage input of the POL converter
feedback loop.
9. Application Information
9.1
Output Voltage Margining
An alternative configuration of the margining circuit is
shown in Figure 20. In this configuration both
switches are normally open that may be
advantageous in some implementations.
Margining can be implemented either by changing
the trim voltage as described in the previous
paragraph or by changing the resistance between
the REF and TRIM pins.
POL
Margining
REF
Margining
Down Switch
POL
Up Switch
(normally
(normally
closed)
open)
RTRIM
REF
Margining
RUP
Up Switch
(normally
open)
RDOWN
TRIM
RUP
RTRIM
RDOWN
Margining
Down Switch
(normally
open)
TRIM
PGND
PGND
Figure 20. Alternative Margining Configuration
Figure 19. Margining Configuration
RUP and RDOWN for this configuration are determined
from the following equations:
In the schematic shown in Figure 19, the nominal
output voltage is set with the trim resistor RTRIM
calculated from the equation in the paragraph 8.12.
Resistors RUP and RDOWN are added to margin the
output voltage up and down respectively and
determined from the equations below.
20× RTRIM
20 + RTRIM
5× RTRIM − ∆V%
∆V%
RUP
=
× 
, kΩ
20× RTRIM
20 + RTRIM
100 − ∆V%
∆V%
RDOWN
=
×
, kΩ
20× RTRIM
20 + RTRIM
5× RTRIM − ∆V%
∆V%
RUP
=
× 
, kΩ
Caution: Noise injected into the TRIM node may affect accuracy
of the output voltage and stability of the POL
converter. Always minimize the PCB trace length from
the TRIM pin to external components to avoid noise
pickup.
∆V%
100 − ∆V%
RDOWN
=
(
20 + RTRIM
)
×
, kΩ
Refer to No-BusTM POL Converters. Z-1000 Series
Application Note on www.power-one.com for more
application information on this and other product
features.
where RTRIM is the value of the trim resistor in kΩ and
ΔV% is the absolute value of desired margining
expressed in percents of the nominal output voltage.
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 15 of 18

ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input • 0.5V to 5.5V Output
10. Mechanical Drawings
All Dimensions are in mm
Tolerances:
0.5-10 ±0.1
10-100 ±0.2
Pin Coplanarity: 0.1 max
±0.30
12.5
SMT PICKUP POINT
18
19
0.4
±0.30
22.2
17.7
1
36
Pin 1
2.6
5.2
Figure 21. Top (Left) and Bottom Views
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 16 of 18
ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input • 0.5V to 5.5V Output
6.5
±0.30
2.1
8.7
12
Figure 22. Side View
12.80 (Ao)
Y
12.8
SMT PICKUP
POINT
X
X
Pin 1 indicating
Chamfer.
Y
Section
Y , Y
DIRECTION OF FEED
4
1.5
24
Section
X , X
Figure 23. Tape and Reel
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 17 of 18
ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input • 0.5V to 5.5V Output
22.20
2.00
19
36
0.60
(x 36)
10.40
12.50
Top View
1
18
Pin 1
1.00
2.60
Figure 24. Recommended PCB Pad Sizes
Figure 25. Recommended PCB Layout for Multilayer PCBs
Notes:
1. NUCLEAR AND MEDICAL APPLICATIONS - Power-One products are not designed, intended for use in, or authorized for use as critical
components in life support systems, equipment used in hazardous environments, or nuclear control systems without the express written
consent of the respective divisional president of Power-One, Inc.
2. TECHNICAL REVISIONS - The appearance of products, including safety agency certifications pictured on labels, may change depending on
the date manufactured. Specifications are subject to change without notice.
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 18 of 18
厂商 型号 描述 页数 下载

VISHAY

 		ZY1 齐纳二极管[ Zener Diodes ] 7 页

SEMIKRON

 		ZY1 轴向引线二极管，齐纳二极管，硅[ Axial lead diode Zener silicon diodes ] 1 页

DIOTEC

 		ZY1 硅电源稳压二极管（非平面技术）[ Silicon-Power-Zener Diodes (non-planar technology) ] 3 页

DIODES

 		ZY1-A [ Stabistor Diode, 0.82V V(FM), Silicon, DO-41 ] 1 页

VISHAY

 		ZY1-E2 [ Rectifier Diode, 1 Element, 1A, Silicon, DO-204AM, PLASTIC PACKAGE-2 ] 7 页

VISHAY

 		ZY1-E3 [ Rectifier Diode, 1 Element, 1A, Silicon, DO-204AM, PLASTIC PACKAGE-2 ] 7 页

VISHAY

 		ZY1/E2 [ Zener Diode, 0.765V V(Z), 7.2%, 2W, ] 7 页

VISHAY

 		ZY1/E3 [ Zener Diode, 0.765V V(Z), 7.2%, 2W, ] 7 页

DIOTEC

 		ZY10 硅电源-Z-二极管（非平面技术）[ Silicon-Power-Z-Diodes (non-planar technology) ] 2 页

SEMIKRON

 		ZY10 轴向引线二极管，齐纳二极管，硅[ Axial lead diode Zener silicon diodes ] 1 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.216121s
