IXTT24P20

型号:

IXTT24P20

品牌:

IXYS[ IXYS CORPORATION ]

页数:

5 页

PDF大小:

576 K

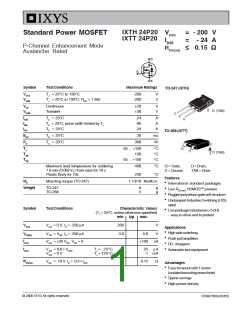

IXTH 24P20
IXTT 24P20
VDSS
ID25
= - 200 V
= - 24 A
Standard Power MOSFET
P-Channel Enhancement Mode
Avalanche Rated
RDS(on) 0.15 Ω
Symbol
TestConditions
Maximum Ratings
TO-247 (IXTH)
VDSS
VDGR
TJ = 25°C to 150°C
TJ = 25°C to 150°C; RGS = 1 MΩ
-200
-200
V
V
VGS
Continuous
Transient
20
30
V
V
D (TAB)
VGSM
ID25
IDM
IAR
TC = 25°C
TC = 25°C, pulse width limited by TJ
TC = 25°C
-24
-96
-24
A
A
A
TO-268 (IXTT)
EAR
PD
TC = 25°C
TC = 25°C
30
mJ
W
300
TJ
-55 ... +150
150
-55 ... +150
°C
°C
°C
G
S
D (TAB)
TJM
Tstg
Maximum lead temperature for soldering
1.6 mm (0.062 in.) from case for 10 s
Plastic Body for 10s
400
°C
G = Gate,
D=Drain,
S = Source,
TAB = Drain
250
°C
Features
Md
Mounting torque (TO-247)
1.13/10 Nm/lb.in.
International standard packages
Low RDS (on) HDMOSTM process
Rugged polysilicon gate cell structure
Weight
TO-247
TO-268
6
5
g
g
Unclamped Inductive Switching (UIS)
rated
Symbol
VDSS
TestConditions
Characteristic Values
Low package inductance (<5 nH)
- easy to drive and to protect
(TJ = 25°C, unless otherwise specified)
min. typ. max.
VGS = 0 V, ID = -250 µA
-200
-3.0
V
Applications
High side switching
Push-pull amplifiers
DC choppers
VGS(th)
IGSS
VDS = VGS, ID = -250 µA
-5.0
100
-25
V
nA
µA
VGS = 20 VDC, VDS = 0
IDSS
VDS = 0.8 • VDSS
VGS = 0 V
T = 25°C
TJJ = 125°C
Automatic test equipment
-1 mA
RDS(on)
VGS = -10 V, ID = 0.5 • ID25
0.15
Advantages
Easy to mount with 1 screw
(isolatedmountingscrewhole)
Space savings
High power density
© 2005 IXYS All rights reserved
DS98769G(02/05)
IXTH 24P20
IXTT 24P20
TO-247 (IXTH) Outline
Symbol
gfs
TestConditions
Characteristic Values
(TJ = 25°C, unless otherwise specified)
min. typ. max.
VDS = -10 V; ID = ID25, pulse test
10
15
S
1
2
3
Ciss
Coss
Crss
4200
830
pF
pF
pF
VGS = 0 V, VDS = -25 V, f = 1 MHz
350
td(on)
tr
td(off)
tf
36
29
68
28
ns
ns
ns
ns
VGS = -10 V, VDS = 0.5 VDSS, ID = 0.5 ID25
Terminals: 1 - Gate
2 - Drain
3 - Source
Tab - Drain
RG = 4.7 (External)
Dim.
Millimeter
Min.
Inches
Max.
Min. Max.
A
A12
4.7
2.2
2.2
1.0
1.65
2.87
5.3
2.54
2.6
1.4
2.13
3.12
.185 .209
.087 .102
.059 .098
.040 .055
.065 .084
.113 .123
.016 .031
.819 .845
.610 .640
Qg(on)
Qgs
150
40
nC
nC
nC
A
VGS = -10 V, VDS = 0.5 VDSS, ID = 0.5 ID25
b
Qgd
70
b
b12
RthJC
RthCS
0.42
K/W
K/W
C
D
E
.4
.8
20.80 21.46
15.75 16.26
(TO-247)
0.25
e
5.20
5.72 0.205 0.225
L
19.81 20.32
4.50
.780 .800
.177
L1
P 3.55
3.65
.140 .144
Q
5.89
4.32
6.40 0.232 0.252
R
S
5.49
.170 .216
242 BSC
6.15 BSC
Source-DrainDiode
Characteristic Values
(TJ = 25°C, unless otherwise specified)
min. typ. max.
TO-268 (IXTT) Outline
Symbol
TestConditions
IS
VGS = 0
-24
-96
-3
A
ISM
VSD
Repetitive; pulse width limited by TJM
A
V
IF = IS, VGS = 0 V,
Pulse test, t 300 µs, duty cycle d 2 %
trr
IF = IS, di/dt = 100 A/µs, VR = -50 V
250
ns
IXYS reserves the right to change limits, test conditions, and dimensions.
IXYSMOSFETs andIGBTsarecovered by
oneormoreofthefollowingU.S.patents:
4,835,592
4,850,072
4,881,106
4,931,844
5,017,508
5,034,796
5,049,961
5,063,307
5,187,117
5,237,481
5,381,025
5,486,715
6,162,665
6,259,123B1
6,306,728 B1
6,404,065B1
6,534,343
6,583,505
6,683,344
6,710,405B2
6,710,463
6,727,585
6,759,692
6771478B2
IXTH 24P20
IXTT 24P20
Fig. 2. Output Characteristics
@ 125ºC
Fig. 1. Output Characteristics
@ 25ºC
-35
-30
-25
-20
-15
-10
-5
-35
-30
-25
-20
-15
-10
-5
VGS = -10V
-9V
VGS = -10V
-9V
-8V
-7V
-6V
-8V
-7V
-6V
-5V
0
0
0
-1
-2
-3
-4
-5
-6
-7
-8
0
-1
-2 -3
-4
-5
-6
-7 -8
-9 -10
VD S - Volts
VD S - Volts
Fig. 3. RDS(on) Normalized to ID25 Value vs.
Junction Temperature
Fig. 4. RDS(on) Normalized to ID25
Value vs. ID
2.2
2
2
1.9
1.8
1.7
1.6
1.5
1.4
1.3
1.2
1.1
1
VGS = -10V
VGS = -10V
TJ = 125ºC
1.8
1.6
1.4
1.2
1
ID = -24A
ID = -12A
0.8
0.6
0.4
TJ = 25ºC
0.9
0
-5
-10
-15
-20
-25
-30
-35
-50
-25
0
25
50
75
100 125 150
I D - Amperes
TJ - Degrees Centigrade
Fig. 5. Drain Current vs. Case
Temperature
Fig. 6. Input Admittance
-27
-24
-21
-18
-15
-12
-9
-24
-22
-20
-18
-16
-14
-12
-10
-8
TJ = 125ºC
25ºC
-6
-6
-40ºC
-4
-3
-2
0
0
-4.5
-5
-5.5
-6
-6.5
-7
-7.5
-8
-50
-25
0
25
50
75
100 125 150
TC - Degrees Centigrade
VG S - Volts
© 2005 IXYS All rights reserved
IXTH 24P20
IXTT 24P20
Fig. 8. Source Current vs.
Source-To-Drain Voltage
Fig. 7. Transconductance
24
21
18
15
12
9
-80
-70
-60
-50
-40
-30
-20
-10
0
TJ = -40ºC
25ºC
125ºC
TJ = 125ºC
TJ = 25ºC
6
3
0
0
-3 -6
-9 -12 -15 -18 -21 -24 -27 -30
-0.5
-1
-1.5
-2
-2.5
-3
-3.5
-4
I D - Amperes
VS D - Volts
Fig. 10. Temperature dependence of
Breakdown and Threshole Voltage
Fig. 9. Gate Charge
1.15
1.10
1.05
1.00
0.95
0.90
0.85
0.80
0.75
-10
-9
-8
-7
-6
-5
-4
-3
-2
-1
0
VDS = -100V
ID = -12A
BV
V
GS(th)
DSS
I
G = -1mA
-50
-25
0
25
50
75
100 125 150
0
20
40
60
80
100 120 140 160
TJ - Degrees Centigrade
Q G - nanoCoulombs
Fig. 12. Forw ard-Bias Safe
Operating Area
Fig. 11. Capacitance
1000
100
10
10000
1000
100
f = 1MHz
TC = 25ºC
TJ = 150ºC
R
Limit
DS(on)
C
C
iss
100µs
oss
1ms
10ms
DC
C
rss
1
0
-5
-10 -15
-20
-25
-30 -35
-40
10
100
VD S - Volts
1000
VD S - Volts
IXTH 24P20
IXTT 24P20
Fig. 13. Maxim um Transient Therm al Resistance
1.00
0.10
0.01
1
10
100
1000
Pulse Width - milliseconds
© 2005 IXYS All rights reserved
