2STL1525-AP

型号：

2STL1525-AP

描述：

低电压高性能NPN功率晶体管[ Low voltage high performance NPN power transistor ]

品牌：

STMICROELECTRONICS[ ST ]

页数：

8 页

PDF大小：

144 K

下载PDF手册

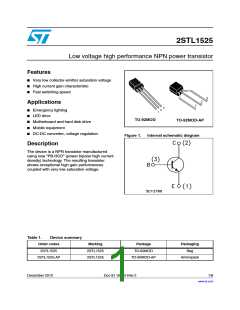

2STL1525
Low voltage high performance NPN power transistor
Features
■ Very low collector-emitter saturation voltage
■ High current gain characteristic
■ Fast switching speed
Applications
■ Emergency lighting
■ LED drive
TO-92MOD
TO-92MOD-AP
■ Motherboard and hard disk drive
■ Mobile equipment
■ DC-DC converter, voltage regulation
Figure 1.
Internal schematic diagram
Description
The device is a NPN transistor manufactured
using new “PB-HCD” (power bipolar high current
density) technology. The resulting transistor
shows exceptional high gain performances
coupled with very low saturation voltage.
Table 1.
Device summary
Order codes
Marking
Package
TO-92MOD
TO-92MOD-AP
Packaging
2STL1525
2STL1525
2STL1525
Bag
2STL1525-AP
Ammopack
December 2010
Doc ID 16054 Rev 2
1/8
www.st.com
8
Electrical ratings
2STL1525
1
Electrical ratings
Table 2.
Symbol
Absolute maximum ratings
Parameter
Value
Unit
VCEX
VCEO
VEBO
IC
Collector-emitter voltage (VBE = -1.5 V)
Collector-emitter voltage (IB = 0)
Emitter-base voltage (IC = 0)
Collector current
95
V
V
25
5
V
5
A
ICM
Collector peak current (tP < 5 ms)
Base current
10
1
A
IB
A
PTOT
TSTG
TJ
Total dissipation at Tamb = 25 °C
Storage temperature
1.5
W
°C
°C
-65 to 150
150
Max. operating junction temperature
Table 3.
Symbol
Thermal data
Parameter
Value
Unit
RthJA
Thermal resistance junction-ambient __max
83
°C/W
2/8
Doc ID 16054 Rev 2
2STL1525
Electrical characteristics
2
Electrical characteristics
T
= 25 °C unless otherwise specified.
case
Table 4.
Symbol
Electrical characteristics
Parameter
Test conditions
VCB = 50 V
Min. Typ. Max. Unit
Collector cut-off current
ICBO
0.1
0.1
µA
µA
(IE = 0)
Emitter cut-off current
(IC = 0)
IEBO
VEB = 4 V
Collector-emitter
breakdown voltage
V(BR)CEX
IC = 1 mA
95
V
(VBE = -1.5 V)
Collector-emitter
breakdown voltage
(1)
V(BR)CEO
IC = 10 mA
IE = 100 µA
25
5
V
V
(IB = 0)
Emitter-base breakdown
voltage (IC = 0)
V(BR)EBO
IC = 0.5 A
IC = 3 A
IC = 5 A
VCE = 2 V
VCE = 2 V
VCE = 5 V
150
100
500
(1)
hFE
DC current gain
150
220
IC = 3 A
IB = 300 mA
IB = 40 mA
mV
mV
Collector-emitter
saturation voltage
(1)
VCE(sat)
IC = 3.5 A
500
1.2
Base-emitter saturation
voltage
(1)
VBE(sat)
CCBO
fT
IC = 3 A
IB = 300 mA
V
Collector-base
capacitance (IE = 0)
VCB = 10 V, f = 1 MHz
20
pF
Transition frequency
VCE = 10 V IC = 50 mA
120
MHz
Resistive load
Turn-on time
Turn-off time
ton
toff
IC = 1.5 A
VCC = 10 V
60
ns
ns
IB1 = -IB2 = 150 mA
450
1. Pulse test: pulse duration ≤ 300 µs, duty cycle ≤ 2%
Doc ID 16054 Rev 2
3/8
Package mechanical data
2STL1525
3
Package mechanical data
In order to meet environmental requirements, ST offers these devices in different grades of
®
®
ECOPACK packages, depending on their level of environmental compliance. ECOPACK
specifications, grade definitions and product status are available at: www.st.com.
®
ECOPACK is an ST trademark.
Table 5.
TO-92MOD mechanical data
Dim.
mm.
Typ.
Min.
Max.
A
A1
b
4.7
1.730
0.4
5.1
2.030
0.6
b1
c
0.9
1.1
0.4
0.5
D
5.8
6.2
D1
E
4.0
8.4
8.8
e
1.5
e1
L
2.9
3.1
14.2
1.6
13.8
K
h
0.0
0.380
4/8
Doc ID 16054 Rev 2
2STL1525
Package mechanical data
Figure 2.
TO-92MOD drawing mechanical data
8190862_B
Doc ID 16054 Rev 2
5/8
Package mechanical data
TO-92MOD-AP ammopack dimension
2STL1525
8231868_B
6/8
Doc ID 16054 Rev 2
2STL1525
Revision history
4
Revision history
Table 6.
Date
Document revision history
Revision
Changes
31-Jul-2009
1
Initial release.
Document status promoted from preliminary data to datasheet.
Updated package mechanical data Table 5 on page 4 and Figure 2
on page 5.
01-Dec-2010
2
Doc ID 16054 Rev 2
7/8
2STL1525
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2010 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
8/8
Doc ID 16054 Rev 2
