2STBN15D100

型号：

2STBN15D100

描述：

低电压NPN功率达林顿晶体管[ Low voltage NPN power Darlington transistor ]

品牌：

STMICROELECTRONICS[ ST ]

页数：

7 页

PDF大小：

109 K

下载PDF手册

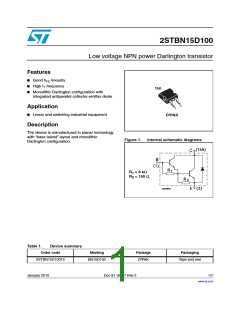

2STBN15D100
Low voltage NPN power Darlington transistor
Features
■ Good h linearity
FE
■ High f frequency
T
TAB
■ Monolithic Darlington configuration with
integrated antiparallel collector-emitter diode
3
Application
1
■ Linear and switching industrial equipment
D²PAK
Description
The device is manufactured in planar technology
with “base island” layout and monolithic
Darlington configuration.
Figure 1.
Internal schematic diagrams
R = 8 kΩ
1
R = 150 Ω
2
Table 1.
Order code
2STBN15D100T4
Device summary
Marking
Package
Packaging
BN15D100
D²PAK
Tape and reel
January 2010
Doc ID 16117 Rev 2
1/7
www.st.com
7

Electrical ratings
2STBN15D100
1
Electrical ratings
Table 2.
Symbol
Absolute maximum ratings
Parameter
Value
Unit
VCBO Collector-base voltage (IE = 0)
VCEO Collector-emitter voltage (IB = 0)
VEBO Emitter-base voltage (IC = 0)
100
100
5
V
V
V
IC
ICM
IB
Collector current
Collector peak current
Base current
12
A
15
A
0.2
A
PTOT Total dissipation at Tcase = 25 °C
TSTG Storage temperature
70
W
°C
°C
-65 to 150
150
TJ
Max. operating junction temperature
Table 3.
Symbol
Thermal data
Parameter
Value
Unit
RthJC Thermal resistance junction-case max.
1.8
°C/W
2/7
Doc ID 16117 Rev 2
2STBN15D100
Electrical characteristics
2
Electrical characteristics
T
= 25 °C; unless otherwise specified.
case
Table 4.
Symbol
Electrical characteristics
Parameter
Test conditions
VCB = 100 V
Min. Typ. Max. Unit
Collector cut-off current
ICBO
ICEO
IEBO
-
-
-
-
-
100
100
2
µA
µA
mA
V
(IE = 0)
Collector cut-off current
(IB = 0)
VCE = 50 V
Emitter cut-off current
(IC = 0)
VEB = 5 V
0.12
100
Collector-emitter
sustaining voltage (IB = 0)
(1)
VCEO(sus)
IC = 100 mA
IC = 0.5 A
IC = 4 A
IB = 1 mA
1.5
1.3
V
V
Collector-emitter
saturation voltage
(1)
VCE(sat)
_ IB = 4 mA
(1)
VBE(on)
Base-emitter on voltage IC = 3 A
_ VCE = 3 V
VCE = 3 V
-
-
-
2.5
V
(1)
hFE
VF
DC current gain
IC = 3 A
IF = 3 A
750
Diode forward voltage
2.5
V
1. Pulse test: pulse duration ≤ 300 µs, duty cycle ≤ 2 %.
Doc ID 16117 Rev 2
3/7
Package mechanical data
2STBN15D100
3
Package mechanical data
In order to meet environmental requirements, ST offers these devices in different grades of
®
®
ECOPACK packages, depending on their level of environmental compliance. ECOPACK
specifications, grade definitions and product status are available at: www.st.com.
®
ECOPACK is an ST trademark.
4/7
Doc ID 16117 Rev 2
2STBN15D100
Package mechanical data
D²PAK (TO-263) mechanical data
mm
inch
Dim
Min
Typ
Max
Min
Typ
Max
A
A1
b
4.40
0.03
0.70
1.14
0.45
1.23
8.95
7.50
10
4.60
0.23
0.93
1.70
0.60
1.36
9.35
0.173
0.001
0.027
0.045
0.017
0.048
0.352
0.295
0.394
0.334
0.181
0.009
0.037
0.067
0.024
0.053
0.368
b2
c
c2
D
D1
E
10.40
0.409
E1
e
8.50
2.54
0.1
e1
H
4.88
15
5.28
15.85
2.69
2.79
1.40
1.75
0.192
0.590
0.099
0.090
0.05
0.208
0.624
0.106
0.110
0.055
0.069
J1
L
2.49
2.29
1.27
1.30
L1
L2
R
0.051
0.4
0.016
V2
0°
8°
0°
8°
0079457_M
Doc ID 16117 Rev 2
5/7
Revision history
2STBN15D100
4
Revision history
Table 5.
Date
Document revision history
Revision
Changes
01-Sep-2009
19-Jan-2010
1
2
First release.
Modified Table 1 on page 1.
6/7
Doc ID 16117 Rev 2
2STBN15D100
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2010 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
Doc ID 16117 Rev 2
7/7
