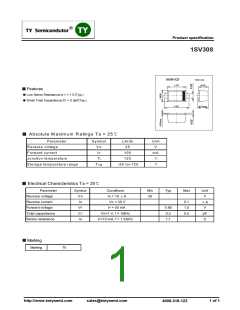

Product specification
1SV308
SOD-523
Unit: mm
0.6
+0.1
-0.1
+0.1
-0.1
1.2
Features
+
-
Low Series Resistance:rs = 1.1 (Typ.)
Small Total Capacitance:CT = 0.3pF(Typ.)
+0.1
-0.1
1.6
0.77max
Absolute M axim um R atings Ta = 25
Param eter
R everse voltage
Sym bol
Lim its
35
U nit
V
VR
IF
Forward current
100
m A
Junction tem perature
Storage tem perature range
Tj
125
Tstg
-55 to+125
Electrical Characteristics Ta = 25
Parameter
Reverse voltage
Reverse current
Forward voltage
Total capacitance
Series resistance
Symbol
VR
Conditions
IR = 10
Min
30
Typ
Max
Unit
V
A
IR
VR = 30 V
IF = 50 mA
0.1
1.0
0.5
A
VF
0.95
0.3
V
CT
VR=1 V, f = 1MHz
IF=10 mA, f = 1.5GHz
pF
rs
1.1
Marking
Marking
TX
http://www.twtysemi.com
1 of 1
