2SK4066_12

型号:

2SK4066_12

描述:

通用开关设备的应用[ General-Purpose Switching Device Applications ]

品牌:

SANYO[ SANYO SEMICON DEVICE ]

页数:

9 页

PDF大小:

183 K

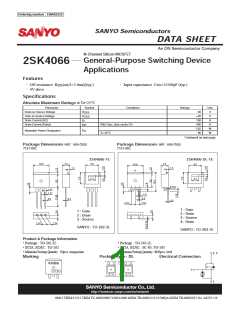

Ordering number : ENA0225C
SANYO Sem iconductors
DATA S HEET
N-Channel Silicon MOSFET
General-Purpose Switching Device
Applications
2SK4066
Features
ON-resistance R (on)1=3.6m (typ.)
4V drive
Input capacitance Ciss=12500pF (typ.)
Ω
DS
Specications
at Ta=25°C
Absolute Maximum Ratings
Parameter
Drain-to-Source Voltage
Gate-to-Source Voltage
Drain Current (DC)
Symbol
Conditions
Ratings
Unit
V
V
60
±20
100
400
1.65
90
DSS
V
V
GSS
I
A
D
Drain Current (Pulse)
I
PW 10 s, duty cycle 1%
A
μ
DP
W
W
Allowable Power Dissipation
P
D
Tc=25°C
Continued on next page.
unit : mm (typ)
unit : mm (typ)
Package Dimensions
Package Dimensions
7537-001
7535-001
2SK4066-1E
2SK4066-DL-1E
4.5
1.3
10.0
8.0
4.5
1.3
10.0
8.0
4
5.3
5.3
0.254
0.5
1.47
1.27
1
2
3
1.27
0.8
0.8
0.5
2.54
2.54
1
2
3
1 : Gate
1 : Gate
2 : Drain
3 : Source
2 : Drain
3 : Source
4 : Drain
2.54
2.54
SANYO : TO-262-3L
SANYO : TO-263-2L
Product & Package Information
• Package : TO-262-3L
• Package : TO-263-2L
JEITA, JEDEC : TO-262
JEITA, JEDEC : SC-83, TO-263
Minimum Packing Quantity : 800pcs./reel
Minimum Packing Quantity
:
50pcs./magazine
2, 4
Marking
Packing Type : DL
Electrical Connection
K4066
1
LOT No.
DL
3
http://semicon.sanyo.com/en/network
No. A0225-1/9
60612 TKIM/12512 TKIM TC-00002698/71206/41006 MSIM TB-00002121/12506QA MSIM TB-00002052
2SK4066
Continued from preceding page.
Parameter
Channel Temperature
Symbol
Tch
Tstg
Conditions
Ratings
Unit
°C
150
Storage Temperature
--55 to +150
°C
Avalanche Energy (Single Pulse) *1
Avalanche Current *2
E
850
70
mJ
A
AS
I
AV
Note : 1 V =30V, L=200 H, I =70A (Fig.1)
*
μ
DD
2 L 200 H, single pulse
AV
*
μ
at Ta=25°C
Electrical Characteristics
Ratings
typ
Parameter
Symbol
Conditions
Unit
V
min
max
Drain-to-Source Breakdown Voltage
Zero-Gate Voltage Drain Current
Gate-to-Source Leakage Current
Cutoff Voltage
V
I
=1mA, V =0V
60
(BR)DSS
D
GS
I
V
=60V, V =0V
1
±10
2.6
A
A
μ
DSS
DS GS
I
V
=±16V, V =0V
μ
GSS
GS DS
V
(off)
|
V
=10V, I =1mA
1.2
51
V
GS
yfs
DS D
Forward Transfer Admittance
V
=10V, I =50A
D
85
3.6
S
|
DS
R
R
(on)1
(on)2
I
D
=50A, V =10V
GS
4.7
6.6
m
Ω
Ω
DS
DS
Static Drain-to-Source On-State Resistance
I
D
=50A, V =4V
GS
4.7
12500
1200
950
80
m
Input Capacitance
Ciss
pF
Output Capacitance
Reverse Transfer Capacitance
Turn-ON Delay Time
Rise Time
Coss
Crss
V
=20V, f=1MHz
pF
pF
ns
DS
t
t
t
t
(on)
d
r
630
860
750
220
31
ns
See Fig.2
Turn-OFF Delay Time
Fall Time
(off)
ns
d
f
ns
Total Gate Charge
Qg
nC
nC
nC
V
Gate-to-Source Charge
Gate-to-Drain “Miller” Charge
Diode Forward Voltage
Qgs
Qgd
V
=30V, V =10V, I =100A
GS
DS
D
55
V
I =100A, V =0V
GS
0.9
1.2
SD
S
Fig.1 Avalanche Resistance Test Circuit
Fig.2 Switching Time Test Circuit
V
IN
V =30V
DD
10V
0V
L
I
=50A
D
50Ω
V
IN
R =0.6Ω
L
D
V
OUT
2SK4066
PW=10μs
D.C.1%
10V
0V
V
DD
50Ω
G
2SK4066
P. G
50Ω
S
Ordering Information
Device
Package
Shipping
50pcs./magazine
800pcs./reel
memo
Pb Free
2SK4066-1E
TO-262-3L
TO-263-2L
2SK4066-DL-1E
No. A0225-2/9
2SK4066
I
D
-- V
DS
I
-- V
D GS
200
180
160
140
120
100
80
200
180
160
140
120
100
80
Tc=25°C
V
=10V
DS
V
=3V
GS
60
60
40
40
20
0
20
0
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
1.0
1.5
2.0
2.5
3.0
3.5
4.0
IT10468
Drain-to-Source Voltage, V
-- V
IT10467
Gate-to-Source Voltage, V
GS
-- V
DS
R
(on) -- V
GS
R
(on) -- Tc
DS
DS
10
9
15
14
13
12
11
10
9
I
=50A
D
8
7
6
8
5
7
6
4
5
3
4
3
2
2
1
0
1
0
--50
--25
0
25
50
75
100
125
150
0
1
2
3
4
5
6
7
8
9
10
Gate-to-Source Voltage, V
-- V
IT10469
Case Temperature, Tc -- °C
IT10470
GS
| yfs | -- I
I
-- V
D
S SD
3
2
3
2
V
=10V
V
GS
=0V
DS
100
7
5
3
2
100
7
5
10
7
5
3
2
3
2
1.0
7
5
10
7
3
2
5
3
2
0.1
7
5
3
2
1.0
7
0.01
2
3
5
7
2
3
5
7
2
3
5
7
2
3
0
0.3
0.6
0.9
1.2
1.5
IT10472
0.1
1.0
10
100
Diode Forward Voltage, V
SD
-- V
Drain Current, I -- A
IT10471
D
Ciss, Coss, Crss -- V
SW Time -- I
D
DS
3
3
2
f=1MHz
V
V
=30V
=10V
DD
GS
2
10k
1000
7
5
7
5
t
f
3
2
3
2
100
1k
7
5
7
5
2
3
5
7
2
3
5
7
2
3
5
7
0
5
10
15
20
25
30
IT10474
0.1
1.0
10
100
IT10473
Drain Current, I -- A
Drain-to-Source Voltage, V -- V
DS
D
No. A0225-3/9
2SK4066
A S O
V
GS
-- Qg
10
9
1000
7
V
=30V
=100A
10μs
DS
I
=400A
DP
5
I
D
3
2
8
I
=100A
D
100
7
5
7
3
2
6
5
10
Operation in
this area is
limited by R (on).
7
5
4
3
2
DS
3
1.0
7
5
2
3
2
1
0
Tc=25°C
Single pulse
0.1
0.1
2
3
5
7
2
3
5
7
2
3
5
7
0
0
0
50
100
150
200
250
IT10475
1.0
10
100
IT10960
Total Gate Charge, Qg -- nC
Drain-to-Source Voltage, V
DS
-- V
P
-- Ta
P
-- Tc
D
D
2.0
100
90
80
70
60
50
40
30
20
1.65
1.5
1.0
0.5
0
10
0
20
40
60
80
100
120
140
160
0
20
40
60
80
100
120
140
160
Ambient Temperature, Ta -- °C
Case Temperature, Tc -- °C
IT10482
IT10483
E
-- Ta
AS
120
100
80
60
40
20
0
25
50
75
100
125
150
175
IT10478
Ambient Temperature, Ta -- °C
No. A0225-4/9
2SK4066
Taping Specication
2SK4066-DL-1E
No. A0225-5/9
2SK4066
Outline Drawing
Land Pattern Example
2SK4066-DL-1E
Mass (g) Unit
Unit: mm
1.5
mm
* For reference
No. A0225-6/9
2SK4066
Magazine Specication
2SK4066-1E
No. A0225-7/9
2SK4066
Outline Drawing
2SK4066-1E
Mass (g) Unit
1.6
mm
* For reference
No. A0225-8/9
2SK4066
Note on usage : Since the 2SK4066 is a MOSFET product, please avoid using this device in the vicinity
of highly charged objects.
Any and all SANYO Semiconductor Co.,Ltd. products described or contained herein are, with regard to
"standard application", intended for the use as general electronics equipment. The products mentioned herein
shall not be intended for use for any "special application" (medical equipment whose purpose is to sustain life,
aerospace instrument, nuclear control device, burning appliances, transportation machine, traffic signal
system, safety equipment etc.) that shall require extremely high level of reliability and can directly threaten
human lives in case of failure or malfunction of the product or may cause harm to human bodies, nor shall they
grant any guarantee thereof. If you should intend to use our products for new introduction or other application
different from current conditions on the usage of automotive device, communication device, office equipment,
industrial equipment etc. , please consult with us about usage condition (temperature, operation time etc.)
prior to the intended use. If there is no consultation or inquiry before the intended use, our customer shall be
solely responsible for the use.
Specifications of any and all SANYO Semiconductor Co.,Ltd. products described or contained herein stipulate
the performance, characteristics, and functions of the described products in the independent state, and are
not guarantees of the performance, characteristics, and functions of the described products as mounted in the
customer's products or equipment. To verify symptoms and states that cannot be evaluated in an
independent device, the customer should always evaluate and test devices mounted in the customer's
products or equipment.
SANYO Semiconductor Co.,Ltd. assumes no responsibility for equipment failures that result from using
products at values that exceed, even momentarily, rated values (such as maximum ratings, operating
condition ranges, or other parameters) listed in products specifications of any and all SANYO Semiconductor
Co.,Ltd. products described or contained herein.
Regarding monolithic semiconductors, if you should intend to use this IC continuously under high temperature,
high current, high voltage, or drastic temperature change, even if it is used within the range of absolute
maximum ratings or operating conditions, there is a possibility of decrease reliability. Please contact us for a
confirmation.
SANYO Semiconductor Co.,Ltd. strives to supply high-quality high-reliability products, however, any and all
semiconductor products fail or malfunction with some probability. It is possible that these probabilistic failures
or malfunction could give rise to accidents or events that could endanger human lives, trouble that could give
rise to smoke or fire, or accidents that could cause damage to other property. When designing equipment,
adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but
are not limited to protective circuits and error prevention circuits for safe design, redundant design, and
structural design.
In the event that any or all SANYO Semiconductor Co.,Ltd. products described or contained herein are
controlled under any of applicable local export control laws and regulations, such products may require the
export license from the authorities concerned in accordance with the above law.
No part of this publication may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording, or any information storage or retrieval system, or
otherwise, without the prior written consent of SANYO Semiconductor Co.,Ltd.
Any and all information described or contained herein are subject to change without notice due to
product/technology improvement, etc. When designing equipment, refer to the "Delivery Specification" for the
SANYO Semiconductor Co.,Ltd. product that you intend to use.
Upon using the technical information or products described herein, neither warranty nor license shall be
granted with regard to intellectual property rights or any other rights of SANYO Semiconductor Co.,Ltd. or any
third party. SANYO Semiconductor Co.,Ltd. shall not be liable for any claim or suits with regard to a third
party's intellectual property rights which has resulted from the use of the technical information and products
mentioned above.
This catalog provides information as of June, 2012. Specications and information herein are subject
to change without notice.
PS No. A0225-9/9
厂商 型号 描述 页数 下载

PANASONIC

2SK0065 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

2SK0065(2SK65) 小信号デバイス - 小信号FET - 接合形场效应管\n[ 小信号デバイス - 小信号FET - 接合形FET ] 3 页

ETC

2SK0065P 晶体管| JFET | N沟道| 12V V( BR ) DSS | 40uA的我( DSS ) | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 40UA I(DSS) | SPAKVAR ] 3 页

ETC

2SK0065Q 晶体管| JFET | N沟道| 12V V( BR ) DSS | 150UA我( DSS ) | SPAKVAR\n[ TRANSISTOR | JFET | N-CHANNEL | 12V V(BR)DSS | 150UA I(DSS) | SPAKVAR ] 3 页

PANASONIC

2SK0123 为在低频率阻抗变换[ For Impedance Conversion In Low Frequency ] 3 页

ETC

2SK0123(2SK123) 小信号器件 - 小信号场效应管 - 场效应管结\n[ Small-signal device - Small-signal FETs - Junction FETs ] 3 页

PANASONIC

2SK0198 对于低频放大[ For Low-Frequency Amplification ] 3 页

ETC

2SK0198(2SK198) 2SK0198 ( 2SK198 ) - N沟道结型场效应管\n[ 2SK0198 (2SK198) - N-Channel Junction FET ] 3 页

PANASONIC

2SK0198P [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

PANASONIC

2SK0198Q [ Small Signal Field-Effect Transistor, 0.02A I(D), 30V, 1-Element, N-Channel, Silicon, Junction FET, TO-236, ROHS COMPLIANT, MINI3-G1, SC-59, 3 PIN ] 3 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.226538s
