2T13K33MDBVREPG4

型号：

2T13K33MDBVREPG4

描述：

处理器监控电路和窗口看门狗[ PROCESSOR SUPERVISORY CIRCUITS WITH WINDOW-WATCHDOG ]

品牌：

TI[ TEXAS INSTRUMENTS ]

页数：

16 页

PDF大小：

452 K

下载PDF手册

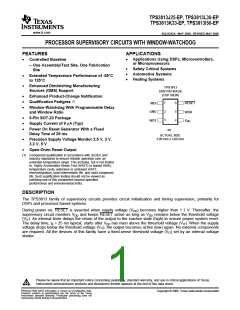

TPS3813J25-EP, TPS3813L30-EP
TPS3813K33-EP, TPS3813I50-EP
www.ti.com
SGLS343A–MAY 2006–REVISED MAY 2006
PROCESSOR SUPERVISORY CIRCUITS WITH WINDOW-WATCHDOG
FEATURES
APPLICATIONS
•
Applications Using DSPs, Microcontrollers,
or Microprocessors
•
Controlled Baseline
– One Assembly/Test Site, One Fabrication
Site
•
•
•
Safety Critical Systems
Automotive Systems
Healing Systems
•
•
Extended Temperature Performance of -55°C
to 125°C
Enhanced Diminishing Manufacturing
Sources (DMS) Support
TPS3813
DBV PACKAGE
(TOP VIEW)
•
•
•
Enhanced Product-Change Notification
(1)
Qualification Pedigree
1
2
3
6
5
4
RESET
WDR
WDI
Window-Watchdog With Programmable Delay
and Window Ratio
GND
•
•
•
6-Pin SOT-23 Package
V
DD
WDT
Supply Current of 9 µA (Typ)
Power On Reset Generator With a Fixed
Delay Time of 25 ms
ACTUAL SIZE
3,00 mm x 3,00 mm
•
•
Precision Supply Voltage Monitor 2.5 V, 3 V,
3.3 V, 5 V
Open-Drain Reset Output
(1) Component qualification in accordance with JEDEC and
industry standards to ensure reliable operation over an
extended temperature range. This includes, but is not limited
to, Highly Accelerated Stress Test (HAST) or biased 85/85,
temperature cycle, autoclave or unbiased HAST,
electromigration, bond intermetallic life, and mold compound
life. Such qualification testing should not be viewed as
justifying use of this component beyond specified
performance and environmental limits.
DESCRIPTION
The TPS3813 family of supervisory circuits provides circuit initialization and timing supervision, primarily for
DSPs and processor-based systems.
During power on, RESET is asserted when supply voltage (VDD) becomes higher than 1.1 V. Thereafter, the
supervisory circuit monitors VDD and keeps RESET active as long as VDD remains below the threshold voltage
(VIT). An internal timer delays the return of the output to the inactive state (high) to ensure proper system reset.
The delay time, td = 25 ms typical, starts after VDD has risen above the threshold voltage (VIT). When the supply
voltage drops below the threshold voltage (VIT), the output becomes active (low) again. No external components
are required. All the devices of this family have a fixed-sense threshold voltage (VIT) set by an internal voltage
divider.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Copyright © 2006, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
TPS3813J25-EP, TPS3813L30-EP
TPS3813K33-EP, TPS3813I50-EP
www.ti.com
SGLS343A–MAY 2006–REVISED MAY 2006
TYPICAL OPERATING CIRCUIT
V
DD
0.1 µF
0.1 µF
R
V
DD
V
DD
WDR RESET
TPS3813
RESET
uC
WDT
WDI
I/O
GND
GND
C
WP
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
DESCRIPTION (CONTINUED)
For safety critical applications the TPS3813 family incorporates
a so-called window-watchdog with
programmable delay and window ratio. The upper limit of the watchdog time-out can be set by either connecting
WDT to GND, VDD, or using an external capacitor. The lower limit and thus the window ratio is set by connecting
WDR to GND or VDD. The supervised processor now needs to trigger the TPS3813 within this window not to
assert a RESET.
The product spectrum is designed for supply voltages of 2.5 V, 3 V, 3.3 V, and 5 V. The circuits are available in
a 6-pin SOT-23 package.
The TPS3813 devices are characterized for operation over a temperature range of –55°C to 125°C.
PACKAGE INFORMATION
TA
DEVICE NAME
THRESHOLD VOLTAGE
MARKING
PLEM
TPS3813J25MDBVREP
TPS3813L30MDBVREP
TPS3813K33MDBVREP
TPS3813I50MDBVREP
2.25 V
2.64 V
2.93 V
4.55 V
PLFM
–55°C to 125°C
PLGM
PLHM
ORDERING INFORMATION
TPS381
3
J
25
DBV
R
Reel
Package
Nominal Supply Voltage
Nominal Threshold Voltage
Functionality
Family
TPS3813 FUNCTION/TRUTH
TABLE
VDD > VIT
RESET
0
1
L
H
2
Submit Documentation Feedback
TPS3813J25-EP, TPS3813L30-EP
TPS3813K33-EP, TPS3813I50-EP
www.ti.com
SGLS343A–MAY 2006–REVISED MAY 2006
RESET
Oscillator
WDT
Reset Logic
and Timer
Detection
Circuit
GND
V
DD
Power to circuitry
Watchdog
Ratio
R
1
WDR
WDI
Detection
+
_
R
2
Bandgap
Voltage
Reference
Rising Edge
Detection
GND
GND
GND
V
DD
V
IT
0.6 V
t
t
t
t
d
d
d
RESET
Output Condition
Undefined
Output Condition
Undefined
t
WDI
t
1st Window
Without Lower
Boundary
3rd Window
With Lower
Boundary
2nd Window
With Lower
Boundary
Trigger Pulse
1st Window
Without Lower
Boundary
3rd Window
With Lower
Boundary
Lower Window
2nd Window
With Lower
Boundary
1st Window
Boundary
Without Lower
Boundary
Figure 1. Timing Diagram
The lower boundary of the watchdog window starts with the rising edge of the WDI trigger pulse. At the same
time, all internal timers will be reset. If an external capacitor is used, the lower boundary is impacted due to the
different oscillator frequency. This is described in more detail in the following section. The timing diagram and
especially the shaded boundary is prepared in a nonreal ratio scale to better visualize the description.
3
Submit Documentation Feedback

TPS3813J25-EP, TPS3813L30-EP
TPS3813K33-EP, TPS3813I50-EP
www.ti.com
SGLS343A–MAY 2006–REVISED MAY 2006
Terminal Functions
TERMINAL
I/O
DESCRIPTION
NAME
GND
NO.
2
I
O
I
Ground
RESET
VDD
6
Open-drain reset output
4
Supply voltage and supervising input
Watchdog timer input
WDI
1
I
WDR
WDT
5
I
Selectable watchdog window ratio input
Programmable watchdog delay input
3
I
DETAILED DESCRIPTION
IMPLEMENTED WINDOW-WATCHDOG SETTINGS
There are two different ways to set up the watchdog window. The first way is to use the implemented timing
which is a default setting. Or, the default settings can be activated by wiring the WDT and WDR pin to VDD or
GND. There are a total of four different timings available with these settings which are listed in the table below.
SELECTED OPERATION MODE
WINDOW FRAME
Max = 0.3 s
Typ = 0.25 s
Min = 0.2 s
Max = 0.3 s
Typ = 0.25 s
Min = 0.2 s
Max = 3 s
LOWER WINDOW FRAME
Max = 9.46 ms
Typ = 7.86 ms
Min = 6.27 ms
Max = 2.43 ms
Typ = 2 ms
WDR = 0 V
WDT = 0 V
WDR = VDD
WDR = 0 V
WDR = VDD
Min = 1.58 ms
Max = 93.8 ms
Typ = 78.2 ms
Min = 62.5 ms
Max = 23.5 ms
Typ = 19.6 ms
Min = 15.6 ms
Typ = 2.5 s
Min = 2 s
WDT = VDD
Max = 3 s
Typ = 2.5 s
Min = 2 s
To visualize the values named in the table, a timing diagram (see Figure 2) was prepared. The timing diagram is
used to describe the upper and lower boundary settings. For an application, the important boundaries are the
tboundary,max and twindow,min. Within these values, the watchdog timer should be retriggered to avoid a timeout
condition or a boundary violation in the event of a trigger pulse in the lower boundary. The values in the table
above are typical and worst case conditions. They are valid over the whole temperature range of –55°C to
125°C.
In the shaded area of Figure 2, it cannot be predicted if the device will detect a violation or not and release a
reset. This is also the case between the boundary tolerance of tboundary,min and tboundary,max as well as between
twindow,min and twindow,max. It is important to set up the trigger pulses accordingly to avoid violations in these areas.
WDI
Detection of
Rising Edge
Window Frame to Reset the WDI
t
t
boundary, min
t
boundary, typ
t
boundary, max
t
window, min
t
window, typ
t
window, max
Figure 2. Upper and Lower Boundary Visualization
4
Submit Documentation Feedback

TPS3813J25-EP, TPS3813L30-EP
TPS3813K33-EP, TPS3813I50-EP
www.ti.com
SGLS343A–MAY 2006–REVISED MAY 2006
TIMING RULES OF WINDOW-WATCHDOG
After the reset of the supervisor is released, the lower boundary of the first WDI window is disabled. However,
after the first WDI pulse low-to-high transition is detected, the lower boundary function of the window is enabled.
All further WDI pulses will need to fit into the configured window frame.
PROGRAMMABLE WINDOW-WATCHDOG BY USING AN EXTERNAL CAPACITOR
The upper boundary of the watchdog timer can be set by an external capacitor connected between the WDT pin
and GND. Common consumer electronic capacitors can be used to implement this feature. They should have
low ESR and low tolerances since the tolerances have to be considered if the calculations are performed. The
first formula is used to calculate the upper window frame. After calculating the upper window frame, the lower
boundary can be calculated. As in the last example, the most important values are the tboundary,max and twindow,min
.
The trigger pulse has to fit into this window frame.
The external capacitor should have a value between a minimum of 47 pF and a maximum of 63 nF.
SELECTED OPERATION MODE
WINDOW FRAME
twindow,max = 1.25 x twindow,typ
twindow,min = 0.75 x twindow,typ
WDT = external capacitor C(ext) WDR = 0 V and WDR = VDD
C
(ext)
t
+
) 1   6.25 ms
ǒ Ǔ
window,typ
15.55 pF
(1)
LOWER BOUNDARY CALCULATION
The lower boundary can be calculated based on the values given in the switching characteristics. Additionally,
facts have to be taken into account to verify that the lower boundary is where it is expected. Since the internal
oscillator of the window watchdog is running free, any rising edge at the WDI pin will be taken into account at
the next internal clock cycle. This happens regardless of the external source. Since the shift between internal
and external clock is not known, it is best to consider the worst case condition for calculating this value.
SELECTED OPERATION MODE
LOWER BOUNDARY OF FRAME
tboundary,max = twindow,max / 23.5
tboundary,typ = twindow,typ / 25.8
tboundary,min = twindow,min / 28.7
tboundary,max = twindow,max / 51.6
tboundary,typ = twindow,typ / 64.5
tboundary,min = twindow,min / 92.7
WDR = 0 V
WDT = external capacitor C(ext)
WDR = VDD
WATCHDOG SOFTWARE CONSIDERATIONS
To benefit from the window watchdog feature and help the watchdog timer monitor the software execution more
closely, it is recommended that the watchdog be set and reset at different points in the program rather than
pulsing the watchdog input periodically by using the prescaler of a microcontroller or DSP. Furthermore, the
watchdog trigger pulses should be set to different timings inside the window frame to release a defined reset, if
the program should hang in any subroutine. This allows the window watchdog to detect timeouts of the trigger
pulse as well as pulses that distort the lower boundary.
APPLICATION EXAMPLE
A typical application example (see Figure 3) is used to describe the function of the watchdog in more detail.
To configure the window watchdog function, two pins are provided by the TPS3813. These pins set the window
timeout and ratio.
The window watchdog ratio is a fixed ratio, which determines the lower boundary of the window frame. It can be
configured in two different frame sizes.
5
Submit Documentation Feedback
TPS3813J25-EP, TPS3813L30-EP
TPS3813K33-EP, TPS3813I50-EP
www.ti.com
SGLS343A–MAY 2006–REVISED MAY 2006
If the window watchdog ratio pin (WDR) is set to VDD, Position 1 in Figure 3, then the lower window frame is a
value based on a ratio calculation of the overall window timeout size: For the watchdog timeout pin (WDT)
connected to GND, it is a ratio of 1:124.9, for WDT connected to VDD, it is a ratio of 1:127.7, and for an external
capacitor connected to WDT, it is a ratio of 1:64.5.
If the window watchdog ratio pin (WDR) is set to GND, Position 2, the lower window frame will be a value based
on a ratio calculation of the overall window timeout size: For the watchdog timeout pin (WDT) connected to
GND, it will be a ratio of 1:31.8, for WDT connected to VDD it will be 1:32, and for an external capacitor
connected to WDT it will be 1:25.8.
The watchdog timeout can be set in two fixed timings of 0.25 seconds and 2.5 seconds for the window or can by
programmed by connecting a external capacitor with a low leakage current at WDT.
Example: If the watchdog timeout pin (WDT) is connected to VDD, the timeout will be 2.5 seconds. If the window
watchdog ratio pin (WDR) is set in this configuration to a ratio of 1:127.7 by connecting the pin to VDD, the lower
boundary is 19.6 ms.
V
DD
0.1 µF
0.1 µF
V
DD
R
Position 1
V
DD
V
DD
See Note A
Position 2
See Note B
WDR
WDT
RESET
RESET
I/O
TPS3813
GND
Position 4
uC
See Note D
WDI
Position 5
See Note E
C
(ext)
Position 3
See Note C
GND
V
DD
A. Watchdog window ratio
B. Watchdog timeout set to typical 2.5 sec
C. Watchdog timeout programmed by external capacitor
D. Watchdog timeout set to typical 0.25 sec
Figure 3. Application Example
6
Submit Documentation Feedback

TPS3813J25-EP, TPS3813L30-EP
TPS3813K33-EP, TPS3813I50-EP
www.ti.com
SGLS343A–MAY 2006–REVISED MAY 2006
ABSOLUTE MAXIMUM RATINGS
over operating free-air temperature range (unless otherwise noted)
(1)
UNIT
7 V
Supply voltage(2)
VDD RESET
–0.3 V to VDD + 0.3 V
–0.3 V to 7 V
5 mA
(2)
All other pins
IOL
IOH
IIK
Maximum low output current
Maximum high output current
Input clamp current (VI < 0 or VI > VDD
–5 mA
)
±20 mA
IOK
Output clamp current (VO < 0 or VO > VDD
Continuous total power dissipation
Operating free-air temperature range
Storage temperature range
)
±20 mA
See Dissipation Rating Table
–55°C to 125°C
–65°C to 150°C
260°C
TA
Tstg
Soldering temperature
(1) Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under recommended operating
conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltage values are with respect to GND. For reliable operation, the device should not be operated at 7 V for more than t = 1000h
continuously.
DISSIPATION RATING TABLE
TA < 25°C
POWER RATING
DERATING FACTOR
ABOVE TA = 25°C
TA = 70°C
POWER RATING
TA = 85°C
POWER RATING
PACKAGE
DBV
437 mW
3.5 mW/°C
280 mW
227 mW
100
10
1
120
125
130
135
140
145
150
155
160
Continuous T − 5C
J
Figure 4. TPS3813K33DBV Wirebond Life
7
Submit Documentation Feedback
TPS3813J25-EP, TPS3813L30-EP
TPS3813K33-EP, TPS3813I50-EP
www.ti.com
SGLS343A–MAY 2006–REVISED MAY 2006
RECOMMENDED OPERATING CONDITIONS
at specified temperature range
MIN
MAX UNIT
VDD
VI
Supply voltage
2
0
6
V
V
Input voltage
VDD + 0.3
VIH
VIL
∆t/∆V
tw
High-level input voltage
Low-level input voltage
Input transition rise and fall rate
Pulse width of WDI trigger pulse
Operating free-air temperature range
0.7 x VDD
V
0.3 x VDD
100
V
ns/V
ns
°C
50
TA
–55
125
ELECTRICAL CHARACTERISTICS
over recommended operating free-air temperature range (unless otherwise noted)
PARAMETER
TEST CONDITIONS
VDD = 2 V to 6 V, IOL = 500 µA
MIN TYP MAX UNIT
0.2
VOL Low-level output voltage
VDD = 3.3 V IOL = 2 mA
VDD = 6 V, IOL = 4 mA
0.4
0.4
0.2
2.3
2.7
3
V
V
(1)
Power up reset voltage
VDD ≥ 1.1 V, IOL= 50 µA
TPS3813J25
TPS3813L30
2.2 2.25
2.58 2.64
2.87 2.93
2.8
Negative-going input
threshold
voltage
VIT
TA = 25°C
V
(2)
TPS3813K33
TA = Full Range
3.1
TPS3813I50
TPS3813J25
TPS3813L30
TPS3813K33
TPS3813I50
4.45 4.55 4.65
30
35
40
60
Vhys Hysteresis
mV
TA = 25°C
–100
–1000
–100
100
1000
100
WDI, WDR
WDT
WDI = VDD = 6 V, WDR = VDD = 6 V
TA = Full Range
TA = 25°C
IIH
High-level input current
WDT = VDD = 6 V, VDD > VIT,
RESET = High
TA = Full Range
TA = 25°C
–1000
–100
1000
100
nA
nA
WDI, WDR
WDT
WDI = 0 V, WDR = 0 V, VDD = 6 V
WDT = 0 V, VDD > VIT, RESET = High
VDD = VOH = 6 V
TA = Full Range
TA = 25°C
–1000
–100
1000
100
IIL
Low-level input current
High-level output current
TA = Full Range
TA = 25°C
–1000
1000
100
IOH
TA = Full Range
1000
13
VDD = 2 V output unconnected
VDD = 5 V output unconnected
VI = 0 V to VDD
9
20
5
IDD
CI
Supply current
µA
25
Input capacitance
pF
(1) The lowest supply voltage at which RESET becomes active. tr, VDD ≥ 15 µs/V.
(2) To ensure the best stability of the threshold voltage, a bypass capacitor (ceramic, 0.1 µF) should be placed near the supply terminals.
TIMING REQUIREMENTS
at RL = 1 MΩ, CL = 50 pF, TA = –40°C to 85°C
PARAMETER
Pulse width at VDD
TEST CONDITIONS
MIN
TYP MAX UNIT
tw
VDD = VIT– + 0.2 V, VDD = VIT–– 0.2 V
3
µs
8
Submit Documentation Feedback
TPS3813J25-EP, TPS3813L30-EP
TPS3813K33-EP, TPS3813I50-EP
www.ti.com
SGLS343A–MAY 2006–REVISED MAY 2006
SWITCHING CHARACTERISTICS
at RL = 1 MΩ, CL = 50 pF, TA = -55°C to 125°C
PARAMETER
TEST CONDITIONS
TA = 25°C
TA = Full Range
MIN
20
TYP MAX UNIT
25
30
40
td
Delay time
V
DD ≥ VIT + 0.2 V, See Figure 1
ms
15
WDT = 0 V
0.25
s
tt(out
Watchdog time-out
Upper limit
WDT = VDD
2.5
)
(1)
(2)
WDT = programmable
See
ms
WDR = 0 V, WDT = 0 V
1:31.8
1:32
WDR = 0 V, WDT = VDD
WDR = 0 V, WDT = programmable
WDR = VDD, WDT = 0 V
1:25.8
1:124.9
1:127.7
1:64.5
Watchdog window ratio
Propagation (delay)
WDR = VDD, WDT = VDD
WDR = VDD, WDT = programmable
VDD to RESET
delay
tPHL time, high-to-low-level
output
VIL = VIT - 0.2 V, VIH = VIT + 0.2 V
30
µs
(1) 155 pF < C(ext) < 63 nF
(2) (C(ext) ÷ 15.55 pF + 1) x 6.25 ms
TYPICAL CHARACTERISTICS
SUPPLY CURRENT
LOW-LEVEL OUTPUT VOLTAGE
vs
LOW-LEVEL OUTPUT CURRENT
vs
SUPPLY VOLTAGE
2
20
18
16
14
12
WDI = GND,
WDT = GND,
WDR = GND
V
DD
= 2 V,
WDI = GND,
WDT = GND,
WDR = GND
1.75
1.50
85°C
25°C
1.25
1
25°C
10
8
−40°C
0.75
0.50
0.25
0
85°C
6
0°C
0°C
4
−40°C
2
0
0
1
2
3
4
5
6
0
1
2
3
4
5
6
7
V
DD
− Supply Voltage − V
I
− Low-Level Output Current − mA
OL
Figure 5.
Figure 6.
9
Submit Documentation Feedback
TPS3813J25-EP, TPS3813L30-EP
TPS3813K33-EP, TPS3813I50-EP
www.ti.com
SGLS343A–MAY 2006–REVISED MAY 2006
TYPICAL CHARACTERISTICS (continued)
INPUT CURRENT
vs
INPUT VOLTAGE AT WDT
NORMALIZED INPUT THRESHOLD VOLTAGE
vs
FREE-AIR TEMPERATURE AT VDD
1000
800
600
400
200
1.001
1.000
0.999
0.998
25°C
85°C
0°C
0
−200
−40°C
0.997
0.996
0.995
−400
−600
V
= 6 V,
DD
WDI = GND,
WDR = GND
WDI = Triggered,
WDR = GND,
WDT = GND
−800
−1000
0
1
2
3
4
5
6
−40
−20
0
20
40
60
80
V − Input Voltage at WDT − V
I
T
A
− Free-Air Temperature At V − °C
DD
Figure 7.
Figure 8.
MINIMUM PULSE DURATION AT VDD
vs
VDD THRESHOLD OVERDRIVE VOLTAGE
20
18
16
14
12
10
8
6
4
2
0
0
0.2
0.4
0.6
0.8
1
1.2
1.4
V
DD
− Threshold Overdrive Voltage − V
Figure 9.
10
Submit Documentation Feedback
PACKAGE OPTION ADDENDUM
www.ti.com
22-Sep-2008
PACKAGING INFORMATION
Orderable Device
2T13K33MDBVREPG4
TPS3813K33MDBVREP
V62/06627-01XE
Status (1)
ACTIVE
ACTIVE
ACTIVE
Package Package
Pins Package Eco Plan (2) Lead/Ball Finish MSL Peak Temp (3)
Qty
Type
Drawing
SOT-23
DBV
6
6
6
3000 Green (RoHS & CU NIPDAU Level-1-260C-UNLIM
no Sb/Br)
SOT-23
SOT-23
DBV
DBV
3000 Green (RoHS & CU NIPDAU Level-1-260C-UNLIM
no Sb/Br)
3000 Green (RoHS & CU NIPDAU Level-1-260C-UNLIM
no Sb/Br)
(1) The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in
a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check
http://www.ti.com/productcontent for the latest availability information and additional product content details.
TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements
for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered
at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and
package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS
compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame
retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material)
(3)
MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder
temperature.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is
provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the
accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take
reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on
incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited
information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI
to Customer on an annual basis.
OTHER QUALIFIED VERSIONS OF TPS3813K33-EP :
Catalog: TPS3813K33
•
NOTE: Qualified Version Definitions:
Catalog - TI's standard catalog product
•
Addendum-Page 1
PACKAGE MATERIALS INFORMATION
www.ti.com
6-Aug-2008
TAPE AND REEL INFORMATION
*All dimensions are nominal
Device
Package Package Pins
Type Drawing
SPQ
Reel
Reel
A0 (mm)
B0 (mm)
K0 (mm)
P1
W
Pin1
Diameter Width
(mm) W1 (mm)
(mm) (mm) Quadrant
TPS3813K33MDBVREP SOT-23
DBV
6
3000
180.0
9.0
3.15
3.2
1.4
4.0
8.0
Q3
Pack Materials-Page 1
PACKAGE MATERIALS INFORMATION
www.ti.com
6-Aug-2008
*All dimensions are nominal
Device
Package Type Package Drawing Pins
SOT-23 DBV
SPQ
Length (mm) Width (mm) Height (mm)
182.0 182.0 20.0
TPS3813K33MDBVREP
6
3000
Pack Materials-Page 2
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements,
and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should
obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are
sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard
warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where
mandated by government requirements, testing of all parameters of each product is not necessarily performed.
TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and
applications using TI components. To minimize the risks associated with customer products and applications, customers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right,
or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a
warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual
property of the third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied
by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive
business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional
restrictions.
Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all
express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not
responsible or liable for any such statements.
TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably
be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing
such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products
and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be
provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in
such safety-critical applications.
TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are
specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military
specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at
the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.
TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are
designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated
products in automotive applications, TI will not be responsible for any failure to meet such requirements.
Following are URLs where you can obtain information on other Texas Instruments products and application solutions:
Products
Applications
Audio
www.ti.com/audio
amplifier.ti.com
dataconverter.ti.com
www.dlp.com
Communications and Telecom www.ti.com/communications
Amplifiers
Data Converters
DLP® Products
DSP
Computers and Peripherals
Consumer Electronics
Energy and Lighting
Industrial
www.ti.com/computers
www.ti.com/consumer-apps
www.ti.com/energy
dsp.ti.com
www.ti.com/industrial
www.ti.com/medical
www.ti.com/security
Clocks and Timers
Interface
www.ti.com/clocks
interface.ti.com
logic.ti.com
Medical
Security
Logic
Space, Avionics and Defense www.ti.com/space-avionics-defense
Power Mgmt
power.ti.com
Transportation and
Automotive
www.ti.com/automotive
Microcontrollers
RFID
microcontroller.ti.com
www.ti-rfid.com
Video and Imaging
Wireless
www.ti.com/video
www.ti.com/wireless-apps
RF/IF and ZigBee® Solutions www.ti.com/lprf
TI E2E Community Home Page
e2e.ti.com
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2011, Texas Instruments Incorporated
厂商 型号 描述 页数 下载

AVICTEK

 		2T1 SOT- 23塑封装晶体管[ SOT-23 Plastic-Encapsulate Transistors ] 1 页

APITECH

 		2T100W-03 [ Fixed Attenuator, 0MHz Min, 2500MHz Max, ROHS COMPLIANT PACKAGE ] 1 页

APITECH

 		2T100W-03F [ Fixed Attenuator, 0MHz Min, 2500MHz Max, ROHS COMPLIANT PACKAGE ] 1 页

APITECH

 		2T100W-03FM [ Fixed Attenuator, 0MHz Min, 2500MHz Max, ROHS COMPLIANT PACKAGE ] 1 页

APITECH

 		2T100W-03M [ Fixed Attenuator, 0MHz Min, 2500MHz Max, ROHS COMPLIANT PACKAGE ] 1 页

APITECH

 		2T100W-06 [ Fixed Attenuator, 0MHz Min, 2500MHz Max, ROHS COMPLIANT PACKAGE ] 1 页

APITECH

 		2T100W-06M [ Fixed Attenuator, 0MHz Min, 2500MHz Max, ROHS COMPLIANT PACKAGE ] 1 页

APITECH

 		2T100W-10 [ Fixed Attenuator, 0MHz Min, 2500MHz Max, ROHS COMPLIANT PACKAGE ] 1 页

APITECH

 		2T100W-10F [ Fixed Attenuator, 0MHz Min, 2500MHz Max, ROHS COMPLIANT PACKAGE ] 1 页

APITECH

 		2T100W-10FM [ Fixed Attenuator, 0MHz Min, 2500MHz Max, ROHS COMPLIANT PACKAGE ] 1 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.160329s
