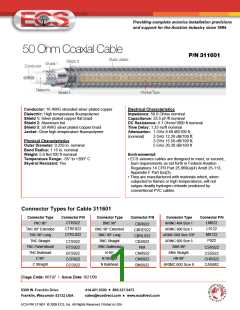

Conductor: 16 AWG stranded silver plated copper
Dielectric: High temperature flouropolymer
Shield 1: Silver plated copper flat braid
Shield 2: Aluminum foil
Shield 3: 38 AWG silver plated copper braid
Jacket: Clear high temperature flouropolymer
Electrical Characteristics
Impedance: 50.0 Ohms nominal
Capacitance: 25.5 pF/ft nominal
DC Resistance: 4.1 Ohms/1000 ft nominal
Time Delay: 1.25 ns/ft nominal
Attenuation: 1 GHz 8.60 dB/100 ft;
(nominal)
2 GHz 12.20 dB/100 ft;
3 GHz 15.50 dB/100 ft;
5 GHz 20.30 dB/100 ft
Physical Characteristics
Outer Diameter: 0.229 in. nominal
Bend Radius: 1.15 in. nominal
Weight: 5.0 lbs/100 ft nominal
Temperature Range: -55° to +200° C
Skydrol Resistant: Yes
Environmental:
• ECS avionics cables are designed to meet, or exceed,
burn requirements as set forth in Federal Aviation
Regulations 14 CFR Part 25.869(a)(4) Amdt 25-113,
Appendix F Part I(a)(3).
• They are manufactured with materials which, when
subjected to flames or high temperatures, will not
outgas deadly hydrogen chloride produced by
conventional PVC cables.
Connector Types for Cable 311601
Connector Type
TNC 90°
Connector P/N
CTR922
Connector Type
BNC 90°
Connector P/N
Connector Type
ARINC 404 Size 1
ARINC 600 Size 1
ARINC 600 Size 1RF
ARINC 600 Size 5
SMA 90°
Connector P/N
LM922
CBR922
CBRE922
CBRL922
CBS922
N/A
CTRE922
CTRL922
L9122
TNC 90° Extended
TNC 90° Long
TNC Straight
TNC Panel Mount
TNC Bulkhead
C 90°
BNC 90° Extended
BNC 90° Long
BNC Straight
BNC Bulkhead
N 90°
M9122
P922
CTS922
RTS922
BTS922
CCR922
CCS922
CSR922
CSS922
SMA Straight
CNR922
CNS922
BNS922
N Straight
HN 90°
CHR922
CAS982
C Straight
N Bulkhead
ARINC 600 Size 8
Cage Code: 66197 • Issue Date: 9/21/09
ECS-P/N 311601 © 2009 ECS, Inc. All Rights Reserved. Printed in USA.
