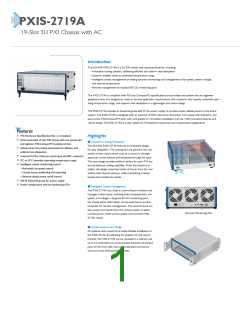

PXIS-2719A
19-Slot 3U PXI Chassis with AC
Introduction
The ADLINK PXIS-2719A is a 3U PXI chassis with advanced features, including:
ꢀ
ꢀ
ꢀ
•ꢀInnovative cooling solution, delivering efficient and uniform heat dissipation
•ꢀSuperior stability within an extended temperature range
•ꢀIntelligent chassis management providing dynamic monitoring and management of fan speed, system voltage,
and internal temperature
ꢀ
•ꢀRemote management via standard RS-232 monitoring port
The PXIS-2719A is compliant with PXI and CompactPCI specifications and provides one system slot and eighteen
peripheral slots. It is designed to meet or exceed application requirements with maximum slot capacity, extended oper-
ating temperature range, and superior heat dissipation in a lightweight and robust design.
The PXIS-2719A includes an Industrial-grade 600 W AC power supply to provide ample reliable power to the entire
system. The PXIS-2719A is designed with an external 10 MHz reference clock input, front panel LED indicators, and
easy-access PXI/CompactPCI slots with card guides for convenient installation and use. With innovative features and
robust design, the PXIS-2719A is a clear leader for PXI platform-based test and measurement applications.
Features
■
PXI Hardware Specification Rev. 2.2 compliant
Highlights
■ꢀInnovative Cooling Mechanism
■
Rack-mountable 19-slot PXI chassis with one system slot
ꢀ
■
andꢀeighteenꢀPXI/CompactPCIꢀperipheralꢀslots
Advanced forced-cooling mechanism for efficient and
uniform heat dissipation
The ADLINK PXIS-2719A features an innovative design
for heat dissipation. The cooling fans are placed in the rear
section of the chassis where cool air is drawn in through
apertures on the bottom and exhausted through the back.
This new design provides uniform airflow for each PXI slot
and exceptional cooling capability. When the chassis is in-
stalled, the design minimizes intake of hot air from the rear
where other devices exhaust, while maintaining a steady
temperature inside the chassis.
■
■
■
ꢀ Externalꢀ10ꢀMHzꢀreferenceꢀclockꢀinputꢀviaꢀBNCꢀconnector
0°C to 55°C extended operating temperature range
ꢀ Intelligentꢀchassisꢀmonitoring/control
ꢀ
ꢀ
•ꢀAutomaticꢀfanꢀspeedꢀcontrol
•ꢀChassisꢀstatusꢀmonitoringꢀandꢀexporting
•ꢀRemoteꢀchassisꢀpowerꢀon/offꢀcontrol
ꢀ
■
ꢀ 600ꢀWꢀindustrial-gradeꢀACꢀpowerꢀsupply
Power, temperature and fan monitoring LEDs
■
■ꢀIntelligent Chassis Management
The PXIS-2719A has a built-in control board monitors and
manages chassis status, including internal temperature, fan
speed, and voltages. Using the RS-232 monitoring port,
the chassis status information can be exported to another
computer for remote management. The control board can
also accept commands from the remote system to allow
Remote Monitoring Port
remote power on/off and fan speed control of the PXIS-
2719A chassis.
■ꢀFlexible Rack-mount Design
An optional rack-mount kit provides flexible installation of
the PXIS-2719A. By adjusting the position of rack-mount
bracket, the PXIS-2719A can be recessed in a cabinet rack
up to 10 centimeters to accommodate external mechanical
parts on the front side, such as complicated connectors/
wires and mass interconnect modules.
