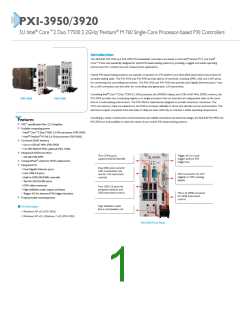

PXI Controller
Specifications
Model Name
PXI-3920
PXI-3950
Core Features
CPU
Intel® Pentium® M 760 2.0 GHz
533 MHz
Intel® Core™2 Duo T7500 2.2 GHz
800 MHz
FSB
Intel® 915 GME Graphic Memory Control HUB
Intel® I/O Controller Hub 6 Mobile (ICH6-M)
512 MB on-board soldered memory
Intel® GME965 Graphic Memory Control HUB
Intel® I/O Controller Hub 8 Mobile (ICH8-M)
4 GB SO-DIMM memory
Chipset
Memory
One DDR2 SO-DIMM socket for memory expansion
Supports dual-channel DDR2 SDRAM, 400/533 MHz
Supports dual-channel DDR2 SDRAM, 667 MHz
Display
Chipset
DVI
Intel® GMA 900 graphic media accelerator
Intel® GMA X3100 graphic media accelerator
Single channel TMDS via SDVO to DVI controller up to 1600 x 1200 resolution @ 60 Hz
Analog CRT route to DVI-I connector on the faceplate up to 1280 x 1024 resolution
Single 18-bit LVDS channel route to rear transition module
Supports LCD backlight control
CRT
LVDS (For rear I/O only)
DVI-I connector for digital or analog video signal outputs
Interface
I/O Connectivity
Ethernet
On board Marvell™ 88E8053 Dual Gigabit Ethernet controllers
One 88E8053 + one Intel® 82566 PHY
Two RJ-45 connectors with speed/link/active LED on the faceplate
4 x USB 2.0 on the faceplate
USB
On-board IEEE488 GPIB controller
GPIB
Micro-D 25-pin connector on the faceplate (ACL-IEEE488-MD1-A cable required)
Two 16C550 UART compatible COM ports on the faceplate
Supports RS-232, RS-422 and RS-485, configurable by jumper setting
Supports high definition audio input/output
Serial Port
Audio
Two audio jacks on the faceplate for line-in/mic-in and speaker-out
SMB connector on the faceplate to route an external trigger signal to/from PXI™ trigger bus
Type II CF Socket, supporting PIO and DMA modes
Trigger I/O
CompactFlash Socket
Storage
HDD
320 GB SATA hard drive, 7200 RPM
Mechanical and Environmental
Dimensions
60.5 mm x 128.7 mm x 213.2 mm (2.35” x 5” x 8.3”)
1 system slot plus 2 controller expansion slots
0.9 kg (1.98 lbs)
Slot Requirements
Weight
0˚C to 50˚C (32˚F to 122˚F)
Operating Temp.
Storage Temp.
Relative Humidity
Shock
-20˚C to 80˚C (-4˚F to 176˚F)
5 to 95%, non-condensing
30 G, half-sine, 11 ms pulse duration
Operating: 5 to 500 Hz, 0.21 Grms, 3 axes
Non-operating: 5 to 500 Hz, 2.46 Grms, 3 axes
EN 61326-1
Vibration
Emissions Compliance
CE Compliance
FCC Class A
Immunity: EN 61326-1
Ordering Information
Cable Accessory
■ PXI-3950
3U PXI Intel® Core™2 Duo T7500 2.2 GHz system
controller with 4 GB memory & 320 GB HDD
■ꢀPXI-3950/M2G
3U PXI Intel® Core™2 Duo T7500 2.2 GHz system
controller with 2 GB memory & 320 GB HDD
■ PXI-3920
3U PXI Intel® Pentium® M 760 2.0 GHz system
controller with 512 MB memory & 320 GB HDD
■ꢀACL-IEEE488-MD1-A
25-pin Micro-D to GPIB Cable, 1 Meter Length
■ꢀPXI-3920/M1.5G
3U PXI Intel® Pentium® M 760 2.0 GHz system
controller with 1.5 GB memory & 320 GB HDD
Updated January 29, 2013. ©2013 ADLINK Technology, Inc. All Rights Reserved. All specifications are subject to change without further notice.
