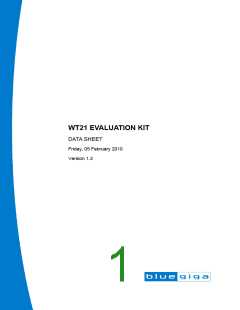

WT21 EVALUATION KIT
DATA SHEET
Friday, 05 February 2010
Version 1.3
Copyright © 2000-2010 Bluegiga Technologies
All rights reserved.
Bluegiga Technologies assumes no responsibility for any errors which may appear in this manual.
Furthermore, Bluegiga Technologies reserves the right to alter the hardware, software, and/or specifications
detailed here at any time without notice and does not make any commitment to update the information
contained here. Bluegiga’s products are not authorized for use as critical components in life support devices
or systems.
The WRAP is a registered trademark of Bluegiga Technologies
The Bluetooth trademark is owned by the Bluetooth SIG Inc., USA and is licensed to Bluegiga Technologies.
All other trademarks listed herein are owned by their respective owners.
Bluegiga Technologies Oy
VERSION HISTORY
Version
0.1
Comment
First draft
1.0
First release
1.1
Added images
Bootstrap added
Pin out numbers fixed
1.2
1.3
Bluegiga Technologies Oy
TABLE OF CONTENTS
1
2
3
4
5
6
Introduction................................................................................................................................................... 5
Physical outlook............................................................................................................................................ 6
Schematics................................................................................................................................................... 7
Assembly.................................................................................................................................................... 10
Layout......................................................................................................................................................... 11
Interfaces.................................................................................................................................................... 12
6.1 Powering the evaluation board............................................................................................................. 12
6.2 UART.................................................................................................................................................... 12
6.3 Host selection DIP switch..................................................................................................................... 12
6.3.1
6.3.2
6.3.3
UART protocol selection .............................................................................................................. 12
UART baudrate negotation .......................................................................................................... 13
Loading the PS keys.................................................................................................................... 13
6.4 SPI interface ......................................................................................................................................... 14
6.5 SDIO and PIO interface........................................................................................................................ 14
6.6 PCM Codec and Audio Interface.......................................................................................................... 14
WEEE Compliance..................................................................................................................................... 15
Contact Information .................................................................................................................................... 16
7
8
Bluegiga Technologies Oy
1 Introduction
FEATURES
Evaluation kit for WT32 Bluetooth audio module containing
o
o
o
o
o
o
o
o
o
RS-232 serial interface (230400bps)
USB interface for power supply
SPI for upgrading the firmware and parameters
Reset button
PCM codec (OKI MSM7702-01)
2 x 3,5mm audio jacks for line in and line out
24 pin I/O interface (PIO1 – PIO9, UART, SDIO, PCM, GND, 3V3, ENA)
DIP switches for host interface configuration
Current measurement point
Host controller interface
TARGET APPLICATIONS
WT21 Evaluation Kit is meant for evaluation and development of WT21 Bluetooth module or prototyping and
piloting Bluetooth systems utilizing WT21 module.
ELECTRICAL FUNCTIONALITY
Please, refer to the latest WT21 data sheet for information about WT21 Bluetooth module. The physical
outlook, schematics, assembly and the PIN configurations of the interfaces of WT21 evaluation Kit are
described in this document.
SOFTWARE FUNCTIONALITY
WT32 evaluation kit is delivered with Host Controller Interface (HCI) firmware, so WT21 only implements the
lowest levels of Bluetooth stack. WT21 always requires a host system that implements the upper layers of
Bluetooth stack and at least one Bluetooth profile.
Bluegiga Technologies Oy
Page 5 of 16

2 Physical outlook
Figure 1: WT21 front view
Figure 2: WT21 back view
Bluegiga Technologies Oy
Page 6 of 16

3 Schematics
Figure 3: EKWT21 Schematic (1/3)
Bluegiga Technologies Oy
Page 7 of 16

Figure 4: EKWT21 Schematic (2/3)
Bluegiga Technologies Oy
Page 8 of 16
Figure 5: EKWT21 Schematic (3/3)
Bluegiga Technologies Oy
Page 9 of 16
4 Assembly
Figure 6: Assembly Drawing of EKWT21
Bluegiga Technologies Oy
Page 10 of 16

5 Layout
Figure 7: Top Layer Layout
Figure 8: Bottom Layer Layout
Bluegiga Technologies Oy
Page 11 of 16

6 Interfaces
6.1 Powering the evaluation board
The board can be powered either through a USB connector J10 or using a laboratory power supply through
pin header J4. LDO TPS79933DDCT is used to regulate 3.3V supply voltage for the module (VREG_IN and
VDD_PADS). Maximum input voltage for the regulator is 6.5V. Enable pins of the internal regulators of the
module (VREG_ENA) are tight to 3.3V supply through zero ohm resistor R1.
6.2 UART
UART interface of the module is available in the pin header J3. When UART is being used through the pin
header the RS232 transceiver U2 should be switched to high impedance using SW11. When using RS232
through J5 the transceiver should be enabled with SW11. The maximum baud rate of the transceiver in the
evaluation board is 235kbps.
6.3 Host selection DIP switch
DIP switch SW1 is used for the host selection as described below.
The MCU of WT21 selects the UART/SDIO interfaces by reading PIO[4] at boot-time. When PIO[4] is high, the
SDIO interface is enabled; when PIO[4] is low, the UART is enabled.
If in UART mode, the MCU selects the UART transfer protocol automatically using the unused SDIO pins
shown in Table 1.
Table 1: SDIO_CLK and SDIO_CMD transfer Protocols
6.3.1 UART protocol selection
At bootup the module looks at PIO4 to determine whether it should use UART or SDIO/CSPI. If PIO4 is pulled
low then UART will be used. It then checks SDIO_CLK and SDIO_CMD pins to determine which mode it
should use for receiving initial pskeys over UART.
Note:
When the switch on the eval board is conducting (marked by "on") then the pin is pulled low which is marked by 0.
To use the H4 UART protocol for configuring the WT21 the PIO4 should be pulled low, the SDIO_CLK should
be pulled low and SDIO_CMD must be pulled high. Note that by default there is a weak pull-up for these pins
so if nothing is connected to them, they will be pulled high.
Bluegiga Technologies Oy
Page 12 of 16





6.3.2 UART baudrate negotation
When PIO4, CLK and CMD are all pulled low, BCSP over UART is selected. The speed for this initial
communication should be between 57600bps and 115200bps and must use even parity.
Since the WT21 doesn't know its internal clock frequency nor the baud rate it should communicate at, a form
of baud rate auto-negotiation is implemented on the module. The host needs to send some data packets so
that the WT21 can assess the baud rate the host uses.
Any seemingly non-uniform data can be used but for BCSP sending Link Establishment packets is the natural
choice. Once the WT21 has received enough samples it will start communicating back to the host by replying
to the Link Establishment messages.
Since the H4 doesn't have any link protocol, repeated queries for some known value can be used. Once the
host has started receiving replies for the queries, it can be assumed that that the baud rate has been
established.
Note:
The number of packets the WT21 will need for assessing the baud rate is dependent on the host's UART hardware. With poor
quality UARTs the auto-negotiation may fail, which means the WT21 will use an incorrect baud rate to communicate back. The
host will see this as packets of garbage, i.e. full of crc errors and checksum errors when using BCSP. To restart the negotiation
the host will need to reset the WT21. The host should have some way to power cycle the WT21 to restart the baud rate
negotiation, either by controlling the reset pin or directly the module's VCC.
6.3.3 Loading the PS keys
Once a communications link has been established, BCCMD packets are used to load PS Keys. At least the
following PS Keys need to be set:
Key address
&0001
&01be
&01fe
&025d
Value
00dd eeff 00cc aabb
01d8
6590
0001
0001
Description
Bluetooth address (aa:bb:cc:dd:ee:ff)
UART baud rate (01d8 = 115200)
Chrystal frequency. Do not modify.
VM disable. Do not modify.
Host interface, (0001 = BCSP)
&01f9
For the host interface the following protocols are supported:
BCSP 0001
H4 0003
H5 0006
H4DS 0007
To activate the changes the command for warm reset is sent to the WT21.
After this the module will immediately reboot using the configured settings and thus switch to the specified
baud rate.
Bluegiga Technologies Oy
Page 13 of 16


6.4 SPI interface
SPI is available in the pin header J1. Following table shows the connections in the pin header. 3.3V is an
output from the evaluation board and it is used to power the on board installation kit delivered with the kit.
PIN name
MISO
No.
I/O
Description
MISO
1
2
3
4
5
6
O
3.3 V
CLK
POWER
3.3 V power supply input
I
CLK
MOSI
CSB
MOSI
CSB
GND
I
I
GND
GND
Table 2: SPI interface pin description
6.5 SDIO and PIO interface
All SDIO and PIO connections are available in the pin header J3.
6.6 PCM Codec and Audio Interface
The evaluation board uses MSM7702 PCM codec by OKI Semiconductor. PS settings for the codec are as
follows:
o
o
o
PCM_DATAFORMAT 0200
PCM_CONFIG32 180000C0
HOST_IO_MAP_SCO_PCM true
Headset can be connected to 3.5mm jack connectors J6 and J7.
Bluegiga Technologies Oy
Page 14 of 16



7 WEEE Compliance
The crossed-out wheeled bin means that within the European Union the product
must be taken to separate collection at the product end-of-life. Do not dispose of
these products as unsorted municipal waste.
Bluegiga Technologies Oy
Page 15 of 16

8 Contact Information
Sales:
sales@bluegiga.com
Technical support:
support@bluegiga.com
http://www.bluegiga.com/techforum/
Orders:
orders@bluegiga.com
Head Office / Finland:
Phone: +358-9-4355 060
Fax: +358-9-4355 0660
Street Address:
Postal address:
Sales Office / USA:
Sinikalliontie 5A
02630 ESPOO
FINLAND
P.O. BOX 120
02631 ESPOO
FINLAND
Phone: (781) 556-1039
Bluegiga Technologies, Inc.
99 Derby Street, Suite 200 Hingham, MA 02043
Bluegiga Technologies Oy
Page 16 of 16
