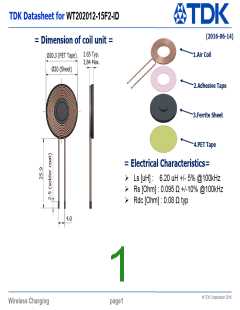

TDK Datasheet for WT202012-15F2-ID
(2016-06-14)
1.Air Coil
= Dimension of coil unit =
2.Adhesive Tape
3.Ferrite Sheet
4.PET Tape
= Electrical Characteristics=
Ls [uH] : 6.20 uH +/- 5% @100kHz
Rs [Ohm] : 0.095 Ω +/-10% @100kHz
Rdc [Ohm] : 0.08 Ω typ
© TDK Corporation 2016
Wireless Charging
page1
