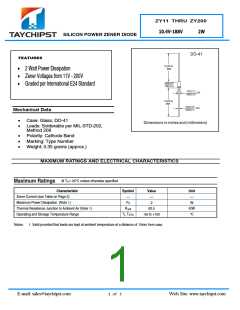

ZY11 THRU ZY200
10.4V-188V
2W
SILICON POWER ZENER DIODE
FEATURES
·
·
·
2 Watt Power Dissipation
Zener Voltages from 11V - 200V
Graded per International E24 Standard
Mechanical Data
·
·
Case: Glass, DO-41
Leads: Solderable per MIL-STD-202,
Method 208
·
·
·
Polarity: Cathode Band
Marking: Type Number
Weight: 0.35 grams (approx.)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
@ TA = 25°C unless otherwise specified
Maximum Ratings
Characteristic
Symbol
—
Value
Unit
—
Zener Current (see Table on Page 2)
—
2
Pd
Maximum Power Dissipation (Note 1)
W
RqJA
Thermal Resistance Junction to Ambient Air (Note 1)
Operating and Storage Temperature Range
62.5
K/W
°C
Tj, TSTG
-55 to +150
Notes:
1. Valid provided that leads are kept at ambient temperature at a distance of 10mm from case.
E-mail: sales@taychipst.com
Web Site: www.taychipst.com
1 of 3
