IXTL2N450

型号:

IXTL2N450

描述:

初步技术信息[ Preliminary Technical Information ]

品牌:

IXYS[ IXYS CORPORATION ]

页数:

5 页

PDF大小:

137 K

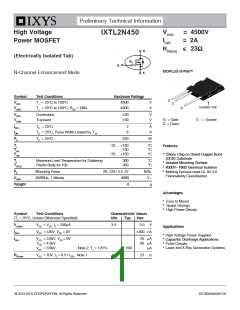

Preliminary Technical Information
High Voltage
Power MOSFET
VDSS
ID25
= 4500V
= 2A
IXTL2N450
RDS(on) 23Ω
(Electrically Isolated Tab)
ISOPLUS i5-PakTM
N-Channel Enhancement Mode
Symbol
VDSS
Test Conditions
Maximum Ratings
G
S
TJ = 25°C to 150°C
TJ = 25°C to 150°C, RGS = 1MΩ
4500
4500
V
V
Isolated Tab
VDGR
D
VGSS
VGSM
Continuous
Transient
±20
±30
V
V
G = Gate
D = Drain
S = Source
ID25
IDM
TC = 25°C
TC = 25°C, Pulse Width Limited by TJM
2
8
A
A
PD
TC = 25°C
220
W
TJ
TJM
Tstg
- 55 ... +150
150
- 55 ... +150
°C
°C
°C
Features
z
Silicon Chip on Direct-Copper Bond
(DCB) Substrate
TL
TSOLD
Maximum Lead Temperature for Soldering
Plastic Body for 10s
300
260
°C
°C
z
z
z
Isolated Mounting Surface
4000V~ RMS Electrical Isolation
Molding Epoxies meet UL 94 V-0
Flammability Classification
FC
Mounting Force
20..120 / 4.5..27
N/lb.
V~
g
VISOL
Weight
50/60Hz, 1 Minute
4000
8
Advantages
z
Easy to Mount
Space Savings
High Power Density
z
z
Symbol
Test Conditions
Characteristic Values
(TJ = 25°C, Unless Otherwise Specified)
Min.
Typ. Max.
VGS(th)
IGSS
VDS = VGS, ID = 250μA
VGS = ±20V, VDS = 0V
3.5
5.5
V
Applications
±200 nA
z
High Voltage Power Supplies
Capacitor Discharge Applications
Pulse Circuits
z
IDSS
VDS = 3.6kV, VGS = 0V
VDS = 4.5kV
VDS = 3.6kV
25 μA
50 μA
μA
z
z
Laser and X-Ray Generation Systems
Note 2, TJ = 125°C
250
RDS(on)
VGS = 10V, ID = 0.5 • ID25, Note 1
23
Ω
DS100458A(04/13)
© 2013 IXYS CORPORATION, All Rights Reserved
IXTL2N450
Symbol
Test Conditions
Characteristic Values
ISOPLUS i5-PakTM (IXTL) Outline
(TJ = 25°C, Unless Otherwise Specified)
Min.
Typ.
Max.
gfs
VDS = 60V, ID = 0.5 • ID25, Note 1
VGS = 0V, VDS = 25V, f = 1MHz
1.3
2.2
S
Ciss
Coss
Crss
6900
264
88
pF
pF
pF
RGi
Integrated Gate Input Resistance
3.0
Ω
td(on)
tr
td(off)
tf
44
38
ns
ns
ns
ns
Resistive Switching Times
V
GS = 10V, VDS = 1kV, ID = 1A
100
205
RG = 0Ω (External)
1 = Gate
2 = Source
3 = Drain
4 = Isolated
Qg(on)
Qgs
156
38
nC
nC
nC
VGS = 10V, VDS = 1kV, ID = 0.5 • ID25
Qgd
67
SYM
INCHES
MILLIMETER
MIN
MAX
MIN
MAX
RthJC
RthCS
0.56 °C/W
°C/W
A
0.190
0.205
0.118
0.055
0.055
0.072
0.068
0.029
1.040
0.799
4.83
2.59
5.21
3.00
1.40
1.40
1.83
1.73
0.74
26.42
20.29
0.15
A1
A2
b
0.102
0.046
1.17
0.045
1.14
b1
b2
c
0.063
1.60
Source-Drain Diode
0.058
1.47
0.020
0.51
Symbol
Test Conditions
Characteristic Values
D
1.020
25.91
19.56
3.81 BSC
(TJ = 25°C, Unless Otherwise Specified)
Min.
Typ.
Max.
E
0.770
IS
VGS = 0V
2
8
3
A
A
e
0.150 BSC
e1
L
0.450 BSC
0.780
11.43 BSC
19.81
ISM
VSD
trr
Repetitive, Pulse Width Limited by TJM
IF = IS, VGS = 0V, Note 1
0.820
0.102
0.235
0.513
0.180
0.130
0.690
0.821
20.83
2.59
L1
Q
0.080
0.210
0.490
0.150
0.100
0.668
0.801
2.03
5.33
V
5.97
Q1
R
12.45
3.81
13.03
4.57
IF = 2A, -di/dt = 100A/μs, VR = 100V
1.75
μs
R1
S
2.54
3.30
16.97
20.34
17.53
20.85
T
U
0.065
0.080
1.65
2.03
Notes: 1. Pulse test, t 300μs, duty cycle, d 2%.
2. Part must be heatsunk for high-temp Idss measurement.
PRELIMANARY TECHNICAL INFORMATION
The product presented herein is under development. The Technical Specifications offered are
derived from a subjective evaluation of the design, based upon prior knowledge and experi-
ence, and constitute a "considered reflection" of the anticipated result. IXYS reserves the right
to change limits, test conditions, and dimensions without notice.
IXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.
IXYS MOSFETs and IGBTs are covered
by one or moreof the following U.S. patents: 4,860,072 5,017,508
4,881,106 5,034,796
4,835,592 4,931,844
5,049,961
5,063,307
5,187,117
5,237,481
5,381,025
5,486,715
6,162,665
6,259,123 B1
6,306,728 B1
6,404,065 B1 6,683,344
6,534,343
6,583,505
6,727,585
6,710,405 B2 6,759,692
6,710,463
7,005,734 B2 7,157,338B2
7,063,975 B2
6,771,478 B2 7,071,537
IXTL2N450
Fig. 3. Output Characteristics @ TJ = 125ºC
Fig. 1. Output Characteristics @ TJ = 25ºC
1.8
1.6
1.4
1.2
1
VGS = 10V
2.4
2
VGS = 10V
8V
7V
7V
1.6
1.2
0.8
0.4
0
0.8
0.6
0.4
0.2
0
6V
5V
6V
0
10
20
30
40
VDS - Volts
50
60
70
80
0
10
20
30
40
50
60
70
80
VDS - Volts
Fig. 4. RDS(on) Normalized to ID = 1A Value
vs. Drain Current
Fig. 3. RDS(on) Normalized to ID = 1A Value
vs. Junction Temperature
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.8
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
VGS = 10V
VGS = 10V
I D = 2A
TJ = 125ºC
I D = 1A
TJ = 25ºC
0
0.5
1
1.5
2
2.5
-50
-25
0
25
50
75
100
125
150
ID - MilliAmperes
TJ - Degrees Centigrade
Fig. 5. Maximum Drain Current
vs. Case Temperature
Fig. 6. Input Admittance
1.4
1.2
1
2
1.6
1.2
0.8
0.4
0
0.8
0.6
0.4
0.2
0
TJ = 125ºC
25ºC
- 40ºC
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
-50
-25
0
25
50
75
100
125
150
VGS - Volts
TC - Degrees Centigrade
© 2013 IXYS CORPORATION, All Rights Reserved
IXTL2N450
Fig. 7. Transconductance
Fig. 8. Forward Voltage Drop of Intrinsic Diode
3
2.5
2
6
5
4
3
2
1
0
TJ = - 40ºC
25ºC
TJ = 125ºC
1.5
1
TJ = 25ºC
125ºC
0.5
0
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
2.2
ID - Amperes
VSD - Volts
Fig. 9. Gate Charge
Fig. 10. Capacitance
10
9
8
7
6
5
4
3
2
1
0
10,000
1,000
100
VDS = 1000V
C
iss
I
D = 1A
I G = 10mA
C
oss
C
rss
f = 1 MHz
5
10
0
10
15
20
25
30
35
40
0
20
40
60
80
100
120
140
160
VDS - Volts
QG - NanoCoulombs
Fig. 11. Resistive Switching Times vs.
External Gate Resistance
Fig. 12. Forward-Bias Safe Operating Area
10
250
200
150
100
50
RDS( ) Limit
on
t f
25µs
100µs
t r
1
1ms
t d(off)
10ms
t d(on)
0.1
0.01
TJ = 150ºC
100ms
1s
TC = 25ºC
DC
Single Pulse
0
0
1
2
3
4
5
6
7
8
9
10
100
1,000
10,000
RG(ext) - Ohms
VDS - Volts
IXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.
IXTL2N450
Fig. 13. Maximum Transient Thermal Impedance
1
0.1
0.01
0.0001
0.001
0.01
0.1
1
10
100
Pulse Width - Seconds
© 2013 IXYS CORPORATION, All Rights Reserved
