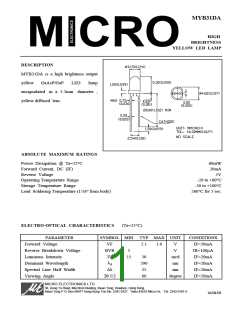

MYB31DA
HIGH
BRIGHTNESS
YELLOW LED LAMP
MICRO
DESCRIPTION
MYB31DA is a high brightness output
yellow
GaAsP/GaP
LED
lamp
encapsulated in a 3.2mm diameter ,
yellow diffused lens.
ABSOLUTE MAXIMUM RATINGS
Power Dissipation @ Ta=25°C
Forward Current, DC (IF)
Reverse Voltage
60mW
20mA
5V
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature (1/16" from body)
-20 to +80°C
-30 to +100°C
260°C for 5 sec.
ELECTRO-OPTICAL CHARACTERISTICS
(Ta=25°C)
PARAMETER
Forward Voltage
Reverse Breakdown Voltage
Luminous Intensity
Dominant Wavelength
Spectral Line Half Width
Viewing Angle
SYMBOL MIN TYP MAX UNIT
CONDITIONS
IF=20mA
IR=100µA
IF=20mA
IF=20mA
IF=20mA
IF=20mA
VF
BVR
IV
2.1
3.0
V
V
mcd
nm
5
15
30
590
35
λd
nm
∆λ
60
degree
2θ 1/2
MICRO ELECTRONICS LTD.
38, Hung To Road, Microtron Bulding, Kwun Tong, Kowloon, Hong Kong.
Kwun Tong P.O. Box 69477 Hong Kong. Fax No. 2341 0321 Telex:43510 Micro Hx. Tel: 2343 0181-5
16/04/03
