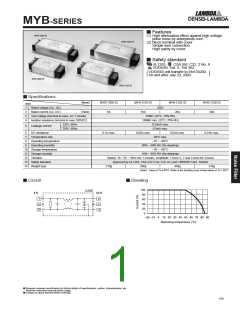

MYB-SERIES
Ⅵ Features
MYB-1220-33
(1) High attenuation effect against high voltage
pulse noise by amorphous core.
(2) Block terminal with cover
Simple wire connection
MYB-1230-33
High safety by cover.
Ⅵ Safety standard
UL1283,
CSA Std. C22. 2 No. 8
VDE0565 Teil. 3, Teil 3A2
VDE0565 will transfer to EN133200
on and after July 23, 2003.
(
)
MYB-1206-33
MYB-1210-33
Ⅵ Specifications
Model
MYB-1206-33
6A
MYB-1210-33
10A
MYB-1220-33
20A
MYB-1230-33
30A
Item
1
2
3
4
Rated voltage (AC, DC)
Rated current (AC, DC)
250V
(Note)
Test voltage (terminal to case, AC 1 minute)
Isolation resistance (terminal to case, 500VDC)
2500V (25°C, 70% RH)
100MΩ min. (25°C, 70% RH)
0.25mA max.
125V, 60Hz
5
Leakage current
250V, 60Hz
0.5mA max.
6
7
8
9
DC resistance
0.1Ω max.
0.05Ω max.
0.02Ω max.
0.01Ω max.
Temperature rise
30°C max.
–25 ~ +85°C
Operating temperature
Operating humidity
30% ~ 90% RH (No dewdrop)
–30 ~ +85°C
10 Storage temperature
11 Storage humidity
12 Vibration
10% ~ 95% RH (No dewdrop)
Sweep: 10 ~ 55 ~ 10Hz (for 1 minute), Amplitude: 1.5mm X, Y and Z axes for 2 hours
Approved by UL1283, CSA C22.2 No. 8 (C-UL) and VDE0565 Teil3, Teil3A2
13 Safety standard
14 Weight (typ)
210g
260g
450g
510g
<
(Note) : Value at Ta 50°C. Refer to the derating curve shown below at Ta > 50°C.
=
Ⅵ Circuit
Ⅵ Derating
ⅷ Request customer specification for further details of specifications, outline, characteristics, etc.
Read the instruction manual before usage.
ⅷ Contact us about delivery before ordering.
