PXI-8252

型号:

PXI-8252

描述:

IEEE 1394接口PCI和PXI / CompactPCI的[ IEEE 1394 Interfaces for PCI and PXI/CompactPCI ]

品牌:

NI[ National Instruments ]

页数:

3 页

PDF大小:

288 K

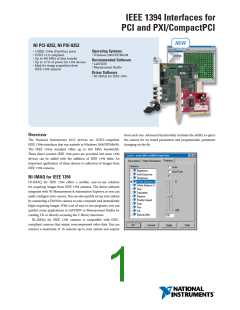

IEEE 1394 Interfaces for
PCI and PXI/CompactPCI
NEW
NI PCI-8252, NI PXI-8252
• 3 IEEE-1394a (FireWire) ports
• OHCI v1.0 compliant
Operating Systems
• Windows 2000/XP/Me/98
• Up to 400 Mb/s of data transfer
• Up to 12 W of power for 1394 devices
• Ideal for image acquisition from
IEEE-1394 cameras
Recommended Software
• LabVIEW
• Measurement Studio
Driver Software
• NI-IMAQ for IEEE 1394
Overview
from each one. Advanced functionality includes the ability to query
The National Instruments 8252 devices are OHCI compliant the camera for on board parameters and programmatic parameter
IEEE 1394a interfaces that run natively in Windows 2000/XP/Me/98. changing on the fly.
The IEEE 1394a standard offers up to 400 Mb/s bandwidth.
Three direct-connect IEEE 1394 ports are provided, but more 1394
devices can be added with the addition of IEEE 1394 hubs. An
important application of these devices is collection of images from
IEEE 1394 cameras.
NI-IMAQ for IEEE 1394
NI-IMAQ for IEEE 1394 offers a mobile, easy-to-use solution
for acquiring images from IEEE 1394 cameras. The driver software
integrates with NI Measurement & Automation Explorer, so you can
easily configure your camera. You can also quickly set up your system
by connecting a FireWire camera to your computer and immediately
begin acquiring images. With a set of easy-to-use programs, you can
quickly create applications in LabVIEW or Measurement Studio, by
creating VIs or directly accessing the C library functions.
NI–IMAQ for IEEE 1394 cameras is compatible with IIDC-
compliant cameras that output noncompressed video data. You can
connect a maximum of 16 cameras up to your system and acquire
IEEE 1394 Interfaces for
PCI and PXI/CompactPCI
Specifications
Performance .............................................. IEEE 1394a-1995, S100, S200, S400 transfer rates
Operating Environment
Ambient Temperature....................................... 0 to 55ºC
(Actual 1394 transfer rates are system dependent)
Relative Humidity............................................. 10 to 90%, noncondensing
Power Requirements (maximum)
1394 Bus Power
PCI
PCI
Supply Voltage (V) Supply Current (mA)
Total power available................................ 12 W
Maximum power per port.......................... 9.6 W
PXI
5
7
12
60
Total power available................................ 12 W
Maximum power per port.......................... 12 W
PXI
Supply Voltage (V) Supply Current
Storage Environment – PCI
Ambient Temperature....................................... 0 to 55ºC
Relative Humidity............................................. 10 to 90%, noncondensing
3.3
5
315 mA
1.8 A
12
400 mA
Storage Environment – PXI
Ambient Temperature....................................... -20 to 70ºC
Relative Humidity............................................. 5 to 95%, noncondensing
Physical
Dimensions
PCI ............................................................ 7.2 by 12 cm (2.8 by 4.8 in.)
PXI ............................................................ 10.0 by 16.0 cm (3.9 by 6.3 in.)
IO Connectors................................................... Standard IEEE 1394 Female, 6-pin (3)
For safety and EMC/EMI compliance specifications, please refer to the
Declaration of Conformity at ni.com.
Ordering Information
NI PCI-8252 and NI-IMAQ for IEEE-1394 ................779024-01
NI PXI-8252 ..................................................................778925-01
NI PXI-8252 and NI-IMAQ for IEEE-1394 ................778926-01
NI-IMAQ for IEEE 1394.............................................. 778413-01
BUY ONLINE!
Visit ni.com/info and enter pxi8252.
2
National Instruments • Tel: (800) 433-3488 • Fax: (512) 683-9300 • info@ni.com • ni.com
NI Services and Support
NI has the services and support to meet your
needs around the globe and through the
application life cycle – from planning
and development through deployment
and ongoing maintenance. We offer
services and service levels to meet
customer requirements in research,
design, validation, and manufacturing.
Visit ni.com/services.
Local Sales and Technical Support
In offices worldwide, our staff is local to the country, giving you
access to engineers who speak your language. NI delivers industry-
leading technical support through online knowledge bases, our
applications engineers, and access to 14,000 measurement and
automation professionals within NI Developer Exchange forums.
Find immediate answers to your questions at ni.com/support.
We also offer service programs that provide automatic upgrades to
your application development environment and higher levels of
technical support. Visit ni.com/ssp.
Training and Certification
NI training is the fastest, most certain route to productivity with our Hardware Services
products. NI training can shorten your learning curve, save NI Factory Installation Services
development time, and reduce maintenance costs over the NI Factory Installation Services (FIS) is the fastest and easiest way to
application life cycle. We schedule instructor-led courses in cities use your PXI or PXI/SCXI™ combination systems right out of the
worldwide, or we can hold a course at your facility. We also offer a box. Trained NI technicians install the software and hardware and
professional certification program that identifies individuals who configure the system to your specifications. NI extends the standard
have high levels of skill and knowledge on using NI products. warranty by one year on hardware components (controllers, chassis,
Visit ni.com/training.
modules) purchased with FIS. To use FIS, simply configure your
system online with ni.com/pxiadvisor.
Professional Services
Our Professional Services Team is comprised of NI applications Calibration Services
engineers, NI Consulting Services, and a worldwide NI Alliance NI recognizes the need to maintain properly calibrated devices for
Partner Program of more than 600 independent consultants and high-accuracy measurements. We provide manual calibration
integrators. Services range procedures, services to recalibrate your products, and automated
from start-up assistance to calibration software specifically designed for use by metrology
turnkey system integration. laboratories. Visit ni.com/calibration.
Visit ni.com/alliance.
Repair and Extended Warranty
OEM Support
NI provides complete repair services for our products. Express repair
We offer design-in consulting and product integration assistance and advance replacement services are also available. We offer
if you want to use our products for OEM applications. For extended warranties to help you meet project life-cycle requirements.
information about special pricing and services for OEM customers, Visit ni.com/services.
visit ni.com/oem.
ni.com • (800) 433-3488
National Instruments • Tel: (512) 683-0100 • Fax: (512) 683-9300 • info@ni.com
© 2004 National Instruments Corporation. All rights reserved. LabVIEW, Measurement Studio, NI-IMAQ, and ni.com are trademarks
of National Instruments. Other product and company names listed are trademarks or trade names of their respective companies.
