图片源于供应商或网络,实物可能存在差异,请以实物为准

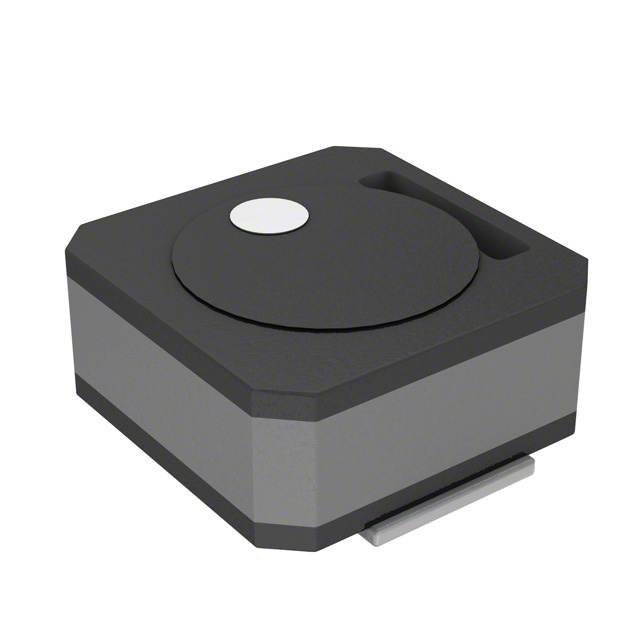

VLCF4020T-2R2N1R7

购买数量

总价金额：￥ 0

样品申购

详细描述：2.2 µH 屏蔽鼓芯，绕线式电感器 1.72 A 最大 59 毫欧非标准

产品参数

产品属性	属性值
DC 电阻 (DCR)	最大 59 毫欧
不同频率时 Q 值	-
供应商器件封装	-
制造商	TDK Corporation
包装	卷带（TR），剪切带（CT），Digi-Reel® 得捷定制卷带
大小、尺寸	0.157" 长 x 0.157" 宽（4.00mm x 4.00mm）
安装类型	表面贴装型
容差	±30%
封装、外壳	非标准
屏蔽	屏蔽
工作温度	-40°C ~ 105°C
材料 - 磁芯	铁氧体
电感	2.2 µH
电感频率 - 测试	100 kHz
电流 - 饱和（Isat）	1.72A
等级	-
类型	鼓芯，绕线式
系列	VLCF
零件状态	在售
频率 - 自谐振	-
额定电流（安培）	1.72 A
高度 - 安装（最大值）	0.079"（2.00mm）

PDF描述：SMD Inductors(Coils) For Power Line(Wound, Magnetic Shielded) SMD电感器（线圈）电力线（伤口，磁屏蔽）

暂无产品概述
