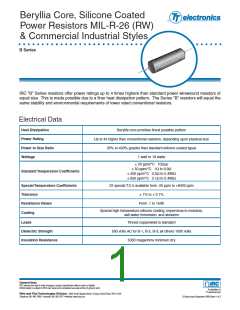

Beryllia Core, Silicone Coated
Power Resistors MIL-R-26 (RW)
& Commercial Industrial Styles
B Series
IRC "B" Series resistors offer power ratings up to 4 times highere than standard power wirewound resistors of
equal size. This is made possible due to a finer heat dissipation pattern. The Series "B" resistors will equal the
same stability and environmental requirements of lower rated conventional resistors.
Electrical Data
Heat Dissipation
Power Rating
Power to Size Ratio
Wattage
Beryllia core provides finest possible pattern
Up to 4x higher than conventional resistors, depending upon physical size
35% to 400% greater than standard silicone coated types
1 watt to 18 watts
± 20 ppm/°C 10Ωup
± 50 ppm/°C 1Ω to 9.9Ω
± 400 ppm/°C 0.5Ω to 0.499Ω
± 650 ppm/°C 0.1Ω to 0.499Ω
Standard Temperature Coefficients
Special Temperature Coefficients
Tolerance
22 special T.C.’s available from -20 ppm to +6000 ppm
± 1% to + 0.1%
Resistance Values
From .1 to 150K
Special high temperature silicone coating, impervious to moisture,
salt water immersion, and abrasion
Coating
Leads
Tinned copperweld is standard
500 volts AC for B-1, B-2, B-3; all others 1000 volts
5000 megaohms minimum dry
Dielectric Strength
Insulation Resistance
General Note
IRC reserves the right to make changes in product specification without notice or liability.
All information is subject to IRC’s own data and is considered accurate at time of going to print.
