VVC2

型号：

VVC2

描述：

压控晶体振荡器[ Voltage Controlled Crystal Oscillator ]

品牌：

VECTRON[ Vectron International, Inc ]

页数：

6 页

PDF大小：

165 K

下载PDF手册

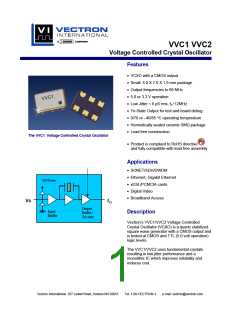

VVC1 VVC2
Voltage Controlled Crystal Oscillator
Features
• VCXO with a CMOS output
• Small 5.0 X 7.0 X 1.9 mm package
• Output frequencies to 66 MHz
• 5.0 or 3.3 V operation
• Low Jitter < 6 pS rms, fo>12MHz
• Tri-State Output for test and board debug
• 0/70 or –40/85 °C operating temperature
• Hermetically sealed ceramic SMD package
• Lead free construction
The VVC1 Voltage Controlled Crystal Oscillator
• Product is compliant to RoHS directive
and fully compatible with lead free assembly
Applications
• SONET/SDH/DWDM
• Ethernet, Gigabit Ethernet
• xDSL/PCMCIA cards
• Digital Video
ESD Diodes
• Broadband Access
Vc
fO
Output
Buffer /
Tri-state
Input
Buffer
Description
Vectron’s VVC1/VVC2 Voltage Controlled
Crystal Oscillator (VCXO) is a quartz stabilized
square wave generator with a CMOS output and
is tested at CMOS and TTL (5.0 volt operation)
logic levels.
The VVC1/VVC2 uses fundamental crystals
resulting in low jitter performance and a
monolithic IC which improves reliability and
reduces cost.
Vectron International 267 Lowell Road, Hudson NH 03051
Tel: 1-88-VECTRON-1
e-mail: vectron@vectron.com
VVC1, VVC2 Voltage Controlled Crystal Oscillator
Performance Characteristics
Table 1. Electrical Performance
Parameter
Symbol
fO
VDD
Min
1.544
4.750
3.135
2.7
Typical
Maximum
65.536
5.250
3.465
2.835
10
Units
MHz
V
Frequency
Supply Voltage 1
(+5.0 V ± 5%)
(+3.3 V ± 5%)
(+2.7 V + 5%)4
5.0
3.3
2.7
Supply Current +5.0 V,1.544-30.000MHz
+5V, 30.001-50.000
IDD
mA
12
+5V, 50.001-77.760
18
+2.7 or +3.3 V, 1.544-30.000MHz
+2.7 or +3.3 V, 30.001-50.000MHz
+2.7 or +3.3 V, 50.001-77.760MHz
Output Logic Levels
5
9
14
Output Logic High2
VOH
VOL
0.9*VDD
V
V
Output Logic Low2
0.1VDD
Transition Times
Rise Time2
tR
tF
SYM
5
5
55
ns
ns
%
Fall Time2
Symmetry or Duty Cycle3
Operating temperature (ordering option)
45
50
0/70 or –40/85
°C
Total Pull Range (ordering option)
Or
±50, ±100 or ±150
ppm
Absolute Pull Range
±50, ±80 or ±100
Test Conditions for APR (+5V option)
Test Conditions for APR (+3.3V option)
Gain Transfer
Control Voltage Impedance
Control Voltage Bandwidth (-3dB)
Package Size
VC
VC
0.5
0.3
4.5
3.0
V
V
Positive
90
ppm/V
Kohm
kHz
mm
BW
10
5.0 x 7.0 x 1.9
1. A 0.01uF and a 0.1uF capacitor should be located as close to the supply as possible (to ground) is recommended.
2. Figure 1 defines these parameters. Figure 2 illustrates the equivalent five gate TTL load and operating conditions under which
these parameters are tested and specified.
3. Symmetry is defined as (ON TIME/PERIOD with Vs= 1.4 V for TTL and Vs=2.5 V for CMOS, 5 volt operation, and Vs=1.65V
for 3.3 Volt operation.
4. Only available as 50 ppm APR.
tF
tR
IDD
650Ω
80%
Vs
6
1
2
5
3
+
-
4
VDD
.01μF
.1μF
20%
IC
VC
On Time
15pF
1.8k
+
-
Period
Figure 1. Output Waveform
Figure 2. Typical Output Test Conditions (25±5°C)
Vectron International 267 Lowell Rd, Hudson NH 03051 Tel: 1-88-VECTRON-1
e-mail: vectron@vectron.com
VVC1, VVC2 Voltage Controlled Crystal Oscillator
Outline Diagram, Pad Layout and Pin Out
Pin #
Symbol
Function
Control Voltage
No Connect or Tri-state
Ground
1
2
3
4
5
VC
NC or Tri-state
GND
fO
Output Frequency
Tri-state or NC
Logic low disables output
Logic high or no connection enables output waveform
Supply Voltage
6
VDD
Vectron International 267 Lowell Rd, Hudson NH 03051 Tel: 1-88-VECTRON-1
e-mail: vectron@vectron.com
VVC1, VVC2 Voltage Controlled Crystal Oscillator
Tape and Reel
J
F
G
D
C
B
A
I
L
E
H
K
Table 2. Tape and Reel Dimensions (mm)
Tape Dimensions
Reel Dimensions
# Per
Product
VVC1/2
A
16
B
7.5
C
1.5
D
4
E
8
F
2
G
21
H
13
I
60
J
2
K
17
L
180
Reel
1000
Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings can permanently damage the device. Functional
operation is not implied at these or any other conditions in excess of conditions represented in the
operational sections of this data sheet. Exposure to absolute maximum ratings for extended periods may
adversely affect device reliability.
Table 3. Absolute Maximum Ratings
Parameter
Power Supply
Storage Temperature
Voltage Control Range
Symbol
VDD
Tstorage
VC
Ratings
6
-55/125
Gnd to VDD
Unit
Vdc
°C
V
Vectron International 267 Lowell Rd, Hudson NH 03051 Tel: 1-88-VECTRON-1
e-mail: vectron@vectron.com
VVC1, VVC2 Voltage Controlled Crystal Oscillator
Reliability
The VVC1/VVC2 is capable of meeting the following qualification tests.
Table 4. Environnemental Compliance
Parameter
Conditions
Mechanical Shock
Mechanical Vibration
Solderability
Gross and Fine Leak
Resistance to Solvents
Moisture Sensitivity Level
MIL-STD-883 Method 2002
MIL-STD-883 Method 2007
MIL-STD-883 Method 2003
MIL-STD-883 Method 1014
MIL-STD-883 Method 2016
1
Handling Precautions
Although ESD protection circuitry has been designed into the the VVC1/VVC2, proper precautions should
be taken when handling and mounting. VI employs a Human Body Model and a Charged-Device Model
(CDM) for ESD susceptibility testing and design protection evaluation. ESD thresholds are dependent on
the circuit parameters used to define the model. Although no industry wide standard has been adopted
for the CDM, a standard HBM of resistance = 1.5kohms and capacitance = 100pF is widely used and
therefore can be used for comparison purposes.
Table 5. ESD Ratings
Model
Human Body Model
Charged Device Model
Minimum
1500
1000
Conditions
MIL-STD-883 Method 3115
JESD 22-C101
Suggested IR profile
Devices are built using lead free epoxy and can also be subjected to standard lead free IR reflow
conditions.
Table 6. Reflow Profile (IPC/JEDEC J-STD-020)
Parameter
Symbol
Value
PreHeat Time
t S
60 sec Min, 200 sec Max
Ramp Up
R UP
t L
3 oC/sec Max
60 sec Min, 150 sec Max
480 sec Max
Time Above 217 oC
Time To Peak Temperature
Time At 260 oC (max)
Time At 240°C (max)
Ramp Down
t AMB-P
t P
20 sec Min, 40 sec Max
60 sec MAX
tp2
R DN
6 oC/sec Max
Vectron International 267 Lowell Rd, Hudson NH 03051 Tel: 1-88-VECTRON-1
e-mail: vectron@vectron.com
VVC1, VVC2 Voltage Controlled Crystal Oscillator
Table 7. Standard Frequencies (MHz)
1.544
12.000
15.440
20.000
30.000
38.880
52.000
2.048
12.288
16.000
20.480
32.000
40.000
62.208
4.096
12.352
16.384
24.576
32.768
40.960
65.536
8.192
13.000
18.432
24.704
34.368
44.736
10.000
14.318
19.440
27.000
35.328
51.840
Other frequencies may be available upon request. Standard frequencies are frequencies which the crystal has been designed and
does not imply a stock position.
Ordering Information
Frequency
ex.: 44M736 = 44.736MHz
Product Family
VV = VCXO
Temperature Range,
Stability (for TPR)
B= 0/70°C, ±50 ppm
D= -40/85°C, ±50 ppm
E= 0/70°C, ±25 ppm
F= -40/85°C, ±25 ppm
Package
5x7x1.9
Tristate
1= Pin 5
2= Pin 2
Absolute Pull Range
G= ±50 ppm APR
N= ±80 ppm APR
H= ±100 ppm APR
Power Supply, Linearity
A= 5.0V, 20% Linearity
B= 3.3V, 20% Linearity
C= 5.0V, 10% Linearity
D= 2.7V, 20% Linearity*
or Total Pull Range
1= ±50 ppm
2= ±100 ppm
3= ±150 ppm
F= 3.3V, 10% Linearity
NOTE: Not all combinations of options are available. Higher frequencies have less pull capability, especially at +3.3 volts supply,
and higher pull can result in 20% linearity instead of 10%. Consult factory or your local sales representative with application
requirements.
* Only 50 ppm APR is available with this power supply
For Additional Information, Please Contact:
USA: Vectron International • 267 Lowell Road, Hudson, NH 03051
• Tel: 1-88-VECTRON-1 • Fax: 1-888-FAX-VECTRON
EUROPE: Landstrasse, D-74924, Neckarbischofsheim, Germany •
Tel: 49 (0) 7268 8010 • Fax: 49 (0) 7268 801281
ASIA: Vectron Asia Pacific Sales 1F~2F. No.8 Workshop No.308 Fenju Rd.,
WaiGaoQiao Free Trade Zone, Pudong New Area Shanghai, China 200131
•Tel: 8621 50480777 • Fax: 8621 50481881
www.vectron.com
Vectron International reserves the right to make changes to the product(s) and/or information contained herein without notice. No liability is assumed
as a result of their use or application. No rights under any patent accompany the sale of any such product(s) or information. VVC1 (August04 2009)
Vectron International 267 Lowell Rd, Hudson NH 03051 Tel: 1-88-VECTRON-1
e-mail: vectron@vectron.com
