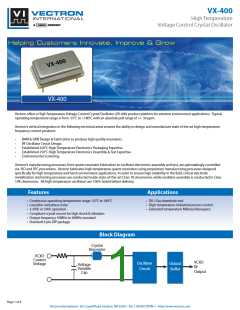

VX-400
High Temperature
Voltage Control Crystal Oscillator
VX-400
Vectron offers a High Temperature Voltage Control Crystal Oscillator (VX-400) product platform for extreme environment applications. Typical
operating temperature range is from -55°C to +180°C with an absolute pull range of +/- 50 ppm.
Vectron’s vertical integration in the following technical areas ensures the ability to design and manufacture state of the art high temperature
frequency control products:
•
•
•
•
•
BAW & SAW Design & Fabrication to produce high quality resonators.
RF Oscillator Circuit Design.
Established 250°C High Temperature Electronics Packaging Expertise.
Established 250°C High Temperature Electronics Assembly & Test Expertise.
Environmental Screening.
Vectron’s manufacturing processes, from quartz resonator fabrication to oscillator electronics assembly and test, are painstakingly controlled
via ISO and SPC procedures. Vectron fabricates high temperature quartz resonators using proprietary manufacturing processes designed
specifically for high temperature and harsh environment applications. In order to ensure high reliability in the field, critical electrode
metallization and testing processes are conducted inside state-of-the-art Class 1K cleanrooms, while oscillator assembly is conducted in Class
10K cleanrooms. All high temperature oscillators are 100% tested before delivery.
Features
Applications
• Continuous operating temperature range -55°C to 180°C
• Low jitter and phase noise
• 3.3Vdc or 5Vdc operation
• Oil / Gas downhole tool
• High temperature industrial process control
• Extended temperature Military/Aerospace
• Compliant crystal mount for high shock & vibration
• Output frequency 10MHz to 30MHz standard
• Standard 4 pin DIP package
Block Diagram
Crystal
Resonator
VCXO
Control
Voltage
VCXO
RF
Output
Oscillator
Circuit
Output
Buffer
Voltage
Variable
Cap
Page 1 of 4
