型号：

VX-704

描述：

压控晶体振荡器[ Voltage Controlled Crystal Oscillator ]

品牌：

VECTRON[ Vectron International, Inc ]

页数：

5 页

PDF大小：

279 K

下载PDF手册

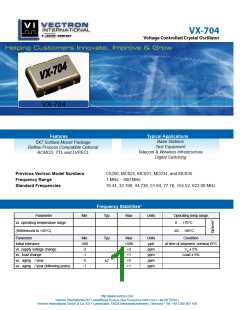

VX-704
Voltage Controlled Crystal Oscillator
VX-704
Features
Typical Applications
Base Stations
Test Equipment
Telecom & Wireless Infrastructure
Digital Switching
5X7 Surface Mount Package
Reflow Process Compatible Optional
ACMOS, TTL and LVPECL
Previous Vectron Model Numbers
Frequency Range
C5250, MC025, MC031, MC034, and MC035
1 MHz – 800 MHz
Standard Frequencies
19.44, 32.768, 44.736, 51.84, 77.76, 155.52, 622.08 MHz
Frequency Stabilities1
Parameter
Min
Typ
Typ
±3
Max
Units
Operating temp range
0 … +70°C
vs. operating temperature range
(Referenced to +25°C)
-40 … +85°C
Parameter
Min
-500
-2
Max
+500
+2
Units
ppb
Condition
at time of shipment, nominal EFC
VS ± 5%
Initial tolerance
vs. supply voltage change
vs. load change
ppm
ppm
ppm
ppm
-1
+1
Load ± 5%
vs. aging / year
-5
+5
vs aging / year (following years)
-1
+1
http://www.vectron.com
Vectron International•267 LowellRoad, Hudson, New Hampshire 03051•Tel:+1-88-VECTRON-1
Vectron International GmbH & Co. KG • Landstraße, 74924 Neckarbischofsheim, Germany • Tel: +49 7268 801 100
RF Output
Parameter
Signal
Min
Typ
15
Max
Units
Condition
ACMOS
Load
50
0.5
0.3
pF
VDC
VDC
VDC
VDC
ns
with Vs=5.0V and 15pF load
with Vs=3.3V and 15pF load
with Vs=5.0V and 15pF load
with Vs=3.3V and 15pF load
1.0 to 23.9 MHz
Signal Level (Vol)
Signal Level (Voh)
4.5
3.0
10
5
Rise and fall times for ACMOS
(measured 10% to 90%)
ns
24.0 to 79.9 MHz
3
ns
80.0 to 125.0MHz
45
40
55
60
%
@ 50% Vs< 15 MHz
Duty cycle
%
@ 50% Vs >= 15 MHz
Signal
TTL
Load
10
pF
VDC
VDC
ns
Signal Level (Vol)
Signal Level (Voh)
0.5
with Vs=5.0V and 15pF load
with Vs=5.0V and 15pF load
1.0 to 23.9 MHz
4.5
5
3
Rise and fall times for TTL
(measured 0.8V to 2.0V)
ns
24.0 to 125 MHz
45
40
55
60
%
@ 1.4V < 15 MHz
Duty cycle
%
@ 1.4V >= 15 MHz
Signal
PECL
Load
50
ohm
VDC
VDC
ms
ps
Into Vs-2V or Thevenin Equivalent
Signal Level (Vol)
Signal Level (Voh)
Startup Time
-1.62
-1.025
10
1000
600
55
< 100 MHz
>= 100 MHz
Rise and fall times for PECL
(measured 20% to 80%)
ps
45
40
%
@ 50% Vdd
Duty cycle
60
%
@ 50% Vdd
5
ps
BW = 10Hz to 20 MHz
BW = 12 kHz to 20 MHz
10,000 samples- Rising edge
Jitter (rms)
1
ps
Period Jitter (pk-pk)
40
ps
http://www.vectron.com
Vectron International•267 LowellRoad, Hudson, New Hampshire 03051•Tel:+1-88-VECTRON-1
Vectron International GmbH & Co. KG • Landstraße, 74924 Neckarbischofsheim, Germany • Tel: +49 7268 801 100
Supply Voltage (Vs)
Parameter
Supply voltage
Min
4.75
Typ
5
Max
5.25
Units
VDC
Condition
15
20
mA
mA
mA
mA
VDC
mA
mA
mA
mA
mA
mA
ACMOS/TTL 1.0 to 23.9 MHZ
ACMOS/TTL 24 to 49.9 MHz
ACMOS/TTL 50 to 80.0 MHz
LVPECL No load
Current consumption
Supply voltage
40
100
3.465
6
3.135
3.3
ACMOS 1.0 to 14.90 MHZ
ACMOS 15.0 TO 39.9 MHz
ACMOS 40.0 TO 59.9 MHz
ACMOS 60.0 TO 79.9 MHz
ACMOS 80.0 to 125.0 MHz
LVPECL No load
8
12
Current consumption
16
60
100
Frequency Tuning
Parameter
Min
Typ
Max
Units
ppm
Condition
±30
Absolute Pull Range
±50
10
ppm
%
Linearity
15
Tuning Slope
Positive
0.5
0.3
2.5
4.5
3.0
VDC
VDC
with Vs=5.0V
with Vs=3.3V
Control Voltage Range
1.65
Additional Parameters
Parameter
Min
Typ
Max
Units
Condition
-60
-90
-120
-140
-145
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
10
100
1
10
100
Hz
Hz
kHz
kHz
kHz
Phase Noise3
Measured @ 52.00 MHz
-50
-80
-110
-133
-145
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
10
100
1
10
100
Hz
Hz
kHz
kHz
kHz
Phase Noise3
Measured @ 155.52 MHz
Logic „0“ input = Outputs disabled (Tri-state)
Logic „1“ or floating input = Outputs enabled)
ACMOS/TTL Output
Output Enable6
Logic „0“ input = Outputs disabled (Tri-state)
Logic „1“ or floating input = Outputs enabled)
PECL/LVPECL Output
Weight
<2
g
Processing & Packing
Handling & processing note
http://www.vectron.com
Vectron International•267 LowellRoad, Hudson, New Hampshire 03051•Tel:+1-88-VECTRON-1
Vectron International GmbH & Co. KG • Landstraße, 74924 Neckarbischofsheim, Germany • Tel: +49 7268 801 100
Absolute Maximum Ratings
Parameter
Min
Typ
Max
7.0
Units
V
Condition
Supply voltage (Vs)
Operable temperature range
Storage temperature range
with Vs=5.0, 3.3VDC
-55
-55
+85
+125
°C
°C
Enclosure
Type B
Height “H” = 1.88 ±0.178
Pin Connections (ACMOS/TTL)
Control Voltage
Enable/Disable or N/C
Ground (Case)
RF Output
Pin Connections (PECL/LVPECL)
Control Voltage
1
2
3
4
5
6
1
2
3
4
5
6
Enable/Disable or N/C
Ground (Case)
RF Output
N/C
Complementary Output
Suppy Voltage
Suppy Voltage
http://www.vectron.com
Vectron International•267 LowellRoad, Hudson, New Hampshire 03051•Tel:+1-88-VECTRON-1
Vectron International GmbH & Co. KG • Landstraße, 74924 Neckarbischofsheim, Germany • Tel: +49 7268 801 100
How to order this product:
Use this worksheet to forward the following information to your factory representative :
Supply Voltage
Code
RF Output
Code
Temperature
Range
Model
Height
0
-
-
Stability
KXX
Option
0
-
-
Frequency
-
-
VX-704
E
A
E
300M000000
Height:
0: 1.88 mm
RF Output Code:
A: ACMOS
Option:
0: Future Use
B: TTL
C: PECL\LVPECL
Supply Voltage:
D: 5 V
E: 3.3 V
Temperature Range:
E: -40...+85°C
T: 0...+70°C
Stability Code (1st digit):
G: ±30ppm
K: ±50ppm
Enable Code (2nd digit):
A: Enable Hi, Tristate
B: Enable Hi, Fixed Logic
C: Enable Lo, Tristate
D: Enable Lo, Fixed Logic
X: No Enable
Screening Code (3rd digit):
X: No Screening
Notes:
Contact factory for improved stabilities or additional product options. Not all options and codes are available at all
frequencies.
1
2
3
Unless otherwise stated all values are valid after warm-up time and refer to typical conditions for supply voltage, fre-
quency control voltage, load, temperature (25°C)
Phase noise degrades with increasing output frequency.
Subject to technical modification.
4
5
Contact factory for availability.
http://www.vectron.com
Vectron International•267 LowellRoad, Hudson, New Hampshire 03051•Tel:+1-88-VECTRON-1
Vectron International GmbH & Co. KG • Landstraße, 74924 Neckarbischofsheim, Germany • Tel: +49 7268 801 100
