5P5M

型号:

5P5M

描述:

三端双向可控硅敏感栅[ Triacs sensitive gate ]

品牌:

TGS[ Tiger Electronic Co.,Ltd ]

页数:

1 页

PDF大小:

131 K

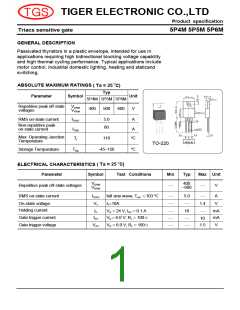

TIGER ELECTRONIC CO.,LTD
Product specification
5P4M 5P5M 5P6M
Triacs sensitive gate
GENERAL DESCRIPTION
Passivated thyristors in a plastic envelope, intended for use in
applications requiring high bidirectional blocking voltage capability
and high thermal cycling performance. Typical applications include
motor control, industrial domestic lighting, heating and staticand
switching.
O
ABSOLUTE MAXIMUM RATINGS
( Ta = 25 C)
Typ
Parameter
Symbol
Unit
5P4M 5P5M 5P6M
Repetitive peak off-state
voltages
VDRM
VRRM
400
500
600
V
A
RMS on-state current
IT(AV)
5.0
80
Non-repetitive peak
on-state current
ITSM
Tj
A
110
oC
Max. Operating Junction
Temperature
TO-220
Storage Temperature
Tstg
-45~150
oC
( Ta = 25 OC)
ELECTRICAL CHARACTERISTICS
Parameter
Symbol
Test Conditions
Min
Typ
Max Unit
VDRM
VRRM
400
~600
Repetitive peak off-state voltages
RMS on-state current
V
IT(AV)
VT
full sine wave; Tmb 103 oC
5.0
A
V
On-state voltage
Holding current
IT=10A
1.4
IH
VD = 24 V; IGT = 0.1 A
10
mA
mA
10
Gate trigger current
Gate trigger voltage
IGT
V = 6.0 V; R = 100
Ω
D L
VGT
V = 6.0 V; R = 100
1.5
V
Ω
D
L
