3X3MLPQ-16L-TR

型号：

3X3MLPQ-16L-TR

描述：

具有LDO控制器的单输入电源PWM控制器[ SINGLE INPUT SUPPLY PWM CONTROLLER WITH LDO CONTROLLER ]

品牌：

MICROSEMI[ Microsemi ]

页数：

11 页

PDF大小：

389 K

下载PDF手册

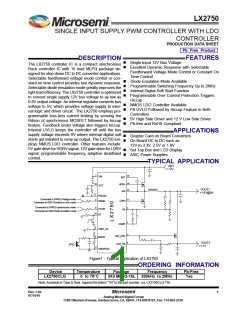

LX2750
SINGLE INPUT SUPPLY PWM CONTROLLER WITH LDO
CONTROLLER
PRODUCTION DATA SHEET
Pb Free Product
FEATURES
DESCRIPTION
n
n
Single Input 12V Bus Voltage
The LX2750 controller IC is a compact synchronous
Buck controller IC with 16 lead MLPQ package de-
signed for step-down DC to DC converter applications.
Selectable feedforward voltage mode control or con-
stant on time control provides fast dynamic response.
Selectable diode emulation mode greatly improves the
light load efficiency. The LX2750 controller is optimized
to convert single supply 12V bus voltage to as low as
0.8V output voltage. An internal regulator converts bus
voltage to 5V, which provides voltage supply to inter-
nal logic and driver circuit. The LX2750 employs pro-
grammable loss-less current limiting by sensing the
Rdson of synchronous MOSFET followed by hiccup
feature. Feedback under voltage also triggers hiccup.
Internal UVLO keeps the controller off until the bus
supply voltage exceeds 9V where internal digital soft
starts get initiated to ramp up output. The LX2750 em-
ploys NMOS LDO controller. Other features include:
5V gate drive for HDRV signal, 12V gate drive for LDRV
signal, programmable frequency, adaptive deadband
control.
Excellent Dynamic Response with Selectable
Feedforward Voltage Mode Control or Constant On
Time Control
Diode Emulation Mode Available
Programmable Switching Frequency Up to 2MHz
Internal Digital Soft Start Function
Programmable Over Current Protection Triggers
Hiccup
NMOS LDO Controller Available
FB UVLO Followed by Hiccup Feature in Both
Controllers
5V High Side Driver and 12 V Low Side Driver
Pb-free and RoHS Compliant
n
n
n
n
n
n
n
n
APPLICATIONS
Graphic Card on Board Converters
On Board DC to DC such as
n
n
12V to 3.3V, 2.5V or 1.8V
Set Top Box and LCD Display
ASIC Power Supplies
n
n
TYPICAL APPLICATION
VIN1
+12V
7
15
VIN
BST
14
13
10
HDRV
VCC
VOUT1
+1.8V@8A
SW
12
8
PGOOD
MODE
Connected to 5VREG Voltage mode
Connected to GND Constant on time mode
11
2
LDRV
FB
Connected to 5VREG synchronous mode
Connected to GND Diode emulation mode
9
FCCM
RT
16
1
COMP
6
5
VREF_OC
REFIN
3
4
LDO_DRV
LDO_FB
VOUT2
+1.1V
GPIO
17
GND(PAD)
Figure1 - Typical application of LX2750
ORDERING INFORMATION
Device
LX2750CLQ
Temperature
0 to 70o C
Package
3X3 MLPQ-16L
Frequency
Pb-Free
Yes
200kHz to 2MHz
Note: Available in Tape & Reel. Append the letters "TR" to the part number. (i.e. LX2750CLQ-TR)
Rev. 1.0a
07/14/10
Microsemi
Analog Mixed Signal Group
1
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
LX2750
ABSOLUTE MAXIMUM RATINGS
5VREG to GND & BST to SW voltage ................ -0.3V to 6V
VIN, LDO_DRV to GND ...................................... -0.3V to 16V
BST,HDRV to GND Voltage .............................. -0.3V to 21V
SW to GND ....................................................... -2V to 16V
LDRV to GND .................................................... -0.3V to VIN+0.3V
All other pins ..................................................... -0.3V to VCC+0.3V
Storage Temperature Range ............................... -65oC to 150oC
Operating Junction Temperature Range ...............-40oC to 125oC
ESD Susceptibility .............................................. 1000V
CAUTION: Stresses above those listed in "ABSOLUTE MAXIMUM RATINGS", may cause permanent
damage to the device. This is a stress only rating and operation of the device at these or any other conditions
above those indicated in the operational sections of this specification is not implied.
PACKAGE INFORMATION
3x3 16-LEAD PLASTIC MLPQ
qJA » 46oC/W
13
16 15 14
PGOOD
LDRV
VCC
1
2
3
4
COMP
FB
12
11
10
9
17
GND
LDO_DRV
LDO_FB
FCCM
7
5
6
8
ELECTRICAL SPECIFICATIONS
Unless otherwise specified, these specifications apply over VIN=12V and TA = 0 to 70oC. Typical values refer to
TA = 25oC.
PARAMETER
SYM
Test Condition
Min
TYP
MAX Units
REFOUT_OC Voltage
VREF
2.45
-0.3
2.5
2.55
0.3
V
REFOUT_OC Voltage
Accuracy
VIN from 10V to 16V
%
Supply Voltage(Vin)
Vin Voltage Range
Vin
V
10
16
Input Voltage Current(Static)
Input Voltage Current
(Dynamic)
No switching,COMP=0.8V
Switching with HDRV and
LDRV open,COMP=1.8V
7
9
mA
mA
Rev. 1.0a
07/14/10
Microsemi
Analog Mixed Signal Group
2
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
LX2750
PARAMETER
VIN UVLO
SYM
Test Condition
Min
TYP
MAX Units
Vin-Threshold
Vin-Hysteresis
5V REG
Vin_UVLO Vin Rising
9
8
V
V
Vin_Hyst
Vin Falling
5VREG Output
5VREG Max Current
SS
No switching
5.4
50
V
mA
30
Tss_pwm FS=350kHz,MODE=5V
5.2
1.3
mS
mS
Soft Start time
Tss_con
FS=350kHz,MODE=0V
Oscillator (Rt)
Frequency
FS
Rt=110k,MODE=5V
300
0.1
1
kHz
V/V
V
245
359
Ramp-feedforward gain
Ramp Offset
VRAMP
Max Duty Cycle
FS=300kHz
80
%
Min Off Time
560
200
0.3
nS
nS
V
Min Controlable On Time
Rt Disable threshold
Error Amplifiers
Open Loop Gain (Note1)
80
dB
Gain Bandwidth (Note1)
Input Bias Current
10
1
MHz
nA
Ib
100
Max Sourcing Current
FB=0.7V, comp>=3V
FB=0.9V,comp<=0.3V
3
mA
Max Sinking Current
0.4
mA
COMP High Voltage
COMP Low Voltage
SW zero cross comparator
Offset voltage
FB=0.7V, source 80uA
FB=0.9V, sink 40uA
4.4
0.1
V
V
-2
mV
High Side Driver
OutpNut Impedance , Sourcing
Current (Note1)
Output Impedance , Sinking
Current (Note1)
Rsource(Hdrv) BST to SW=5V,
I=200mA
Rsink(Hdrv) BST to SW=5V,
I=200mA
1
ohm
ohm
0.8
Low Side Driver
Output Impedance, Sourcing
Current (Note1)
Rsource(Ldrv) PVCC=12V
Rsink(Ldrv) PVCC=12V
6
2
ohm
ohm
Output Impedance, Sinking
Current (Note1)
MODE,FCCM threshold
High Threshold
Low Threshold
2
V
V
0.8
Internal Schottky Diode
Forward voltage drop
Power Good
Forward current=20mA
450
mV
Threshold Voltage as % of Vref
FB ramping up
85
5
%
%
Hysteresis
FBUVLO
Feedback UVLO threshold
percent of nominal
60
%
Rev. 1.0a
07/14/10
Microsemi
Analog Mixed Signal Group
3
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
LX2750
PARAMETER
LDO Controller
SYM
Test Condition
Min
TYP
MAX Units
Open Loop Gain(Note1)
Gain Bandwidth(Note1)
FB Pin- Bias Current
100
dB
2
1
MHz
nA
100
0.8
V
LDO FB Voltage
LDO FB UVLO
0.772
0.828
percent of nominal
%
60
High Output Voltage
Low Output Voltage
Max Sourcing Current
Min Sinking Current
VIN=12V,LDOFB=0.7V,
source 1.4mA
LDOFB=0.9V,sink
1.4mA
LDOFB=0.7V,
LDODRV>8V
LDOFB=0.9V,
LDODRV<1V
11.5
V
V
0.4
2
mA
mA
8
Note1: Design Guaranteed.
Note
Rev. 1.0a
07/14/10
Microsemi
Analog Mixed Signal Group
4
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
LX2750
PIN DESCRIPTIONS
PIN SYMBOL
PIN DESCRIPTION
This pin is internal 5V regulator output and supplies the internal 5V bias circuit. A high
freq 1uF ceramic capacitor is recommended to connect this pin to ground.
VCC
This pin supplies voltage to high side FET driver. A high freq minimum 0.1uF ceramic
capacitor is placed as close as possible to and connected to this pin and SW pin.
BST
GND
Ground pin.
This pin is the error amplifiers inverting input. This pin is connected via resistor divider to
the output of the switching regulator to set the output DC voltage.
FB
This pin is the output of the error amplifier and together with FB pin is used to compensate
the voltage control feedback loop.
COMP
SW
This pin is connected to source of high side FETs and provide return path for the high
side driver.
HDRV
LDRV
VIN
High side gate driver output.
Low side gate driver output.
Voltage supply for the internal 5V regulator, LDO controller and low side driver.
Oscillator's frequency can be set by using an external resistor from this pin to GND.
Pulling this pin down below 0.3V shuts down both controllers.
RT
LDO controller feedback input. This pin is connected via resistor divider to the output of
the LDO to set the output DC voltage.
LDO_FB
LDO_DRV
LDO controller output. This pin is controlling the gate of an external NCH MOSFET. The
maximum rating of this pin is 16V.
Connecting this pin to 5VREG voltage control mode will be chosen.
Connecting this pin to ground, constant on time control mode will be chosen.
MODE
FCCM
Connecting this pin to 5VREG, synchronous mode will be chosen.
Connecting this pin to ground, diode emulation mode will be chosen, LDRV will be off
when inductor current becomes negative current.
Reference input voltage for error amplifier.
REFIN
2.5V external reference. OCP trigger level is set by connect resistor from this pin to
ground.
VREF_OC
PGOOD indicator for switching regulator. It requires a pull up resistor to Vcc or lower
voltage. When FB pin reaches 85% of the reference voltage PGOOD transitions from LO
PGOOD
to HI state.
Rev. 1.0a
07/14/10
Microsemi
Analog Mixed Signal Group
5
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
LX2750
BLOCK DIAGRAM
PGOOD
PGOOD
FB
Bias
Generator
VCC
VIN
POR
1.25V
0.8V
BST
START
9/8
RT
START
LDO
Reset dominant
Hiccup
HDRV
SW
0.3V
Internal RT
START
CLK
RT
OSC
FET Drivers
IFF
HDin
Digital
start Up
PWM/PFM control core
comp
LDRV
VIN
REFIN
FB
SS_half_done
60%*Vp
FB
POR
Dis_EA
START
Hiccup
COMP
9k
R
Latchout logic
VOLTAGE MODE
VREF_OC
MODE SELECTION
MODE SELECTION
MODE
FCCM
CONSTANT ON TIME
SYNCHRONOUS MODE
DIODE EMULATION MODE
SS_done
60%*0.8V
LDOPOR
SS_DAC
VIN UVLO
LDO
amplifier
LDO_DRV
LDO_FB
LDOPOR
GND
Figure 2 - Simplified block diagram of the LX2750
Rev. 1.0a
07/14/10
Microsemi
Analog Mixed Signal Group
6
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
LX2750
TP2
SD
L2
BUS
VBUS1
C1
BUS
short
R16
1k
C18
220u,16v
R32
0
R31
op
C4
OP
Q1
D2
16SEPC270
MMBT3904
5VCC
R17
1k
op
C3
C6
0.47u,16V
R18
10uF,16V
JVOUT
1
0
0
TP1
COMP
HDRV
R3
R5
2.6k
M1
NTD60N02R
R8
H11
H12
95.3k
C26
0.1u
R15
10k
C21
0.1u
R27
0
0
R6 op
C14 op
R10 op
U1
M2
R9
C11
1.8n
R7
8k
D1
op
TP3
PGOOD
op
SW
R14 16k
C13
120p
op
0
L1
PGOOD
SW
M6
SW VOUT
SWVOUT
12
11
10
9
PGOOD
LDrv
C12
4.7n
1
2
3
4
COMP
FB
TP4
RL-8250-4-1R0M
R1
5VCC
100k
5VCC
0
5VCC
FCCM
LDPDrv
LDOFB
C8
1200p
R19
L11
L12
C5
1u
C7
C10
C27
22u
R20
op
0
M5 NTD70N03R
22u
2R5SEPC820M
R24
LDRV
R21
LX2750_MLPQ16
R2
2.15
30k
GND
op
op
R11
R13
jumper3/200
JP1
jumper3/200
JP2
C29
1n
J1
jp
1
68.1k
R22
C22
1n
R12
C25
1n
0
C23
1n
C24
32.4k
2
2
32k
0.1u
LDO IN
R23
8k
LDOIN
op
R29
op
R28
M4
NTD60N02R
C28
10uF,X5R,6.3V)
0
4
M3
op
MOD=VCC PWM
0
MOD=GND constant on time control
LDO OUT
LDOOUT
C9
2X(22uF,X5R,6.3V)
JVOUT1
VBUS1
1
5VCC
5VCC
R26
op
R33
40.2k
C30
0.1u
0
M11
op
M12
op
R30
op
R34
20k
4
4
H11
H12
M8
GPIO0
GPIO1
JP4
M7
op
2N7002
R36
op
R35
20k
SW
JP3
op
jumper2/100
M13
op
M14
op
4
4
L11
L12
0
Figure 3 - Demo board schematic
Rev. 1.0a
07/14/10
Microsemi
Analog Mixed Signal Group
7
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
LX2750
Bill of Materials
Item
1
2
3
4
5
6
7
8
Quantity
Reference
Part
16SEPC270
10uF,16V
1
1
1
1
1
1
2
2
1
1
1
1
4
4
1
1
2
1
1
1
1
1
1
1
2
5
1
1
1
1
1
2
1
1
1
2
1
C1
C3
C5
C6
C7
C8
C9
C10,C27
C11
C12
C13
C18
1u
0.47u,16V
2R5SEPC820M
1200p
22uF,X5R,6.3V
22uF,X5R,6.3V
1.8n
4.7n
120p
220u,16V
0.1u
1n
10uF,X5R,6.3V
RL-8250-4-1R0M
NTD60N02R
NTD70N03R
2N7002
MMBT3904
100k
2.15
95.3k
2.6k
8k
0
68.1k
32.4k
1
16k
10k
1k
30k
32k
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
C21,C24,C26,C30
C22,C23,C25,C29
C28
L1
M1,M4
M6
M8
Q1
R1
R2
R3
R5
R7,R23
R8,R18,R19,R27,R32
R11
R12
R13
R14
R15
R16,R17
R21
R22
R33
40.2k
20k
LX2750_MLPQ16
R34,R35
U1
Rev. 1.0a
07/14/10
Microsemi
8
Analog Mixed Signal Group
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
LX2750
Demoboard waveforms
Fig.4 Startup when MODE=5V (CH1 SW 5V/DIV,
CH2 SW VOUT 1V/DIV)
Fig.5 Use RT pin to turn on and off (CH1 LDO
VOUT 1V/DIV, CH2 SW VOUT 1V/DIV, CH3
SIGNAL on TP2 5V/DIV)
Fig.7 SW output short(CH1 SW 10V/DIV, CH2 SW
VOUT 1V/DIV, CH4 INDUCTOR CURRENT 10A/
DIV)
Fig.6 SW VOUT ripple when MODE=5V (CH1 SW
VOUT RIPPLE 50mV/DIV, CH3 SW 10V/DIV, CH4
INDUCTOR CURRENT 5A/DIV)
Fig. 8 SW dynamic response when
Fig. 9 SW dynamic response when
MODE=5V,FCCM=5V(CH1 SW VOUT AC 50mV/
DIV, CH4 INDUCTOR CURRENT 5A/DIV)
MODE=0V,FCCM=5V(CH1 SW VOUT AC 50mV/
DIV, CH4 INDUCTOR CURRENT 5A/DIV)
Rev. 1.0a
07/14/10
Microsemi
9
Analog Mixed Signal Group
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
LX2750
Demoboard waveforms(Cont')
Fig. 10 SW dynamic response when
MODE=0V,FCCM=0V, load from 3mA to 10A(CH1
SW VOUT AC 20mV/DIV, CH4 INDUCTOR
CURRENT 5A/DIV)
Fig. 11 SW dynamic response when
MODE=5V,FCCM=0V, load from 8mA to 10A(CH1
SW VOUT AC 50mV/DIV, CH4 INDUCTOR CUR-
RENT 5A/DIV)
Fig. 12 LDO dynamic response when LDO load
from 0.1A to 1A (CH1 LDODRV 1V/DIV, CH2 LDO
VOUT AC 100mV/DIV, CH4 OUTPUT CURRENT
Fig. 13 Line transient when MODE=5V(CH1 VIN
5V/DIV, CH4 SW VOUT AC 50mV/DIV)
1A/DIV)
90%
80%
70%
60%
50%
40%
30%
90%
80%
70%
60%
50%
40%
FCCM=HIGH
30%
FCCM=LOW
FCCM=HIGH
FCCM=LOW
20%
10%
0%
20%
10%
0%
100
1000
10000
10
100
1000
10000
OUTPUT CURRENT(mA)
OUTPUT CURRENT(mA)
Fig. 14 Efficiency when MODE=5V
Fig. 15 Efficiency when MODE=0V
Rev. 1.0a
07/14/10
Microsemi
Analog Mixed Signal Group
10
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
LX2750
MLPQ 16 PIN 3 x 3 PACKAGE OUTLINE DIMENSIONS
SYMBOL
Dimensions In Millimeters
Dimensions In Inches
NAME
A
A1
A3
B
D
D2
E
MIN
0.700
0.000
MAX
0.800
0.050
MIN
0.028
0.000
MAX
0.031
0.002
0.203REF
0.008REF
0.180
2.950
1.600
2.950
1.600
0.300
3.050
1.750
3.050
1.750
0.007
0.116
0.063
0.116
0.063
0.012
0.120
0.069
0.120
0.069
E2
e
L
0.50BSC
1.5REF
0.50BSC
0.325
0.450
0.013
0.018
M
0.059REF
Rev. 1.0a
07/14/10
Microsemi
Analog Mixed Signal Group
11
11861 Western Avenue, Garden Grove, CA. 92841, 714-898-8121, Fax: 714-893-2570
厂商 型号 描述 页数 下载

AGERE

 		3X38FTR 八路FET （快速以太网收发器），用于10BASE-T / 100BASE-TX / FX[ OCTAL-FET (Fast Ethernet Transceiver) for 10Base-T/100Base-TX/FX ] 64 页

MICROSEMI

 		3X3MLPQ-16 具有LDO控制器的单输入电源PWM控制器[ SINGLE INPUT SUPPLY PWM CONTROLLER WITH LDO CONTROLLER ] 11 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.257489s
