1SS422

型号:

1SS422

描述:

高速开关二极管[ High Speed SWITCHING Diodes ]

品牌:

JCST[ JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD ]

页数:

2 页

PDF大小:

73 K

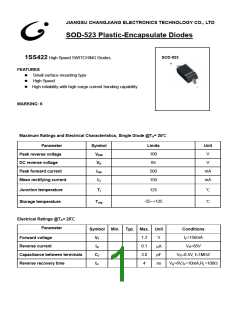

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD
SOD-523 Plastic-Encapsulate Diodes
SOD-523
1SS422 High Speed SWITCHING Diodes
+
FEATURES
z
z
z
Small surface mounting type
High Speed
High reliability with high surge current handing capability
-
MARKING: 6
Maximum Ratings and Electrical Characteristics, Single Diode @TA= 25
Parameter
Peak reverse voltage
DC reverse voltage
Symbol
VRM
VR
Limits
100
85
Unit
V
V
500
150
mA
mA
Peak forward current
Mean rectifying current
IFM
IO
125
Junction temperature
Storage temperature
Tj
-55~+125
Tstg
Electrical Ratings @TA= 25℃
Parameter
Symbol Min. Typ. Max. Unit
Conditions
IF=150mA
1.2
0.1
3.0
4
V
Forward voltage
VF
IR
VR=85V
Reverse current
µA
pF
ns
VR=0.5V, f=1MHZ
Capacitance between terminals
Reverse recovery time
CT
trr
VR=6V,IF=10mA,RL=100Ω
Typical Characteristics
1SS422
