1SS355

型号：

1SS355

描述：

开关二极管[ Switching diode ]

品牌：

WILLAS[ WILLAS ELECTRONIC CORP ]

页数：

3 页

PDF大小：

373 K

下载PDF手册

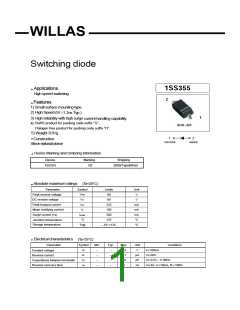

WILLAS
Switching diode
.
.
Applications
High speed switching
1SS355
2
Features
1) Small surface mounting type.
2) High Speed.(trr =1.2ns Typ.)
3) High reliability with high surge
1
current handling capability.
4) RoHS product for packing code suffix "G",
Halogen free product for packing code suffix "H".
5) Weight:0.01g
SOD–323
.
1
2
Construction
Silicon epitaxial planar
CATHODE
ANODE
.
Device Marking and Ordering Information
Device
Marking
5D
Shipping
1SS355
3000/Tape&Reel
.
Absolute maximum ratings (Ta=25°C)
Parameter
Symbol
Limits
90
Unit
Peak reverse voltage
DC reverse voltage
Peak forward current
Mean rectifying current
Surge current (1s)
V
RM
V
V
R
80
V
I
FM
225
mA
mA
mA
°C
°C
I
O
100
I
surge
500
Tj
125
Junction temperature
Storage temperature
Tstg
−55~+125
.
Electrical characteristics (Ta=25°C)
Parameter
Forward voltage
Symbol
Min.
Typ.
Max.
1.2
0.1
3.0
4
Unit
V
Conditons
VF
−
−
−
−
−
−
−
−
I =100mA
F
IR
µA
pF
ns
VR
VR
V
R
=80V
=0.5V, f=1MHz
=6V, I =10mA, R =100Ω
Reverse current
Capacitance between terminals
Reverse recovery time
C
T
t
rr
F
L
WILLAS
1SS355
.
Electrical characteristic curves (Ta=25°C)
1m
1
10
5
0.1m
10µ
1µ
100m
10m
1m
Ta=125°C
75°C
Ta=125°C
Ta=75°C
25°C
2
1
−25°C
0.5
100n
10n
1n
Ta=25°C
100µ
10µ
0.2
0.1
0
2
4
6
8
10
REVERSE VOLTAGE : V (V)
R
12
14
0
20
40
60
80
100
(V)
120
0
0.2 0.4 0.6 0.8 1.0 1.2 1.4
REVERSE VOLTAGE : V
R
FORWARD VOLTAGE : V (V)
F
Fig.2 Reverse characteristics
Fig.3 Capacitance between
terminals characteristics
Fig.1 Forward characteristics
100
50
3
2
1
0
PULSE
Single pulse
V
R
=6V
I
rr=1/10I
R
20
10
5
2
1
0
10
20
30
0.1
1
10
100
1000 10000
(ms)
FORWARD CURRENT : I
F
(mA)
PULSE WIDTH : T
W
Fig.4 Reverse recovery time
characteristics
Fig.5 Surge current characteristics
0.01µF
D.U.T.
5kΩ
SAMPLING
OSCILLOSCOPE
PULSE GENERATOR
50Ω
OUTPUT 50Ω
Fig.6 Reverse recovery time (trr) measurement circuit
WILLAS
1SS355
SOD-323
K
A
E
B
1
2
C
D
0.63
0.02''
0.83
0.033''
1.60
0.063"
2.85
mm
inches
0.112''
H
J
NOTES:
1. DIMENSIONING AND TOLERANCING
PER ANSI Y14.5M, 1982.
2. CONTROLLING DIMENSION: MILLIMETERS
INCHES
MILLIMETERS
DIM
MIN
1.60
1.15
0.80
0.25
MAX
1.80
MIN
MAX
A
B
C
D
E
H
J
0.063
0.071
1.40
0.045
0.031
0.010
0.055
0.039
0.016
1.00
0.40
0.15 REF
0.006 REF
0.00
0.10
0.000
0.004
0.089
0.177
0.0035
0.0070
0.106
K
2.30
2.70
0.091
PIN:1:CATHODE
2:ANODE
