0RSB-50T03C

型号：

0RSB-50T03C

描述：

隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ]

品牌：

BEL[ BEL FUSE INC. ]

页数：

15 页

PDF大小：

313 K

下载PDF手册

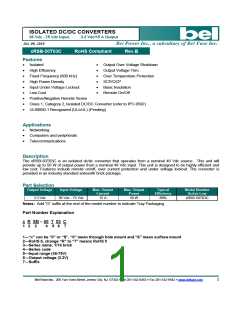

ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input,
3.3 Vdc/15 A Output
Jul. 09, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
xRSB-50T03C
Features
RoHS Compliant
Rev.B
•
•
•
•
•
•
•
•
•
Isolated
•
•
•
•
•
•
Output Over Voltage Shutdown
Output Voltage Trim
Over Temperature Protection
SCP/OCP
High Efficiency
Fixed Frequency (600 kHz)
High Power Density
Input Under Voltage Lockout
Low Cost
Basic Insulation
Remote On/Off
Positive/Negative Remote Sense
Class 1, Category 2, Isolated DC/DC Converter (refer to IPC-9592)
UL60950-1 Recognized (UL/cUL) (Pending)
Applications
•
•
•
Networking
Computers and peripherals
Telecommunications
Description
The xRSB-50T03C is an isolated dc/dc converter that operates from a nominal 48 Vdc source. This unit will
provide up to 50 W of output power from a nominal 48 Vdc input. This unit is designed to be highly efficient and
low cost. Features include remote on/off, over current protection and under voltage lockout. The converter is
provided in an industry standard sixteenth brick package.
Part Selection
Output Voltage
Input Voltage
Max. Output
Current
Max. Output
Power
Typical
Efficiency
Model Number
Active Low
3.3 Vdc
36 Vdc - 75 Vdc
15 A
50 W
89%
xRSB-50T03C
Notes: Add “G” suffix at the end of the model number to indicate Tray Packaging.
Part Number Explanation
x R SB – 50 T 03 C
1 2
3
4
5 6
7
1---“x” can be “0” or “S”, “0” mean through hole mount and “S” mean surface mount
2---RoHS 6, change “R” to “7” means RoHS 5
3---Series name, 1/16 brick
4---Series code
5---Input range (36-75V)
6---Output voltage (3.3V)
7---Suffix
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
1
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input,
3.3 Vdc/15 A Output
Jul. 09, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Absolute Maximum Ratings
Unit
Parameter
Min
Typ
Max
Notes
Continuous non-operating Input
Voltage
-0.3
-
80
V
Input Transient Voltage
Remote On/Off
-
-
-
-
-
-
100
18
V
V
100mS maximum
-0.3
-
I/O Isolation Voltage
Ambient Temperature
Storage Temperature
1500
85
V
-40
-55
°C
°C
125
Note: Ratings used beyond the maximum ratings may cause a reliability degradation of the converter or may
permanently damage the device.
Input Specifications
Parameter
Min
Typ
Max
Unit
Notes
Operating Input Voltage
36
48
75
V
Input Current (full load)
Input Current (no load)
Remote Off Input Current
-
-
-
-
2
120
3
A
70
1
mA
mA
Input Reflected Ripple Current
(rms)
With simulated source impedance of
10uH, 5Hz to 20MHz; use a
100uF/100V electrolytic capacitor with
ESR=1 ohm max, at 200 kHz.
-
-
3
7
mA
Input Reflected Ripple Current
(pk-pk)
20
50
mA
I2t Inrush Current Transient
Turn-on Voltage Threshold
Turn-off Voltage Threshold
-
-
-
0.02
35
-
A2s
V
32
31
30
V
CAUTION: This converter is not internally fused. An input line fuse must be used in application.
Recommend a fast-acting fuse with maximum rating of 5A on system board. Refer to the fuse
manufacture’s datasheet for further information.
Notes: 1. This converter has internal L-C (1.0uH-1.0uF) filter.
2. All specifications are typical at 25 °C unless otherwise stated.
Output Specifications
Parameter
Min
Typ
Max
Unit
Notes
Output Voltage Set Point
3.25
3.30
3.35
V
Vin=48 V, Io=50%Load
Load Regulation
Line Regulation
-
-
±4
±3
±9
±8
mV
mV
Regulation Over Temperature
(-40deg.C-85deg.C)
-
±9
±16
mV
0-20MHz BW, with a 1µF ceramic
capacitor and the minimum
external cap at output
Ripple and Noise (pk-pk)
Ripple and Noise (rms)
-
-
55
12
90
25
mV
mV
Output Ripple and Noise(Pk-Pk)
under worst case
over all operating input voltage,
load and ambient temperature
-
-
100
mV
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
2
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input,
3.3 Vdc/15 A Output
Jul. 09, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Output Specifications (continued)
Parameter
Min
Typ
Max
Unit
Notes
Output Current Range
0
-
15
A
Output DC Current Limit
Short Circuit Surge Transient
Rise Time
19
22
-
26
1
A
-
A2s
mS
mS
mS
%
-
-
15
-
35
35
0
70
Enable form Vin
Turn on Time
-
-
70
Enable form ON/OFF
Overshoot at Turn on
5
Output Capacitance
3000
-
10000
uF
Transient Response
△V
50%~75%
of Max Load
Overshoot
Settling Time
Overshoot
-
-
-
-
150
120
150
120
250
200
250
200
mV
uS
di/dt=0.1A/us, Vin=48Vdc, Ta=25°C,
with a 1µF ceramic capacitor and
the minimum external cap at output
Vo=
3.3 V
△V
75%~50%
of Max Load
mV
uS
Settling Time
Note: All specifications are typical at nominal input, full load at 25°C unless otherwise stated.
General Specifications
Parameter
Min
Typ
Max
Unit
Notes
Vin=48 V, full load.
Efficiency
86
89
-
%
Switching Frequency
Over Temperature Protection
Over Voltage Protection (Static)
Weight
-
-
-
-
600
120
4.29
13
-
kHz
℃
V
140
5.28
-
g
Calculated Per Bell Core SR-332
(Vin=48V, Vo=3.3V, Io=80%load, Ta
= 25 °C, FIT=109/MTBF)
FIT
TBD
-
Dimensions
Inches (L × W × H)
Millimeters (L × W × H)
-
-
0RSB-50T03C
SRSB-50T03C
1.30 x 0.9 x 0.38
33.02 x 22.86 x 9.60
Dimensions
Inches (L × W × H)
Millimeters (L × W × H)
1.30 x 0.9 x 0.36
33.02 x 22.86 x 9.24
Isolation characteristics
Input to Output
-
10M
-
-
-
1500
V
Isolation Resistance
Isolation Capacitance
-
-
Ohm
pF
3900
Note: All specifications are typical at 25 °C unless otherwise stated.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
3
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input,
3.3 Vdc/15 A Output
Jul. 09, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Efficiency Data
90.00%
85.00%
80.00%
75.00%
70.00%
65.00%
60.00%
55.00%
50.00%
36V
48V
75V
1.5A
3.75A
7.5A
11.25A
15A
OUTPUT CURRENT(A)
Thermal Derating Curve
Maximum junction temperature of semiconductors derated to 120 degree C.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
4
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input,
3.3 Vdc/15 A Output
Jul. 09, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Thermal Derating Curve (continued)
Temperature reference points on top side
Temperature reference points on bottom side
Ripple and Noise Waveform
48 Vdc input, 3.3 Vdc/15 A output
Note: Ripple and noise at full load, and with a 1uF ceramic cap and a 3000 uF cap at output, Ta=25 deg C.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
5
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input,
3.3 Vdc/15 A Output
Jul. 09, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Transient Response Waveforms
50%-75% Load Transients at Vin=48 V
75%-50% Load Transients at Vin=48 V
Note: Transient response at di/dt=0.1A/us, with 1uF ceramic cap and 3000uF cap at output, and Ta=25 deg C.
Remote On/Off
Parameter
Min
Typ
Max
Unit
Notes
Signal Low (Unit On)
-0.3
-
0.8
V
Active Low
The remote on/off pin open, Unit off.
Signal High (Unit Off)
Current Sink
2.95
0
-
-
18
1
V
mA
Recommended remote on/off circuit for active low
Vin+
On/off
Vin-
Vin+
On/off
Vin-
Control with open collector/drain circuit
Control with photocoupler circuit
Vin+
Vin+
Vcc
On/off
Vin-
On/off
Vin-
Control with logic circuit
Permanently on
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
6
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input,
3.3 Vdc/15 A Output
Jul. 09, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Output Trim Equations
Equations for calculating the trim resistor are shown below. The Trim Down resistor should be connected
between the Trim pin and GND pin. The Trim Up resistor should be connected between the Trim pin and the
Vout pin. Only one of the resistors should be used for any given application.
Minimum trim down voltage is 2.97V
Maximum trim up voltage is 3.63V.
The total voltage increased by trim and remote sense should not exceed 10% of the nominal output voltage.
Vout
511
Rtrimdown =
−10.22
[
kΩ
]
delta
Module
Module
Trim
GND
Rtrimdown
Rtrimup
(100 + delta)⋅Vo⋅5.11− 626
1.225⋅delta
Vout
Trim
GND
Rtrimup =
−10.22[kΩ
]
Note:
(
)
Vo _ req −Vo
delta =
×100
[%]
Vo
Vo_req=Desired (trimmed) output voltage [V]
Output voltage Vo=3.308 V
1500
1350
1200
1050
900
750
600
450
300
150
0
300
270
240
210
180
150
120
90
60
30
0
3.3 3.33 3.37 3.4 3.43 3.46 3.5 3.53 3.56 3.6 3.63
Adjusted output voltage Vo,adj(V)
2.64 2.71 2.77 2.84 2.9 2.97 3.04 3.1 3.17 3.23 3.3
Adjusted output voltage Vo,adj (V)
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
7
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input,
3.3 Vdc/15 A Output
Jul. 09, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Remote Sense
This module has remote sense compensation feature. It can minimize the effects of resistance between
module’s output and load in system layout and facilitates accurate voltage regulation at load terminals or
other selected point.
1. The remote sense lines carries very little current and hence do not require a large cross-sectional area.
2. This module compensates for a maximum drop of 10% of the nominal output voltage.
3. If the unit is already trimmed up, the available remote sense compensation range should be
correspondingly reduced. The total voltage increased by trim and remote sense should not exceed 10%
of the nominal output voltage.
4. When using remote sense compensation, all the resistance, parasitic inductance and capacitance of the
system are incorporated within the feedback loop of this module. It can make an effect on the module's
compensation, affecting the stability and dynamic response. A 0.1uF ceramic capacitor can be
connected at the point of load to de-couple noise on the sense wires.
5. Recommend the connection of remote sense compensation as below figure. There are a resistor RS+
(100 ohm) from Vo+ to Sense+ and a resistor RS- (51 ohm)) from Vo- to Sense- inside of this module.
Vo+
Sense+
Load
Sense-
Vo-
6. If not using remote sense compensation, please connect sense directly to output at module's pin, that is,
connect sense+ to Vo+ and sense- to Vo- at module's pin, the shorter the better. See below figure.
Vo+
Sense+
Load
Sense-
Vo-
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
8
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input,
3.3 Vdc/15 A Output
Jul. 09, 2010
Startup & Shutdown
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Rise time
Test Condition:
48Vin, 3.3V/15A
Startup time
Startup from Vin
Ch1: Vo, Ch2: Vin
Startup from on/off
Startup from on/off, Ch2: Vin
Test Condition: 48Vin, 3.3V/15A
Test Condition: 48Vin, 3.3V/15A
Shutdown
Test Condition:
48Vin, 3.3V/15A
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
9
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input,
3.3 Vdc/15 A Output
Jul. 09, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Over Current Protection
To provide protection in a fault output overload condition, the module is equipped with internal current-limiting
circuitry and can endure current limiting for a few mili-seconds. If the overcurrent condition persists beyond a few
milliseconds, the module will shut down into hiccup mode and restart once every 300mS. The module operates
normally when the output current goes into specified range. The typical average output current is 0.8A during
hiccup.
Expansion of on time portion of above figure
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
10
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input,
3.3 Vdc/15 A Output
Jul. 09, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Over Voltage Protection
The output overvoltage protection consists of circuitry that monitors the voltage on the output terminals. If the
voltage on the output terminals exceeds the over voltage protection threshold, the module will shutdown into
hiccup mode and restart once every 400mS. The module operates normally when the fault is cleared.
Test setup:
Vo+
K
Trim
R=100ohm
R
Vo-
CH1: Output voltage waveform
CH2: Output Current waveform
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
11
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input,
3.3 Vdc/15 A Output
Jul. 09, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Over Temperature Protection
The OTP is achieved by thermistor U1 and the threshold is set at 120C in non-latch mode; the hottest component
Q5 reaches 130C with 100LFM air flow correspondingly. It will restart automatically when the temperature falls
down to 100C. The protecting point will be varied a little under different conditions (air flow, ambient temperature,
input voltage, load...).
the hottest component Q5 on top view
thermistor U1 on bottom view
Under Voltage Lockout
Under-voltage Lockout
Voltage Falling
Voltage Rising
Input Voltage (V)
V1
V2
V1=31V
V2=32V
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
12
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input,
3.3 Vdc/15 A Output
Jul. 09, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Mechanical Outline
0RSB-50T03C
Pin Connections
pin# function pin# function
1
2
3
4
Vin (+)
On/Off
Vin (-)
Vo (-)
5
6
7
8
RS (-)
Trim
RS (+)
Vo (+)
Note: This module is recommended and compatible with Pb-Free Wave Soldering and must be soldered
using a peak solder temperature of no more than 260ºC for less than 5 seconds.
Note:
1) All Pins: Material - Copper Alloy;
Finish – 3 micro inches minimum Gold over 50 micro inches minimum Nickel plate.
2) Undimensioned components are shown for visual reference only.
3) All dimensions in inches (mm); Tolerances: x.xx +/-0.02 in. (x.x +/-0.5mm) x.xxx +/-0.010 in. (x.xx +/-0.25mm).
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
13
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input,
3.3 Vdc/15 A Output
Jul. 09, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Mechanical Outline (continued)
SRSB-50T03C
Pin Connections
pin# function pin# function
1
2
3
4
Vin (+)
On/Off
Vin (-)
Vo (-)
5
6
7
8
RS (-)
Trim
RS (+)
Vo (+)
Note: This module is recommended and compatible with Pb-Free Reflow Soldering and must be soldered
using a reflow profile with a peak temperature of no more than 260ºC for less than 5 seconds.
Note:
1) All Pins: Material - Copper Alloy;
Finish – 3 micro inches minimum Gold over 50 micro inches minimum Nickel plate.
2) Undimensioned components are shown for visual reference only.
3) All dimensions in inches (mm); Tolerances: x.xx +/-0.02 in. (x.x +/-0.5mm) x.xxx +/-0.010 in. (x.xx +/-0.25mm).
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
14
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input, 3.3 Vdc/15 A Output
Jul. 09, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Revision History
Date
Version
Changes Detail
Approval
Jack Fan
JZ Wang
2010-3-23
2010-7-9
A
B
First release
Update the Outline drawing of 0RSB-50T03C
RoHS Compliance
Complies with the European Directive 2002/95/EC, calling for the elimination of lead and
other hazardous substances from electronic products.
©2010 Bel Fuse Inc. Specifications subject to change without notice. 070910
15
CORPORATE
FAR EAST
EUROPE
Bel Fuse Inc.
Bel Fuse Ltd.
Bel Fuse Europe Ltd.
206 Van Vorst Street
Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
8F/ 8 Luk Hop Street
San Po Kong
Kowloon, Hong Kong
Tel 852-2328-5515
Fax 852-2352-3706
www.belfuse.com
Preston Technology Management Centre
Marsh Lane, Suite G7, Preston
Lancashire, PR1 8UD, U.K.
Tel 44-1772-556601
Fax 44-1772-888366
www.belfuse.com
厂商 型号 描述 页数 下载

BEL

 		0RSB-30T033G [ DC-DC Regulated Power Supply Module, 1 Output, 30W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-30T03LG [ DC-DC Regulated Power Supply Module, 1 Output, 30W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-30T120 [ DC-DC Regulated Power Supply Module, 1 Output, 36W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-30T12L [ DC-DC Regulated Power Supply Module, 1 Output, 36W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-30TV20 [ DC-DC Regulated Power Supply Module, 1 Output, 18W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-30TV50 [ DC-DC Regulated Power Supply Module, 1 Output, 19.5W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-30TV80G [ DC-DC Regulated Power Supply Module, 1 Output, 23W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-30TV8LG [ DC-DC Regulated Power Supply Module, 1 Output, 23W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 14 页

BEL

 		0RSB-40U033 [ DC-DC Regulated Power Supply Module, 1 Output, 33W, Hybrid, ROHS COMPLIANT PACKAGE-8 ] 21 页

BEL

 		0RSB-40U03A 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 14 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.247456s
