0RQB-C5T14

型号：

0RQB-C5T14

描述：

隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ]

品牌：

BEL[ BEL FUSE INC. ]

页数：

13 页

PDF大小：

213 K

下载PDF手册

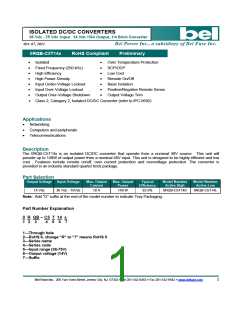

ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 14 Vdc /10A Output, 1/4 Brick Converter
Oct. 07, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
0RQB-C5T14x
RoHS Compliant
Preliminary
•
•
•
•
•
•
•
•
Isolated
•
Over Temperature Protection
SCP/OCP
Fixed Frequency (250 kHz)
High Efficiency
•
•
•
•
•
•
Low Cost
High Power Density
Remote On/Off
Input Under-Voltage Lockout
Input Over-Voltage Lockout
Output Over-Voltage Shutdown
Basic Isolation
Positive/Negative Remote Sense
Output Voltage Trim
Class 2, Category 2, Isolated DC/DC Converter (refer to IPC-9592)
Applications
•
•
•
Networking
Computers and peripherals
Telecommunications
Description
The 0RQB-C5T14x is an isolated DC/DC converter that operate from a nominal 48V source. This unit will
provide up to 140W of output power from a nominal 48V input. This unit is designed to be highly efficient and low
cost . Features include remote on/off, over current protection and overvoltage protection. The converter is
provided in an industry standard quarter brick package.
Part Selection
Output Voltage
Input Voltage
Max. Output
Current
Max. Output
Power
Typical
Efficiency
Model Number
Active High
Model Number
Active Low
14 Vdc
36 Vdc - 75Vdc
10 A
140 W
93.5%
0RQB-C5T140
0RQB-C5T14L
Note: Add “G” suffix at the end of the model number to indicate Tray Packaging.
Part Number Explanation
0 R QB – C5 T 14 x
1 2
3
4
5
6
7
1---Through hole
2---RoHS 6, change “R” to “7” means RoHS 5
3---Series name
4---Series code
5---Input range (36-75V)
6---Output voltage (14V)
7---Suffix
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
1
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 14 Vdc /10A Output, 1/4 Brick Converter
Oct. 07, 2011
Absolute Maximum Ratings
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Unit
Parameter
Min
Typ
Max
Notes
Continuous non-operating Input
Voltage
-0.3
-
80
V
Input Transient Voltage
Remote On/Off
-
-
-
-
-
-
100
18
V
V
100mS maximum
-0.3
-
I/O Isolation Voltage
Ambient Temperature
Storage Temperature
1500
85
V
-40
-55
°C
°C
125
Note: Ratings used beyond the maximum ratings may cause a reliability degradation of the converter or may
permanently damage the device.
Input Specifications
Parameter
Min
Typ
Max
Unit
Notes
Operating Input Voltage
36
48
75
V
Input Current (full load)
Input Current (no load)
Remote Off Input Current
-
-
-
-
5.0
120
20
A
Vin=36 V
80
10
mA
mA
With simulated source impedance of
10 uH, 5 Hz to 20 MHz; Use a
1uF/100V ceramic capacitor and a
100uF/100V electrolytic capacitor with
ESR=1 ohm max, at 200KHz@25°C.
Input Reflected Ripple Current
(pk-pk)
-
35
10
50
15
mA
Input Reflected Ripple Current
(rms)
I2t Inrush Current Transient
Turn-on Voltage Threshold
Turn-off Voltage Threshold
-
-
mA
-
1
A2s
V
34.5
33.5
35.5
32.5
V
CAUTION: This converter is not internally fused. An input line fuse must be used in application.
Recommend a fast-acting fuse with maximum rating of 7A on system board. Refer to the fuse
manufacture’s datasheet for further information.
Notes: 1. This converter has internal C-L-C (0.47uF-0.47uH-8.8uF) filter.
2. All specifications are typical at 25 °C unless otherwise stated.
Output Specifications
Parameter
Min
Typ
Max
Unit
Notes
Vin=48V, Io=50% load at 25C
ambient.
Output Voltage Set Point
13.72
14
14.28
V
Load Regulation
Line Regulation
-
-
±14
±14
±28
±28
mV
mV
Regulation Over Temperature
(-40deg.C-85deg.C)
-
±140
mV
±70
0 - 20 MHz BW, with 1 uF ceramic
load capacitor and a 10 uF tantalum
capacitor at output
Ripple and Noise (pk-pk)
Ripple and Noise (rms)
-
-
180
50
mV
mV
120
25
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
2
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 14 Vdc /10A Output, 1/4 Brick Converter
Oct. 07, 2011
Output Specifications (continued)
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Parameter
Min
Typ
Max
Unit
Notes
Output Ripple and Noise(pk-pk)
under worst case
over all operating input voltage, load
and ambient temperature condition
220
mV
Output Current Range
Output DC Current Limit
Short Circuit Surge Transient
Rise Time
0
10
14
5
A
A
10.5
12
A2s
12
60
50
3
mS
6
30
25
0
mS Enable from Vin
Turn on Time
mS Enable from on/off
Overshoot at Turn on
Output Capacitance
Transient Response
%
0
680
uF
Overshoot
Settling Time
Overshoot
-
-
-
-
400
200
400
200
600
300
600
300
mV
△V25%~50% of
di/dt=0.1A/us, Vin=48 Vdc, with a 1 µF
Max Load
uS
mV
uS
ceramic capacitor and a 10 uF
Tantalum capacitor at output,
Ta=25 °C.
△V50%~25% of
Max Load
Settling Time
Note: All specifications are typical at nominal input, full load at 25°C unless otherwise stated.
General Specifications
Parameter
Min
Typ
Max
Unit
Notes
Efficiency
91.5
93.5
-
%
Vin=48V, full load, Ta=25°C
Switching Frequency
-
-
250
125
-
-
kHz
Over Temperature Protection
°C
This voltage is achieved by trimming
up output slowly
Over Voltage Protection(Static)
Weight
-
-
17
48
-
-
V
g
Calculated Per Bell Core SR-332
(Vin=48V, Vo=12V, Io=9.6A, Ta = 25
°C, FIT=109/MTBF)
FIT
TBD
-
-
Dimensions
Inches (L × W × H)
Millimeters (L × W × H)
2.30 x 1.45 x 0.50
58.42 x 36.83 x 12.69
Isolation characteristics
Input to Output
-
-
1500
V
V
Input to Case
-
-
1500
Output to Case
-
10M
-
-
-
500
V
Isolation Resistance
Isolation Capacitance
-
-
ohm
pF
3900
Note: All specifications are typical at 25 °C unless otherwise stated.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
3
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 14 Vdc /10A Output, 1/4 Brick Converter
Oct. 07, 2011
Efficiency Data
Bel Power Inc., a subsidiary of Bel Fuse Inc.
95.00%
90.00%
EFFICIENCY
85.00%
80.00%
75.00%
70.00%
36 V
48 V
75V
1A
2.5A
5A
7.5A
10A
OUTPUT CURRENT(A)
Thermal Derating Curve
Maximum junction temperature of semiconductors derated to 120 degree C.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
4
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 14 Vdc /10A Output, 1/4 Brick Converter
Oct. 07, 2011
Thermal Derating Curve (continued)
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Derating curve under 48V input
V
Ripple and Noise Waveform
Note: Ripple and noise at full load, 48Vdc input, 14Vdc/10A output and Ta=25 deg C, and with a 1uF ceramic
cap and a 10 uF Tantalum cap at output. .
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
5
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 14 Vdc /10A Output, 1/4 Brick Converter
Oct. 07, 2011
Transients Responses Waveforms
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Vout= 14V 25%-50% Load Transients at Vin=48V@Ta=25℃
Vout= 14V 50%-25% Load Transients at Vin=48V@Ta=25℃
Note: Transients response at di/dt=0.1 A/us, with a 1 µF ceramic capacitor and a 10 uF tantalum capacitor at the
output, Ta=25 deg C.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
6
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 14 Vdc /10A Output, 1/4 Brick Converter
Oct. 07, 2011
Remote On/Off
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Parameter
Min
Typ
Max
Unit
Notes
Signal Low (Unit On)
Signal High (Unit Off)
Signal Low (Unit Off)
Signal High (Unit On)
Current Sink
-0.3
-
0.8
V
0RQB-C5T14L. The remote on/off pin
open, Unit off.
Active Low
Active High
2.4
-0.3
2.4
0
-
-
-
-
18
0.8
18
1
V
V
0RQB-C5T140. The remote on/off pin
open, Unit on.
V
mA
Recommended remote on/off circuit for active low
Vin+
Vin+
On/off
Vin-
On/off
Vin-
Control with open collector/drain circuit
Control with photocoupler circuit
Vin+
Vin+
Vcc
On/off
On/off
Vin-
Vin-
Control with logic circuit
Permanently on
Remote On/Off(continued)
Recommended remote on/off circuit for active high
Vin+
On/off
Vin-
Vin+
On/off
Vin-
Control with open collector/drain circuit
Control with photocoupler circuit
Vin+
Vin+
Vcc
On/off
Vin-
On/off
Vin-
Control with logic circuit
Permanently on
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
7
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 14 Vdc /10A Output, 1/4 Brick Converter
Oct. 07, 2011
Output Trim Equations
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Equations for calculating the trim resistor are shown below. The Trim Down resistor should be connected
between the Trim pin and Sense (-) pin. The Trim Up resistor should be connected between the Trim pin and the
Sense (+). Only one of the resistors should be used for any given application.
Minimum trim down voltage is 12.6V
Maximum trim up voltage is 15.4V.
The total voltage increased by trim and remote sense should not exceed 10% of the nominal output voltage.
Sense(+)
511
Module
Module
Trim
Rtrimdown =
−10.22
[
kΩ
]
Rtrimdown
Rtrimup
delta
Sense(-)
Sense(+)
Trim
(100+delta)⋅Vo⋅5.11−626
1.225⋅delta
Rtrimup=
−10.22
[
kΩ
]
Sense(-)
Note:
(
Vo _ req −Vo
)
delta =
×100
[%]
Vo
Vo_req=Desired (trimmed) output voltage [V]
Output voltage Vo=14.000 V
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
8
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 14 Vdc /10A Output, 1/4 Brick Converter
Oct. 07, 2011
Remote Sense
Bel Power Inc., a subsidiary of Bel Fuse Inc.
This module has remote sense compensation feature. It can minimize the effects of resistance between
module’s output and load in system layout and facilitates accurate voltage regulation at load terminals or
other selected point.
1. The remote sense lines carries very little current and hence do not require a large cross-sectional area.
2. This module compensates for a maximum drop of 10% of the nominal output voltage.
3. If the unit is already trimmed up, the available remote sense compensation range should be
correspondingly reduced. The total voltage increased by trim and remote sense should not exceed 10%
of the nominal output voltage.
4. When using remote sense compensation, all the resistance, parasitic inductance and capacitance of the
system are incorporated within the feedback loop of this module. It can make an effect on the module's
compensation, affecting the stability and dynamic response. A 0.1uF ceramic capacitor can be
connected at the point of load to de-couple noise on the sense wires.
5. Recommend the connection of remote sense compensation as below figure. There are a resistor RS+
(100 ohm) from Vo+ to Sense+ and a resistor RS- (51 ohm)) from Vo- to Sense- inside of this module.
Vo+
Sense+
Load
Sense-
Vo-
6. If not using remote sense compensation, please connect sense directly to output at module's pin, that is,
connect sense+ to Vo+ and sense- to Vo- at module's pin, the shorter the better. See below figure.
Vo+
Sense+
Load
Sense-
Vo-
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
9
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 14 Vdc /10A Output, 1/4 Brick Converter
Oct. 07, 2011
Over Current Protection
Bel Power Inc., a subsidiary of Bel Fuse Inc.
To provide protection in a fault output overload condition, the module is equipped with internal current-limiting
circuitry and can endure current limiting for a few mili-seconds. If the over-current condition persists beyond a few
milliseconds, the module will shut down into hiccup mode and restart once every 400mS. The module operates
normally when the output current goes into specified range. The typical average output current is 0.5A during
hiccup.
Vin=48V
Expansion of on time portion
Over Voltage Protection
The output over voltage protection consists of circuitry that monitors the voltage on the output terminals. If the
voltage on the output terminals exceeds the over voltage protection threshold, the module will shutdown into
hiccup mode and restart once every 800mS. The module operates normally when the fault is cleared.
Test setup:
R=10K
Waveform:
Vo+
Trim
Vo-
K
R
Sense+
Trim
K
R
48Vin,10A Load
Sense-
CH1: Output voltage waveform
CH2: Input voltage waveform
CH3: Output Current waveform
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
10
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 14 Vdc /10A Output, 1/4 Brick Converter
Oct. 07, 2011
Over Temperature Protection
Bel Power Inc., a subsidiary of Bel Fuse Inc.
The OTP is achieved by thermistor RT1 and the threshold is set at 120C in non-latch mode; the hottest
component Q13 reaches 130C with 100LFM air flow correspondingly. It will restart automatically when the
temperature falls down to 110C. The protecting point will be varied a little under different conditions (air flow,
ambient temperature, input voltage, load...).
Input Under-voltage Lockout
Under-voltage Lockout
Voltage Falling
V1=33.5V
V2=34.5V
Voltage Rising
Input Voltage (V)
V1
V2
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
11
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 14 Vdc /10A Output, 1/4 Brick Converter
Oct. 07, 2011
Mechanical Outline
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Pin Connections
Pin
Function
Pin Size
0.040’’
0.040’’
0.040’’
0.060’’
0.040’’
0.040’’
0.040’’
0.060’’
1
Vin(+)
2
On/Off
Vin(-)
3
4
Vo(-)
5
Sense(-)
TRIM
6
7
Sense(+)
Vo(+)
8
Note: This module is recommended and compatible with Pb-Free Wave Soldering and must be soldered
using a peak solder temperature of no more than 260ºC for less than 5 seconds.
Note:
1) All Pins: Material - Copper Alloy;
Finish – 3 micro inches minimum Gold over 50 micro inches minimum Nickel plate.
2) Undimensioned components are shown for visual reference only.
3) All dimensions in inches (mm); Tolerances: x.xx +/-0.02 in. (x.x +/-0.5mm) x.xxx +/-0.010 in. (x.xx +/-0.25mm).
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
12
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 14 Vdc /10 A Output, 1/4 Brick Converter
Oct. 07, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Revision History
Date
Revision
PA
Changes Detail
Approval
2011-10-7
First release
JZ Wang
RoHS Compliance
Complies with the European Directive 2002/95/EC, calling for the elimination of lead and
other hazardous substances from electronic products.
©2010 Bel Fuse Inc. Specifications subject to change without notice.100711
13
CORPORATE
FAR EAST
EUROPE
Bel Fuse Inc.
Bel Fuse Ltd.
Bel Fuse Europe Ltd.
206 Van Vorst Street
Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
8F/ 8 Luk Hop Street
San Po Kong
Kowloon, Hong Kong
Tel 852-2328-5515
Fax 852-2352-3706
www.belfuse.com
Preston Technology Management Centre
Marsh Lane, Suite G7, Preston
Lancashire, PR1 8UD, U.K.
Tel 44-1772-556601
Fax 44-1772-888366
www.belfuse.com
厂商 型号 描述 页数 下载

BEL

 		0RQ1-C5TV80 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8A 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8B 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8L 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8X 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8_11 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-Q0T12 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 14 页

BEL

 		0RQ1-Q0T120 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 14 页

BEL

 		0RQ1-Q0T12L 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 14 页

BEL

 		0RQ1-T0S12BG [ DC-DC Regulated Power Supply Module, ] 11 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.207904s
