WSSMC100P91V00

型号：

WSSMC100P91V00

描述：

波长选择开关（ WSS）的1X9[ Wavelength Selective Switch (WSS) 1x9 ]

品牌：

JDSU[ JDSU ]

页数：

6 页

PDF大小：

229 K

下载PDF手册

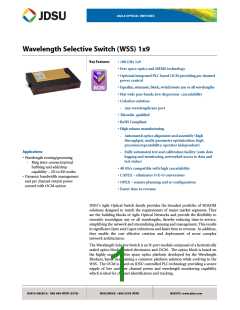

AGILE OPTICAL SWITCHES
Wavelength Selective Switch (WSS) 1x9
Key Features
• 100 GHz 1x9
• Free space optics and MEMS technology
• Optional integrated PLC based OCM providing per channel
power control
• Equalize, attenuate, block, switch/route any or all wavelengths
• Flat wide pass bands, low dispersion- cascadability
• Colorless solution
-
Any wavelength/any port
• Telcordia qualified
• RoHS Compliant
• High volume manufacturing
-
-
Automated optics alignment and assembly (high
throughput, multi-parameter optimization, high
precision/repeatability, operator independent)
Applications
Fully automated test and calibration facility (auto data
logging and monitoring, networked access to data and
test status)
• Wavelength routing/grooming
- Ring inter-connect/optical
hubbing and add/drop
capability – 2D to 8D nodes
• Dynamic bandwidth management
and per channel output power
control with OCM option
• 40 Gb/s compatible with high cascadability
• CAPEX – eliminates O-E-O conversions
• OPEX – remote planning and re-configuration
• Faster time to revenue
JDSU's Agile Optical Switch family provides the broadest portfolio of ROADM
solutions designed to match the requirements of major market segments. They
are the building blocks of Agile Optical Networks and provide the flexibility to
remotely reconfigure any or all wavelengths, thereby reducing time-to-service,
simplifying the network and streamlining planning and management. This results
in significant Opex and Capex reductions and faster time to revenue. In addition,
they enable the cost effective creation and deployment of more complex
network architectures.
The Wavelength Selective Switch is an N-port module composed of a hermetically
sealed optics block, control electronics and OCM. The optics block is based on
the highly successful free space optics platform developed for the Wavelength
Blockers, hence maintaining a common platform solution while evolving to the
WSS. The OCM is based on JDSU controlled PLC technology providing a secure
supply of low cost, per channel power and wavelength monitoring capability
which is ideal for channel identification and tracking.
NORTH AMERICA: 800 498-JDSU (5378)
WORLDWIDE: +800 5378-JDSU
WEBSITE: www.jdsu.com
WAVELENGTH SELECTIVE SWITCH (WSS) 1X9
2
Continued
The WSS is used to dynamically attenuate, block switch and route wavelengths
independently. Any wavelength/wavelengths can be routed from any port/ports to
any other port/ports in any order, resulting in a colorless solution, that is highly
flexible and requires no pre-planning. With the addition of the OCM
functionality the WSS can provide closed loop control using JDSU software or can
provide the flexibility for OCM data acquisition by the customer for use in the
customer’s network management software. The WSS combined with OCM
provides higher level integration resulting in lower monitoring cost and reduced
space requirements at a system level all within the same form factor as the current
1x9 WSS.
Functional Diagram
(This diagram shows the functionality of the Wavelength Selective Switch only.
Diagram does not resemble actual device.)
Common
WSS
Port 1
Port 2
.
.
.
.
.
.
.
.
DPRAM Interface
& RS232
.
Port 8
Port 9
5VA
3.3V
15VA
WAVELENGTH SELECTIVE SWITCH (WSS) 1X9
3
Dimensions Diagram
(Specifications in mm unless otherwise noted. )
Fiber Output Scheme and Labeling
WAVELENGTH SELECTIVE SWITCH (WSS) 1X9
4
Specifications
Parameter
Condition
Minimum
Typical1
Maximum
Optical-WSS
Number of ports
-
10
-
(1 input, 9 outputs, bi-directional)
Wavelength spacing
Number of controllable channels
Spectral range
-
-
-
100 GHz
46
196.2 to 191.7 THz -
-
-
Maximum input power
Aggregate power
-
-
27 dBm
Single port
Single channel
Including connectors
0 dB attenuation
-
-
-
-
-
24 dBm
12 dBm
6.5 dB
-
Insertion loss (IL)
4.0 dB
-
0.5 dB channel bandwidth (0.5 BW)
Polarization dependent loss
50 GHz
Over 20 GHz at 0 dB attenuation
Over 20 GHz at 10 dB attenuation
Over 20 GHz at 15 dB attenuation
Over 15 GHz at 0 dB attenuation
Over 15 GHz at 10 dB attenuation
Over 15 GHz at 15 dB attenuation
Relative to channel min IL
-
-
-
-
-
-
-
0.2 dB
0.3 dB
0.6 dB
0.1 dB
0.3 dB
0.4 dB
0 to 15 dB
0.1 dB
45 dB
40 dB
1 ps
0.5 dB
0.6 dB
0.9 dB
0.4 dB
0.5 dB
0.8 dB
-
Insertion loss ripple
Dynamic attenuation range
Attenuation step size
Extinction ratio
Return loss
Group delay ripple
PMD
0.3 dB
35 dB
-
-
-
-
-
Over 20 GHz
Not including connectors
Measured at 0 dB attenuation
Measured at 0 dB attenuation
35 dB
3 ps
1 ps
0.6 ps
Environmental and Operational
Operating case temperature
Operating humidity
Storage temperature
Storage humidity
-5°C
-
-
-
-
70°C
85% RH
70°C
5% RH
-40°C
5% RH
95% RH
Mechanical and Fiber Labeling
Module dimensions (W x D x H)
Fiber type
Entire module
All ports
220 x 140 x 32 mm
900 µm tight buffer SMF-28
1.0 0.1 m
Fiber length
Optical connector
Electrical interface
Connector labeling (see Fiber Output
Scheme and Labeling on page 3)
Electrical
Supply voltage A
Supply voltage B
Supply voltage C
All ports
LC/UPC connectors
DPRAM and RS232
Common
Input fiber
Output fiber
Ports 1, 2, 3, 4, 5, 6, 7, 8, and 9
3.3 V 5%
5.0 V 5%
15 V 5%
0.35 A2
0.30 A
0.40 A
Note: Parameters are specified for End-of-Life (EOL), over passband, over all channels, over operating temperature, attenuation range, and all polarization states unless stated
otherwise. Typical data is provided for information only; manufacturing tests are done using EOL spec.
1. 90th percentile of population at Beginning-of-Life (BOL)
2. Suggested minimum 2.5 W for 3.3V power supply for current transient at startup
WAVELENGTH SELECTIVE SWITCH (WSS) 1X9
5
Optional Integrated OCM Specifications
Parameter
Condition
Minimum
Typical1
Maximum
OCM
Number of channels
Spectral range
-
-
44
-
196.2 to 191.7 THz -
Insertion loss (WSS IL)
Input power dynamic range
Maximum channel dynamic range
Optical power reading resolution
Absolute wavelength error
Polarization dependent error
Absolute channel power
Total band power
Including 5% OCM tap
At common
-
5.0 dB
6.9 dB
-40 dBm
-
0.1 dB
-50 pm
-
-
-
-
-
-
-
-
-
-
-
-
+3 dBm
20 dB
-
+50 pm
0.4 dB
1.0 dB
+1.5 dB
-47 dBm
20 ms
60 s
Over 10 GHz from ITU frequency
Over 10 GHz from ITU frequency
Includes power within 25 GHz of ITU -1.5 dB
Electrical noise
Noise equivalent power at common
-
-
-
Acquisition interval power
Acquisition interval wavelength
Optional Closed Loop Control of WSS
Optical power setting resolution
Closed loop time (user controllable)
0.3 dB
100 ms
0.1 dB
-
0.1 dB
-
-
-
-
30 s
20 dB
-32 dBm
Attenuation maximum increment (user controllable)
Minimum controllable output power
Electrical - WSS with optional OCM
Supply voltage A
Supply voltage B
Supply voltage C
3.3 V 5%
5.0 V 5%
15 V 5%
-
-
-
0.7 A1
3.5 A2
0.4 A3
-
-
-
Note: Parameters are specified for End-of-Life (EOL), over passband, over all channels, over operating temperature, attenuation range, and all polarization states unless stated
otherwise. Typical data is provided for information only; manufacturing tests are done using EOL spec.
1. Suggested minimum 2.5 W for 3.3 V power supply for current transient at startup
2. Suggested minimum 2 W for 5.0 V power supply for current transient at startup
3. Suggested minimum 4 W for 15.0 V power supply for current transient at startup
WAVELENGTH SELECTIVE SWITCH (WSS) 1X9
Ordering Information
For more information on this or other products and their availability, please contact your local JDSU account manager or
JDSU directly at 1-800-498-JDSU (5378) in North America and +800-5378-JDSU worldwide or via e-mail at
customer.service@jdsu.com.
Sample: MWSWC19100J501
Product Code
Description
MWSWC19100J501
WSSMC100P91V00
Wavelength Selective Switch 1x9 (WSS)
Wavelength Selective Switch with Monitor 1X9 (WSSM)
All statements, technical information and recommendations related to the products herein are based upon information believed to be
reliable or accurate. However, the accuracy or completeness thereof is not guaranteed, and no responsibility is assumed for any
inaccuracies. The user assumes all risks and liability whatsoever in connection with the use of a product or its application. JDSU reserves
the right to change at any time without notice the design, specifications, function, fit or form of its products described herein, including
withdrawal at any time of
a product offered for sale herein. JDSU makes no representations that the products
herein are free from any intellectual property claims of others. Please contact JDSU for more information. JDSU and the JDSU logo are
trademarks of JDS Uniphase Corporation. Other trademarks are the property of their respective holders. ©2006 JDS Uniphase
Corporation. All rights reserved. 10143153 Rev. 002 WSS1X9.DS.CMS.AE
NORTH AMERICA: 800 498-JDSU (5378)
WORLDWIDE: +800 5378-JDSU
WEBSITE: www.jdsu.com
November 2006
