FZT869

型号:

FZT869

描述:

NPN硅平面高电流(高性能)晶体管[ NPN Silicon Planar High Current (High Performance) Transistor ]

品牌:

KEXIN[ GUANGDONG KEXIN INDUSTRIAL CO.,LTD ]

页数:

2 页

PDF大小:

39 K

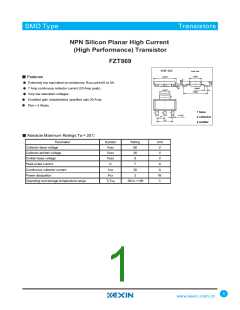

SMD Type
Transistors
NPN Silicon Planar High Current
(High Performance) Transistor
FZT869
SOT-223
Unit: mm
+0.2
3.50
-0.2
+0.2
-0.2
6.50
Features
Extremely low equivalent on-resistance; RCE(sat)44mÙ at 5A.
7 Amp continuous collector current (20 Amp peak).
Very low saturation voltages.
+0.2
0.90
-0.2
+0.1
-0.1
3.00
+0.3
7.00
-0.3
4
Excellent gain charateristics specified upto 20 Amp.
Ptot = 3 Watts.
1 base
1
2
3
+0.1
0.70
-0.1
2.9
2 collector
3 emitter
4.6
Absolute Maximum Ratings Ta = 25
Parameter
Collector-base voltage
Symbol
VCBO
VCEO
VEBO
IC
Rating
Unit
V
60
25
6
Collector-emitter voltage
Emitter-base voltage
Peak pulse current
V
V
7
A
Continuous collector current
Power dissipation
ICM
Ptot
20
3
A
W
Operating and storage temperature range
Tj,Tstg
-55 to +150
1
www.kexin.com.cn
SMD Type
Transistors
FZT869
Electrical Characteristics Ta = 25
Parameter
Symbol
Testconditons
Min
60
25
6
Typ
120
35
Max
Unit
V
Collector-base breakdown voltage
Collector-emitter breakdown voltage *
Emitter-base breakdown voltage
V(BR)CBO IC=100ìA
V(BR)CEO IC=10mA
V(BR)EBO IE=100ìA
V
8
V
VCB=50V
ICBO
50
1
nA
ìA
Collector Cut-Off Current
Emitter Cut-Off Current
VCB=50V,Ta = 100
IEBO
VEB=6V
10
nA
35
67
50
IC=0.5A, IB=10mA
IC=1A, IB=10mA
IC=2A, IB=10mA
IC=6.5A, IB=150mA
110
215
350
Collector-emitter saturation voltage *
VCE(sat)
mV
168
Base-emitter saturation voltage *
Base-Emitter Turn-On Voltage *
VBE(sat) IC=6.5A, IB=300mA
VBE(on) IC=6.5A, VCE=1V
IC=10mA, VCE=1V
1.2
V
V
1.13
300
300
200
40
450
450
300
100
IC=1A, VCE=1V
hFE
DC current gain *
IC=7A, VCE=1V
IC=20A, VCE=2V
Transitional frequency
Output capacitance
Turn-on time
fT
IC=100mA, VCE=10V f=50MHz
100
70
MHz
pF
Cobo
t(on)
t(off)
VCB=10V, f=1MHz
IC=1A, VCC=10V
IB1=IB2=100mA
60
ns
Turn-off time
680
ns
* Pulse test: tp = 300 ìs; d
0.02.
Marking
Marking
FZT869
2
www.kexin.com.cn
