FZT658

型号:

FZT658

描述:

NPN硅平面高压晶体管[ NPN Silicon Planar High Voltage Transistor ]

品牌:

KEXIN[ GUANGDONG KEXIN INDUSTRIAL CO.,LTD ]

页数:

2 页

PDF大小:

38 K

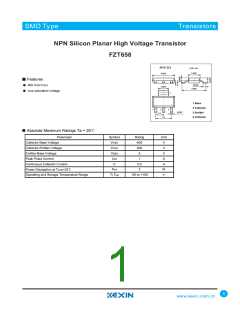

SMD Type
Transistors
NPN Silicon Planar High Voltage Transistor
FZT658
SOT-223
Unit: mm
+0.2
3.50
-0.2
+0.2
6.50
-0.2
Features
+0.2
0.90
-0.2
400 Volt VCEO
+0.1
3.00
-0.1
+0.3
7.00
-0.3
Low saturation voltage
4
1 Base
2 Collector
3 Emitter
4 Collector
1
2
3
+0.1
0.70
-0.1
2.9
4.6
Absolute Maximum Ratings Ta = 25
Parameter
Collector-Base Voltage
Symbol
VCBO
VCEO
VEBO
ICM
Rating
Unit
V
400
Collector-Emitter Voltage
400
V
Emitter-Base Voltage
5
V
Peak Pulse Current
1
A
Continuous Collector Current
Power Dissipation at Tamb=25
Operating and Storage Temperature Range
IC
0.5
2
A
Ptot
W
Tj:Tstg
-55 to +150
1
www.kexin.com.cn
SMD Type
Transistors
FZT658
Electrical Characteristics Ta = 25
Parameter
Breakdown Voltage
Symbol
V(BR)CBO
V(BR)CEO
V(BR)EBO
ICBO
Testconditons
Min Typ. Max
Unit
V
IC=100ìA
IC=10mA*
IE=100ìA
VCB=320V
VEB=4V
400
400
5
Breakdown Voltage
V
Breakdown Voltage
V
Collector Cut-Off Current
Emitter Cut-Off Current
100
100
0.3
0.25
0.5
0.9
1.0
50
nA
nA
V
IEBO
IC=20mA, IB=1mA*
Collector-Emitter Saturation Voltage
VCE(sat)
IC=50mA, IB=5mA*
V
IC=100mA, IB=10mA
IC=100mA, IB=10mA*
IC=100mA, VCE=5V*
IC=1mA, VCE=5V*
V
Base-Emitter Saturation Voltage
Base-Emitter Turn-On Voltage
VBE(sat)
VBE(on)
V
V
Static Forward Current Transfer Ratio
hFE
IC=100mA, VCE=5V*
IC=200mA, VCE=10V*
IC=10mA, VCE=20V,f=20MHz
VCB=20V, f=1MHz
50
40
Transition Frequency
Output Capacitance
fT
Cobo
ton
50
MHz
pF
10
IC=100mA, VCC=100V
IB1=10mA, IB2=-20mA
130
3300
ns
Switching Times
toff
ns
* Measured under pulsed conditions. Pulse Width=300ìs. Duty cycle 2%
Marking
Marking
FZT658
2
www.kexin.com.cn
