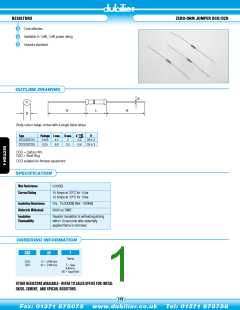

RESISTORS
ZERO-OHM JUMPER DCO/DZO
Cost effective
1
1
4
6
Available in / W, / W power rating
Industry standard.
OUTLINE DRAWING
d
H
L
H
D
Body colour beige, coded with a single black stripe.
Type
Package L max. D max. d + 0.02
H
- 0.05
DCO/DZO12
0.125
4.2
2
0.5
28
28
3
3
DCO/DZO25
0.25
6.8
2.5
0.6
DCO = Carbon film
DZO = Steel Slug
DCO suitable for Amistar equipment
SPECIFICATION
Max Resistance
Current Rating
0.005Ω
15 Amps at 70°C for 1/4w
10 Amps at 70°C for 1/6w
Insulation Resistance
Dielectric Withstand
Dry - 10,000MΩ Wet - 100MΩ
500V ac RMS
Insulation
Flammability
Resistor insulation is self-extinguishing
within 10 seconds after externally
applied flame is removed.
ORDERING INFORMATION
DZO
25
T
Taping
DCO
DZO
12 = 1/6W size
25 = 1/4W size
T = Tape
& Ammo
BD = Tape/Reel
OTHER RESISTORS AVAILABLE - REFER TO SALES OFFICE FOR: METAL
OXIDE, CEMENT, AND SPECIAL RESISTORS.
