DX-170

型号：

DX-170

描述：

恒温晶体振荡器[ Oven Controlled Crystal Oscillator ]

品牌：

VECTRON[ Vectron International, Inc ]

页数：

4 页

PDF大小：

217 K

下载PDF手册

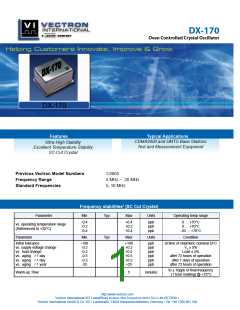

DX-170
Oven Controlled Crystal Oscillator
DX-170
Features
Typical Applications
CDMA2000 and UMTS Base Stations
Test and Measurement Equipment
Ultra-High Stability
Excellent Temperature Stability
SC-Cut Crystal
Previous Vectron Model Numbers
Frequency Range
C4605
5 MHz – 20 MHz
5, 10 MHz
Standard Frequencies
Frequency stabilities1 [SC Cut Crystal)
Parameter
Min
Typ
Max
Units
Operating temp range
-0.4
-0.2
-0.4
+0.4
+0.2
+0.4
ppb
ppb
ppb
0 … +70°C
0 … +70°C
-20 … +70°C
vs. operating temperature range
(Referenced to +25°C)
Parameter
Min
Typ
Max
Units
Condition
Initial tolerance
vs. supply voltage change
vs. load change
vs. aging / 1 day
vs. aging / 1 day
vs. aging / 1 year
-100
-0.2
-0.2
-0.5
-0.2
-25
+100
+0.2
+0.2
+0.5
+0.2
+25
ppb
ppb
ppb
ppb
ppb
ppb
at time of shipment, nominal EFC
VS ± 5%
Load ± 5%
after 72 hours of operation
after 7 days of operation
after 72 hours of operation
to ± 10ppb of final frequency
(1 hour reading) @ +25°C
Warm-up Time
5
minutes
http://www.vectron.com
Vectron International•267 LowellRoad, Hudson, New Hampshire 03051•Tel:+1-88-VECTRON-1
Vectron International GmbH & Co. KG • Landstraße, 74924 Neckarbischofsheim, Germany • Tel: +49 7268 801 100
Supply Voltage (Vs)
Parameter
Min
Typ
Max
12.6
8
Units
VDC
Watts
Watts
Condition
11.4
Supply voltage
12.0
during warm-up
Power consumption
3
steady state @ +25°C
RF Output
Parameter
Min
Typ
Max
Units
Condition
Signal [Option]
Load
HCMOS
15 pF
0.5
Signal Level (Vol)
Signal Level (Voh)
Duty Cycle
VDC
VDC
%
15 pF Load
15 pF Load
4.5
45
55
@ (Voh-Vol)/2
Signal [Standard]
Load
Sinewave
50
Ohms
dBm
dBc
Output Power
Harmonics
+5.0
+7.0
+9.0
-30
50 Ohm load
50 Ohm load
Frequency Tuning (EFC)
Parameter
Min
Typ
Max
±0.75
20
Units
ppm
%
Condition
Tuning Range
Linearity
±0.25
±0.5
Tuning Slope
Control Voltage Range
Positive
0.0
2.5
5.0
VDC
Additional Parameters
Parameter
Phase Noise
Weight
Min
Typ
Max
Units
Condition
@ 10MHz
-90
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
1 Hz
10 Hz
100 Hz
1 kHz
-120
-135
-140
-140
10 kHz
50
g
Absolute Maximum Ratings
Parameter
Min
Typ
Max
15
Units
V
Condition
Supply voltage (Vs)
50
25
pF
Ohm
with HCMOS signal
with Sinewave signal
Output Load
Operable temperature range
Storage temperature range
-55
-55
+85
°C
°C
+125
http://www.vectron.com
Vectron International•267 LowellRoad, Hudson, New Hampshire 03051•Tel:+1-88-VECTRON-1
Vectron International GmbH & Co. KG • Landstraße, 74924 Neckarbischofsheim, Germany • Tel: +49 7268 801 100
Enclosure
Type A
Height “H“
19.00
Code:
A1
Pin Length “L“
5.00
Pin Connections
1
2
3
4
5
Electronic Frequency Control Input (EFC)
No Connect
Supply Voltage Input (Vs)
RF Output
Ground (Case)
http://www.vectron.com
Vectron International•267 LowellRoad, Hudson, New Hampshire 03051•Tel:+1-88-VECTRON-1
Vectron International GmbH & Co. KG • Landstraße, 74924 Neckarbischofsheim, Germany • Tel: +49 7268 801 100
How to order this product:
Use this worksheet to forward the following information to your factory representative :
Supply Voltage
Code
RF Output
Code
Temperature
Range
Frequency
Control
Model
Height
0
-
-
Stability
400
-
-
Frequency
-
-
DX-170
B
A
J
0
10M0000000
Temperature Range:
J: -20...+70°C
T: 0 ... +70°C
Height:
0: 19.00 mm
Frequency Control:
0: Fixed Frequency
1: ±0.25...±0.75 ppm
Supply Voltage:
B: +12 V
Stability Code:
400: ±0.4ppb
200: ±0.2ppb
RF Output Code:
A: HCMOS
E: Sinewave
Notes:
1
2
Contact factory for improved stabilities or additional product options. Not all options and codes are
available at all frequencies.
Unless otherwise stated all values are valid after warm-up time and refer to typical conditions for supply
voltage, frequency control voltage, load, temperature (25°C)
Phase noise degrades with increasing output frequency.
Subject to technical modification.
3
4
5
Contact factory for availability.
http://www.vectron.com
Vectron International•267 LowellRoad, Hudson, New Hampshire 03051•Tel:+1-88-VECTRON-1
Vectron International GmbH & Co. KG • Landstraße, 74924 Neckarbischofsheim, Germany • Tel: +49 7268 801 100
