COMMON MODE CHOKE
P/N:8STA DATA SHEET
A. General Specifications:
1. Used in suppression of EMI noise .
2. Design for Ethernet, Token ring .
B. Electrical Specifications@ 25°C :
1.Primary Inductance (Lp) : 18 µH MIN @ 100KHz/0.1Vrms
2.Leakage Inductance(L.L ) : 0.2 µH Max @100KHz/0.1Vrms
3.Cw/w : 10 pF Max @100KHz/0.1V
4.Turn Ratio : 1:1:1:1
5.DCR : 0.25 Ω MAX
6.HI-POT : 1500 Vrms

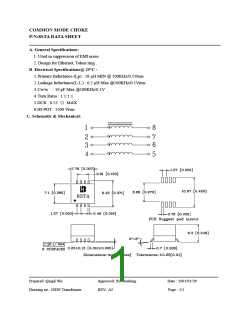

C. Schematic & Mechanical:
Prepared :Qingli Wu
Approved: Xu Wenbing
REV.: A2
Date : 2001/01/28
Page : 1/1
Drawing no.: ISDN Transformer
