5P90005DCGI

型号：

5P90005DCGI

描述：

串行实时时钟[ SERIAL REAL-TIME CLOCK ]

品牌：

IDT[ INTEGRATED DEVICE TECHNOLOGY ]

页数：

16 页

PDF大小：

298 K

下载PDF手册

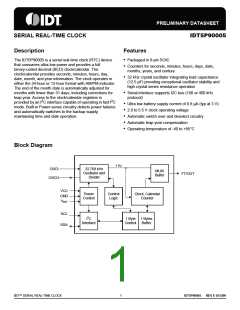

PRELIMINARY DATASHEET
SERIAL REAL-TIME CLOCK
Description
IDT5P90005
Features
The IDT5P90005 is a serial real-time clock (RTC) device
that consumes ultra-low power and provides a full
binary-coded decimal (BCD) clock/calendar. The
• Packaged in 8-pin SOIC
• Counters for seconds, minutes, hours, days, date,
months, years, and century
clock/calendar provides seconds, minutes, hours, day,
date, month, and year information. The clock operates in
either the 24-hour or 12-hour format with AM/PM indicator.
The end of the month date is automatically adjusted for
months with fewer than 31 days, including corrections for
leap year. Access to the clock/calendar registers is
provided by an I C interface capable of operating in fast I C
mode. Built-in Power-sense circuitry detects power failures
and automatically switches to the backup supply,
maintaining time and date operation.
• 32 kHz crystal oscillator integrating load capacitance
(12.5 pF) providing exceptional oscillator stability and
high crystal series resistance operation
• Serial interface supports I2C bus (100 or 400 kHz
protocol)
2
2
• Ultra low battery supply current of 0.8 µA (typ at 3 V)
• 2.0 to 5.5 V clock operating voltage
• Automatic switch over and deselect circuitry
• Automatic leap year compensation
• Operating temperature of -40 to +85°C
Block Diagram
1 Hz
32.768 kHz
Oscillator and
Divider
OSCI
MUX/
FT/OUT
Buffer
OSCO
VCC
GND
VBAT
Power
Control
Control
Logic
Clock, Calendar
Counter
SCL
SDA
I2C
Interface
1 Byte 7 Bytes
Control
Buffer
IDT™ SERIAL REAL-TIME CLOCK
1
IDT5P90005
REV E 031209
IDT5P90005
SERIAL REAL-TIME CLOCK
RTC
Pin Assignment
8
7
6
5
1
2
3
4
VCC
OSCI
OSCO
VBAT
FT/OUT
SCL
VSS
SDA
8-Pin (150 mil) SOIC
Pin Descriptions
Pin
Number
Pin
Pin
Type
Pin Description
Name
OSCI
OSCO
VBAT
1
2
3
4
5
6
7
8
Input
Oscillator input.
Output Oscillator output.
Power
Power
I/O
Battery supply voltage.
VSS
Connect to ground.
SDA
Serial data address input/output.
Serial clock.
SCL
Input
FT/OUT
VCC
Output Frequency test/output driver (open drain).
Power Supply voltage.
IDT™ SERIAL REAL-TIME CLOCK
2
IDT5P90005
REV E 031209
IDT5P90005
SERIAL REAL-TIME CLOCK
RTC
Device Operation
The IDT5P90005 clock operates as a slave device on the
serial bus. Access is obtained by implementing a start
condition followed by the correct slave address (D0h). The
8 bytes contained in the device can then be accessed
sequentially in the following order:
1st byte: seconds register
2nd byte: minutes register
3rd byte: century/hours register
4th byte: day register
5th byte: date register
6th byte: month register
7th byte: years register
8th byte: control register
The IDT5P90005 clock continually monitors VCC for an
out-of-tolerance condition. Should VCC fall below VSO, the
device terminates an access in progress and resets the
device address counter. Inputs to the device will not be
recognized at this time, to prevent erroneous data from
being written to the device from an out-of-tolerance system.
When VCC falls below VSO, the device automatically
switches over to the battery and powers down into an ultra
low current mode of operation to conserve battery life. Upon
power-up, the device switches from battery to VCC at VSO
and recognizes inputs.
IDT™ SERIAL REAL-TIME CLOCK
3
IDT5P90005
REV E 031209
IDT5P90005
SERIAL REAL-TIME CLOCK
RTC
2
information is transferred byte-wise and each receiver
acknowledges with a ninth bit.
I C Serial Data Bus
2
The IDT5P90005 supports the I C bus protocol. A device
that sends data onto the bus is defined as a transmitter and
a device receiving data as a receiver. The device that
controls the message is called a master. The devices that
are controlled by the master are referred to as slaves. The
bus must be controlled by a master device that generates
the serial clock (SCL), controls the bus access, and
generates the START and STOP conditions. The
Acknowledge: Each receiving device, when addressed, is
obliged to generate an acknowledge after the reception of
each byte. The master device must generate an extra clock
pulse that is associated with this acknowledge bit.
A device that acknowledges must pull down the SDA line
during the acknowledge clock pulse in such a way that the
SDA line is stable LOW during the HIGH period of the
acknowledge related clock pulse. Of course, setup and hold
times must be taken into account. A master must signal an
end of data to the slave by not generating an acknowledge
bit on the last byte that has been clocked out of the slave. In
this case, the slave must leave the data line HIGH to enable
the master to generate the STOP condition.
2
IDT5P90005 operates as a slave on the I C bus. Within the
bus specifications, a standard mode (100 kHz maximum
clock rate) and a fast mode (400 kHz maximum clock rate)
are defined. The IDT5P90005 works in both modes.
Connections to the bus are made via the open-drain I/O
lines SDA and SCL.
The following bus protocol has been defined (see the “Data
Transfer on I C Serial Bus” figure):
2
• Data transfer may be initiated only when the bus is not
busy.
• During data transfer, the data line must remain stable
whenever the clock line is HIGH. Changes in the data line
while the clock line is HIGH are interpreted as control
signals.
Accordingly, the following bus conditions have been
defined:
Bus not busy: Both data and clock lines remain HIGH.
Start data transfer: A change in the state of the data line,
from HIGH to LOW, while the clock is HIGH, defines a
START condition.
Stop data transfer: A change in the state of the data line,
from LOW to HIGH, while the clock line is HIGH, defines the
STOP condition.
Data valid: The state of the data line represents valid data
when, after a START condition, the data line is stable for the
duration of the HIGH period of the clock signal. The data on
the line must be changed during the LOW period of the clock
signal. There is one clock pulse per bit of data.
Each data transfer is initiated with a START condition and
terminated with a STOP condition. The number of data
bytes transferred between START and STOP conditions is
not limited, and is determined by the master device. The
IDT™ SERIAL REAL-TIME CLOCK
4
IDT5P90005
REV E 031209
IDT5P90005
SERIAL REAL-TIME CLOCK
RTC
2
Data Transfer on I C Serial Bus
Depending upon the state of the R/W bit, two types of data
transfer are possible:
bit (see the “Data Write–Slave Receiver Mode” figure). The
slave address byte is the first byte received after the START
condition is generated by the master. The slave address
byte contains the 7-bit IDT5P90005 address, which is
1101000, followed by the direction bit (R/W), which is 0 for
a write. After receiving and decoding the slave address byte
the slave outputs an acknowledge on the SDA line. After the
IDT5P90005 acknowledges the slave address + write bit,
the master transmits a register address to the IDT5P90005.
This sets the register pointer on the IDT5P90005, with the
IDT5P90005 acknowledging the transfer. The master may
then transmit zero or more bytes of data, with the
IDT5P90005 acknowledging each byte received. The
address pointer increments after each data byte is
transferred. The master generates a STOP condition to
terminate the data write.
1) Data transfer from a master transmitter to a slave
receiver. The first byte transmitted by the master is the
slave address. Next follows a number of data bytes. The
slave returns an acknowledge bit after each received byte.
Data is transferred with the most significant bit (MSB) first.
2) Data transfer from a slave transmitter to a master
receiver. The first byte (the slave address) is transmitted by
the master. The slave then returns an acknowledge bit. This
is followed by the slave transmitting a number of data bytes.
The master returns an acknowledge bit after all received
bytes other than the last byte. At the end of the last received
byte, a “not acknowledge” is returned. The master device
generates all of the serial clock pulses and the START and
STOP conditions. A transfer is ended with a STOP condition
or with a repeated START condition. Since a repeated
START condition is also the beginning of the next serial
transfer, the bus is not released. Data is transferred with the
most significant bit (MSB) first.
2) Slave Transmitter Mode (Read Mode): The first byte is
received and handled as in the slave receiver mode.
However, in this mode, the direction bit indicates that the
transfer direction is reversed. Serial data is transmitted on
SDA by the IDT5P90005 while the serial clock is input on
SCL. START and STOP conditions are recognized as the
beginning and end of a serial transfer (see the “Data
Read–Slave Transmitter Mode” figure). The slave address
byte is the first byte received after the START condition is
generated by the master. The slave address byte contains
the 7-bit IDT5P90005 address, which is 1101000, followed
by the direction bit (R/W), which is 1 for a read. After
receiving and decoding the slave address byte the slave
outputs an acknowledge on the SDA line. The IDT5P90005
The IDT5P90005 can operate in the following two modes:
1) Slave Receiver Mode (Write Mode): Serial data and
clock are received through SDA and SCL. After each byte is
received an acknowledge bit is transmitted. START and
STOP conditions are recognized as the beginning and end
of a serial transfer. Address recognition is performed by
hardware after reception of the slave address and direction
IDT™ SERIAL REAL-TIME CLOCK
5
IDT5P90005
REV E 031209
IDT5P90005
SERIAL REAL-TIME CLOCK
RTC
then begins to transmit data starting with the register
address pointed to by the register pointer. If the register
pointer is not written to before the initiation of a read mode
the first address that is read is the last one stored in the
register pointer. The address pointer is incremented after
each byte is transferred. The IDT5P90005 must receive a
“not acknowledge” to end a read.
Data Write – Slave Receiver Mode
Data Read (from current Pointer location) – Slave Transmitter Mode
Data Read (Write Pointer, then Read) – Slave Receive and Transmit
IDT™ SERIAL REAL-TIME CLOCK
6
IDT5P90005
REV E 031209
IDT5P90005
SERIAL REAL-TIME CLOCK
RTC
Bus Timing Requirements Sequence
Note: P=STOP and S=START.
IDT™ SERIAL REAL-TIME CLOCK
7
IDT5P90005
REV E 031209
IDT5P90005
SERIAL REAL-TIME CLOCK
RTC
Absolute Maximum Ratings
Stresses above the ratings listed below can cause permanent damage to the IDT5P90005. These ratings, which
are standard values for IDT commercially rated parts, are stress ratings only. Functional operation of the device at
these or any other conditions above those indicated in the operational sections of the specifications is not implied.
Exposure to absolute maximum rating conditions for extended periods can affect product reliability. Electrical
parameters are guaranteed only over the recommended operating temperature range.
Parameter
Condition
Min.
-0.3
-0.3
-0.5
-55
Typ.
Max.
7
Units
V
Supply Voltage, VCC
Input or Output Voltages
Clock Outputs
Referenced to GND
Referenced to GND
Referenced to GND
7
V
VDD+ 0.5
125
V
Storage Temperature
C
C
mA
C
W
1
Soldering Temperature
Max 10 seconds
260
Output Current
20
Ambient Operating Temperature
Power Dissipation
-40
+85
0.25
Note 1: Re flow at peak temperature of 260°C (total thermal budget not to exceed 245°C for greater than 30
seconds).
Caution: Negative undershoots below -0.3 V are not allowed on any pin while in the backup mode.
IDT™ SERIAL REAL-TIME CLOCK
8
IDT5P90005
REV E 031209
IDT5P90005
SERIAL REAL-TIME CLOCK
RTC
DC and AC Parameters
This section summarizes the operating and measurement conditions, as well as the DC and AC characteristics of
the device. The parameters in the following DC and AC characteristic tables are derived from tests performed under
the measurement conditions listed in the relevant tables. Designers should check that the operating conditions in
their projects match the measurement conditions when using the quoted parameters.
1
Operating and AC Measurement Conditions
Parameter
Rating
2.0 to 5.5 V
Supply Voltage, VCC
Ambient Operating Temperature
Load Capacitance
-40 to +85ºC
100 pF
Input Rise and Fall times
< 5 ns
Input Pulse Voltages
0.2 VCC to 0.8 VCC
0.3 VCC to 0.7 VCC
Input and Output TIming Reference Voltages
Note 1: Output Hi-Z is defined as the point where data is no longer driven.
AC Testing Input/Output Waveform
Capacitance
Parameter1,2
Symbol
Min.
Typ.
Max.
7
Units
pF
Input Capacitance
C
IN
3
Output Capacitance (SDA, FT/OUT)
C
10
pF
OUT
Low-pass Filter Input Time Constant (SDA and SCL)
t
250
1000
ns
LP
Note 1: Effective capacitance measured with power supply at 3.3 V; sampled only, not 100% tested.
Note 2: At 25°C, f = 1 MHz.
Note 3: Output deselected.
IDT™ SERIAL REAL-TIME CLOCK
9
IDT5P90005
REV E 031209
IDT5P90005
SERIAL REAL-TIME CLOCK
RTC
DC Characteristics
Parameter
Input Leakage Current
Output Leakage Current
Supply Current
Symbol
Conditions1
Min.
Typ.
Max.
±1
Units
µA
µA
µA
µA
V
I
0V = VIN = VCC
LI
I
0V = VOUT = VCC
±1
LO
I
I
Switch Frequency = 100 kHz
SCL, SDA = VCC - 0.3
300
CC1
CC2
RTC Supply Current (standby)
Input Low Voltage
70
V
-0.3
0.3VCC
VCC+0.5
0.4
IL
Input High Voltage
V
0.7VCC
V
IH
Output Low Voltage
V
I
= 3.0 mA
V
OL
OL
Output Low Voltage (open drain)
Battery Supply Voltage
Battery Supply Current
FT/OUT
5.5
V
V
2.5
3.5
V
BAT
I
TA = 25°C, VCC = 0V
0.8
1
µA
BAT
Oscillator ON, V
= 3 V
BAT
Note 1: Valid for ambient operating temperature: TA = –40 to 85 °C; VCC = 2.0 to 5.5 V (except where noted).
Crystal Electrical Characteristics
Parameter1
Symbol
Min.
Typ.
Max.
Units
kHz
K
Resonant Frequency
Series Resistance
Load Capacitance
f
32.768
O
R
60
S
C
12.5
pF
L
Note 1: Load capacitors are integrated within the IDT5P90005. Circuit board layout considerations for the 32.768
kHz crystal of minimum trace lengths and isolation from RF generating signals should be taken into account.
IDT™ SERIAL REAL-TIME CLOCK
10
IDT5P90005
REV E 031209
IDT5P90005
SERIAL REAL-TIME CLOCK
RTC
AC Electrical Characteristics
Unless stated otherwise, VCC = 2.0 to 5.5 V, Ambient Temperature -40 to +85C
Parameter
Symbol
STANDARD
MODE
FAST MODE
Units
Min.
Max.
Min.
Max.
SCL Clock Frequency
f
100
400
kHz
µs
µs
µs
ns
SCL
Clock Low Period
t
4.7
4.0
1.3
0.6
LOW
Clock High Period
t
HIGH
SDA and SCL Rise time
SDA and SCL Fall Time
t
1
0.3
R
t
300
300
F
START Condition Hold Time (after this
period the first clock pulse is generated)
t
:STA
4
µs
HD
START Condition Setup Time (only relevant
for a repeated start condition)
t
:STA
4.7
0.6
µs
SU
1
Data Hold Time
t
:DAT
0
1.3
100
0.6
1.3
ns
ns
µs
µs
HD
Data Setup Time
t
:DAT
:STO
250
4.0
4.7
SU
SU
STOP Condition Setup Time
t
Time the bus must be free before a new
transmission can start
t
BUF
Note 1: Transmitter must internally provide a hold time to bridge the undefined region (300 ns max) of the falling
edge of SCL.
Power Down/Up Mode AC Waveforms
RTC Power Down/Up AC Characteristics
Parameter1,2
SCL and SDA at VIH before Power Down
SCL and SDA at VIH after Power Up
Symbol
Min.
0
Typ.
Max.
Units
ns
t
t
PD
rec
10
2000
µs
Note 1: Valid for ambient operating temperature: TA = –40 to 85 °C; VCC = 2.0 to 5.5 V (except where noted).
Note 2: VCC fall time should not exceed 5 mV/µs.
IDT™ SERIAL REAL-TIME CLOCK
11
IDT5P90005
REV E 031209
IDT5P90005
SERIAL REAL-TIME CLOCK
RTC
RTC Power Down/Up Trip Points DC Characteristics
Parameter1,2
Symbol
Min.
Typ.
Max3
Units
3
Backup Switchover Voltage
V
V
-0.90
V
-0.50
V -0.30
BAT
V
SO
BAT
BAT
Note 1: Valid for ambient operating temperature: TA = –40 to 85 °C; VCC = 2.0 to 5.5 V (except where noted).
Note 2: All voltages referenced to VSS.
Note 3: Switchover and deselect point.
Clock Operation
The eight byte clock register (see “Register Map” table) is used to both set the clock and to read the date and time
from the clock, in a binary coded decimal format. Seconds, minutes, and hours are contained within the first three
registers. Bits D6 and D7 of clock register 2 (century/hours register) contain the century enable bit (CEB) and the
century bit (CB). Setting CEB to a '1' will cause CB to toggle, either from '0' to '1' or from '1' to '0' at the turn of the
century (depending upon its initial state). If CEB is set to a '0', CB will not toggle. Bits D0 through D2 of register 3
contain the day (day of week). Registers 4, 5 and 6 contain the date (day of month), month and years. The final
register is the control register (this is described in the clock calibration section). Bit D7 of register 0 contains the
STOP bit (ST). Setting this bit to a '1' will cause the oscillator to stop. If the device is expected to spend a significant
amount of time on the shelf, the oscillator may be stopped to reduce current drain. When reset to a '0' the oscillator
restarts within one second.
When reading or writing the time and date registers, secondary(user) buffers are used to prevent error when the
internal registers update. When reading the time and date registers, the user buffers are synchronized to the
internal registers on any start or stop, and when the address pointer rolls over to zero. The countdown chain is reset
whenever the seconds register is written. Write transfers occurs on the acknowledge pulse from the device. To
avoid rollover issues, once the countdown chain is reset, the remaining time and date registers must be written
within one second. If enabled, the 1Hz square-wave output transitions high 500ms after the seconds data transfer,
provided the oscillator is already running.
Note: In order to guarantee oscillator start-up after the initial power-up, set the ST bit to a '1,' then reset this bit to a
'0.' This sequence enables a “kick start” circuit which aids the oscillator start-up during worst case conditions of
voltage and temperature.
1
Register Map
Data
D7
Function/Range
BCD Format
Address
D6
D5
D4
D3
D2
D1
D0
0
1
2
ST
10 seconds
10 minutes
Seconds
Minutes
Hours
Seconds
00 - 59
00 - 59
R
Minutes
CEB2
CB
10 hours
Century/Hours
0-1/00-23
IDT™ SERIAL REAL-TIME CLOCK
12
IDT5P90005
REV E 031209
IDT5P90005
SERIAL REAL-TIME CLOCK
RTC
Data
Function/Range
BCD Format
Address
D7
R
D6
R
D5
D4
D3
D2
D1
D0
3
4
5
6
7
R
R
R
Day
Day
Date
01 - 07
01 - 31
R
R
10 date
Date
Month
Years
R
R
R
10 M
Month/Century
Year
01 - 12
00 - 99
10 years
OUT
FT
R
R
R
R
R
R
Control
Note 1. Keys:
FT = frequency test bit
ST = stop bit
OUT = output level
CEB = century enable bit
CB = century bit
R = Reserved BIT(keep same as default value)
Note 2. When CEB is set to '1', CB will toggle from '0' to '1' or from '1' to '0' at the turn of the century (dependent
upon the initial value set).When CEB is set to '0', CB will not toggle.
Output Driver Pin
When the FT bit is not set, the FT/OUT pin becomes an output driver that reflects the contents of D7 of the control
register. In other words, when D6 of address 7 is a zero and D7 of address 7 is a zero and then the FT/OUT pin will
be driven low.
Note: The FT/OUT pin is open drain which requires an external pull-up resistor.
Table
FT
0
OUT
FT/OUT
0
1
x
0
1
0
1
512Hz
Initial Power-on Defaults
Upon initial application of power to the device, the FT bit will be set to a '0' and the OUT bit will be set to a '1'. All
other register bits will initially power on in a random state.
IDT™ SERIAL REAL-TIME CLOCK
13
IDT5P90005
REV E 031209
IDT5P90005
SERIAL REAL-TIME CLOCK
RTC
Thermal Characteristics
Parameter
Symbol
Conditions
Min.
Typ. Max. Units
Thermal Resistance Junction to
Ambient
Still air
150
140
120
40
C/W
C/W
C/W
C/W
JA
1 m/s air flow
3 m/s air flow
JA
JA
Thermal Resistance Junction to Case
JC
Marking Diagram
8
5
TBD
1
4
Notes:
1. ###### is the lot number.
2. YYWW is the last two digits of the year and week that the part was assembled.
3. Bottom marking: country of origin if not USA.
IDT™ SERIAL REAL-TIME CLOCK
14
IDT5P90005
REV E 031209
IDT5P90005
SERIAL REAL-TIME CLOCK
RTC
Package Outline and Package Dimensions (8-pin SOIC, 150 Mil. Body)
Package dimensions are kept current with JEDEC Publication No. 95
Millimeters
Inches
8
Symbol
Min
1.35
0.10
0.33
0.19
4.80
3.80
Max
1.75
0.25
0.51
0.25
5.00
4.00
Min
Max
A
A1
B
C
D
E
e
.0532
.0040
.013
.0688
.0098
.020
E
H
INDEX
AREA
.0075
.1890
.1497
.0098
.1968
.1574
1.27 BASIC
0.050 BASIC
1
2
H
h
5.80
0.25
0.40
0
6.20
0.50
1.27
8
.2284
.010
.016
0
.2440
.020
.050
8
D
L
A
h x 45
A1
C
- C -
e
SEATING
PLANE
B
L
.10 (.004)
C
Ordering Information
Part / Order Number
5P90005DCGI
Marking
see page 6
Shipping Packaging
Tubes
Package
8-pin SOIC
8-pin SOIC
Temperature
-40 to +85C
-40 to +85C
5P90005DCGI8
Tape and Reel
Parts ordered with a “G” after the two-letter package code are the Pb-Free configuration and are RoHS compliant.
While the information presented herein has been checked for both accuracy and reliability, Integrated Device Technology (IDT) assumes
no responsibility for either its use or for the infringement of any patents or other rights of third parties, which would result from its use. No
other circuits, patents, or licenses are implied. This product is intended for use in normal commercial applications. Any other applications
such as those requiring extended temperature range, high reliability, or other extraordinary environmental requirements are not
recommended without additional processing by IDT. IDT reserves the right to change any circuitry or specifications without notice. IDT
does not authorize or warrant any IDT product for use in life support devices or critical medical instruments.
IDT™ SERIAL REAL-TIME CLOCK
15
IDT5P90005
REV E 031209
IDT5P90005
SERIAL REAL-TIME CLOCK
RTC
Innovate with IDT and accelerate your future networks. Contact:
www.IDT.com
For Sales
800-345-7015
408-284-8200
Fax: 408-284-2775
For Tech Support
www.idt.com/go/clockhelp
Corporate Headquarters
Integrated Device Technology, Inc.
www.idt.com
© 2006 Integrated Device Technology, Inc. All rights reserved. Product specifications subject to change without notice. IDT and the IDT logo are trademarks of Integrated Device
Technology, Inc. Accelerated Thinking is a service mark of Integrated Device Technology, Inc. All other brands, product names and marks are or may be trademarks or registered
trademarks used to identify products or services of their respective owners.
Printed in USA
厂商 型号 描述 页数 下载

IDT

 		5P90005CDCGH [ Serial Real-Time Clock ] 15 页

IDT

 		5P90005CDCGH8 [ Serial Real-Time Clock ] 15 页

IDT

 		5P90005DCGI8 串行实时时钟[ SERIAL REAL-TIME CLOCK ] 16 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.203015s
