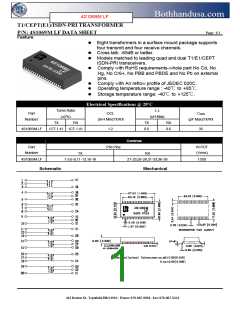

4S1069M LF
T1/CEPT(E1)/ISDN-PRI TRANSFORMER
P/N: 4S1069M LF DATA SHEET
Page :1/1
Feature
l Eight transformers in a surface mount package supports
four transmit and four receive channels.
l Cross talk: -65dB or better.
l Models matched to leading quad and dual T1/E1/CEPT
ISDN-PRI transceivers.
l
Comply with RoHS requirements-whole part No Cd, No
Hg, No Cr6+, No PBB and PBDE and No Pb on external
pins.
l
l
Comply with Air reflow profile of JEDEC 020C.
Operating temperature range : -40℃ to +85℃.
l
Storage temperature range: -40℃ to +125℃.
Electrical Specifications @ 25°C
Turns Ratio
(±2%)
L.L
Part
OCL
CW/W
(uH Max)
Number
(mH Min)TX/RX
(pF Max)TX/RX
TX
RX
TX
0.6
RX
0.6
4S1069M LF
1CT:1.41 1CT:1.41
1.2
35
Continue
Part
PRI Pins
HI-POT
(Vrms)
Number
TX
1-3,6-8,11-13,16-18
RX
4S1069M LF
21-23,26-28,31-33,36-38
1500
Schematic
Mechanical
