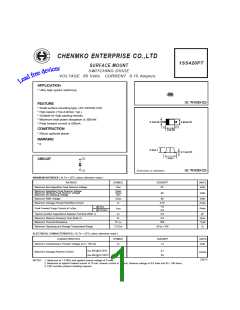

CHENMKO ENTERPRISE CO.,LTD
1SS420PT
SURFACE MOUNT
SWITCHING DIODE
VOLTAGE 85 Volts CURRENT 0.15 Ampere
APPLICATION
* Ultra high speed switching
SC-79/SOD-523
FEATURE
* Small surface mounting type. (SC-79/SOD-523)
* High speed. (TRR=4.0nSec Typ.)
* Suitable for high packing density.
* Maximum total power disspation is 300mW.
* Peak forward current is 500mA.
0.3±0.05
0.80±0.05
(1)
1.2±0.05
(2)
CONSTRUCTION
* Silicon epitaxial planar
MARKING
* 8
0.6±0.1
0.12±0.05
1.6±0.1
(2)
CIRCUIT
(1)
SC-79/SOD-523
Dimensions in millimeters
MAXIMUM RATINGES ( At TA = 25oC unless otherwise noted )
RATINGS
SYMBOL
VRM
1SS420PT
UNITS
Volts
Maximum Non-Repetitive Peak Reverse Voltage
85
80
Maximum Repetitive Peak Reverse Voltage
Maximum Working Peak Reverse Voltage
Maximum DC Blocking Voltage
VRRM
VRWM
VDC
Volts
Maximum RMS Voltage
VRMS
IO
60
Volts
Maximum Average Forward Rectified Current
0.15
Amps
@1Sec
1.0
2.0
Peak Forward Surge Current at 1uSec.
Amps
IFSM
@1.0uSec
Typical Junction Capacitance between Terminal (Note 1)
Maximum Reverse Recovery Time (Note 2)
Maximum Thermal Resistance
CJ
trr
4.0
4.0
pF
nSec
oC/W
R
JA
350
oC
Maximum Operating and Storage Temperaturd Range
TJ,TSTG
-65 to +150
ELECTRICAL CHARACTERISTICS ( At TA = 25oC unless otherwise noted )
CHARACTERISTICS
SYMBOL
1SS420PT
UNITS
Maximum Instantaneous Forward Voltage at IF= 150 mA
VF
1.2
Volts
VR= 80V @TJ=25oC
VR= 80V @TJ=150oC
0.1
50
IR
Maximum Average Reverse Current
uAmps
2002-5
NOTES : 1. Measured at 1.0 MHZ and applied reverse voltage of 0 volts.
2. Measured at applied froward current of 10 mA, reverse current of 1.0 mA, Reverse voltage of 6.0 volts and RL= 100 ohms.
3. ESD sensitive product handling required.
