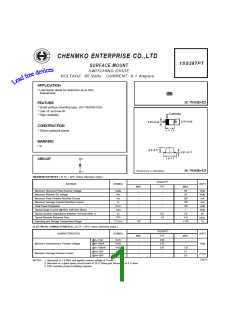

CHENMKO ENTERPRISE CO.,LTD
1SS387PT
SURFACE MOUNT
SWITCHING DIODE
VOLTAGE 85 Volts CURRENT 0.1 Ampere
APPLICATION
* Low barrier diode for detectors up to GHz
frequencies
SC-79/SOD-523
FEATURE
* Small surface mounting type. (SC-79/SOD-523)
* Low VF and low IR
Cathode
* High reliability
(1)
(2)
0.75~0.85
0.25~0.35
CONSTRUCTION
1.1~1.3
* Silicon epitaxial planar
MARKING
* G
0.5~0.77
0.07~0.17
1.5~1.7
(2)
CIRCUIT
SC-79/SOD-523
Dimensions in millimeters
(1)
MAXIMUM RATINGES ( At TA = 25oC unless otherwise noted )
1SS387PT
TYP.
RATINGS
SYMBOL
UNITS
MIN.
MAX.
Maximum Recurrent Peak Reverse Voltage
Maximum Reverse DC voltage
VRRM
VDC
IFM
-
-
85
80
Volts
Volts
mA
-
-
Maximum Peak Forward Rectified Current
Maximum Average Forward Rectified Current
Total Power Dissipation
-
-
200
100
150
1
-
IO
-
-
mA
PTOT
IFSM
CJ
-
mW
Amp
pF
-
-
Typical Surge Current (@10ms Half-Sine Wave)
Typical Junction Capacitance between Terminal (Note 1)
Typical Reverse Recovery Time
-
3.0
0.5
1.6
-
TRR
-
4.0
+125
nSec
oC
Operating and Storage Temperature Range
TJ,TSTG
-55
ELECTRICAL CHARACTERISTICS ( At TA = 25oC unless otherwise noted )
1SS387PT
TYP.
CHARACTERISTICS
SYMBOL
UNITS
Volts
MIN.
MAX.
@IF= 1mA
@IF= 10mA
@IF= 100mA
@VR= 30V
@VR= 80V
VF(1)
VF(2)
VF(3)
IR(1)
IR(2)
-
-
-
-
-
0.62
0.75
0.97
-
-
-
Maximum Instantaneous Forward Voltage
Maximum Average Reverse Current
1.20
0.1
0.5
uAmps
-
2002-6
NOTES : 1. Measured at 1.0 MHZ and applied reverse voltage of 0 volts.
2. Mounted on a glass epoxy circuit board of 20 X 20mm,pad dimension of 4 X 4mm.
2. ESD sensitive product handling required.
